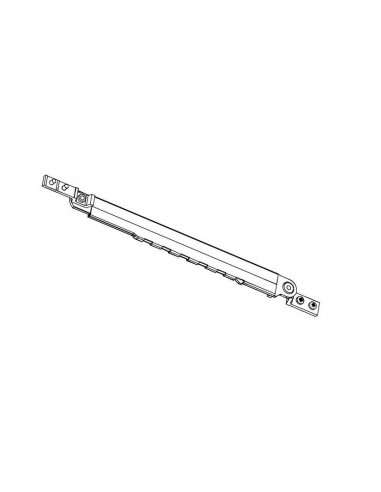

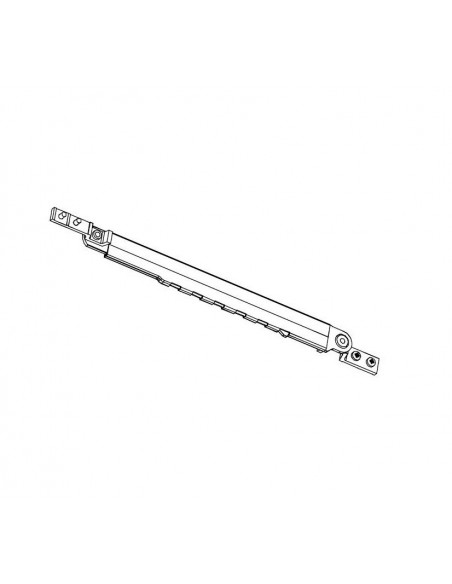

5-position projected window compass hinge

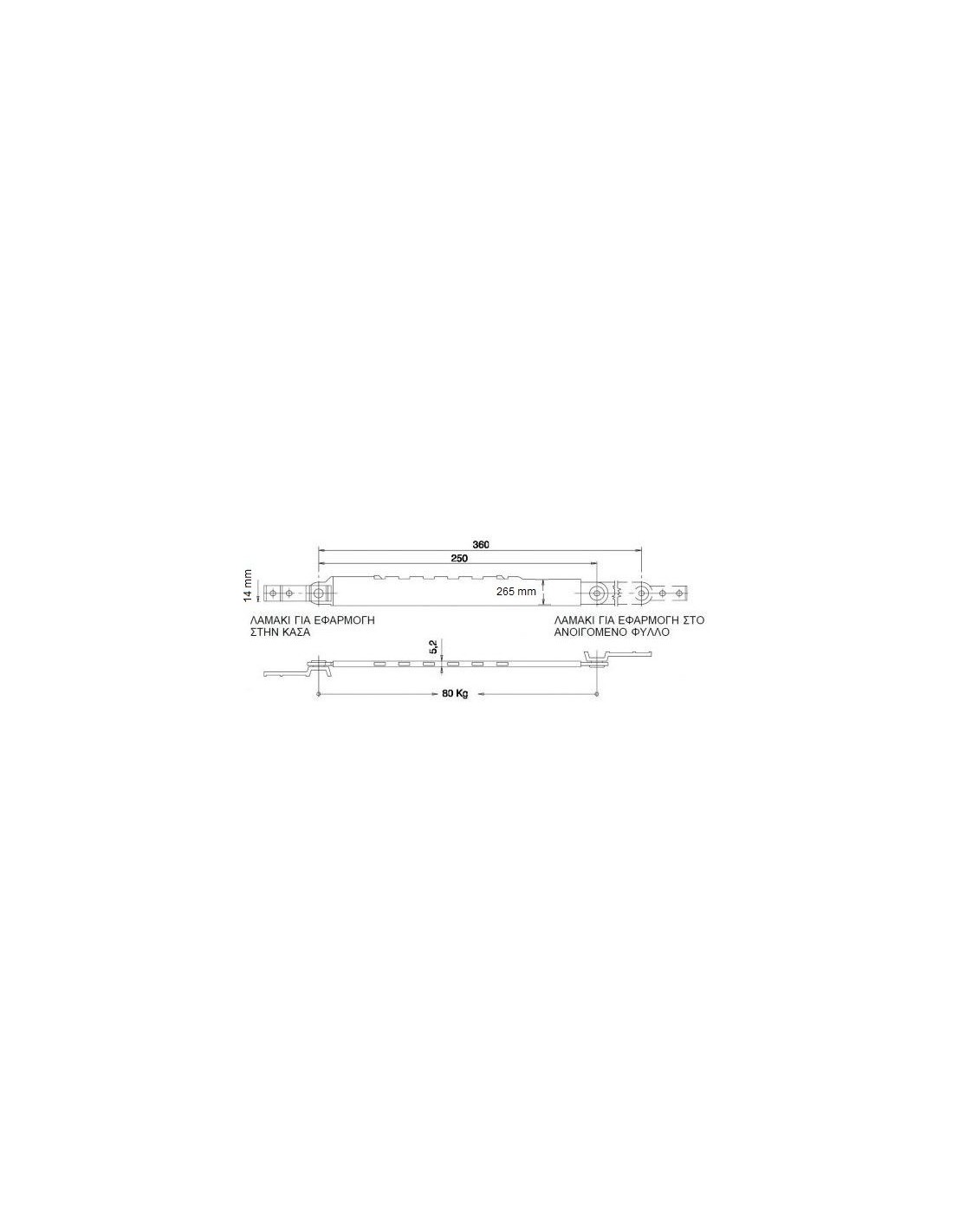

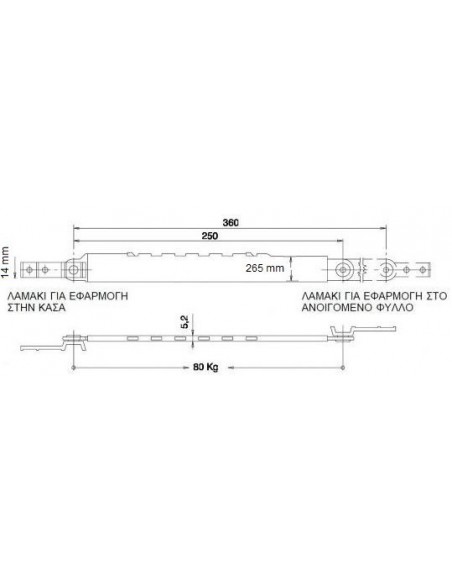

Technical Specifications

Fits all standard Euro groove and PVC groove windows.

The projected window compass hinge is a mechanism that allows windows to open in 5 different positions with a single motion.

5-position projected outward-opening limiter with retainer.

The use of high-quality materials provides the arm with stability and holding strength.

Closing is achieved by pushing the sash at the widest opening position.

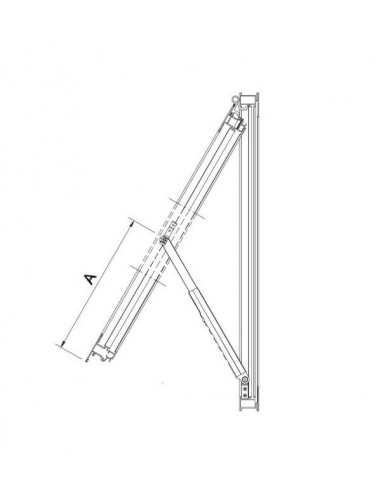

For proper operation, the compass hinge should not be installed higher than halfway up the height of the sash itself.
It is recommended to install the compass hinge on the frame side near the bottom corner.
This minimizes the sash’s opening in cases where an obstacle limits movement.
In this way, opening and closing are simplified, since the higher the arm is placed, the greater the opening radius and thus the greater the distance required for opening or closing.
