Projected window compass hinge
120-198

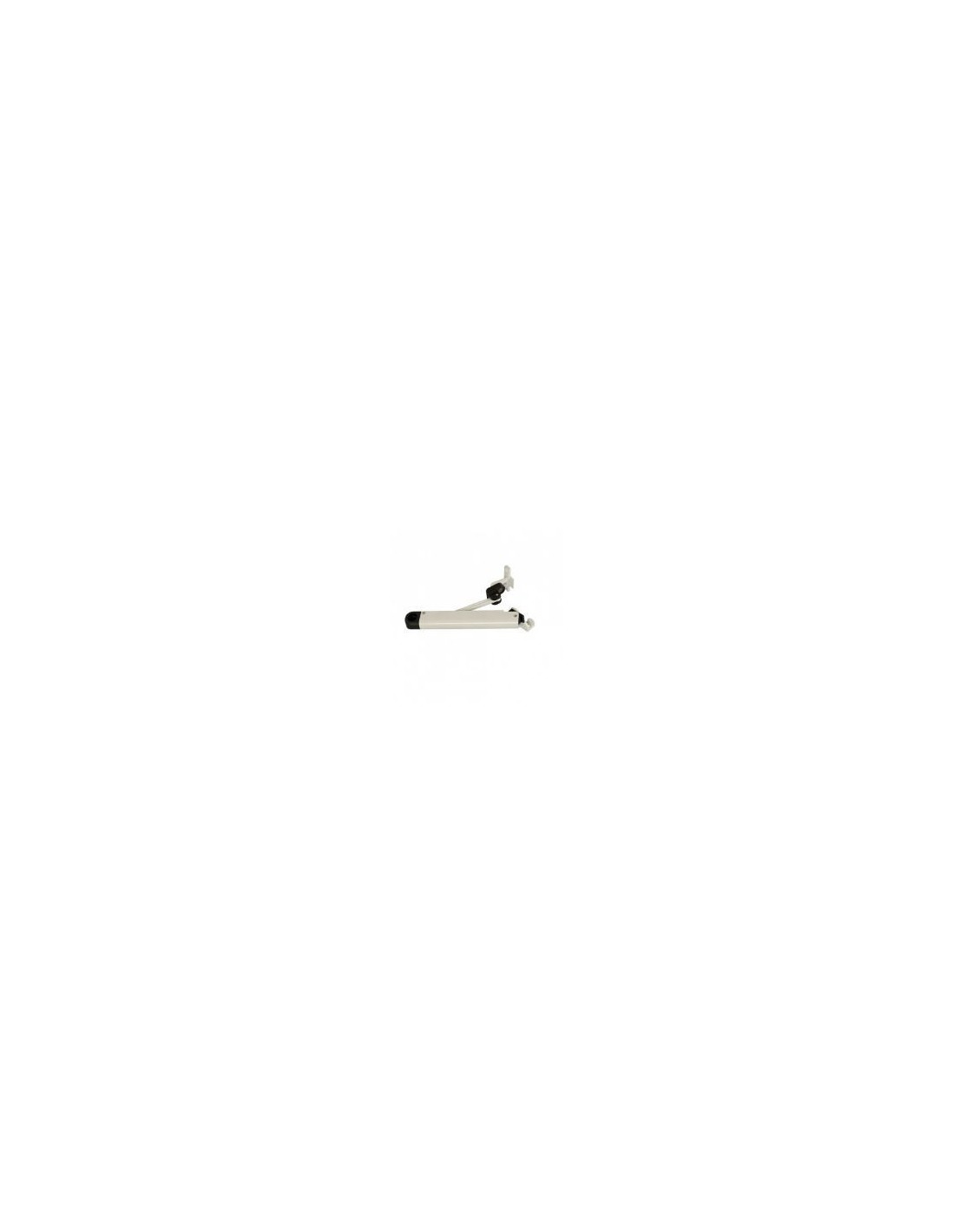

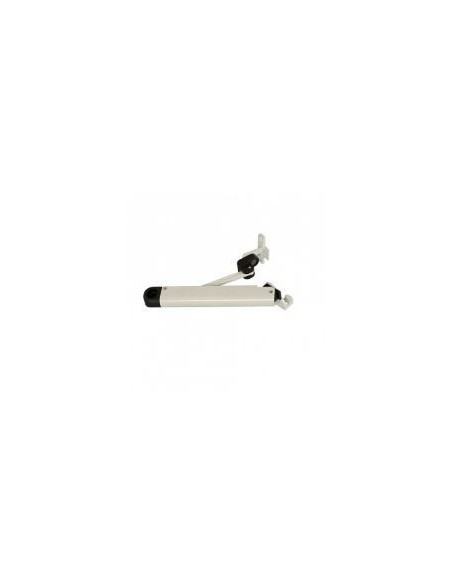

The projected window compass hinge is durable and easy to install. It ensures effective closing of projected windows.
When the window is closed, the hinge folds horizontally at 90˚ to minimize the mechanism’s space.
Technical Specifications
The projected window compass hinge is durable and easy to install. It ensures effective closing of projected windows.
When the window is closed, the hinge folds horizontally at 90˚ to minimize the mechanism’s footprint.
When the hinge is open:
-

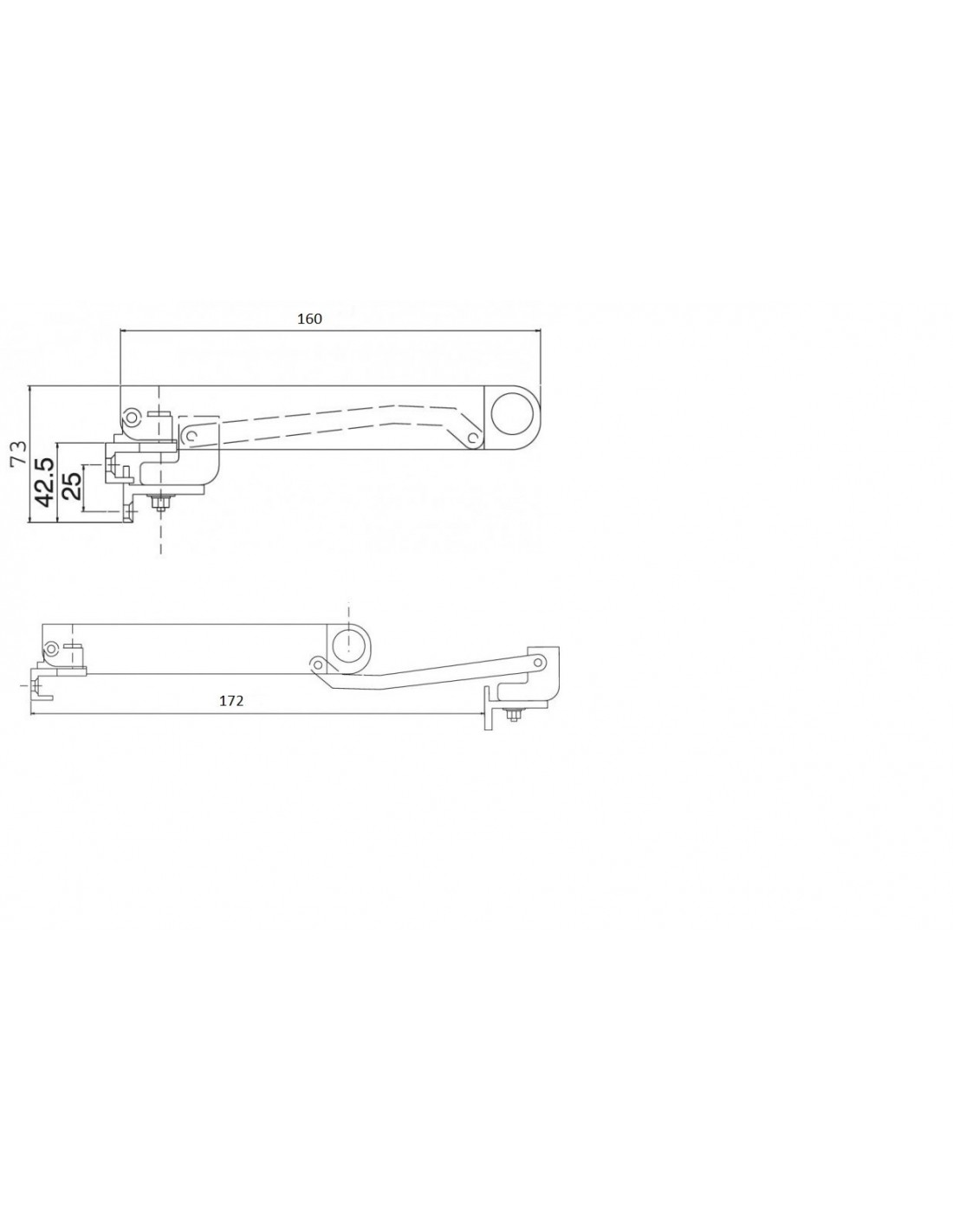

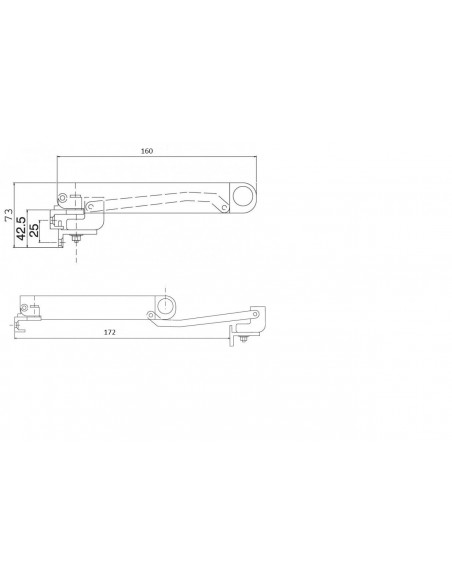

Code 00889 (SMALL COMPASS HINGE) has a maximum opening of 172 mm and can be used for windows with a width greater than 320 mm.
-

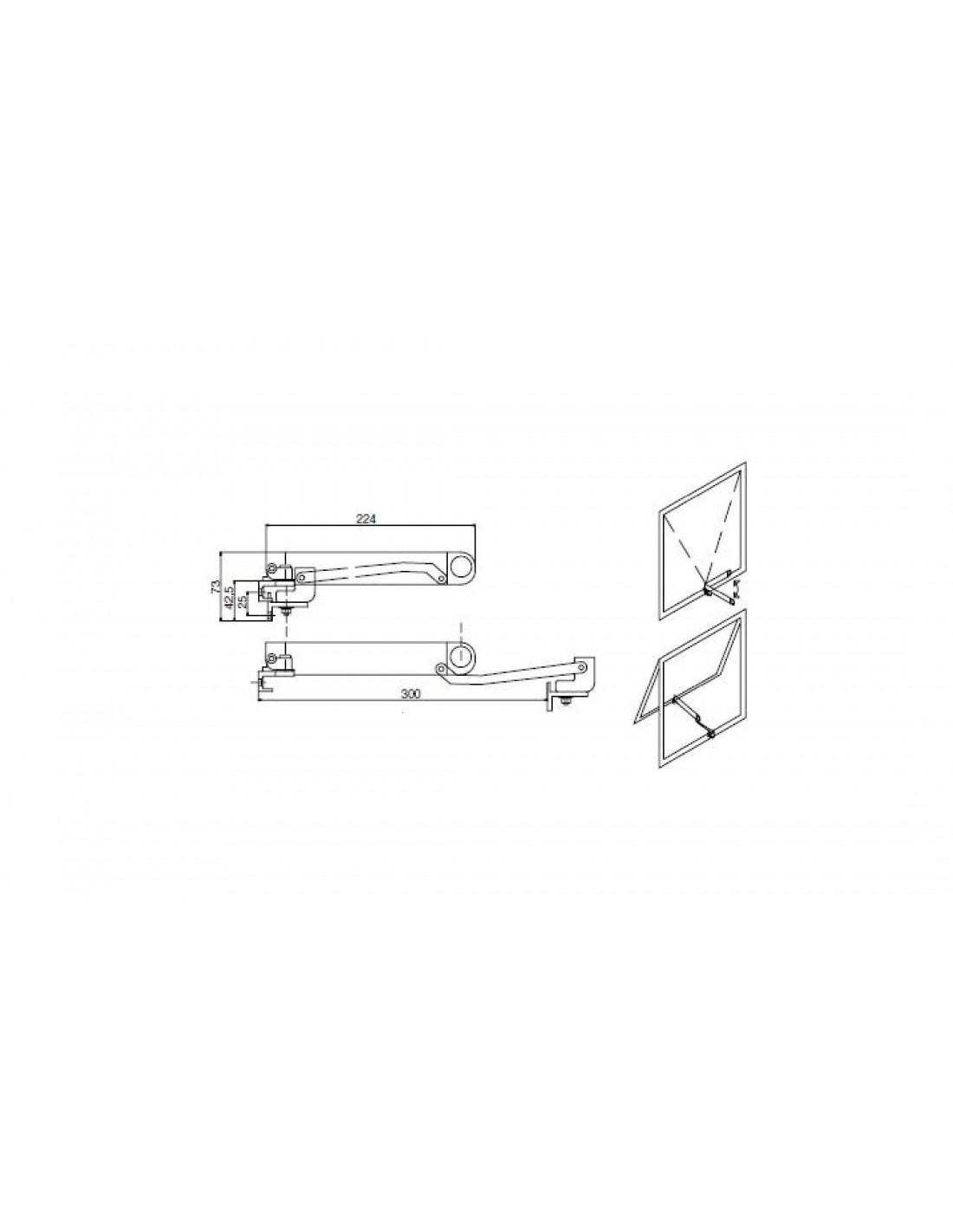

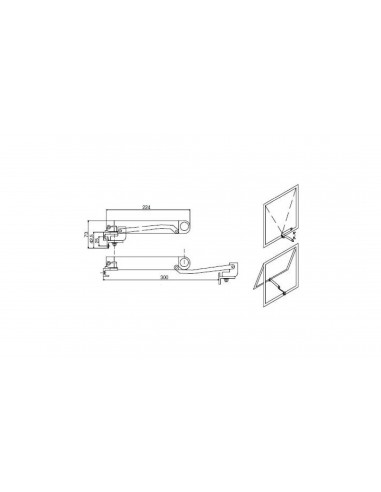

Code 00890 (LARGE COMPASS HINGE) has a maximum opening of 300 mm and can be used for windows with a width greater than 450 mm.
The hinge can be installed on profiles with a rebate (step) from 0 mm to 13 mm, as the locking tab is adjustable.
Available in colors: white, black
Contents:
-
2 left/right covers made of black nylon
-
2 yellow Rapid Inserts made of zinc-plated steel
-
2 M6 nuts made of zinc-plated steel
-
4 M6 × 16 screws made of stainless steel
-
4 nylon screw covers
