Panic bar with U three - point lock

Panic bars are mechanisms installed on doors – usually fire-resistant ones, but not exclusively – which ensure the smooth evacuation of a space in the event of a fire or any other general emergency. They are commonly used in places with large crowds, such as companies, schools, or shopping malls. An essential condition for installing a panic bar is that the door must OPEN OUTWARDS (as the mechanism is pushed).

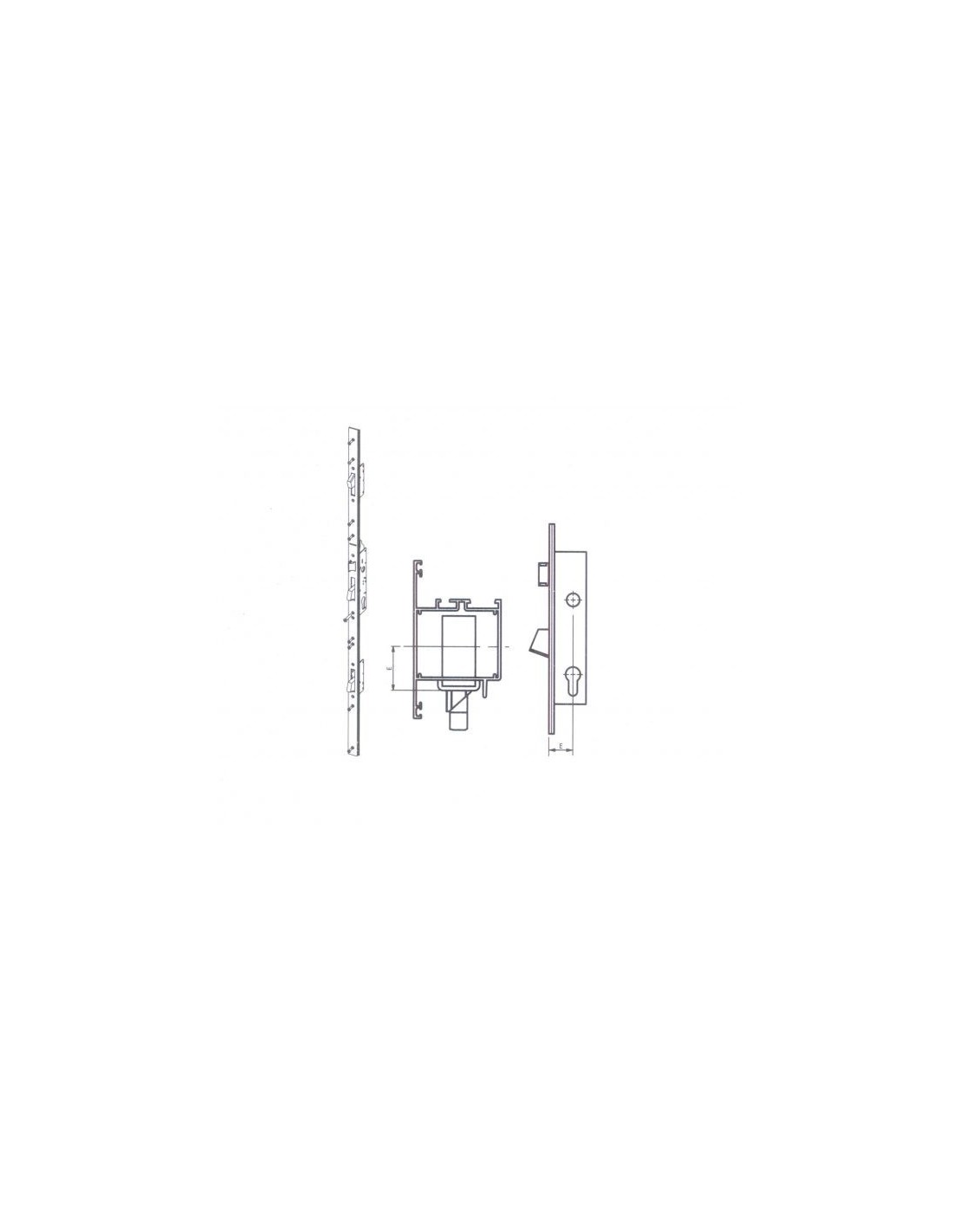

The panic bar mechanism with U-shaped three-point lock includes:

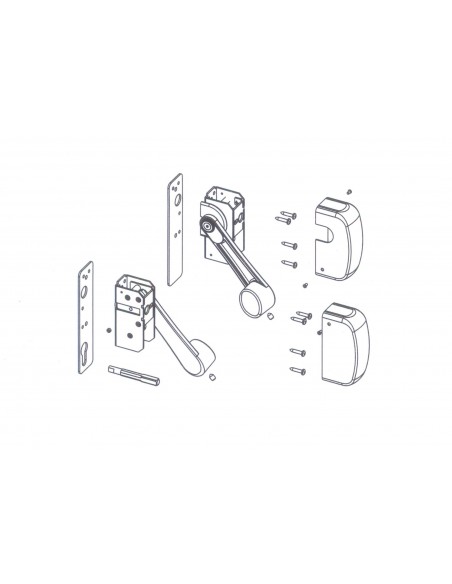

• The mechanism for the blade-type lock.

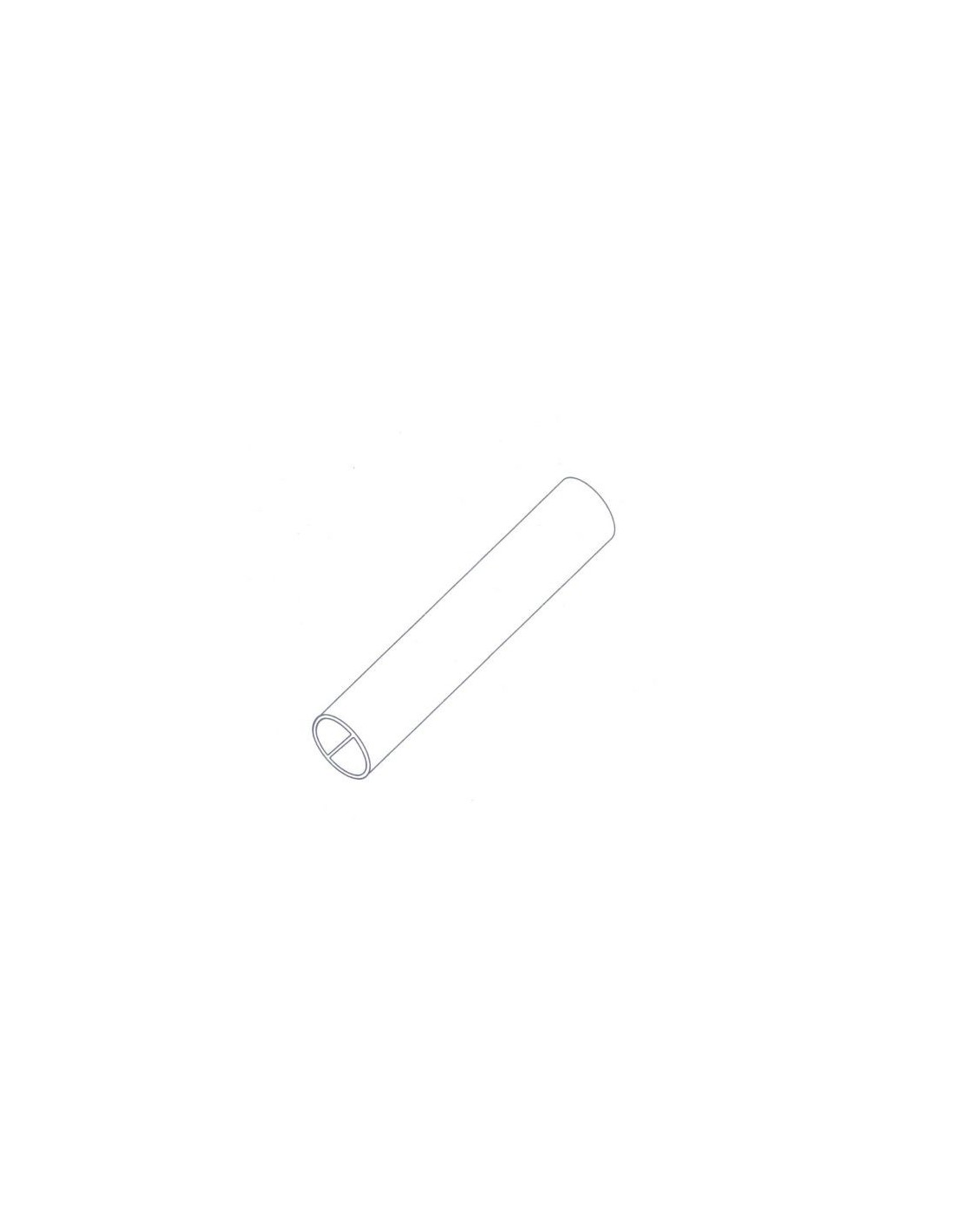

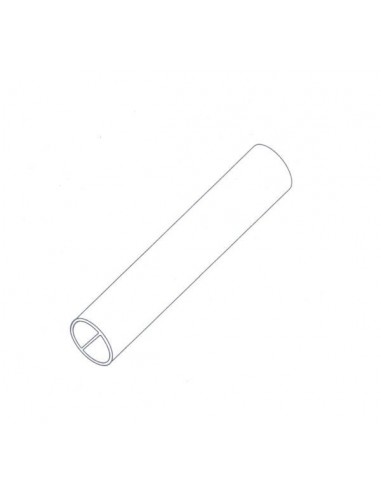

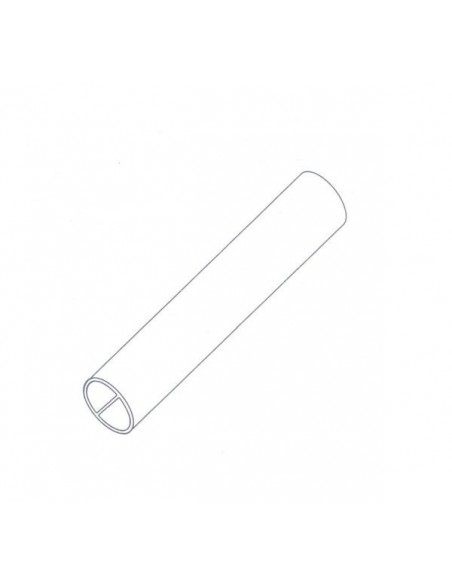

• The bar profile.

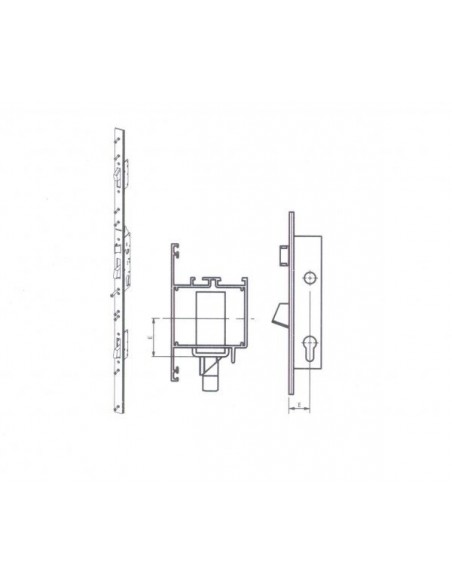

• Three-point lock with U-shape & 35mm.

Features
The blade lock mechanism has a reversible system. The bar profile is available in three different sizes for doors with a maximum width of up to 1500mm. The lock is a three-point blade type, with a U-shaped latch.
Suitable for aluminum, iron, PVC, PVC-composite, stainless steel, wooden, and steel doors.

Available in black color RAL 9005.
