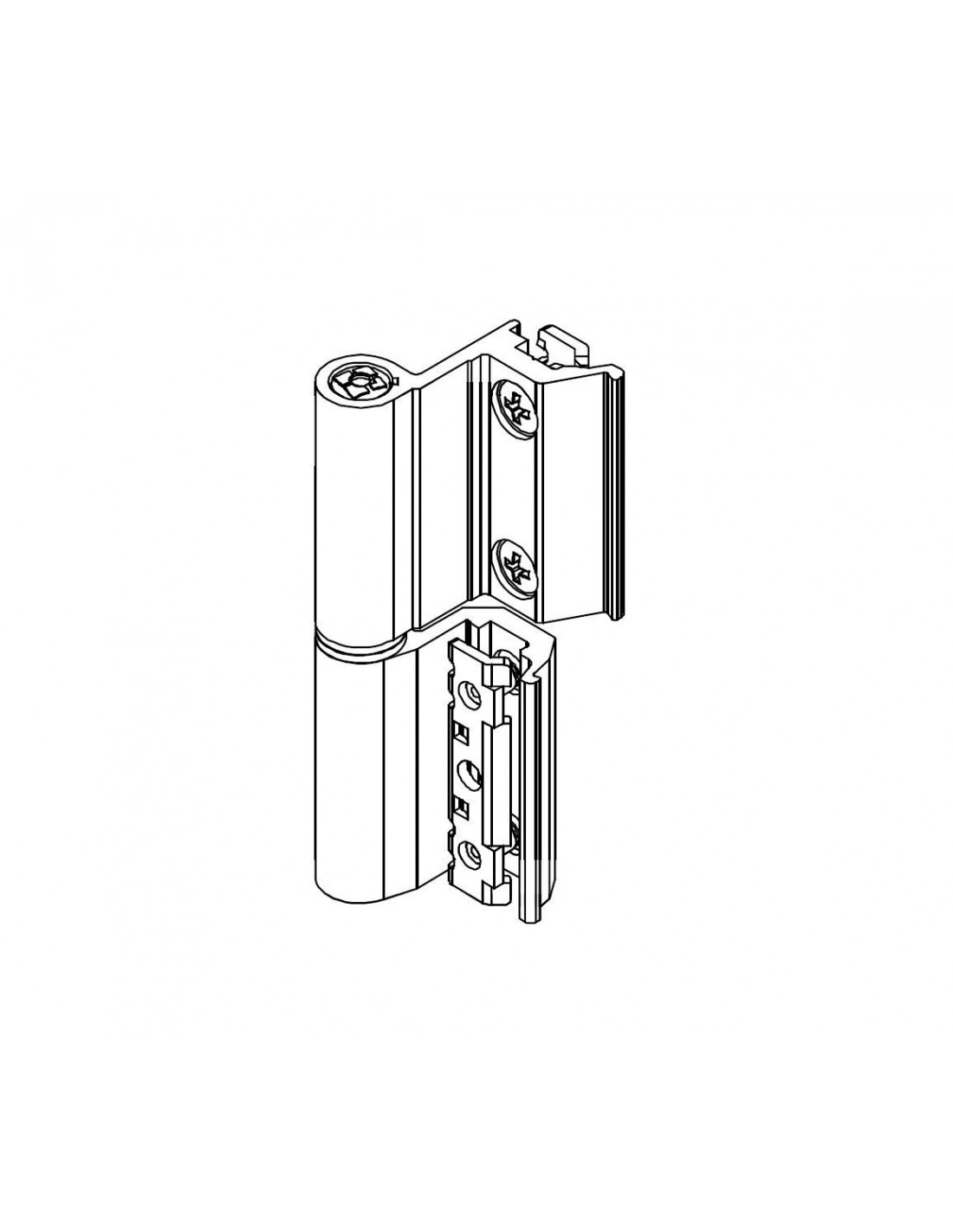

FLASH simple hinge

Applications
Left / right hinge for opening aluminum doors and windows.
It has the precision features of GIESSE hinges and can be installed on the frame quickly, even if the frame has already been assembled.

Ask about product
FLASH simple hinge

FLASH simple hinge





Applications
Left / right hinge for opening aluminum doors and windows.
It has the precision features of GIESSE hinges and can be installed on the frame quickly, even if the frame has already been assembled.

Contents
2 application plates
4 screws TGS M5×10

Materials
Hinge made of extruded aluminum
Pin and screws made of stainless steel (INOX)
Plates made of stainless steel (INOX)
Pin sleeves made of black NYALON

Weights
With 2 hinges: 75 kg
With 3 hinges: 85 kg
Refers to a door with a height of 2000 mm and a width of 1000 mm.

Available unfinished and in RAL colors.

Technical characteristics

The hinge is supplied assembled and features the GIESSE – RAPID quick installation system.

The special shape of the hinge and plates allows practical and fast installation on already assembled frames, ensuring the correct position of the hinge during screwing.
