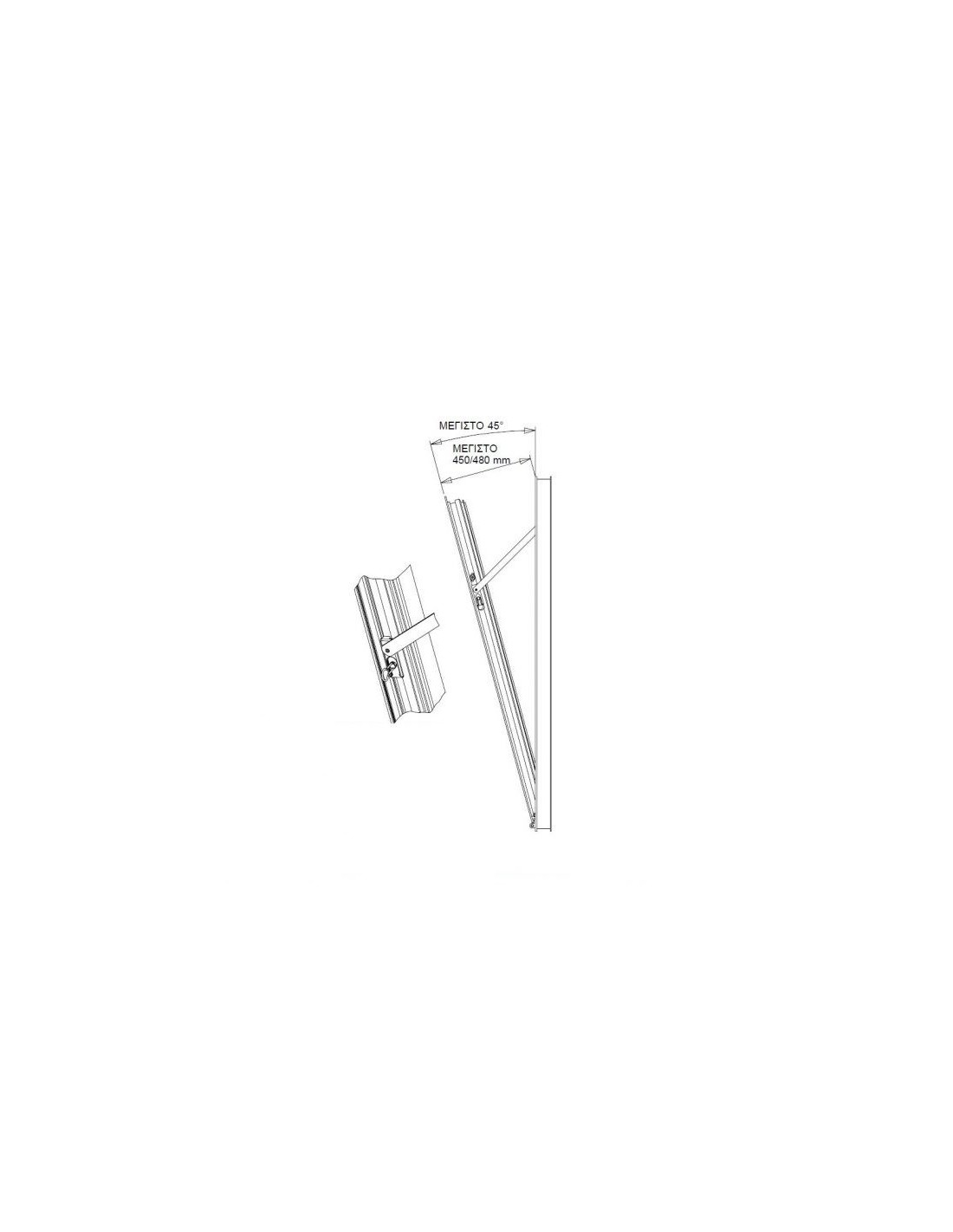

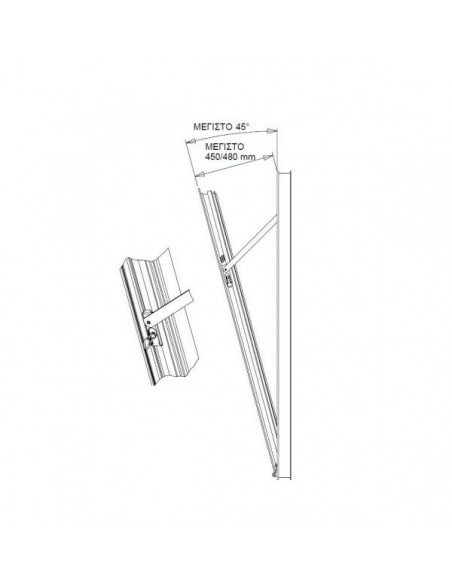

Applications The arm limits the movement of a window supported at the bottom, slowing it down during the stopping phase. It is available in two sizes: 15cm and 25cm. The large arm is for windows of height that are supported at the bottom.
Available in a rough finish.
Technical Specifications
The arm slows down the window at the end of the opening phase, preventing dangerous and annoying slams when the window closes (patented GIESSE system).

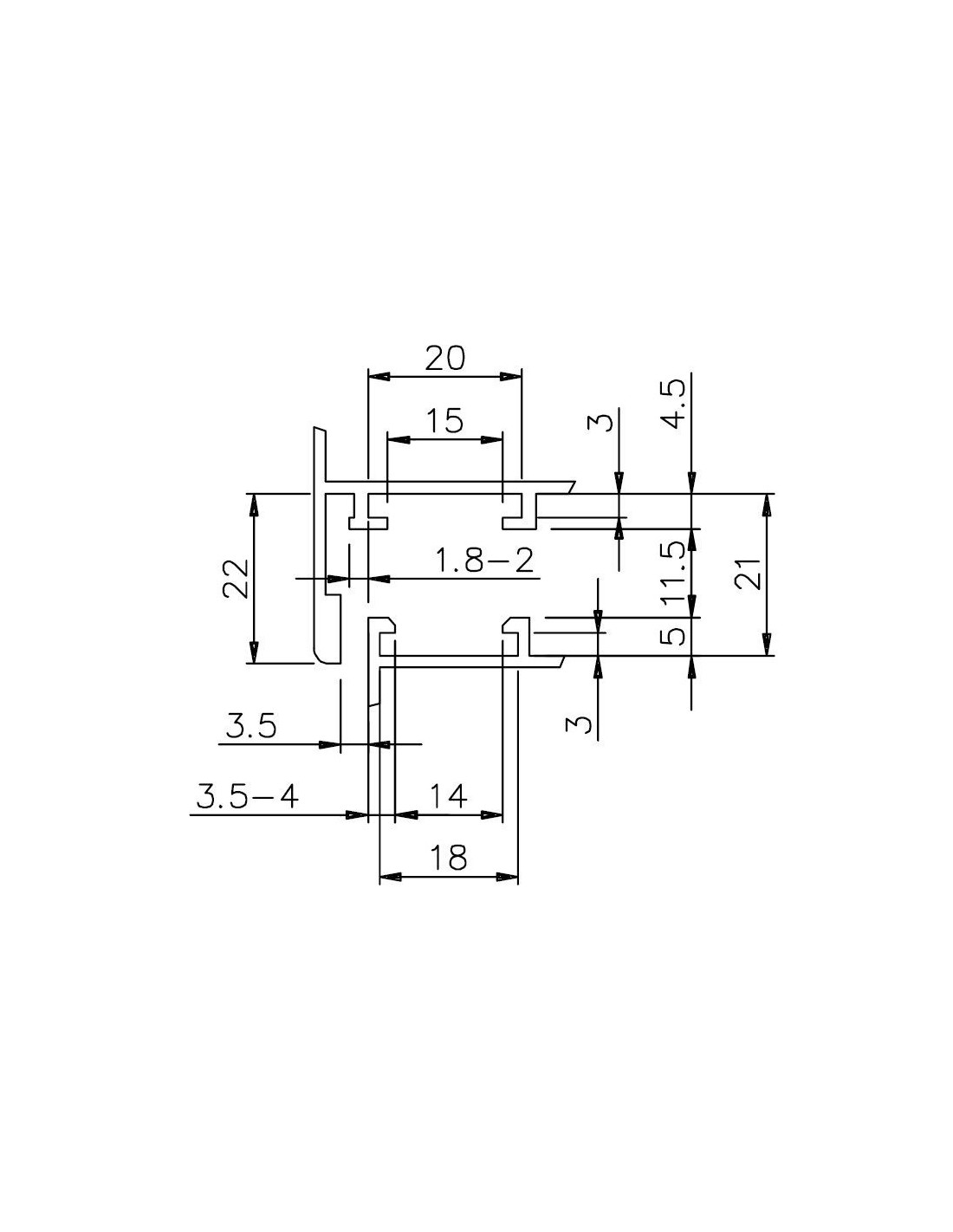

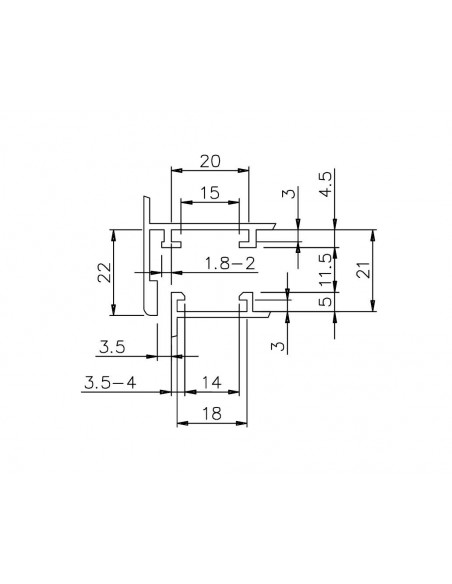

The arm fits perfectly on the guide with a simple adjustment using a 2.5mm Allen key. No drilling or profile processing is needed. Install the arm once the entire frame is assembled. There is no need to insert shims or other components into the channels before final assembly. Therefore, the device can be installed on existing frames without requiring disassembly.
The arm features a simple lever for easy release from the opening frame.
The release lever is very easy to operate, making cleaning from the outside simple.
By using the arm, the window supported at the bottom can be mounted on the frame without cutting the grooves. This allows the window frame manufacturer to avoid a process that is standard for all other frame types, thus reducing required time and production costs.
All materials used for the arm’s construction are corrosion-resistant and do not degrade over time.

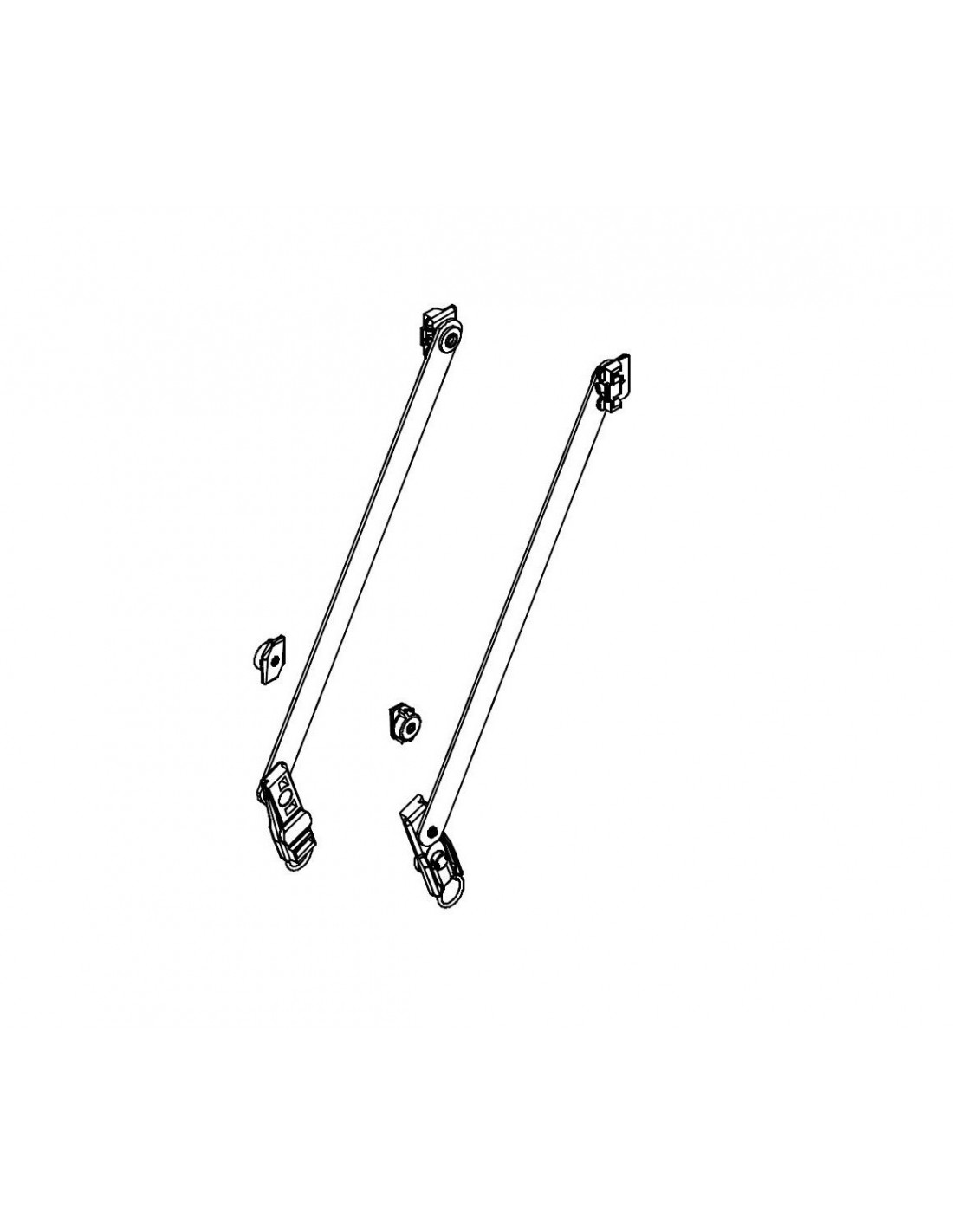

Each item refers to a pair of arms. For proper installation, there is a distinction between the left (SX) and right (DX) arm.
