Technical specifications:

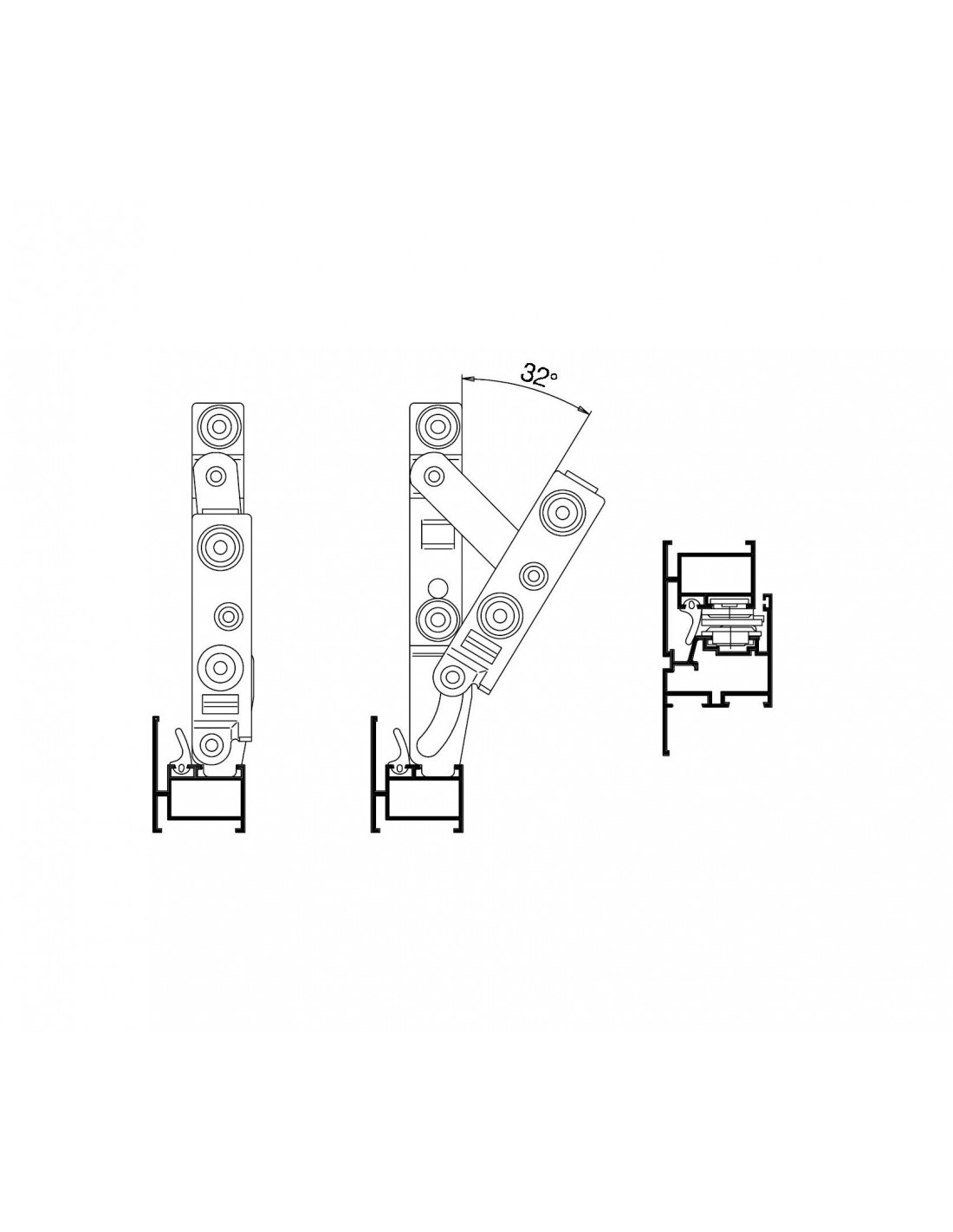

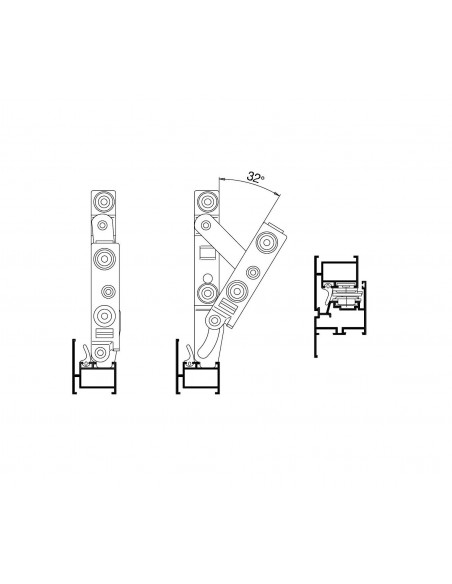

It is stabilized with eccentric tabs and allows the opening of a skylight or window up to 32˚.
The use of the compass hinge enables the creation of skylights without using traditional hinges.
Applications
Compass hinge for skylights with quick installation and secure stabilization. Allows the skylight to open without traditional hinges.
Contents
8 screws TSP M5×8
4 eccentric tabs
2 tabs
Materials
Hinge and tabs made of Zinc-plated steel
Tabs made of stainless steel
Long screws and tabs made of Zinc-plated steel
Weights
With hinges:
20 kg for skylights with a maximum height of 700 mm
For greater heights, the tilt compass hinge is recommended.
Available unfinished.
