Applications
Adjustable hinge for doors. The hinge is installed in the same way as a window hinge and uses the same type of plates and supports for adaptation to the frame.
Applications
Adjustable hinge for doors. The hinge is installed in the same way as a window hinge and uses the same type of plates and supports for adaptation to the frame.
Contents
-
2 mounting brackets
-
4 countersunk screws M6×12 UNI 5933
-
2 fastening screws M6×10 UNI 5929
-
1 safety screw M5×7 UNI 59237, pre-installed
Materials
-
Hinge made of extruded aluminum
-
Fastening screws made of stainless steel (INOX)
-
Mounting brackets made of extruded aluminum
-
Bushings and washers made of black NYLON
-
Nylon screw covers
Weights
-
With two hinges for light-duty use: 100 kg
-
With two hinges for heavy-duty use: 80 kg
(For a door 2 m high and 1 m wide)
Available colors
Unpainted and in RAL colors.
Technical specifications
-
FLASH XL is a door hinge that, unlike conventional door hinges which are mounted on the front, requires no drilling for installation.
-
No special jigs are needed, significantly reducing installation time.
-

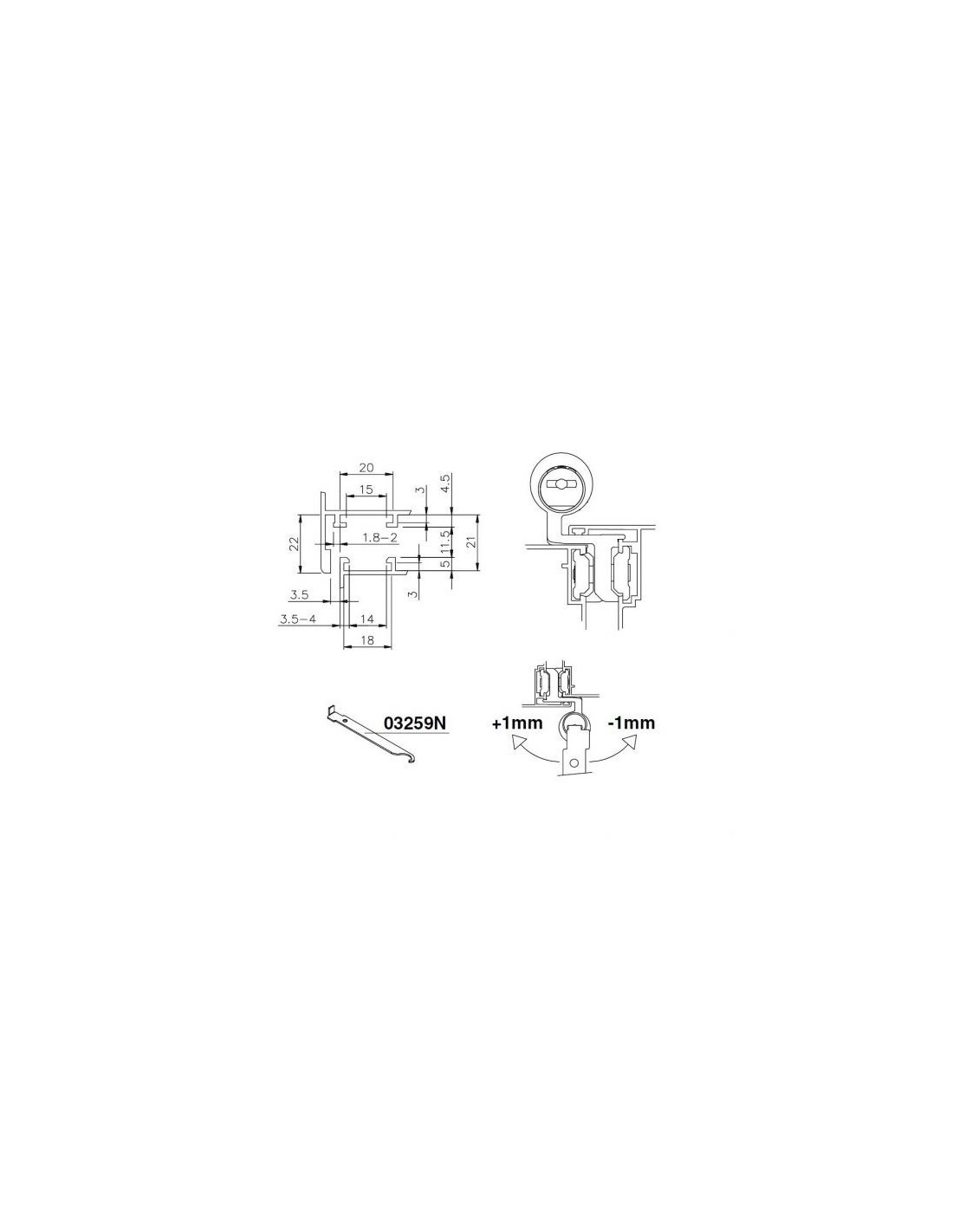

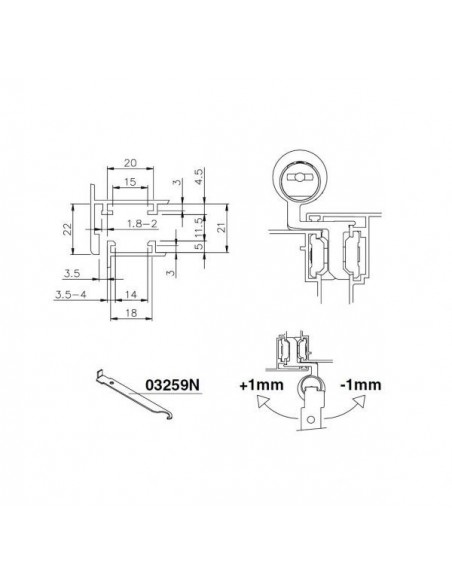

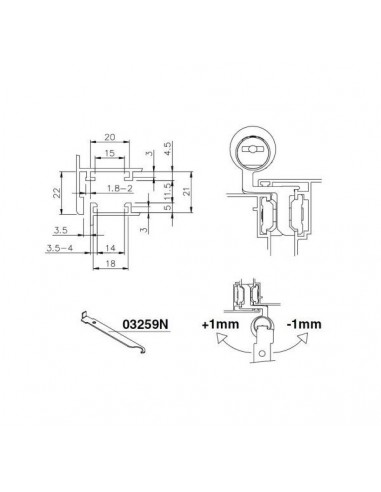

Side adjustment range from +1 to -1 mm, allowing the door-to-frame gap to be adjusted within this range without lifting the door.
-
Supplied with two pre-installed fastening screws that, when tightened, clamp securely to the frame and prevent the hinge from sliding under longitudinal load.
-
The fastening screws must only be tightened once the hinge is fully installed and the screws are fully secured.
