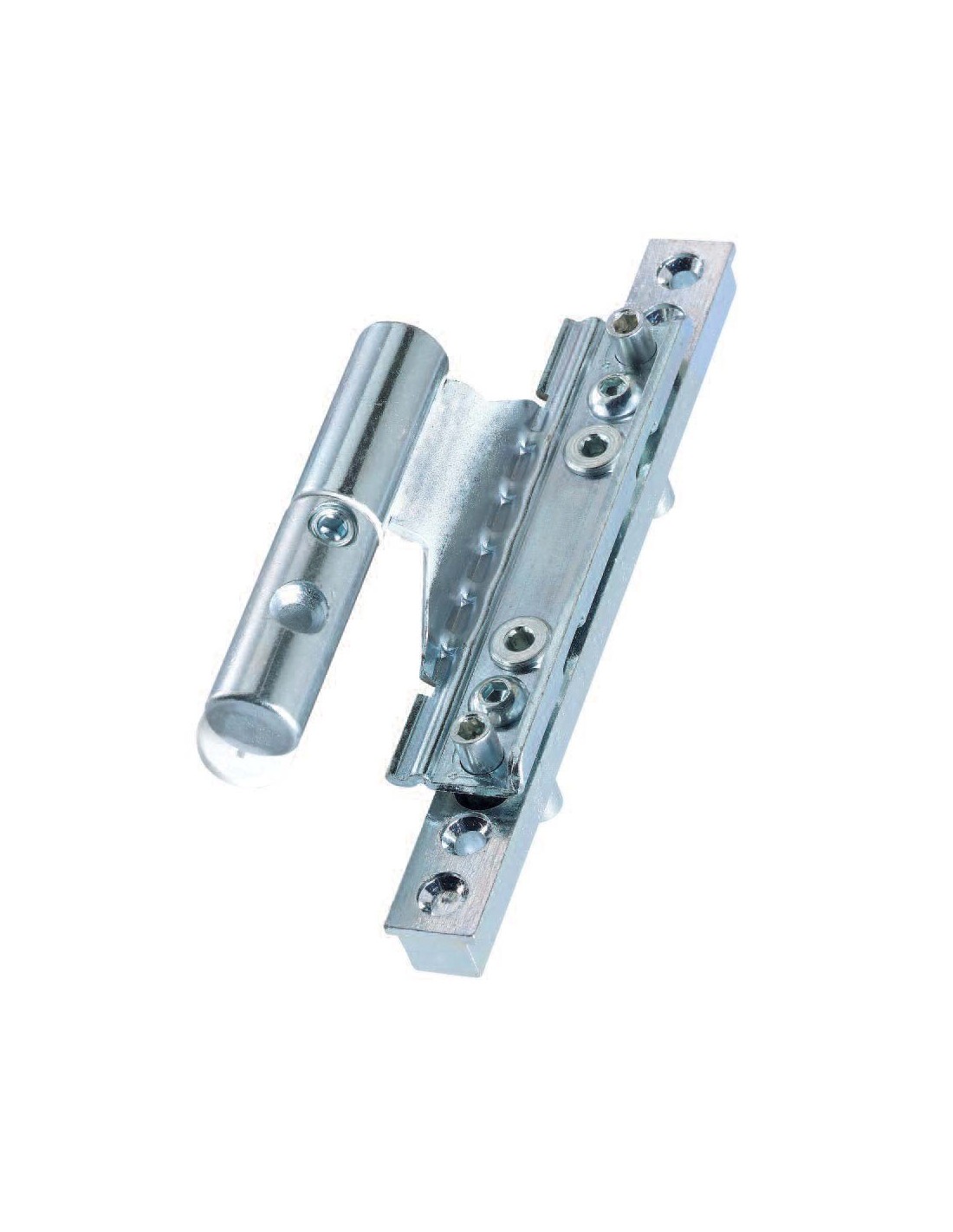

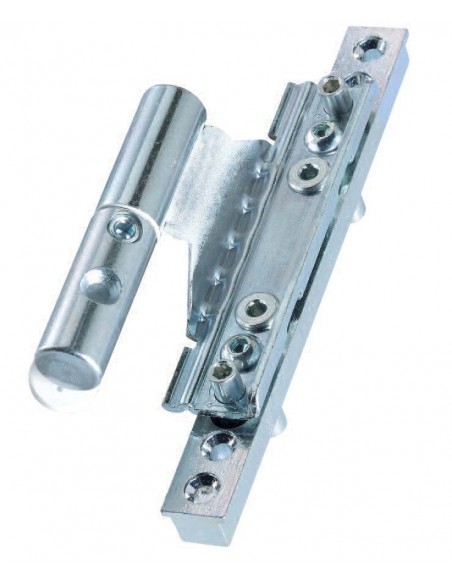

Heavy-duty hinge
126-160, 126-164, 126-162

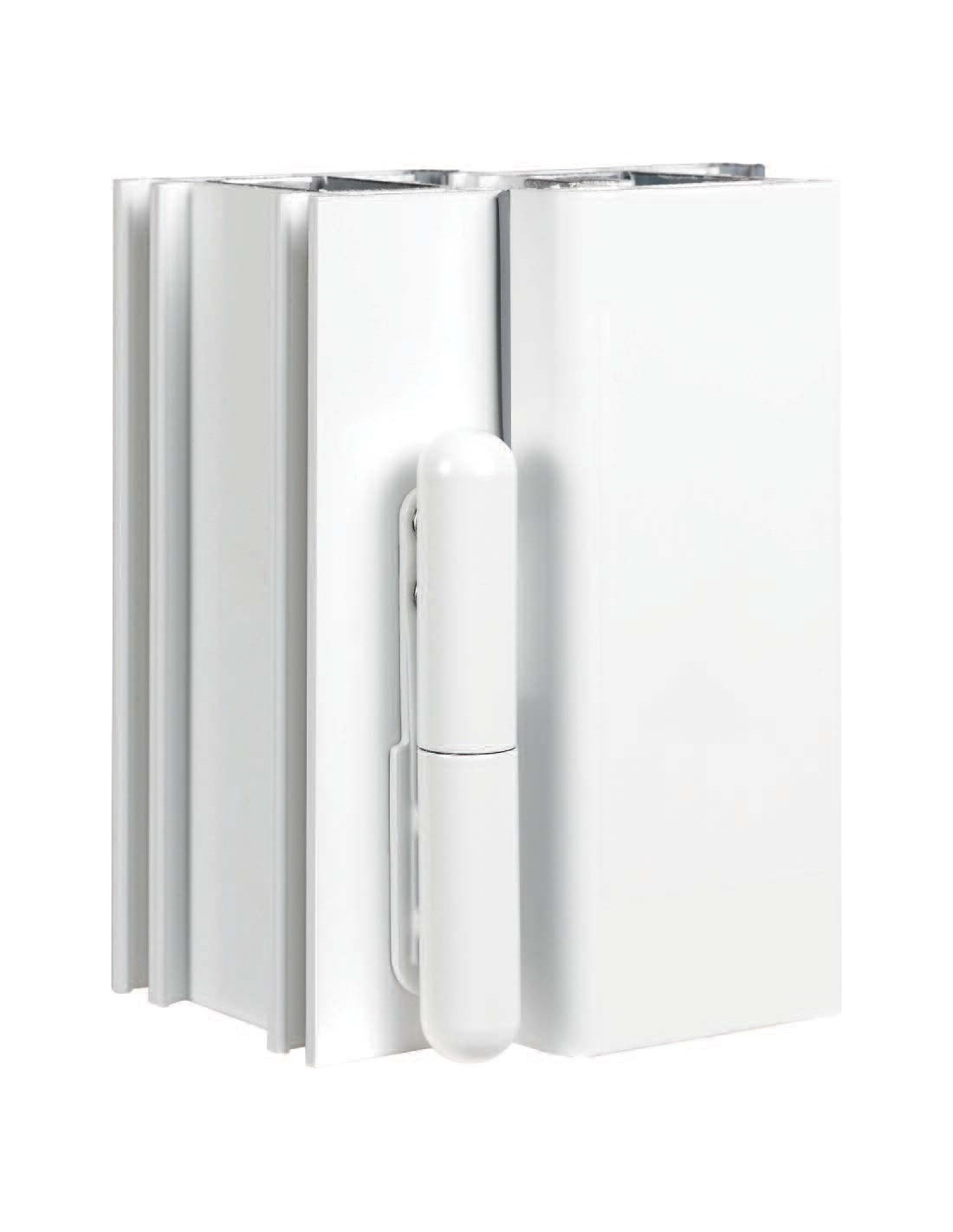

The heavy-duty hinge with a 9 mm pin was developed out of the need for an adjustable hinge for aluminum entrance doors, which also considers the aesthetic impact on the door frame.
It is a unique product that cleverly combines clean lines, offers high durability capabilities, and technical flexibility (adjustability).
The heavy-duty hinge with a 9 mm pin was developed out of the need for an adjustable hinge for aluminum entrance doors that takes into account the aesthetic impact on the door frame.
It is a unique product that cleverly combines clean lines, offers high durability, and technical flexibility (adjustability).

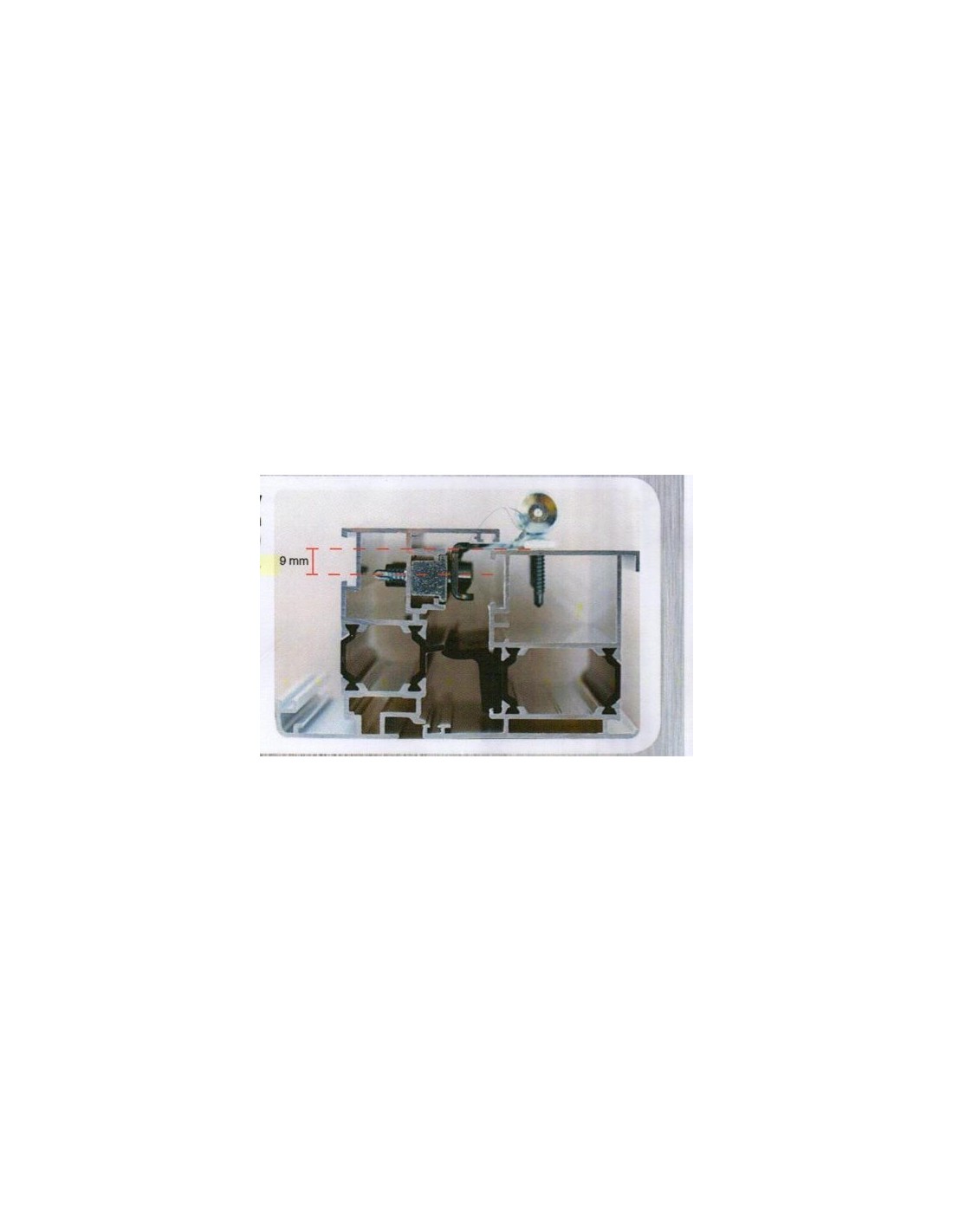

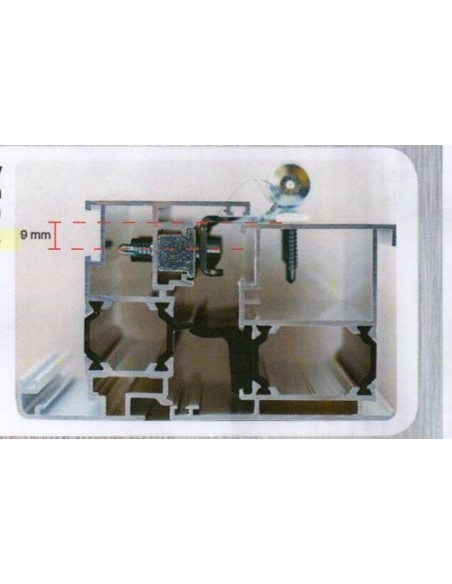

It is suitable for profiles with a European rebate (perimeter camera) with a 9 mm pin, which is widely used in aluminum frames.
Technical Characteristics
Adjustments

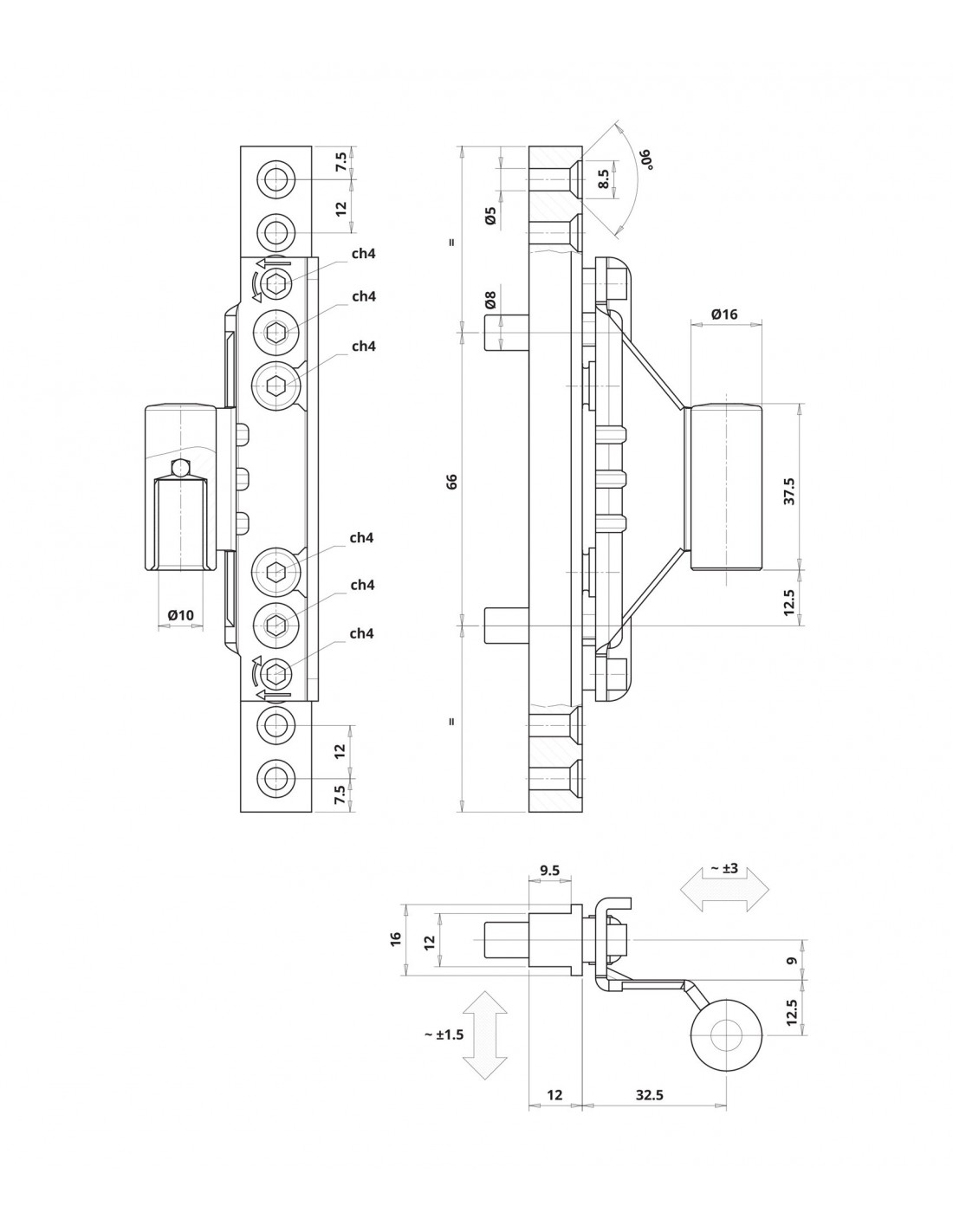

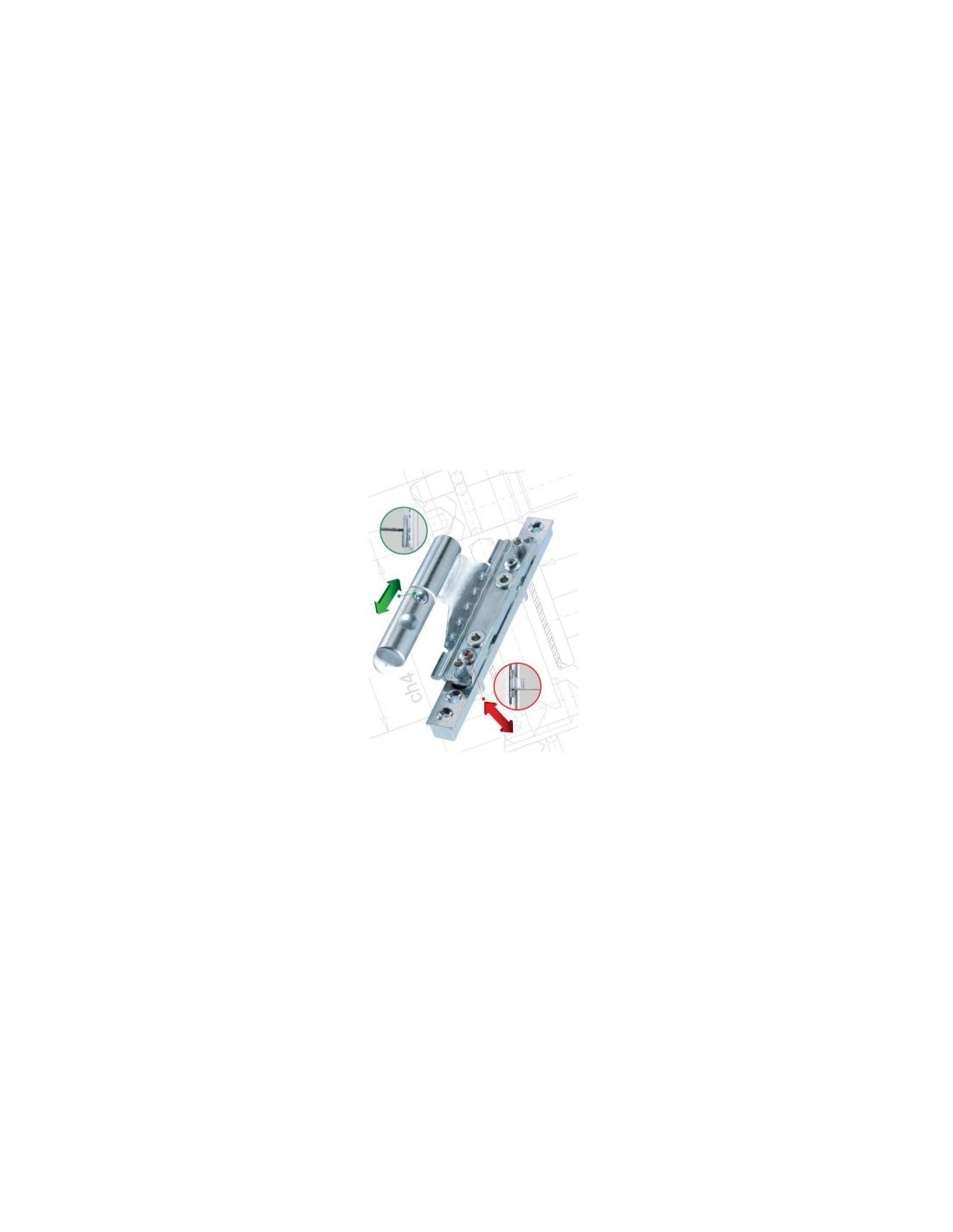

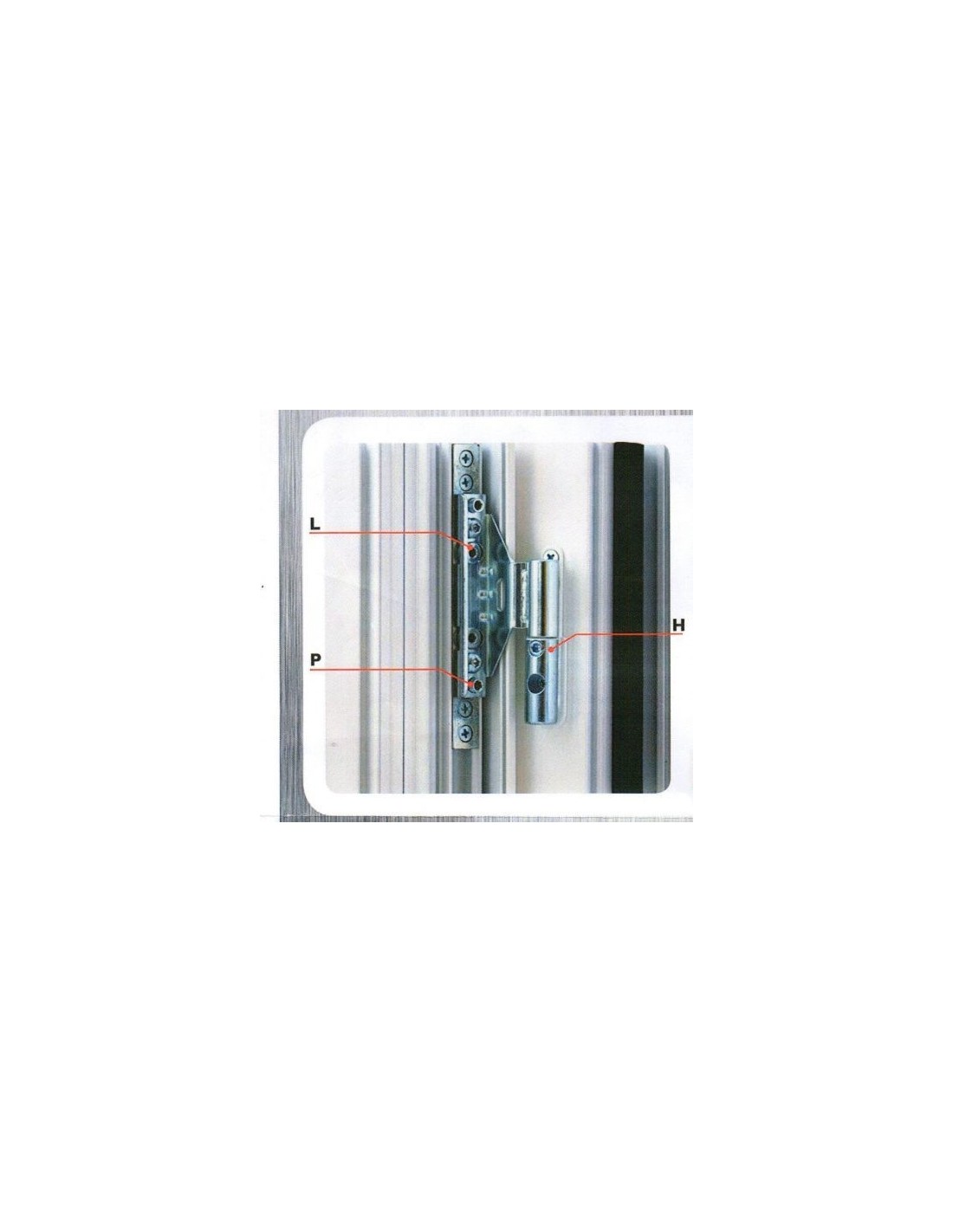

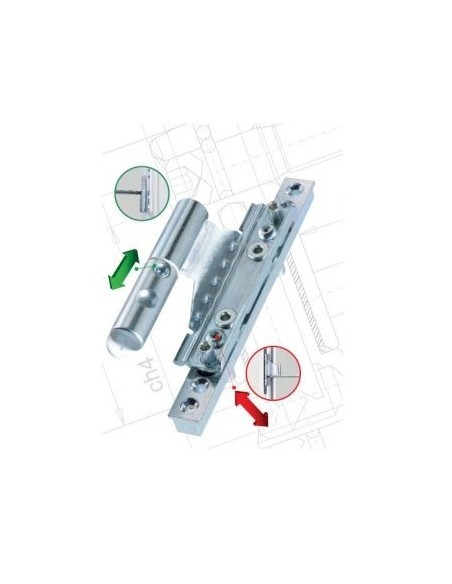

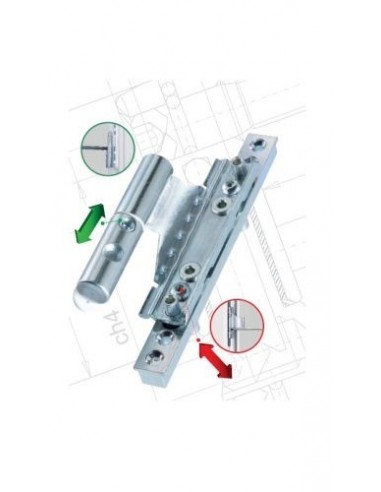

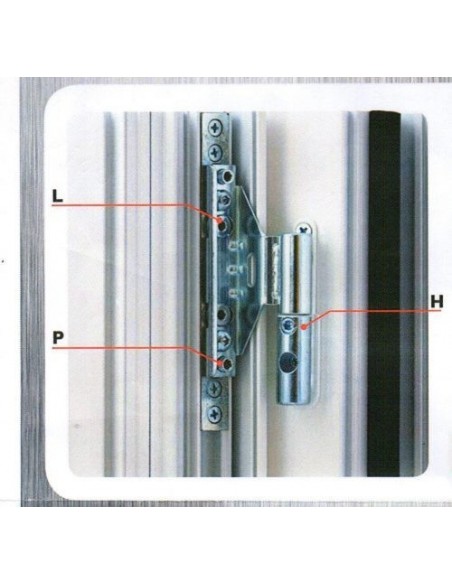

It can be adjusted along three axes: lateral movement, depth, and height. Specifically:
a) adjusts up and down (height)
b) adjusts right and left (lateral movement)
c) adjusts inward and outward (depth).

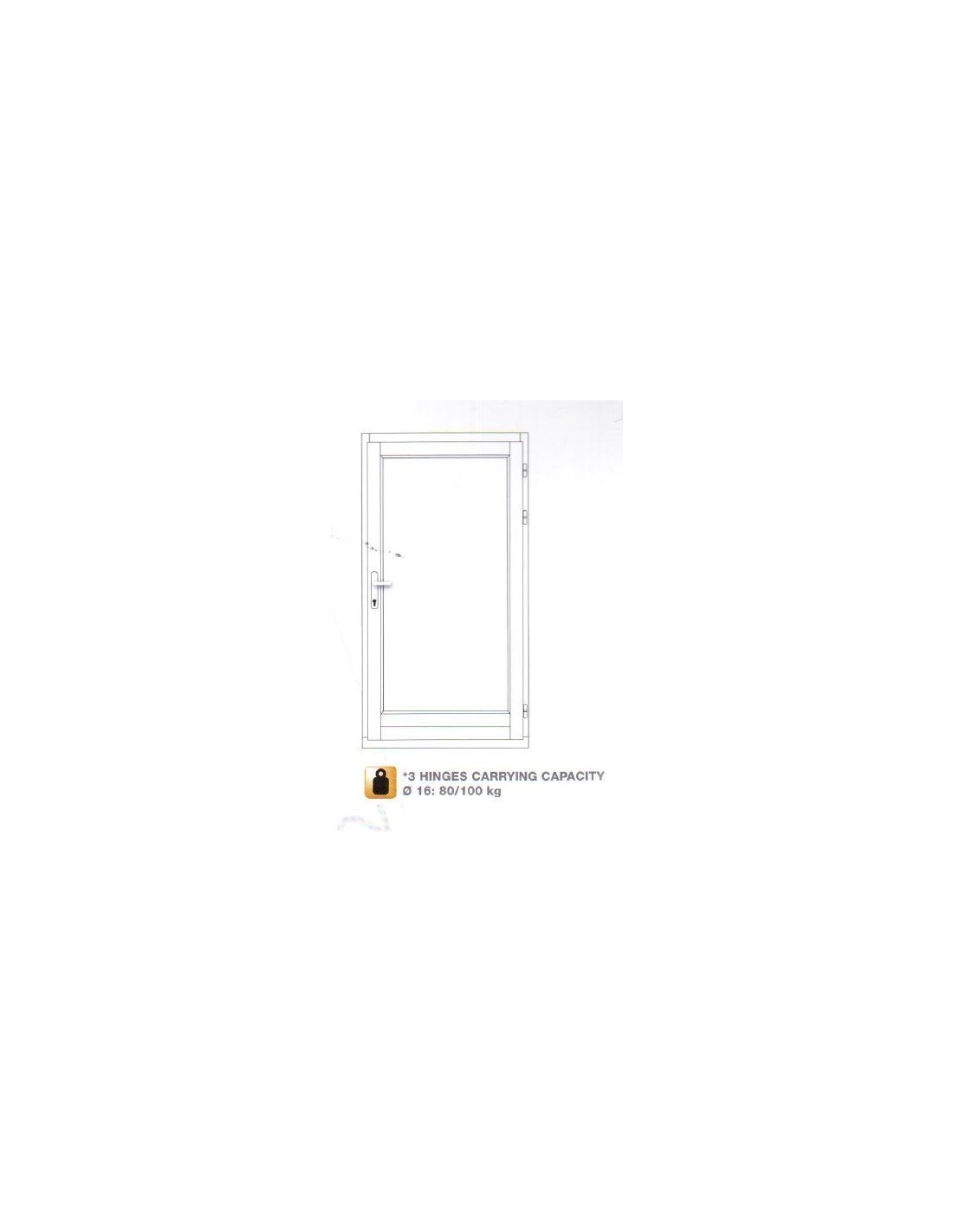

Three heavy-duty hinges can support a door weighing 80 to 100 kg.

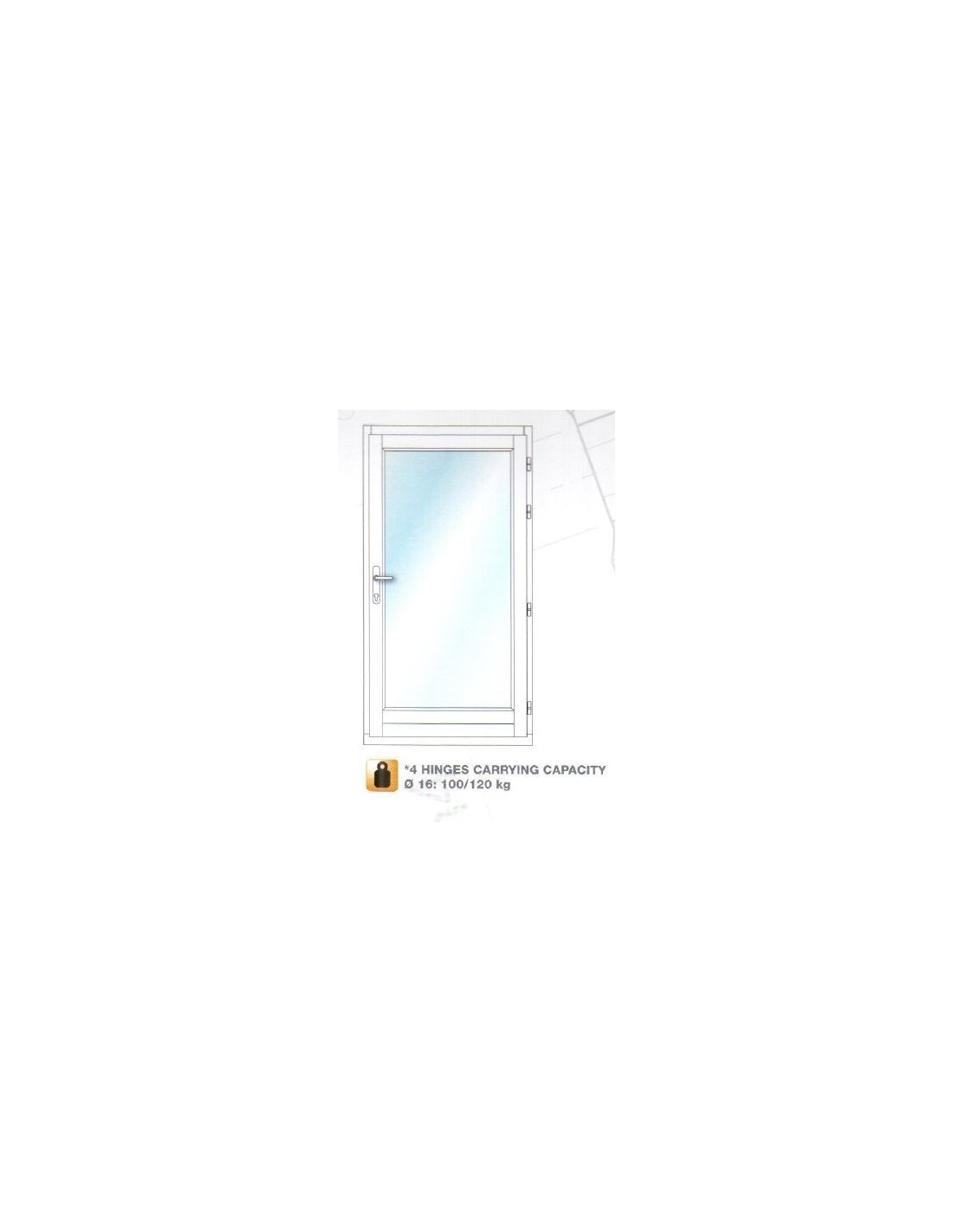

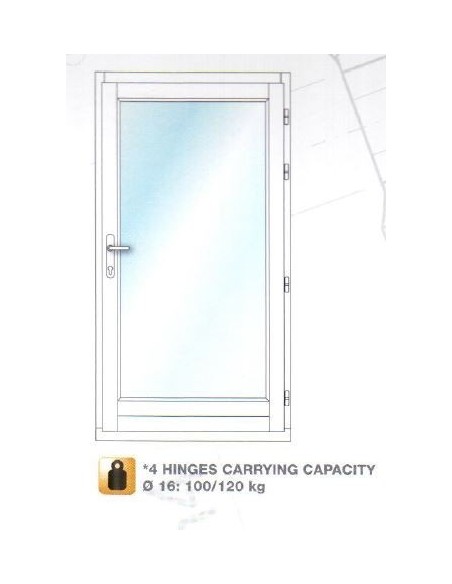

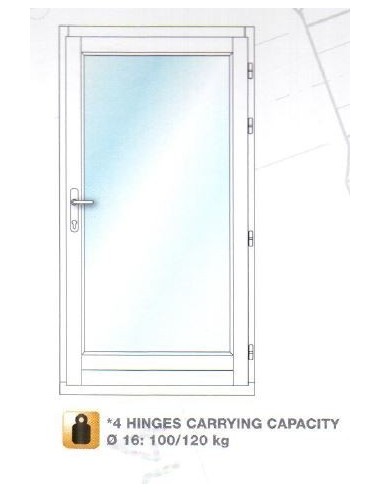

Four heavy-duty hinges can support a door weighing 100 to 120 kg.
Stability
Installing the hinge directly into the groove ensures stability and ease of installation.
Durability
The hinge ensures a low friction coefficient and maximum durability.
Aesthetics

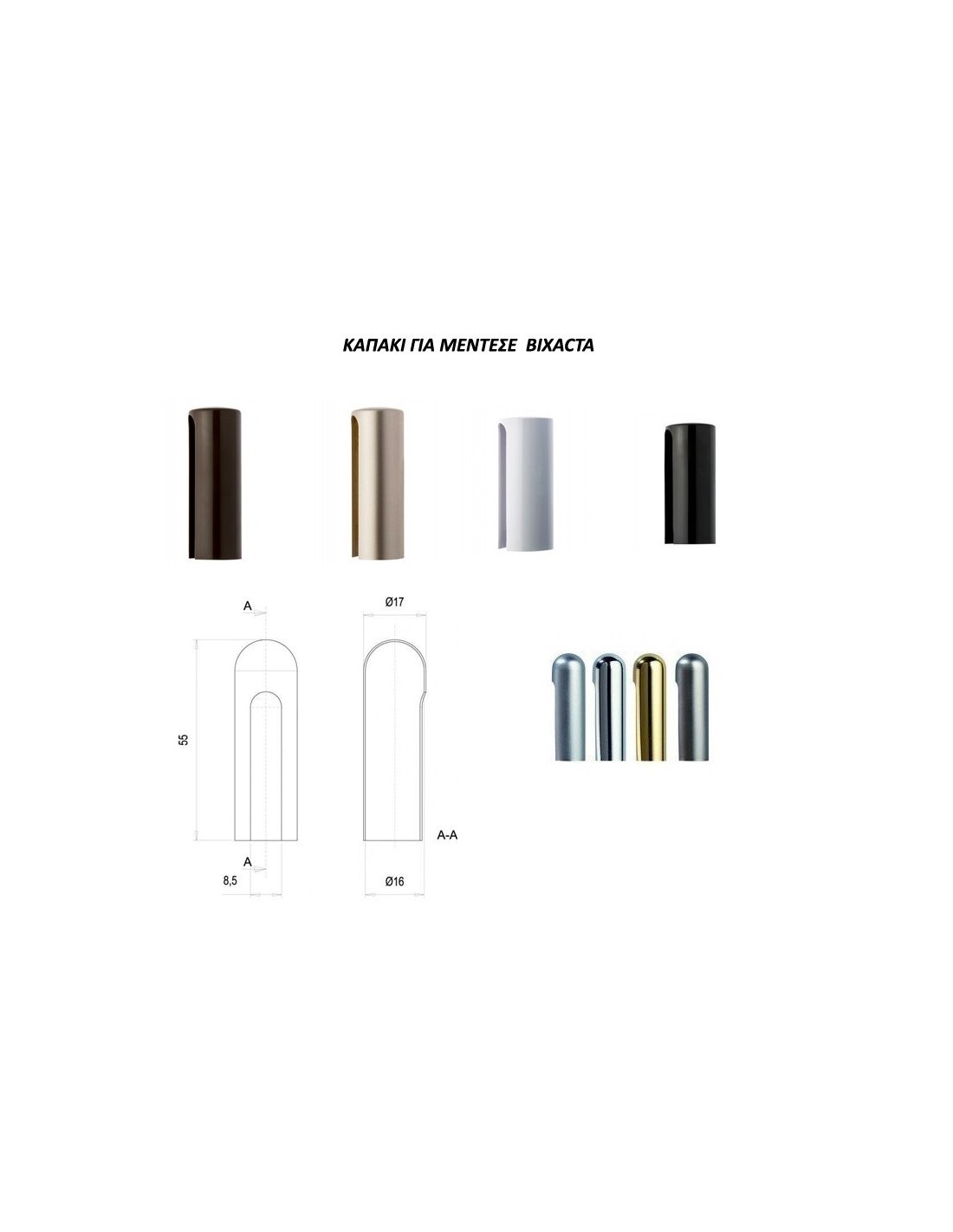

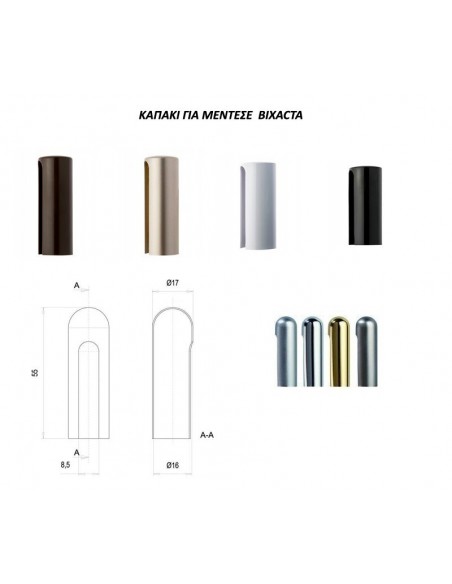

The wide variety of hinge covers is one of its main advantages, as they are available in different designs and materials (ABS, aluminum, brass).
