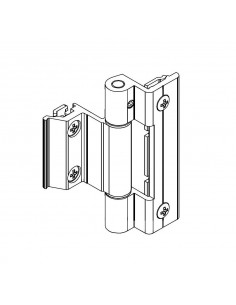

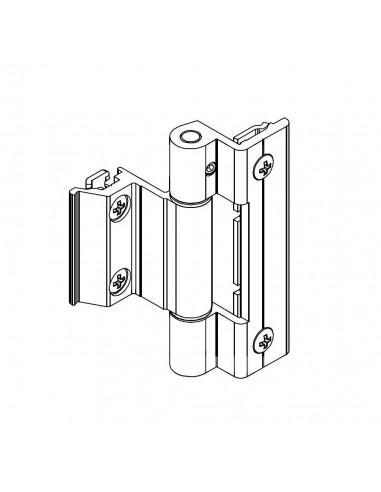

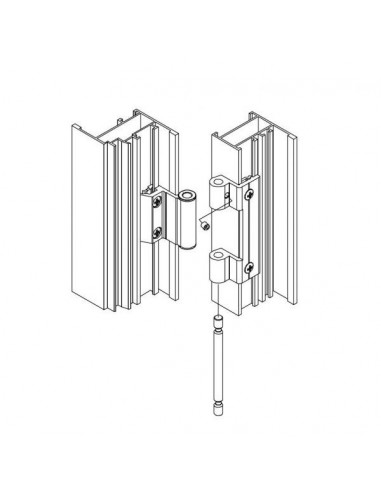

Bridge hinge

Applications

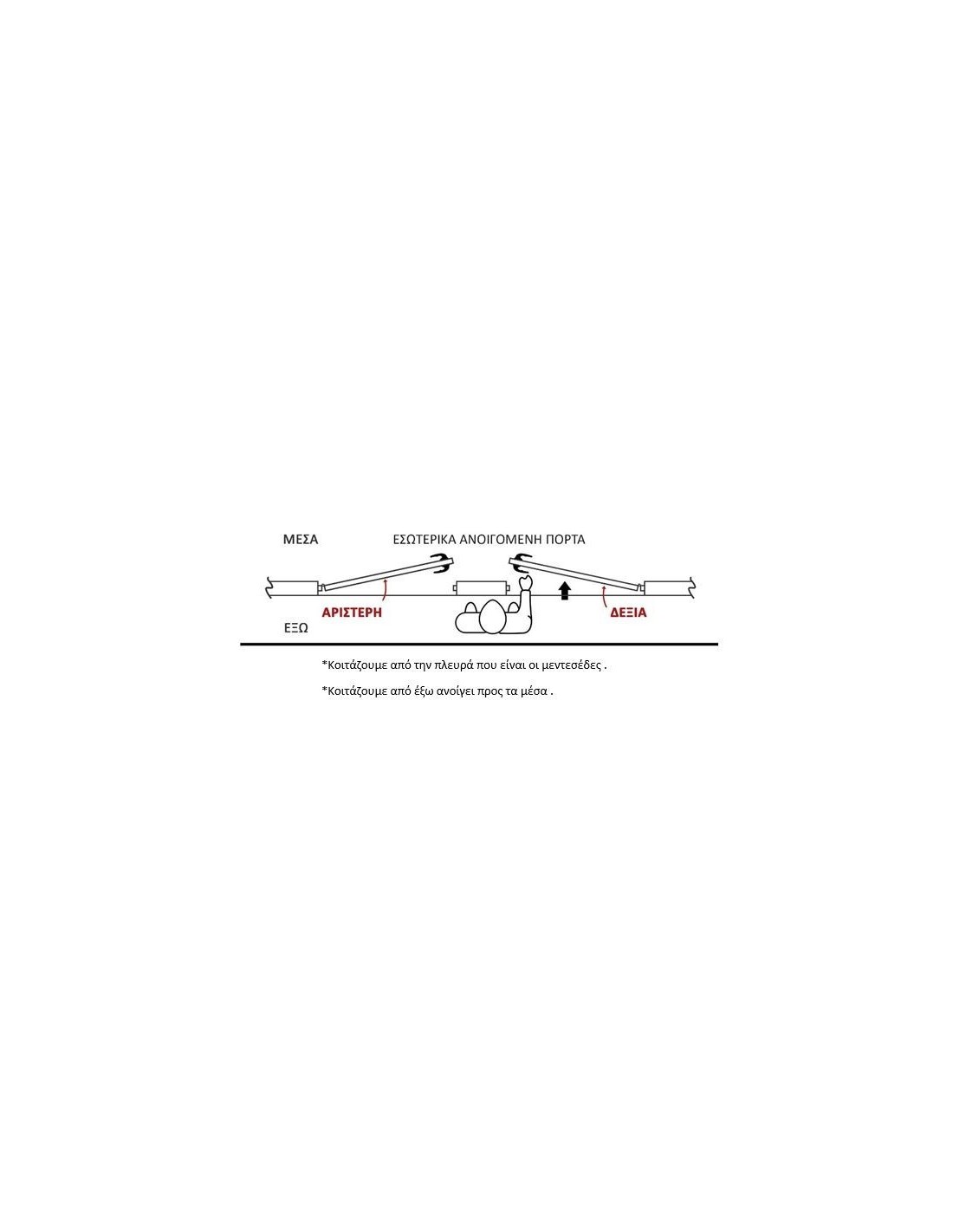

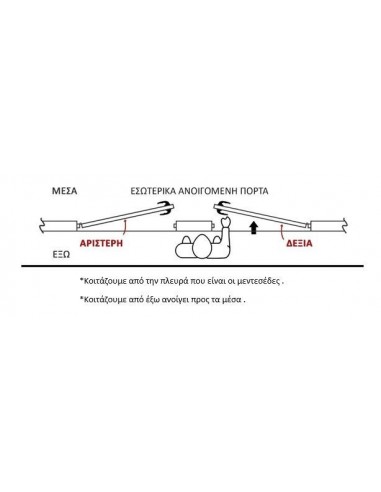

Left / right hinge for opening aluminum doors and windows.
Suitable for all applications in doors and windows, especially in cases of larger width and weight.

Ask about product
Bridge hinge

Bridge hinge





Applications
Left / right hinge for opening aluminum doors and windows.
Suitable for all applications in doors and windows, especially in cases of larger width and weight.

Contents
2 application plates
2 Phillips screws M5×10
2 Phillips screws 5×8
1 retaining screw M5×6

Materials
Hinge made of extruded aluminum
Pin, screws, retaining screws, and plates made of stainless steel (Inox)
Pin sleeves made of Hostaform

Weights
With 2 hinges: 90 kg
With 3 hinges: 100 kg
Refers to a door with a height of 2000 mm and a width of 1500 mm.

Available unfinished and in RAL colors.
