103-494, 103-495, 103-496, 103-497

Stainless steel straight leaf hinge for fixed mullion without strap bracket 177H, 180mm x 300mm

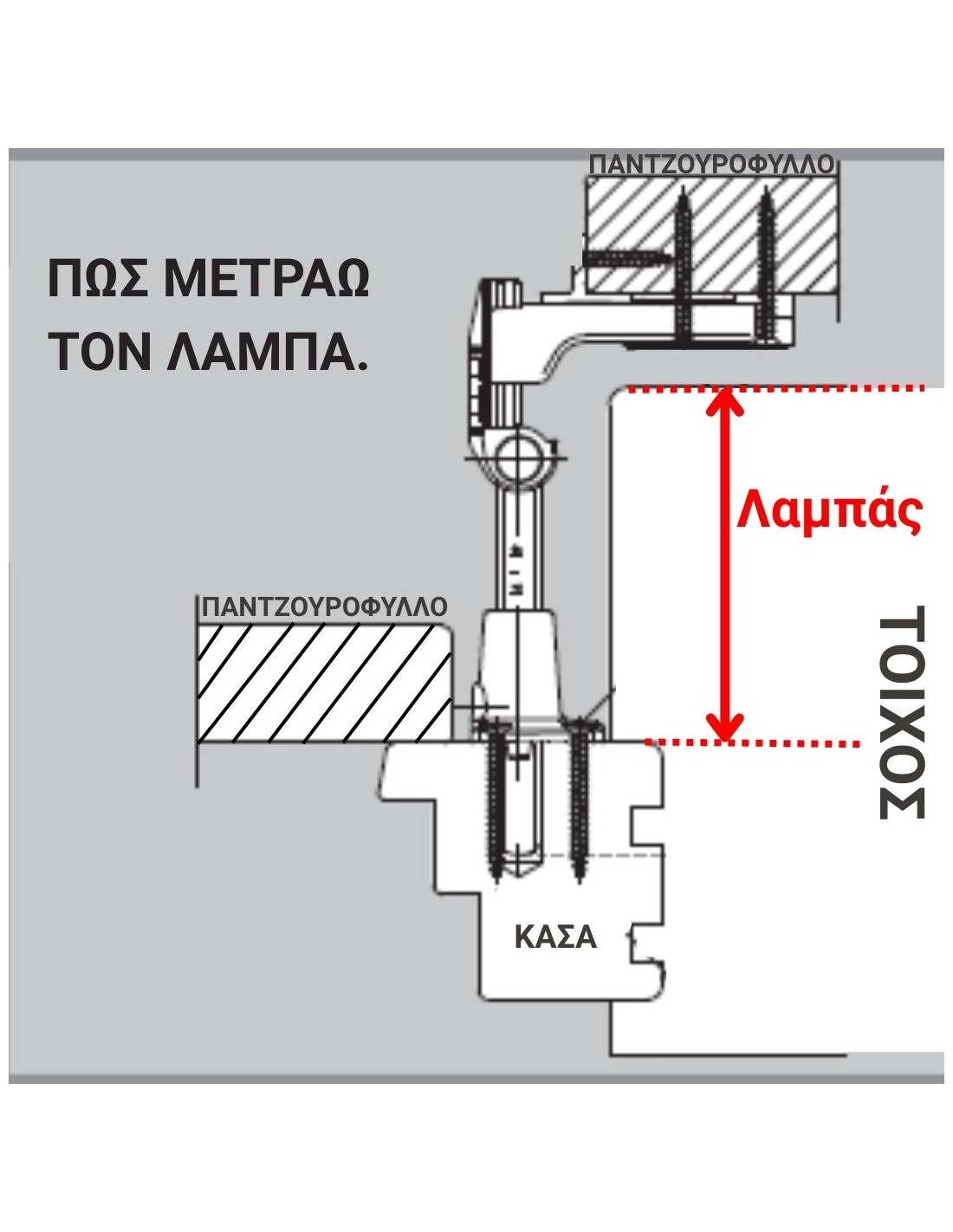

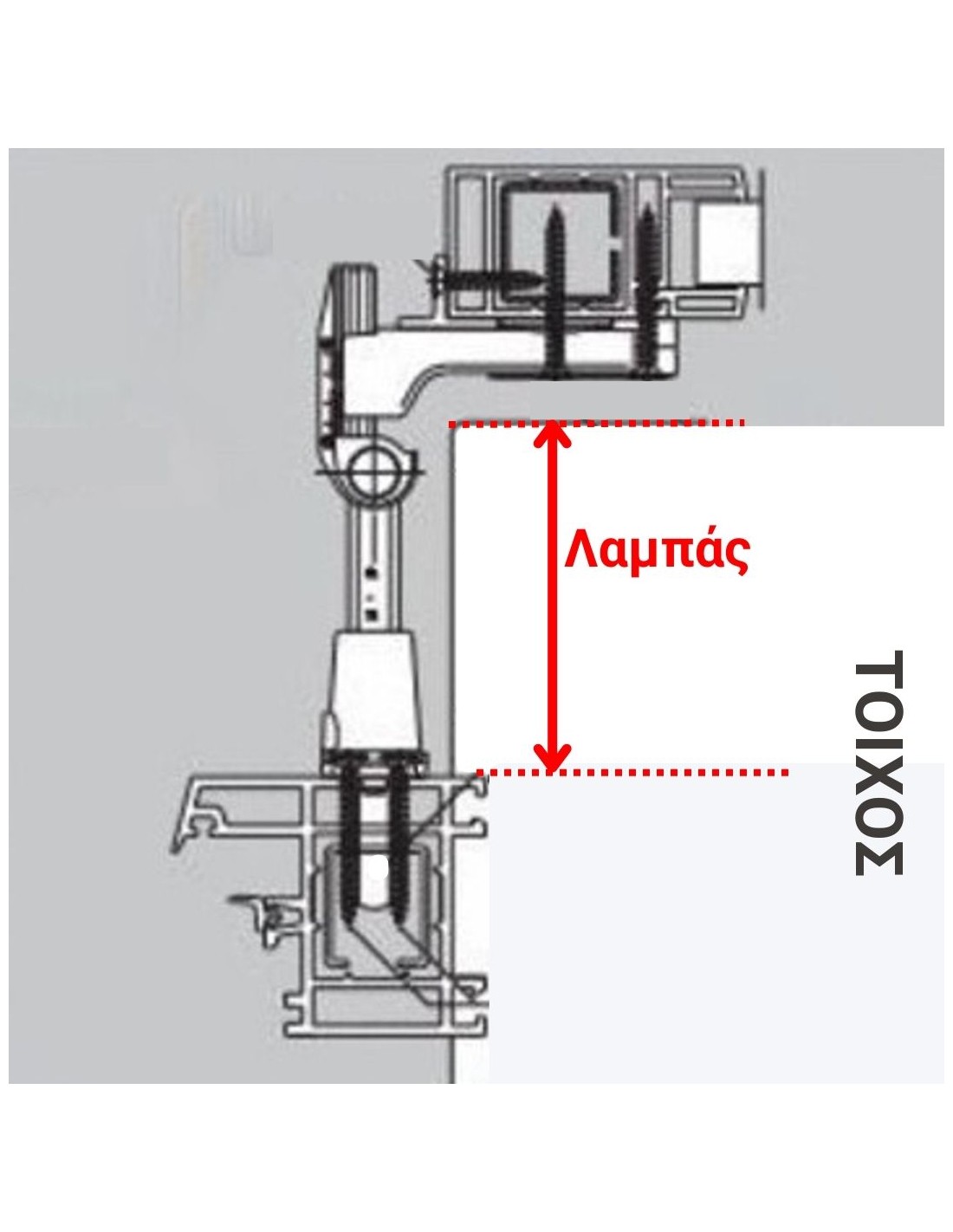

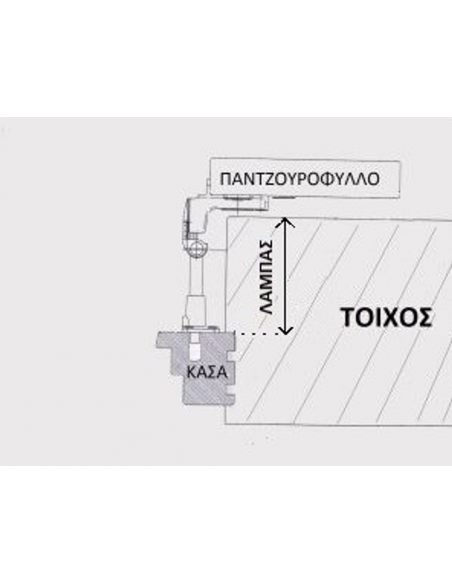

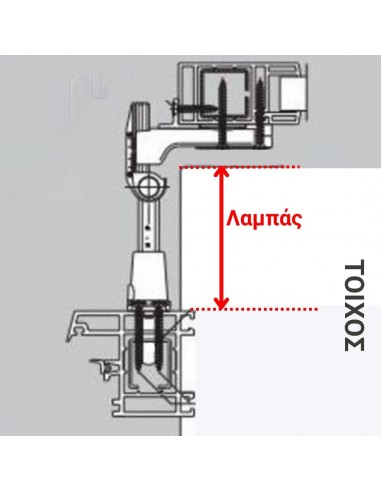

Available Mullion Sizes:

  • Lambas 0–4

  • Lambas 6–10

  • Lambas 12–16

  • Lambas 18–20

Ask about product
Stainless steel straight leaf hinge for fixed lambas without strap bracket 177H

Stainless steel straight leaf hinge for fixed lambas without strap bracket 177H

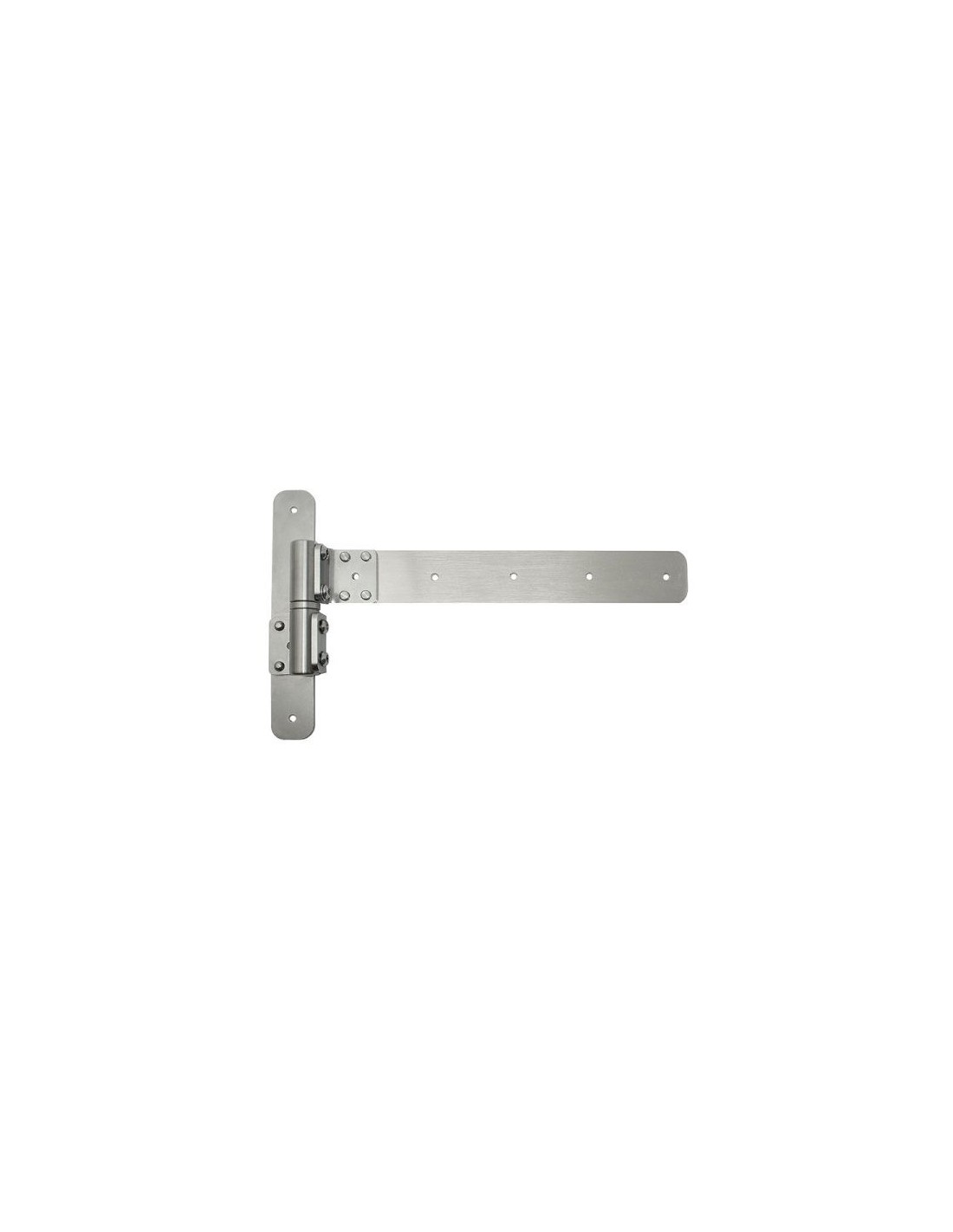

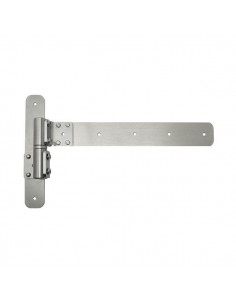

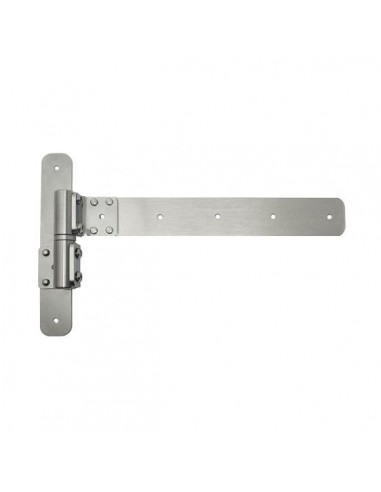

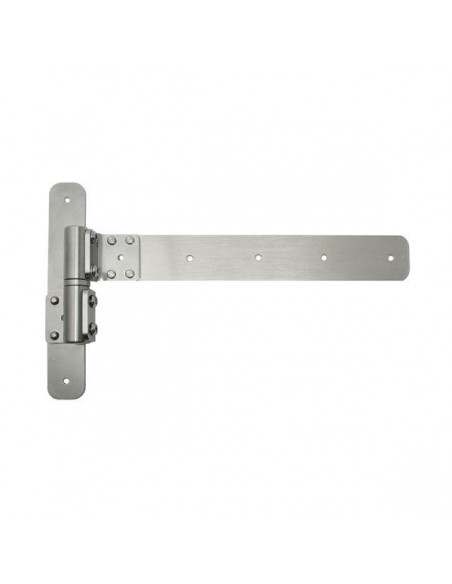

Stainless Steel Straight Leaf Hinge for Fixed Lamba without Strap Bracket 177H
Dimensions: 180mm x 300mm

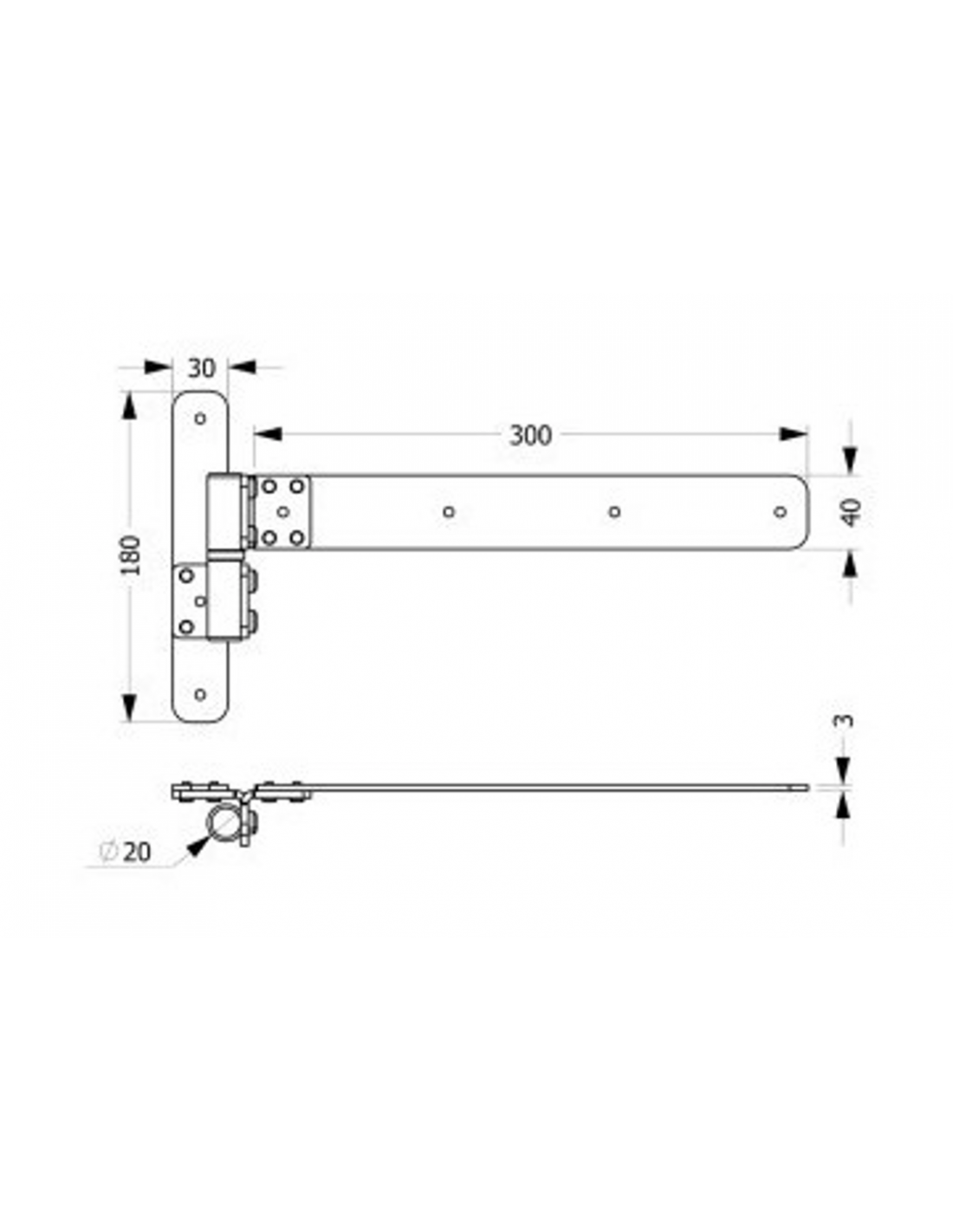

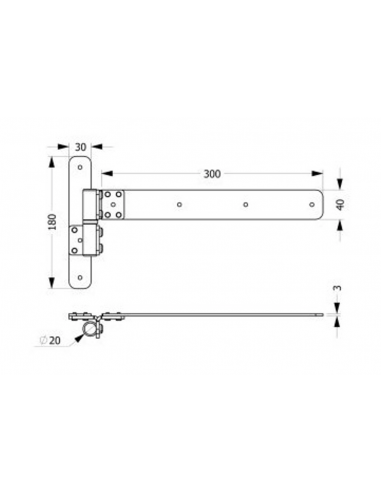

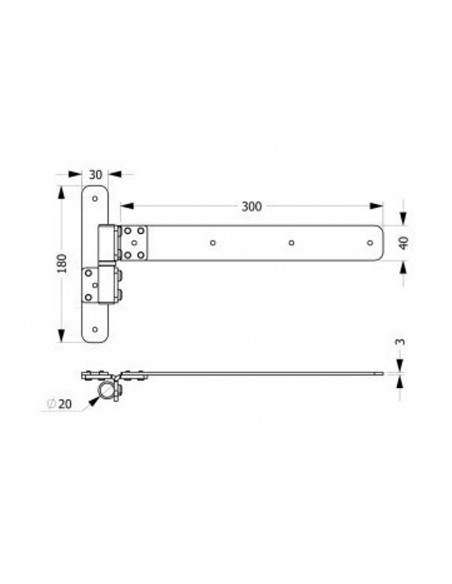

Technical Specifications:

  • Hinge dimensions: 180mm Height x 300mm Width

  • Equipped with 8 screw holes

  • Suitable for mullion sizes from 0cm to 20cm

  • Pin diameter: 20mm

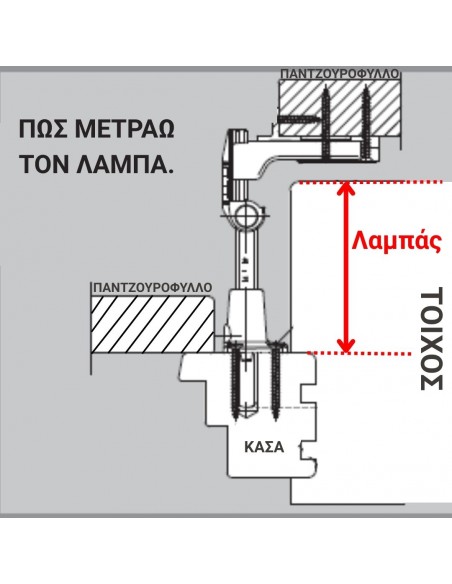

Available Lamba Sizes:

  • Lambas 0–4

  • Lambas 6–10

  • Lambas 12–16

  • Lambas 18–20

Zero Friction Technology

This product features Zero Friction technology, which is based on the use of a precision-fitted polymer bushing in the female part of the hinge.

Key Advantages:

  • Smooth and fluid operation by eliminating metal-on-metal friction

  • Total elimination of noise or squeaking over time

  • No sticking or operational issues, even in coastal environments

  • Requires no lubrication or maintenance

103-494, 103-495, 103-496, 103-497
