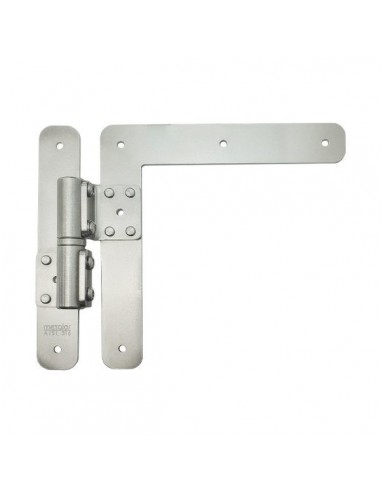

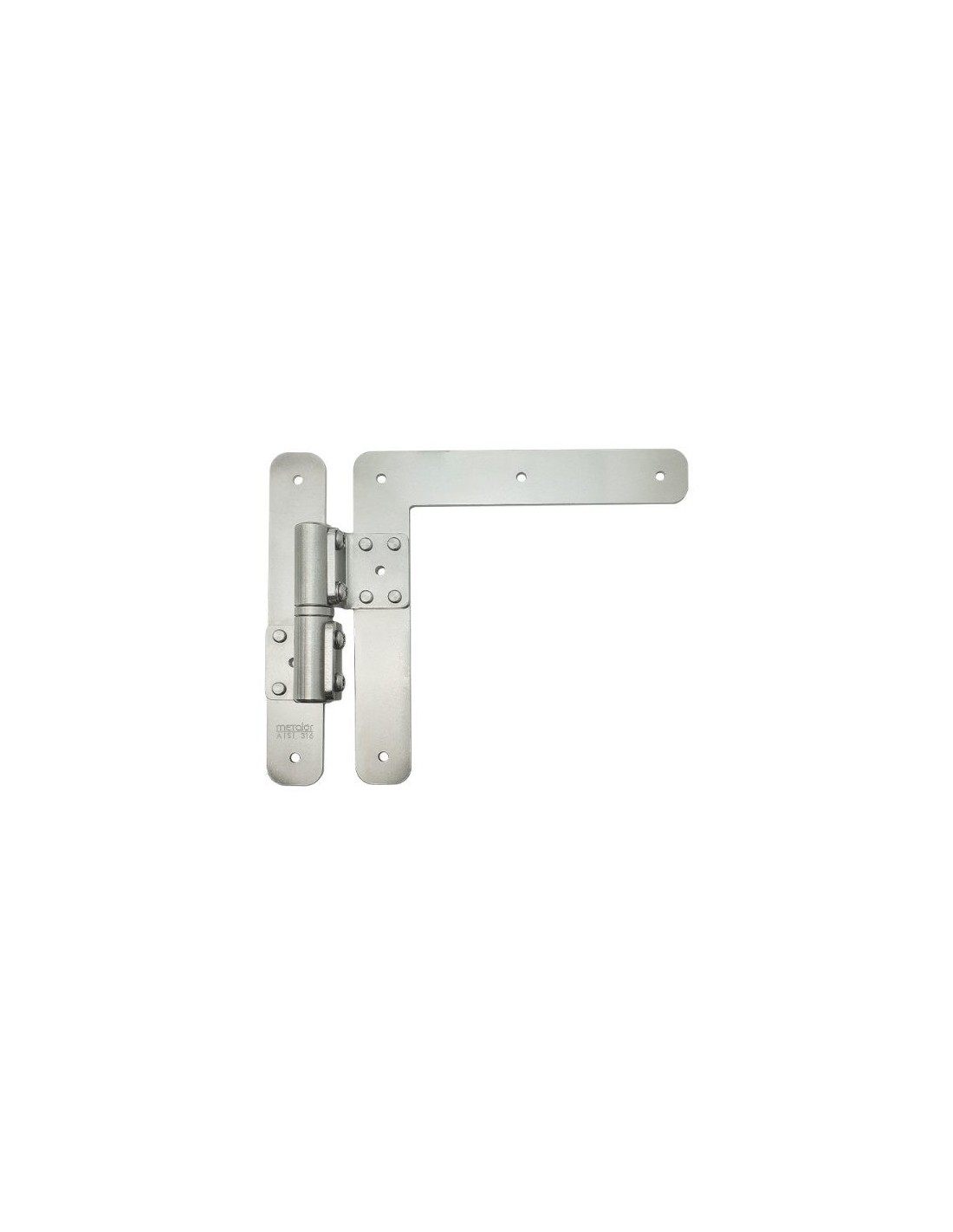

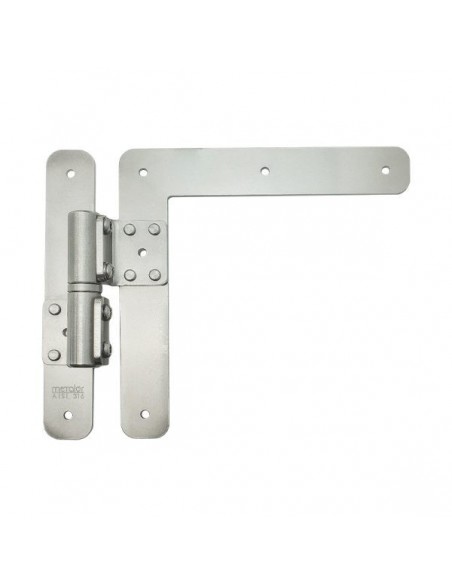

Stainless steel corner leaf hinge for fixed Lamba with strap bracket 177KC

Technical Specifications

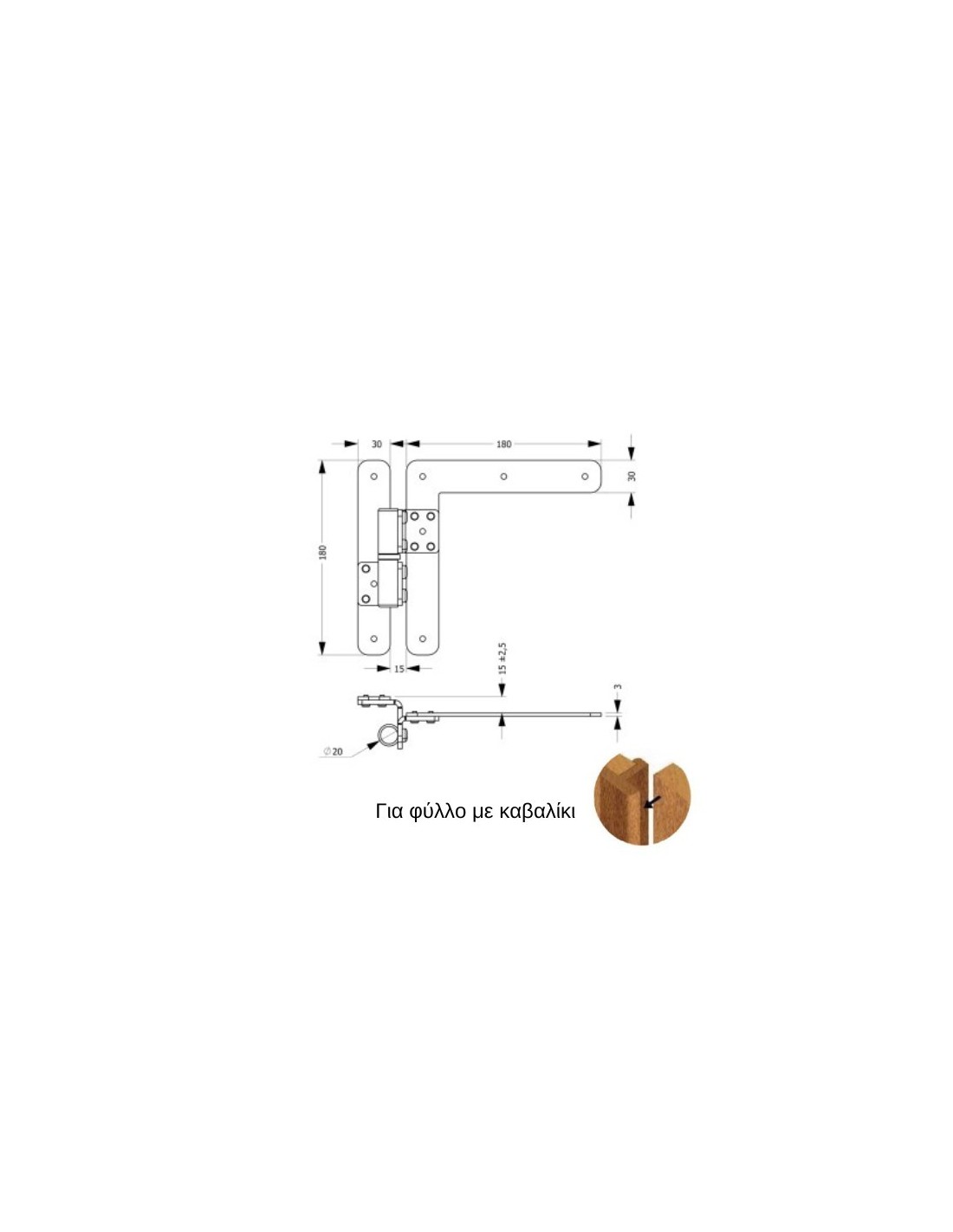

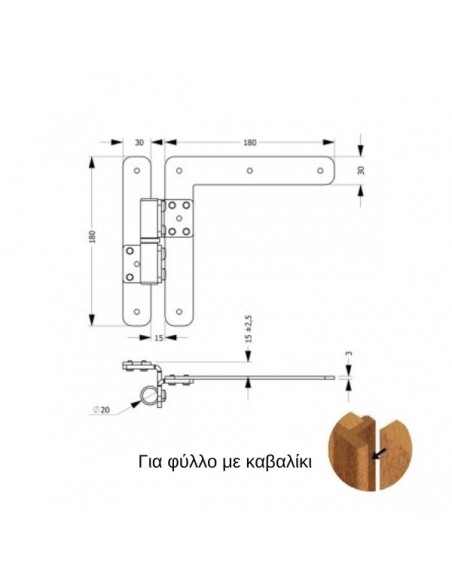

Masket Dimensions: 180mm Width x 180mm Height
Features 8 screw holes

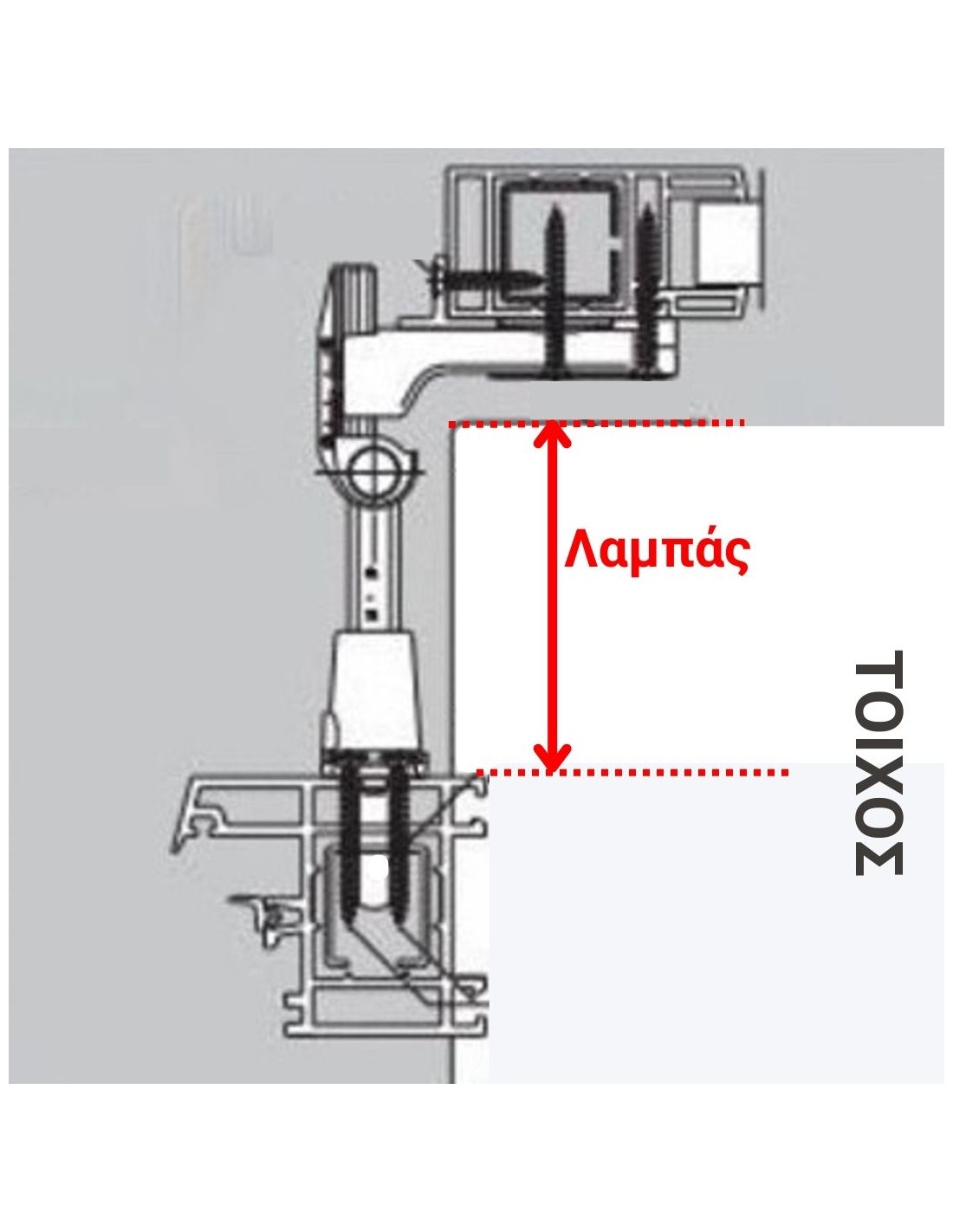

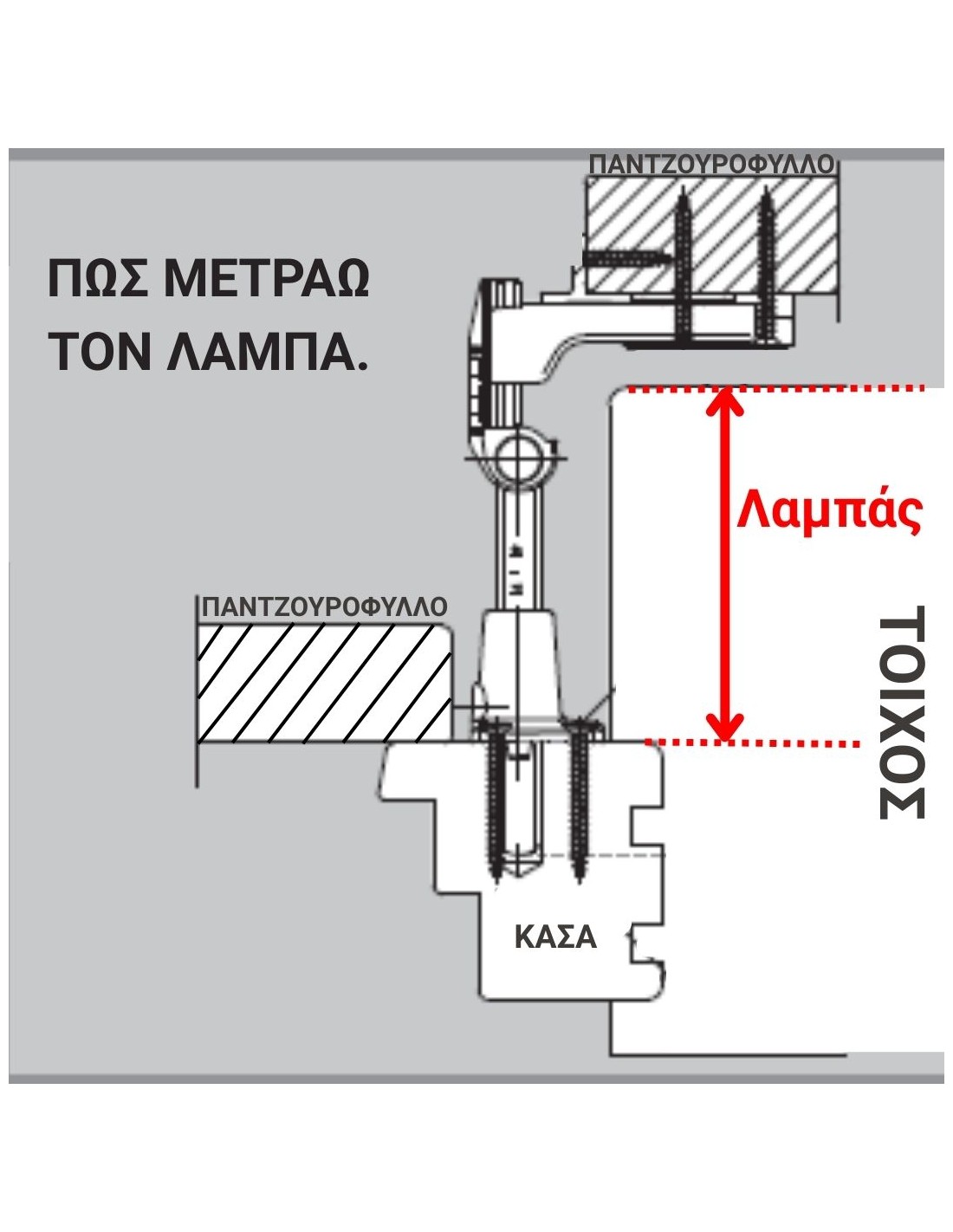

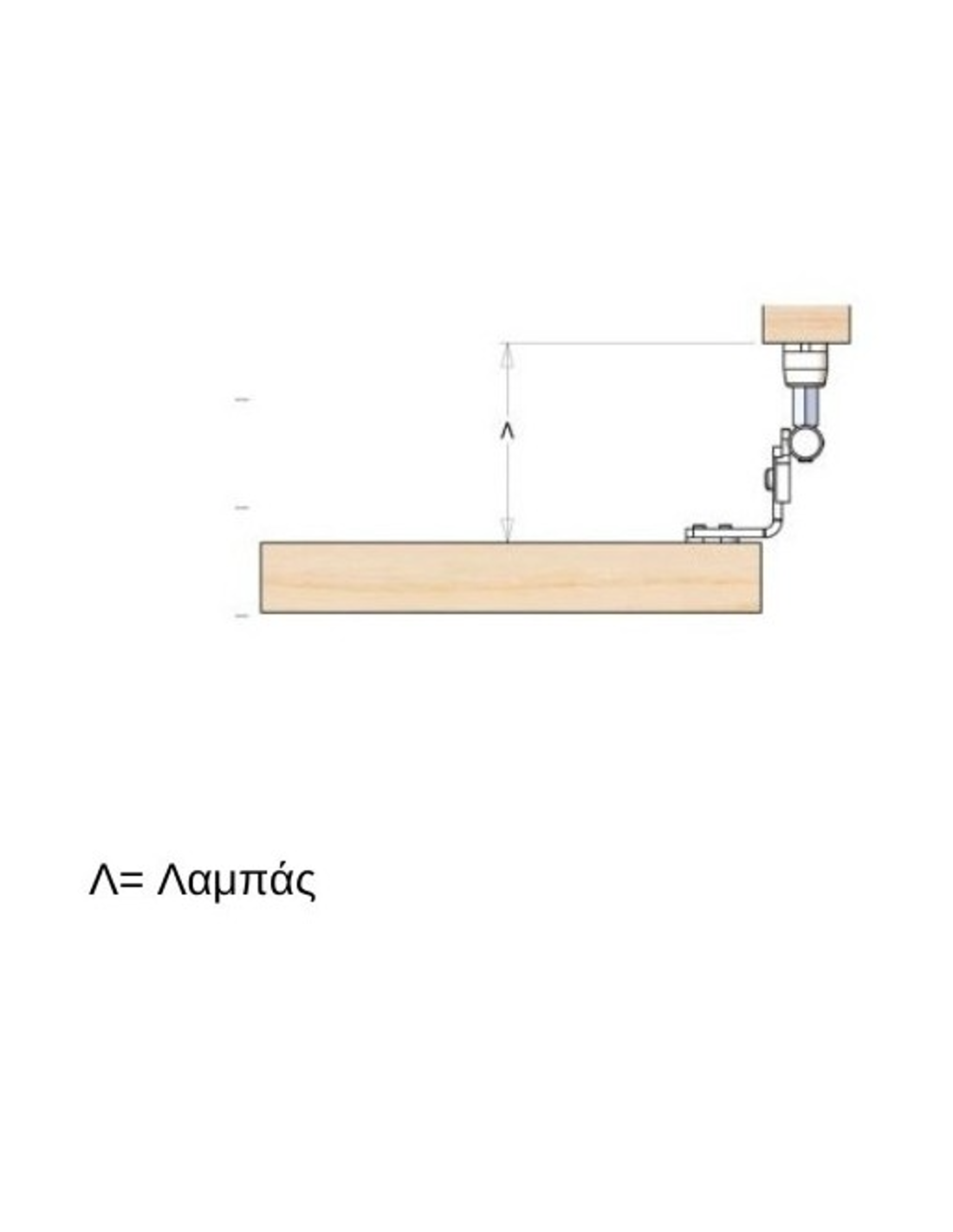

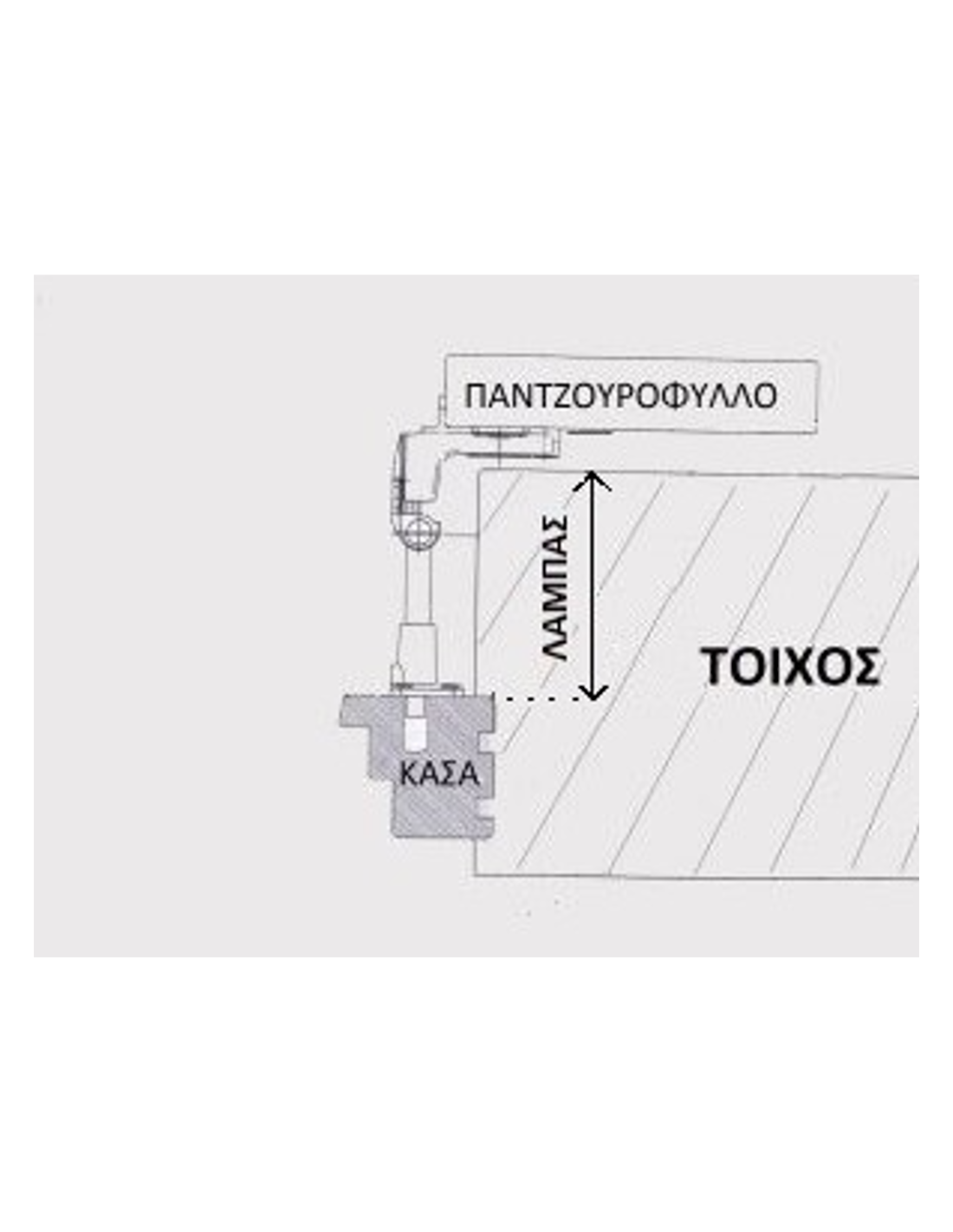

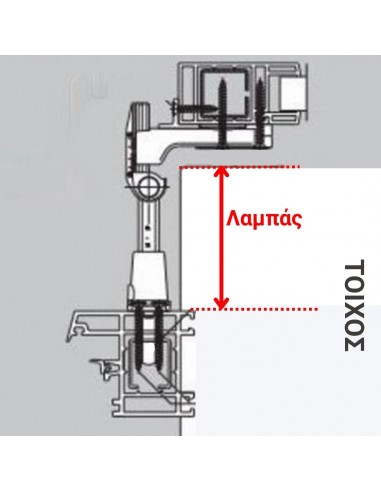

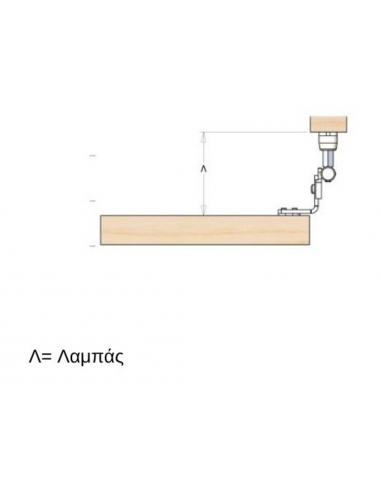

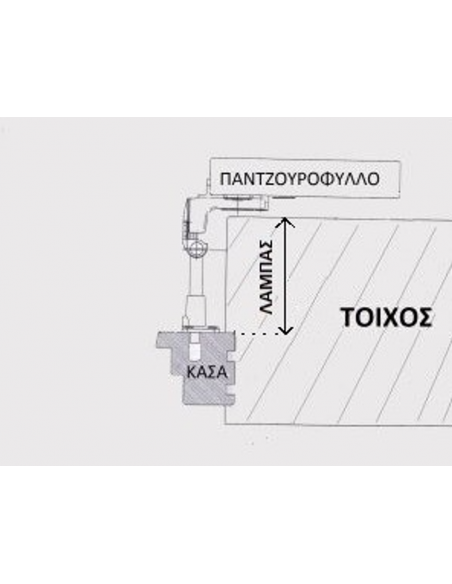

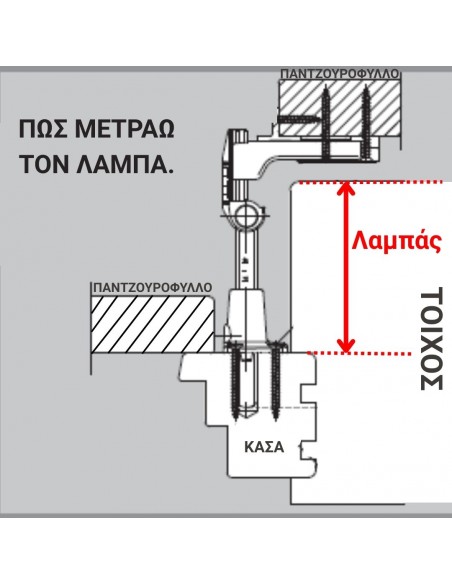

Lambas length: 0cm to 20cm

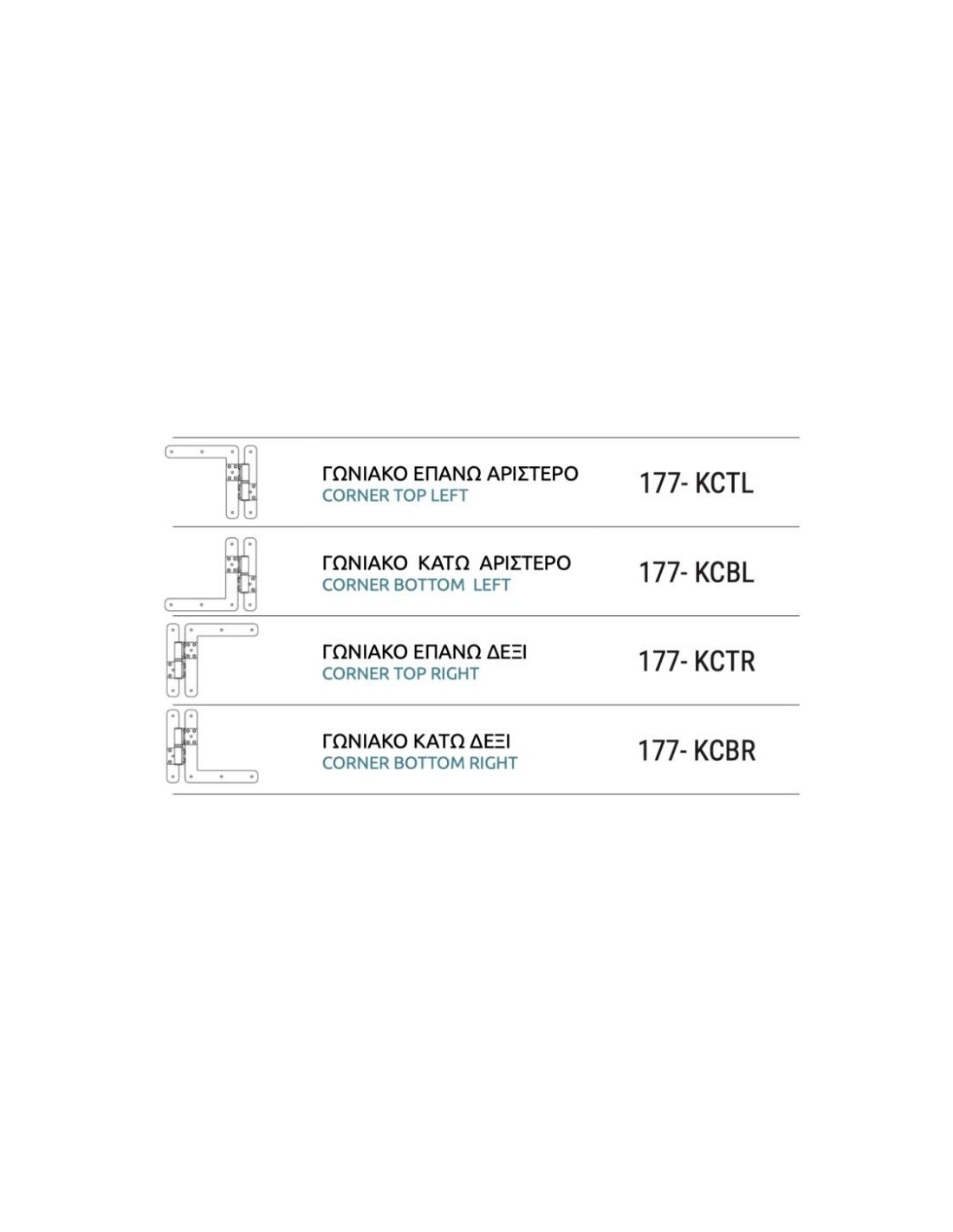

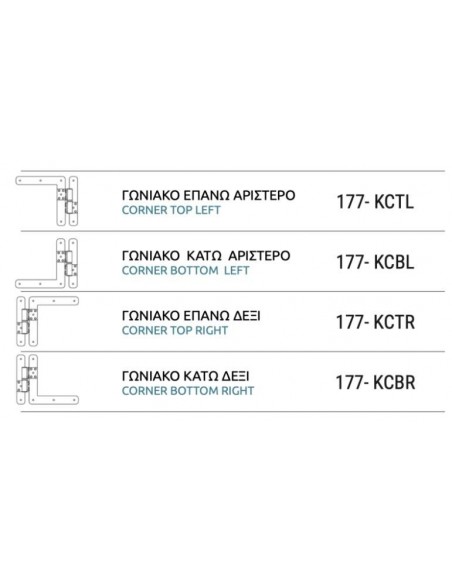

Stainless steel angled fixed lmbas masket with saddle 177KC 180mm x 180mm

• Lambas 0–4

• Lambas 6–10

• Lambas 12–16

• Lambas 18–20

A new Zero Friction technology is used, which is based on the use of a polymer sleeve precisely applied to the female part of the masket.

The newly enhanced product gains the following key features:

• Smooth and fluid operation due to the elimination of friction between contacting metal parts

• Elimination of any noise or creaking from the hinge that may occur over time

• Elimination of operational issues (jamming) in coastal areas

• No need for lubrication or any other form of maintenance
