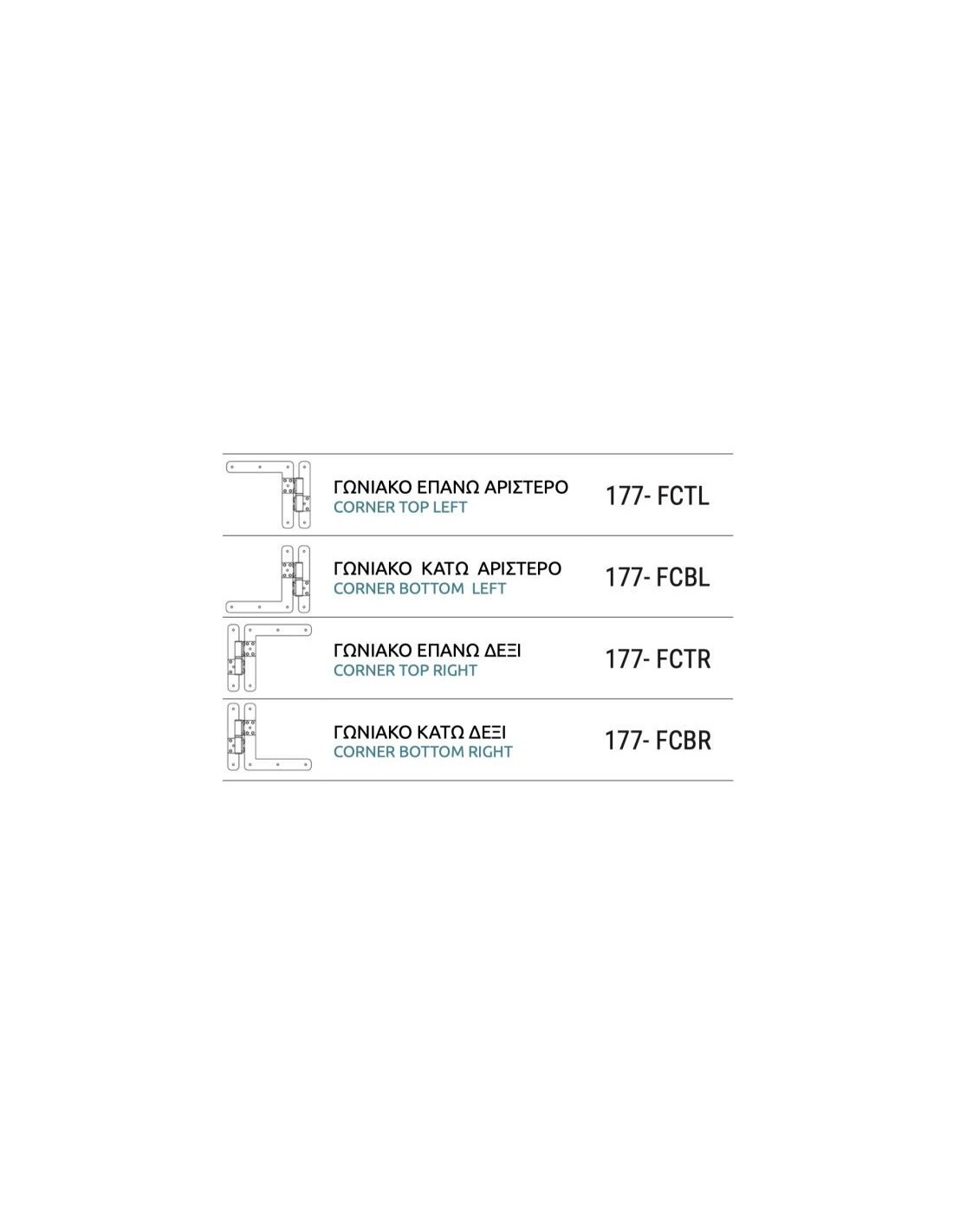

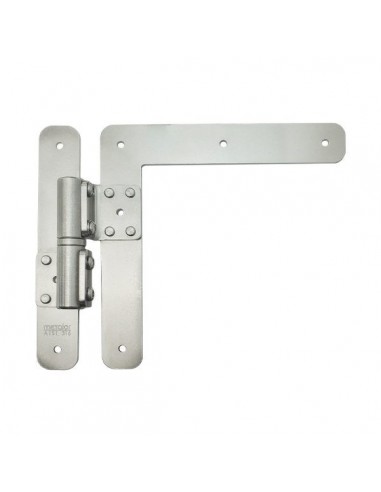

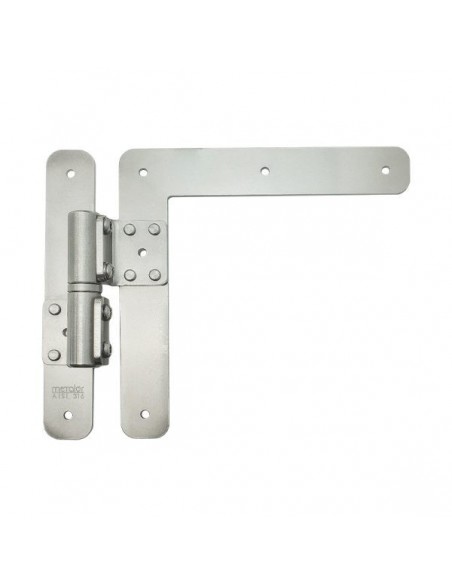

Stainless steel leaf hinge for fixed Lamba without strap bracket 177FC
Stainless steel leaf hinge for fixed Lamba without strap bracket 177FC, 180mm x 180mm
Available Lamba Sizes:
Lambas 0–4
Lambas 6–10
Lambas 12–16
Lambas 18–20
Stainless Steel Leaf Hinge for Fixed Lamba without Strap Bracket 177FC
Dimensions: 180mm x 180mm
Technical Specifications:

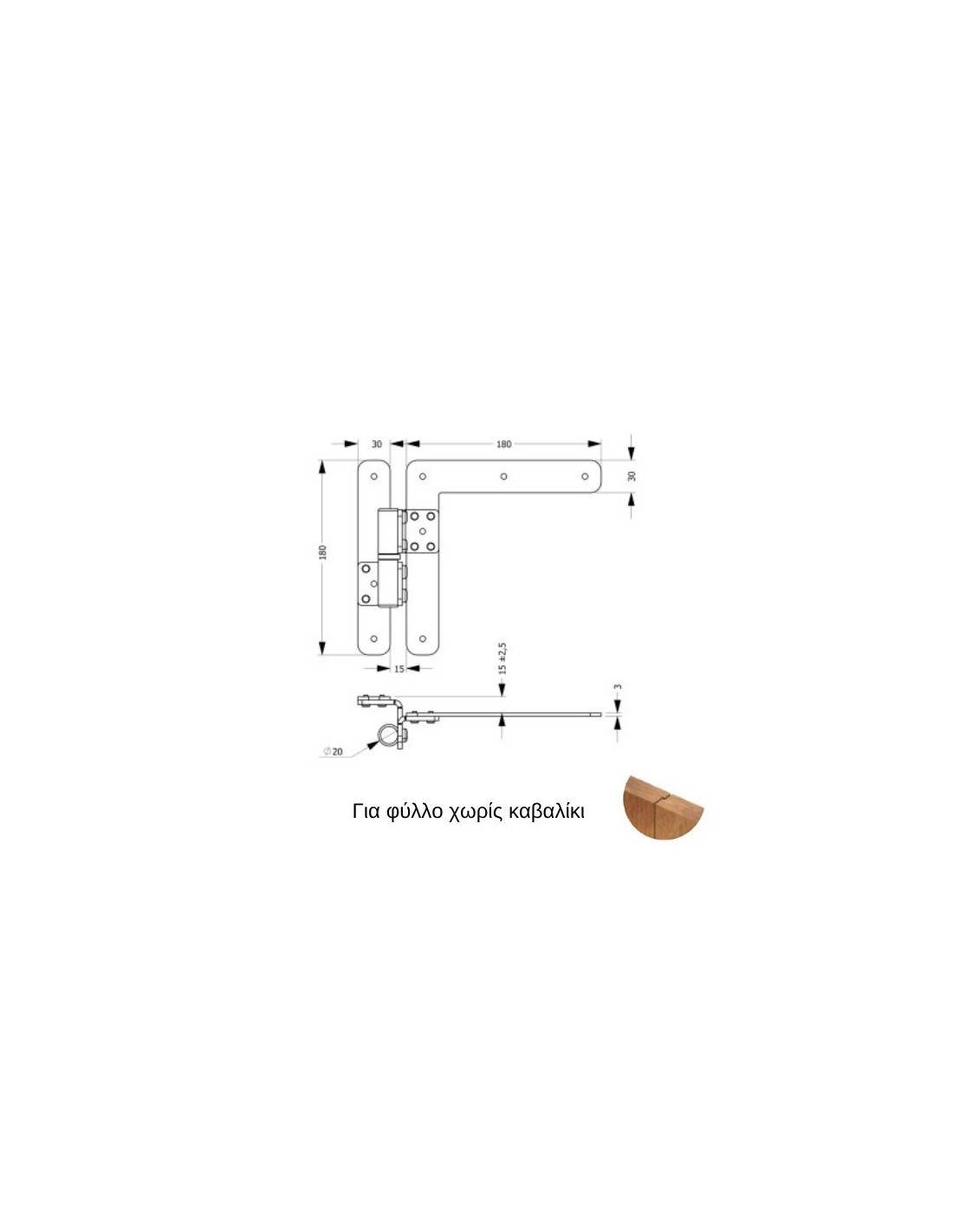

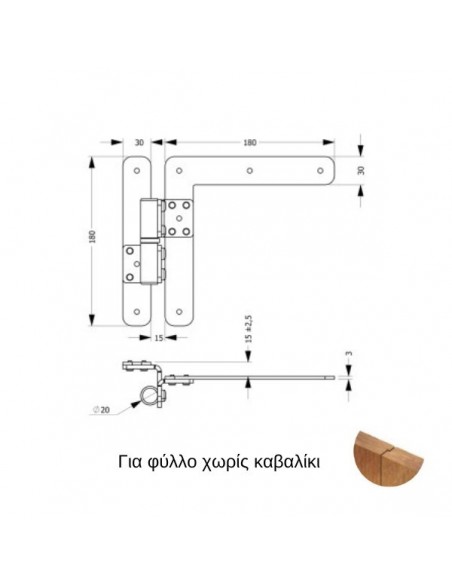

Hinge dimensions: 180mm Width x 180mm Height
Equipped with 8 screw holes

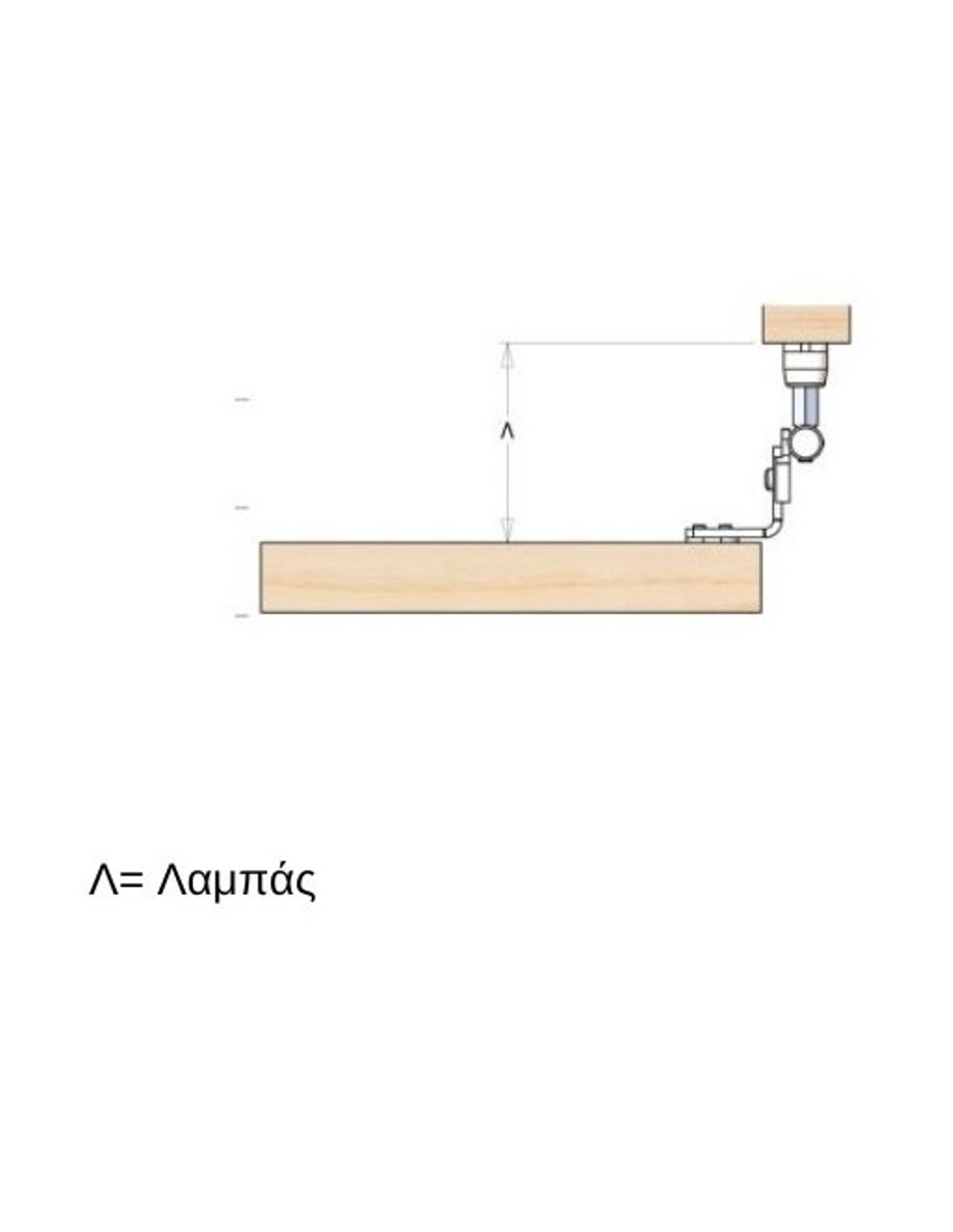

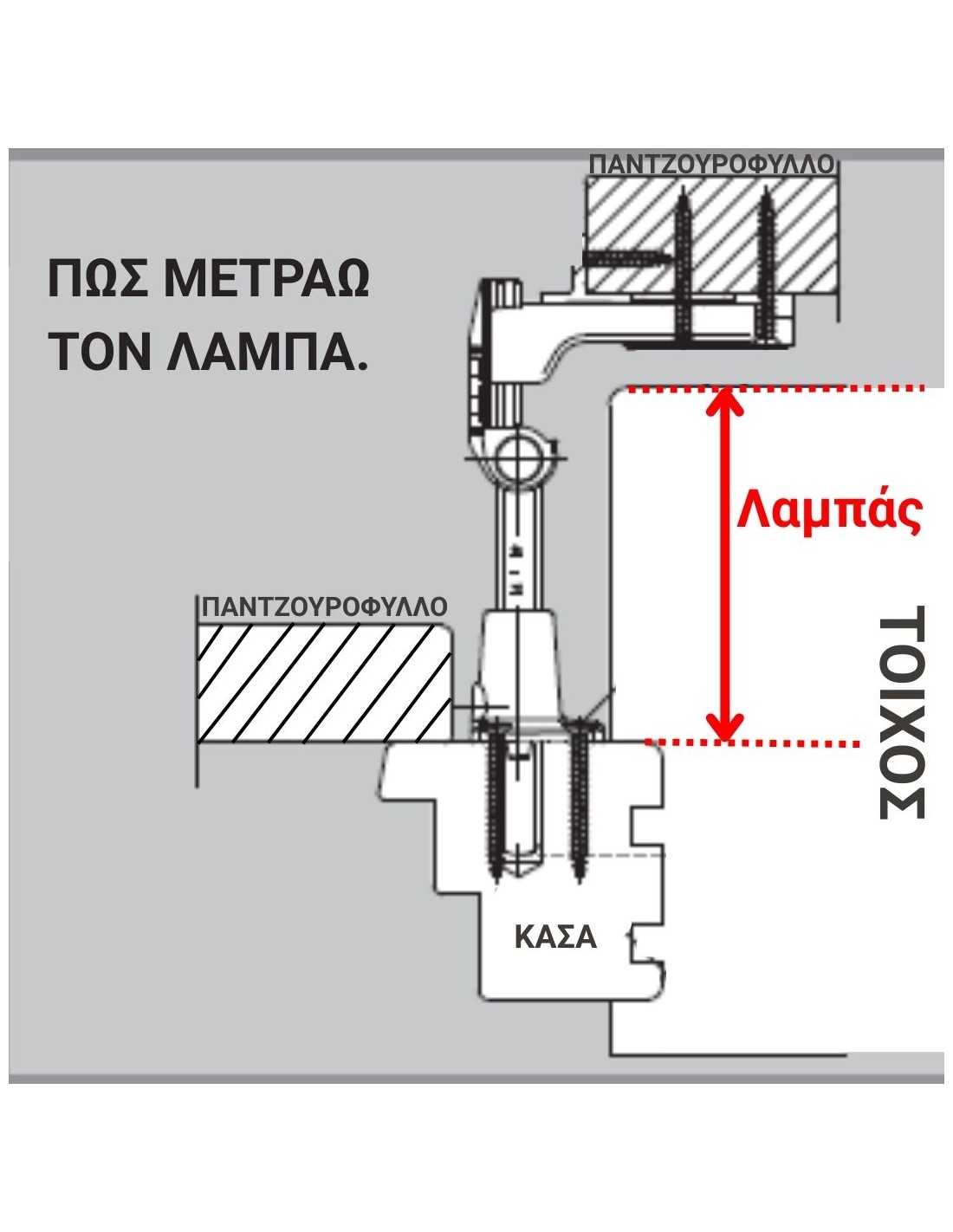

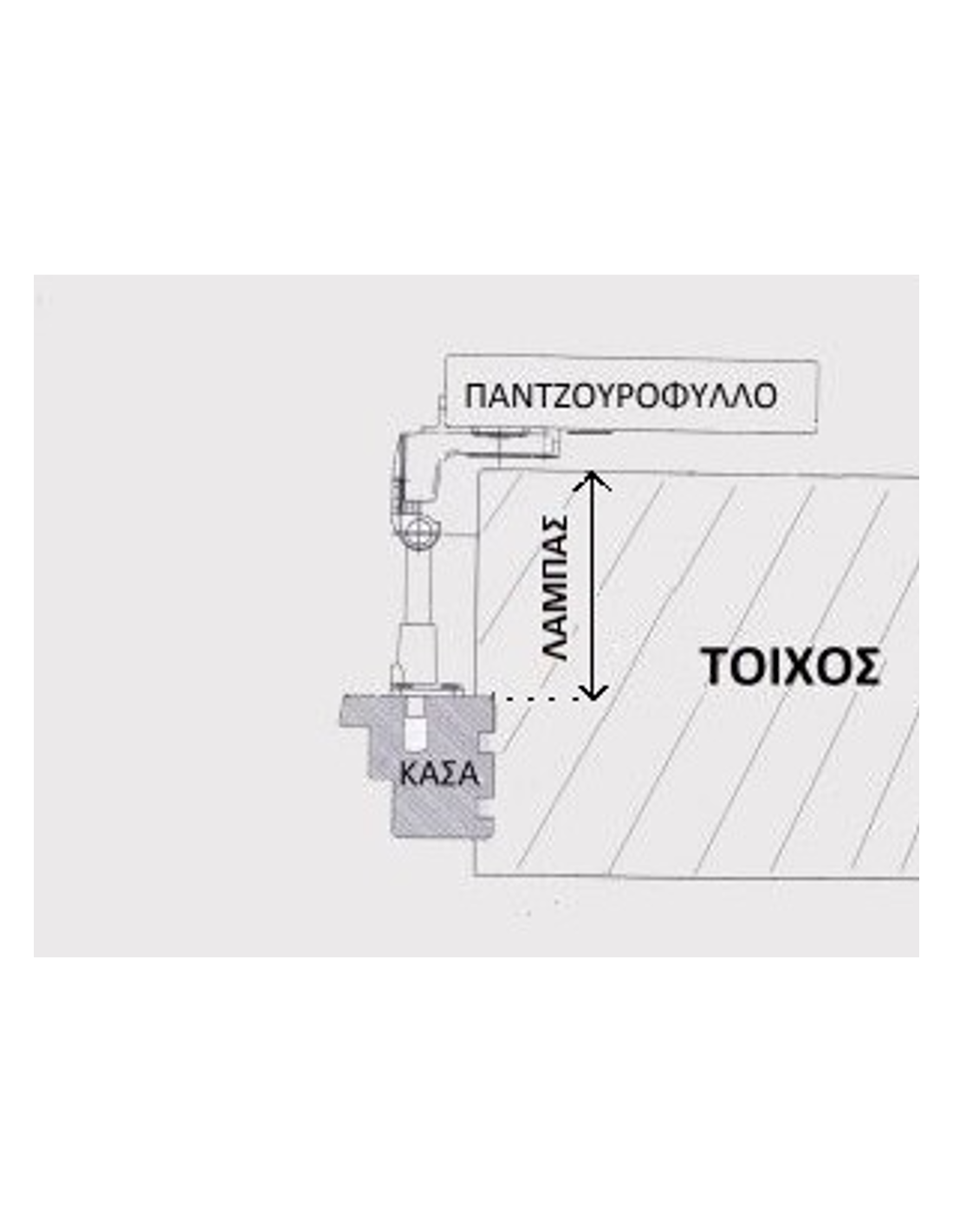

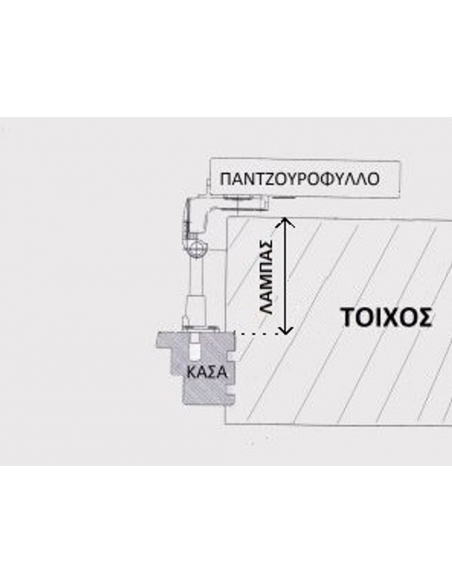

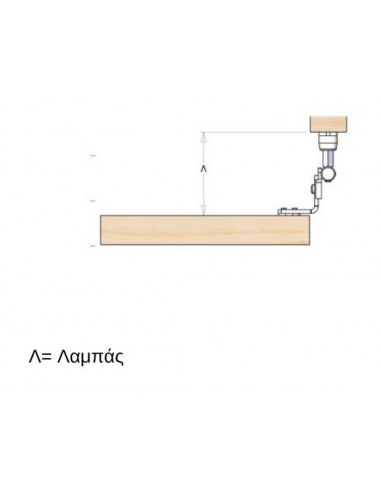

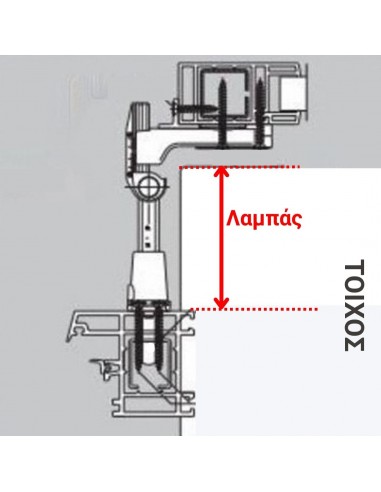

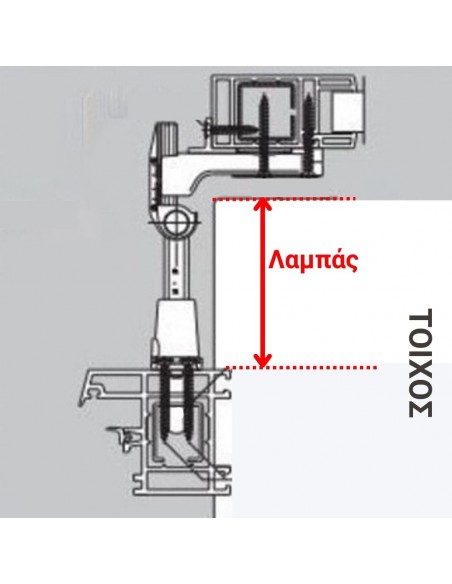

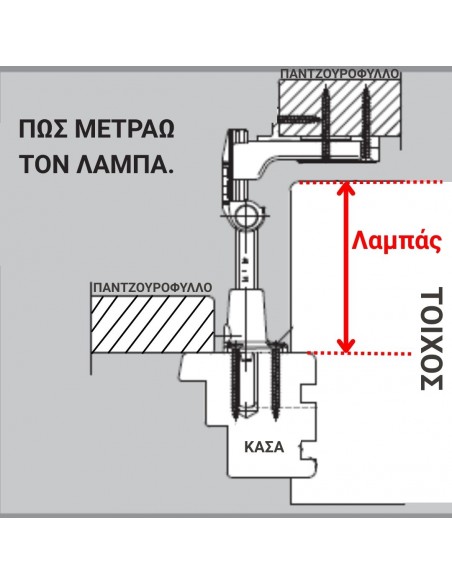

Suitable for Lamba sizes from 0cm to 20cm
Available lamba Sizes:
Lambas 0–4
Lambas 6–10
Lambas 12–16
Mullion 18–20
Zero Friction Technology
This hinge incorporates Zero Friction technology, based on the use of a precision-applied polymer bushing in the female part of the hinge.
Key Benefits:
Smooth and fluid operation due to the elimination of metal-on-metal friction
No noise or squeaking over time
No sticking or functional issues, even in coastal environments
Requires no lubrication or maintenance
