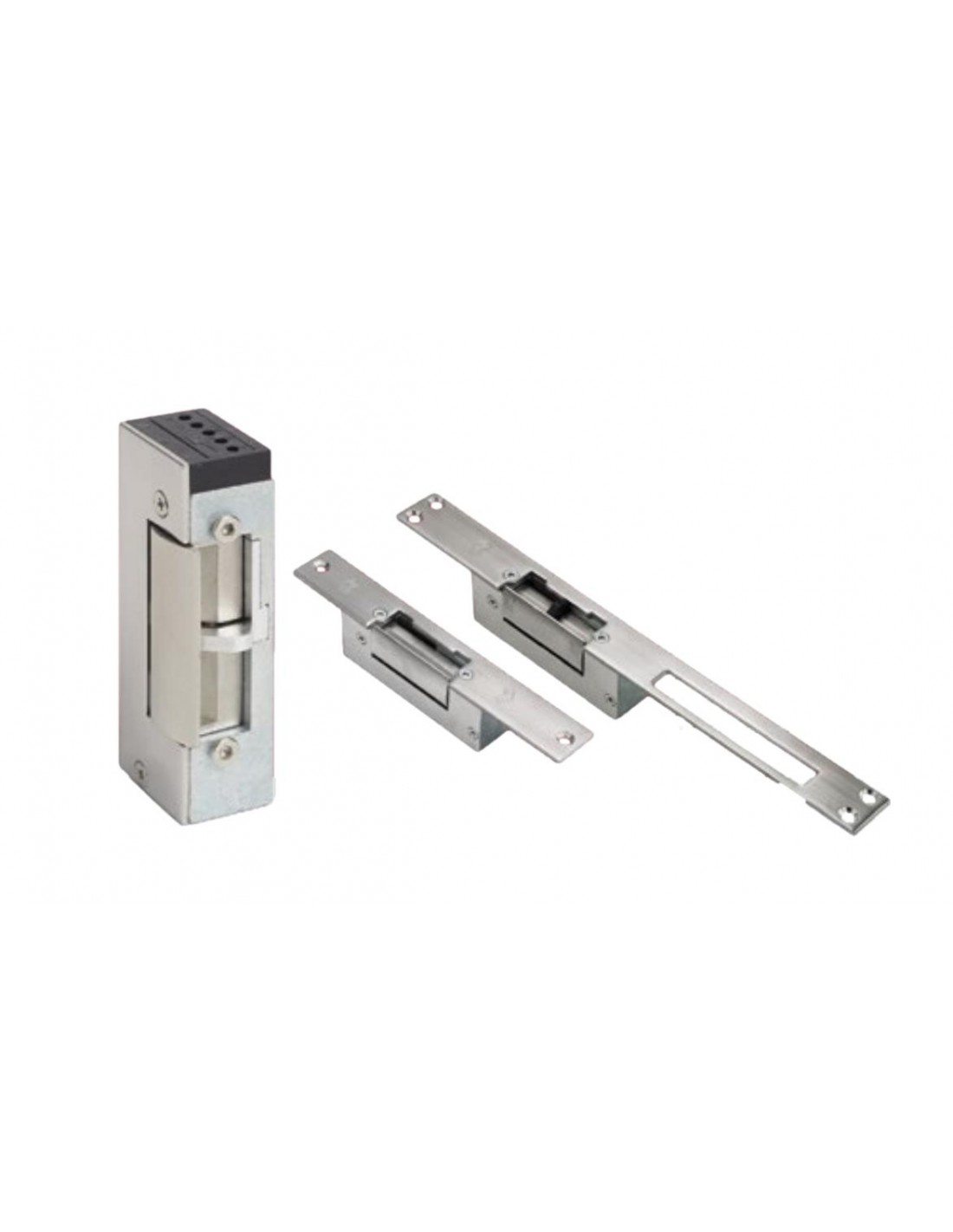

Electric strike with resistance for 1000kg
There is Fail Secure: 6–12V and 12–24V
There is Fail Safe: 12V or 24V
*Fail Secure = The lock remains locked when power is cut off.
*Fail Safe = The lock unlocks when power is cut off.
| Specification | Value |
|---|---|

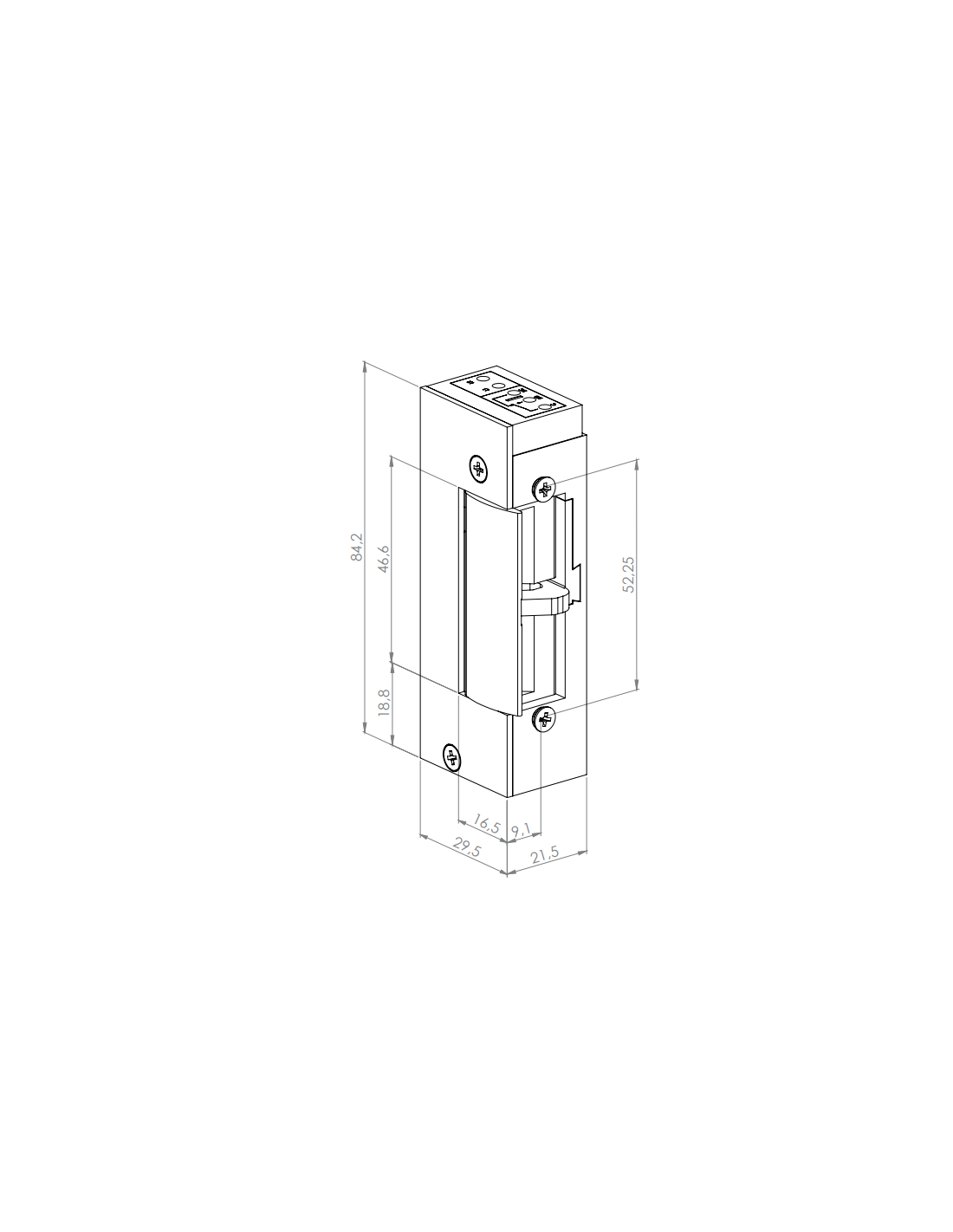

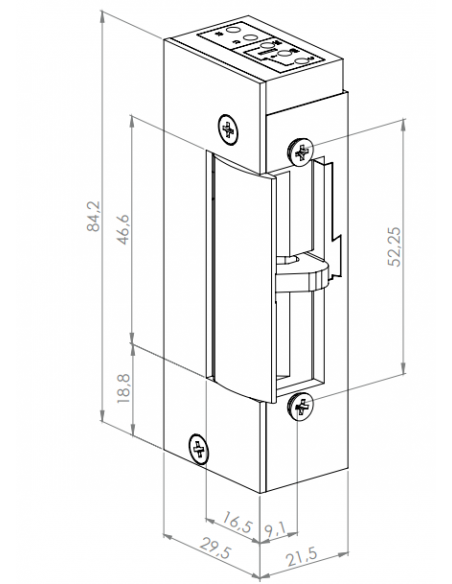

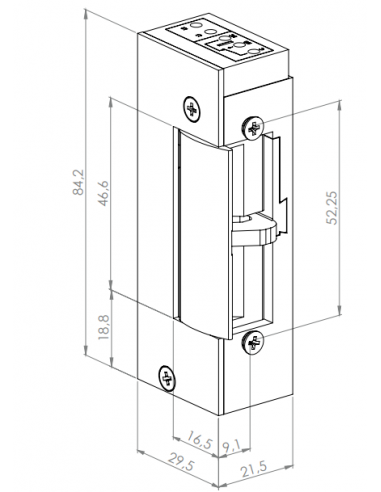

| Dimensions | 84.2 x 21.5 x 29.5 mm |
| Voltage | According to the coils table |
| Adjustable latch | No |
| Latch bolt depth | 5 mm |
| Break-in resistance | 10,000 N |
| Preload | 90 N 12V AC / 10 N 12V DC |
| Cycles | 250.000 |
| Reversible | Symmetric |
| Installation position | Vertical, Horizontal |
| Operating temperature | -10ºC to +60ºC |
| Maximum intensity (Microswitch) | AC (125 V) - 3A / DC (30 V) - 2A |
