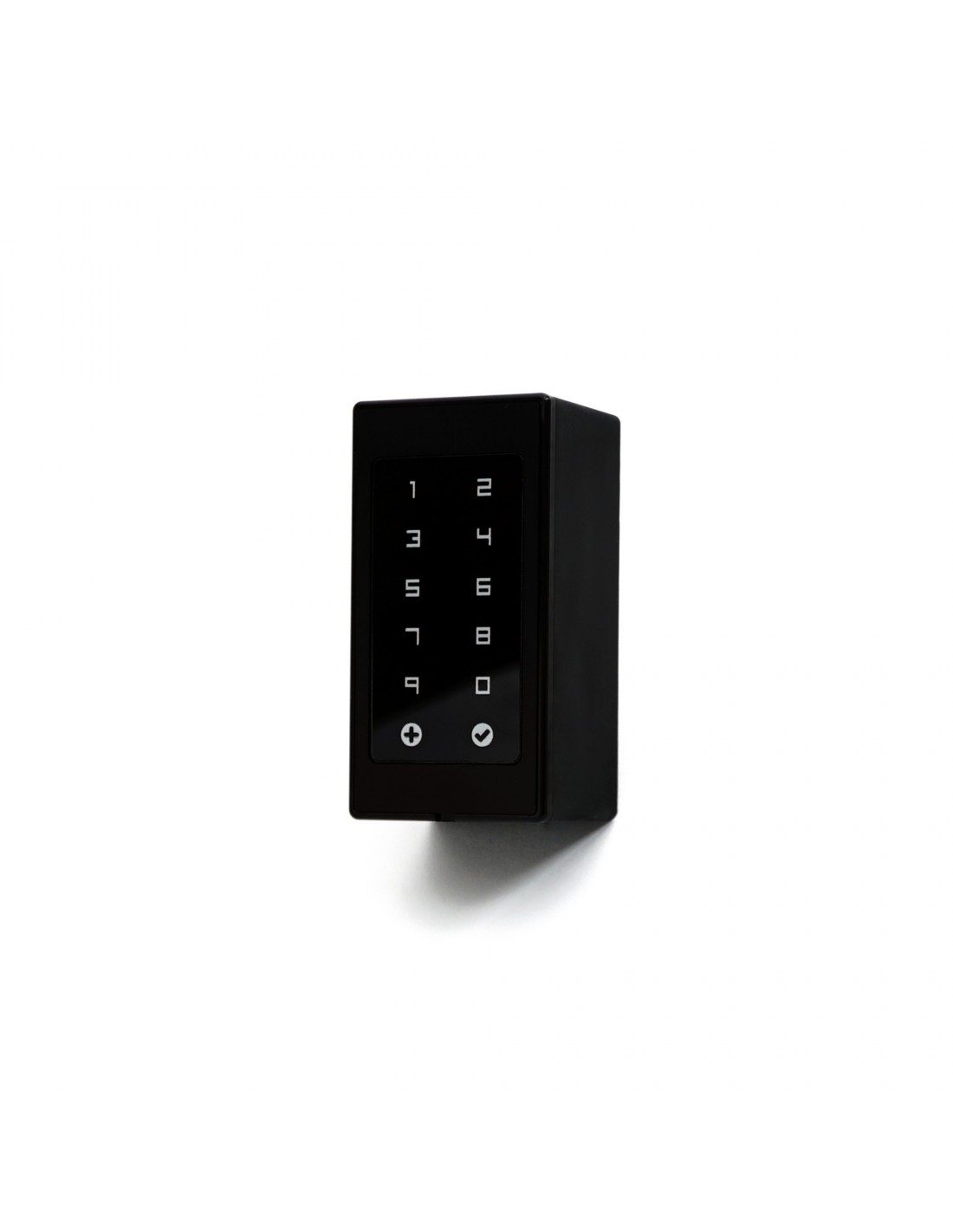

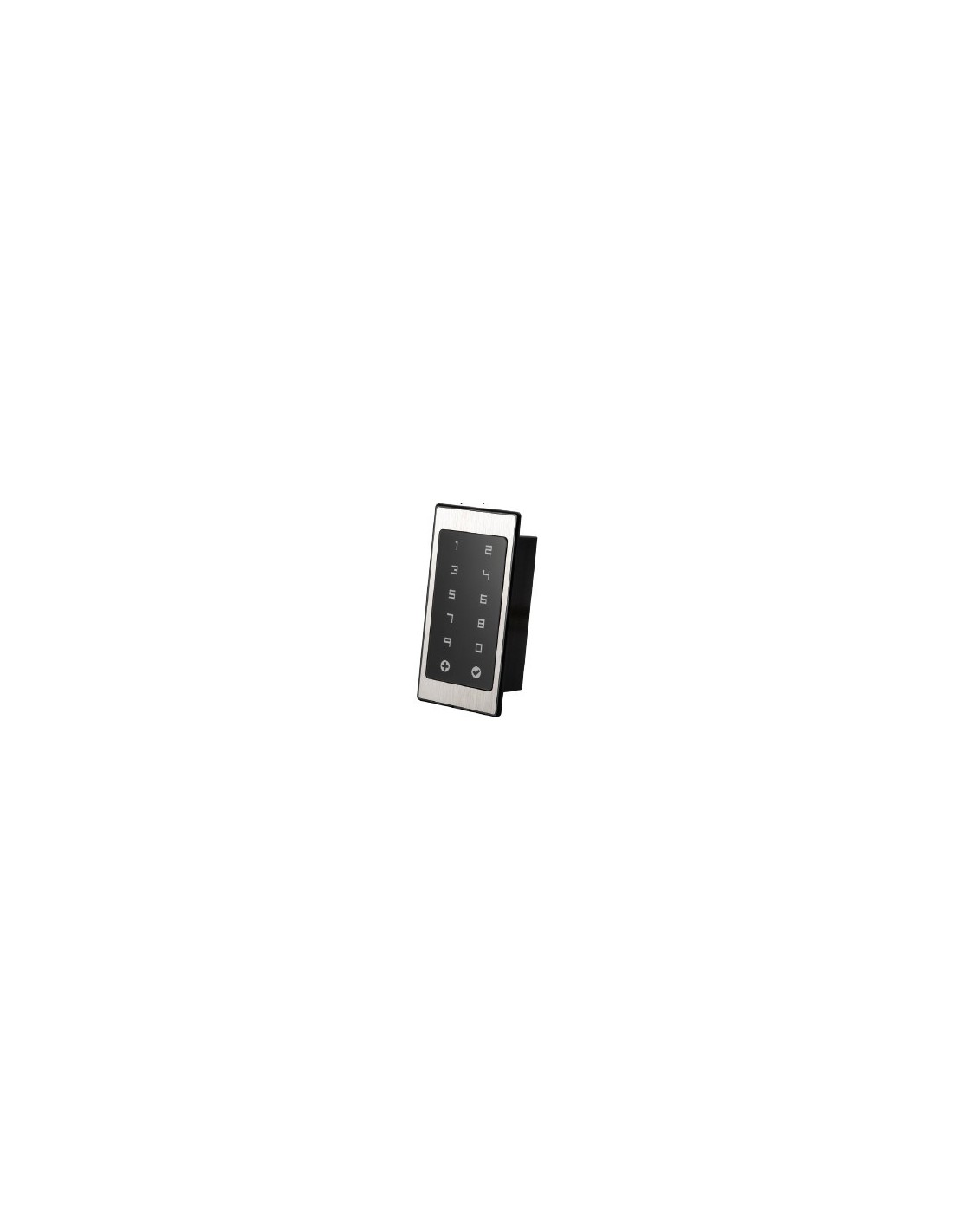

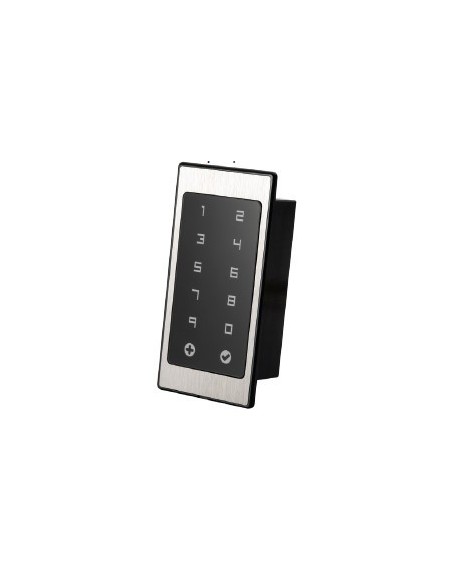

Touch keypad R7-TP-SB

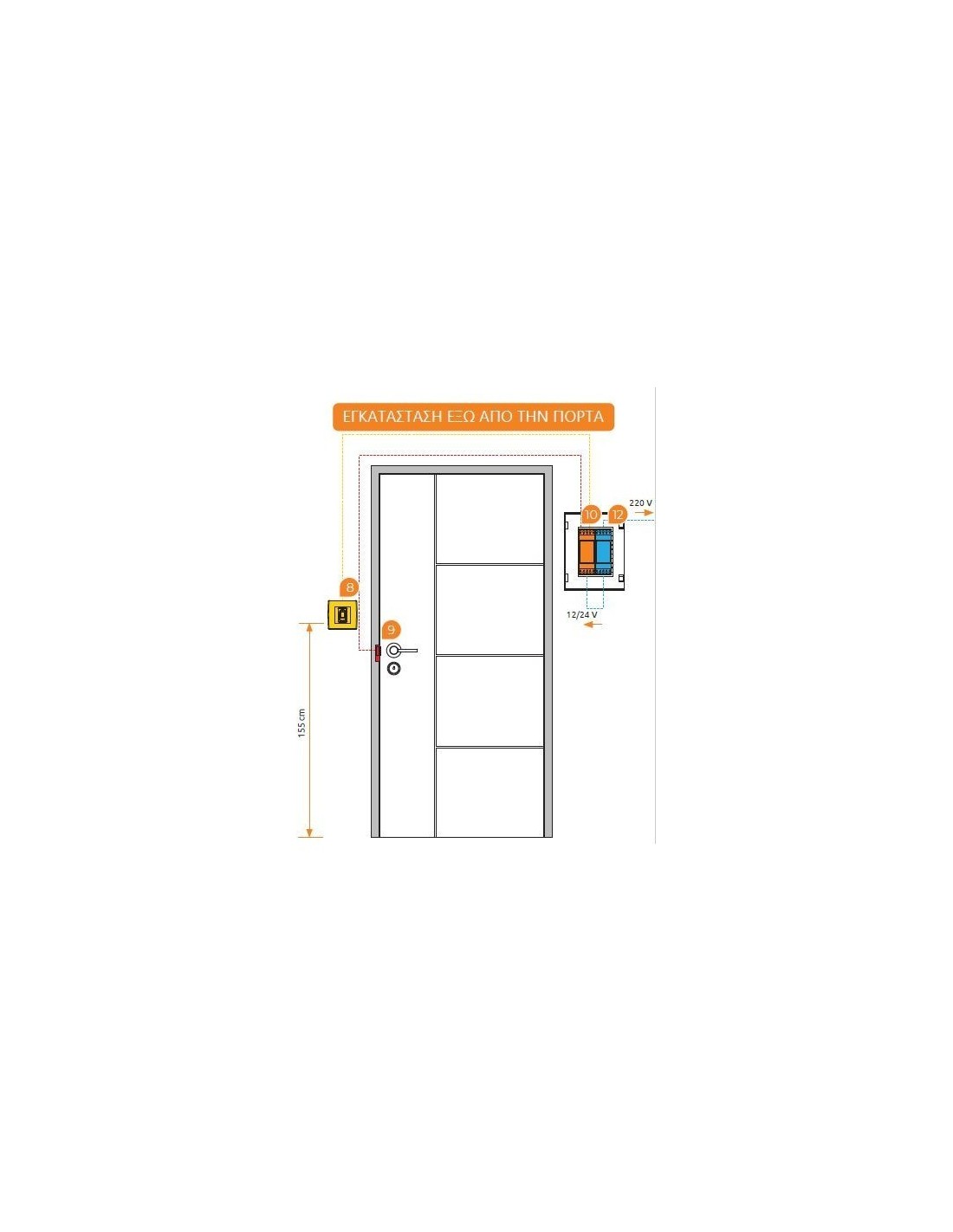

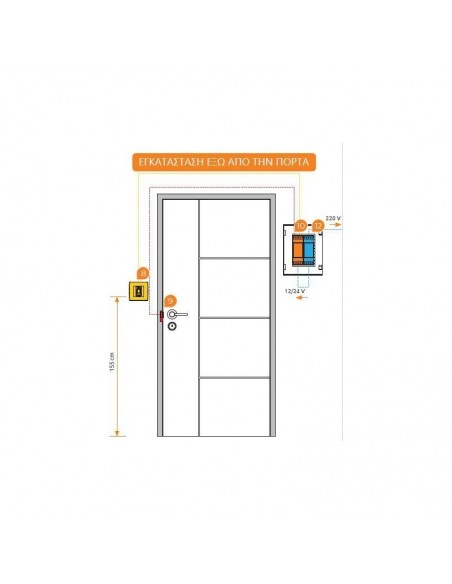

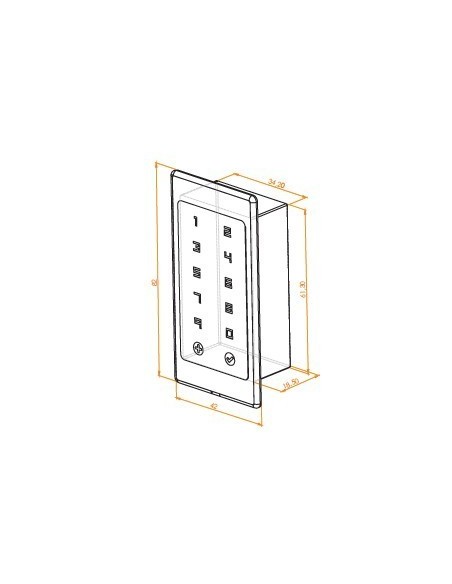

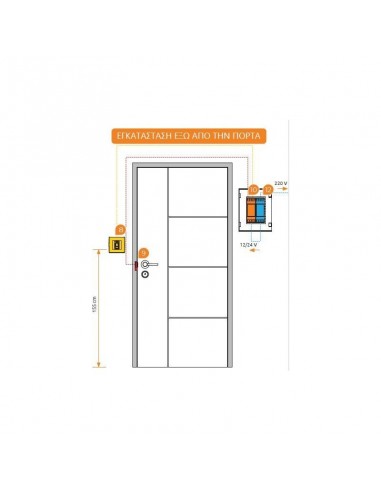

Its convenient blue lighting makes it easy to use even at night. Its very small dimensions, 61.3 x 34.2 mm (the thinnest on the market at 17.5 mm), make it suitable for installation either on the door leaf or next to the door.

Because it has the same dimensions as the fingerprint reader switch (bioreader fingerprint reader), either of the two devices can be installed in its socket position.

The touch keypad has no buttons, levers, or moving parts. Two output relays allow unlocking the door with the first relay output and activating another device with the second (alarm, garage door, etc.).

Suitable for entrance doors of buildings, residences, or offices. It can activate any type of electric lock.

Finally, you can store 99 user codes and one administrator code, ranging from 4 to 16 characters.

A support base with a 30-degree tilt angle is also available, suitable for both the touch keypad and the fingerprint reader switch.

*The products are manufactured in the European Union and have CE certification.

**They have IP67 (the highest certification for resistance and proper operation in outdoor environments).
