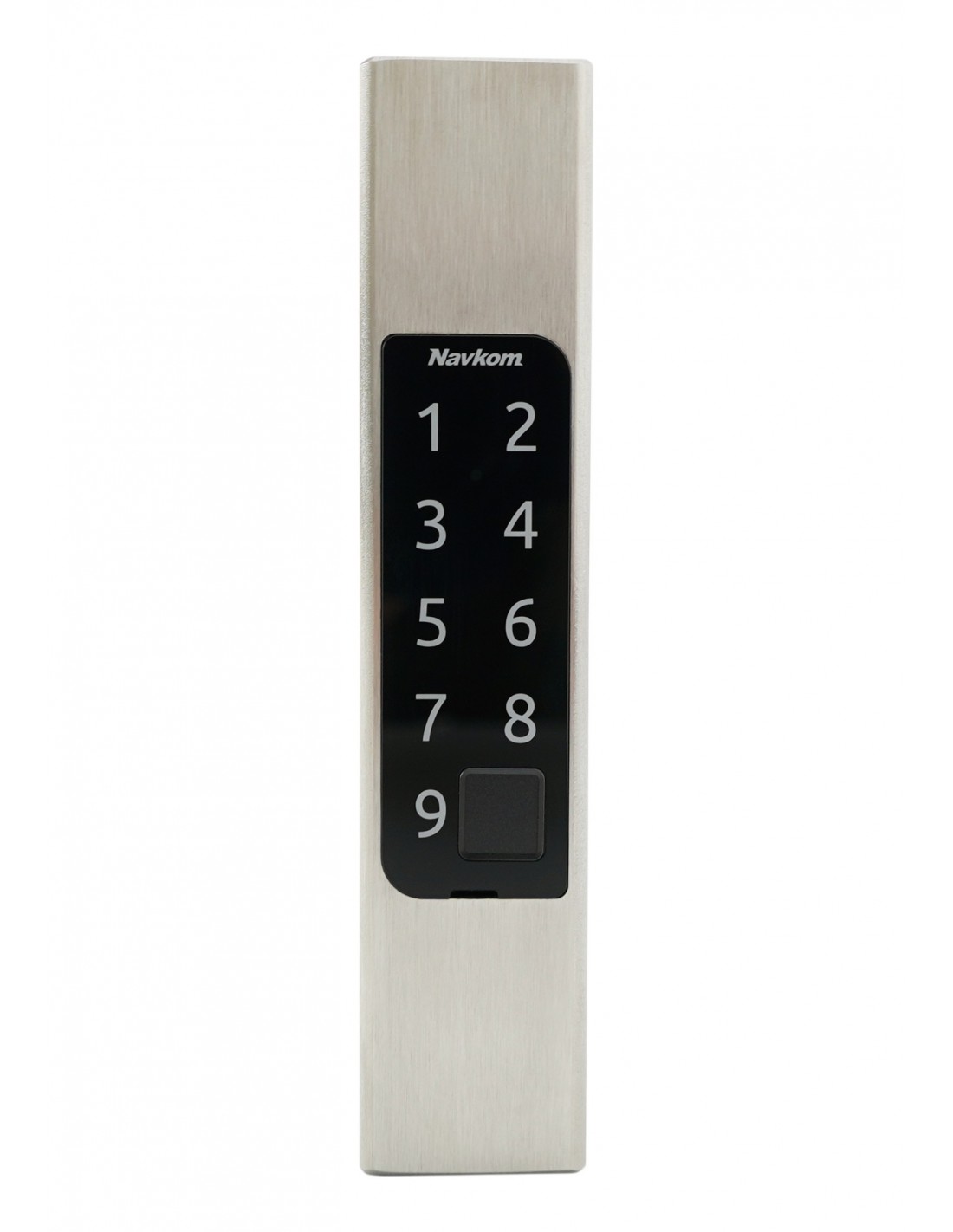

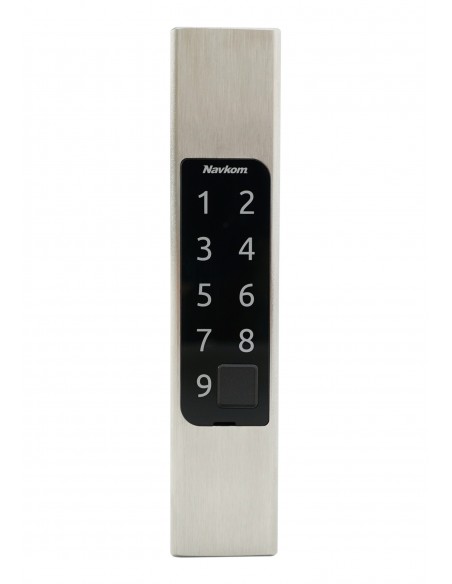

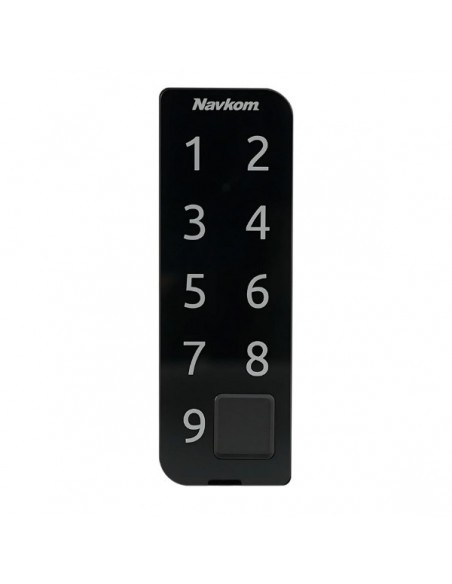

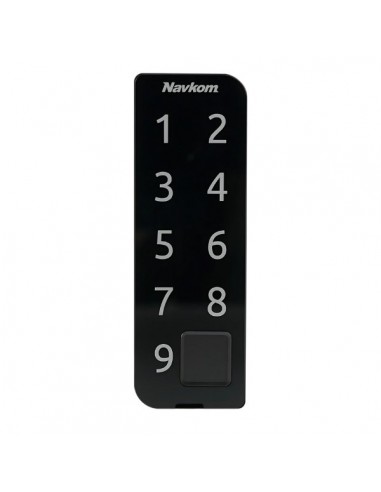

Touch keypad with fingerprint R8

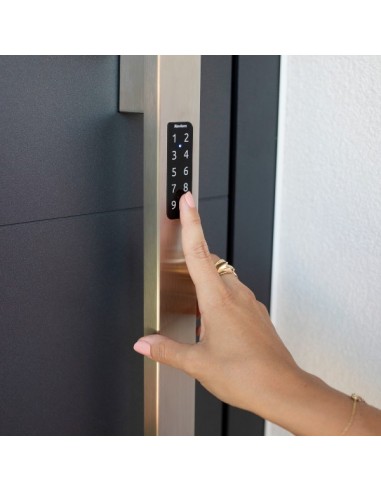

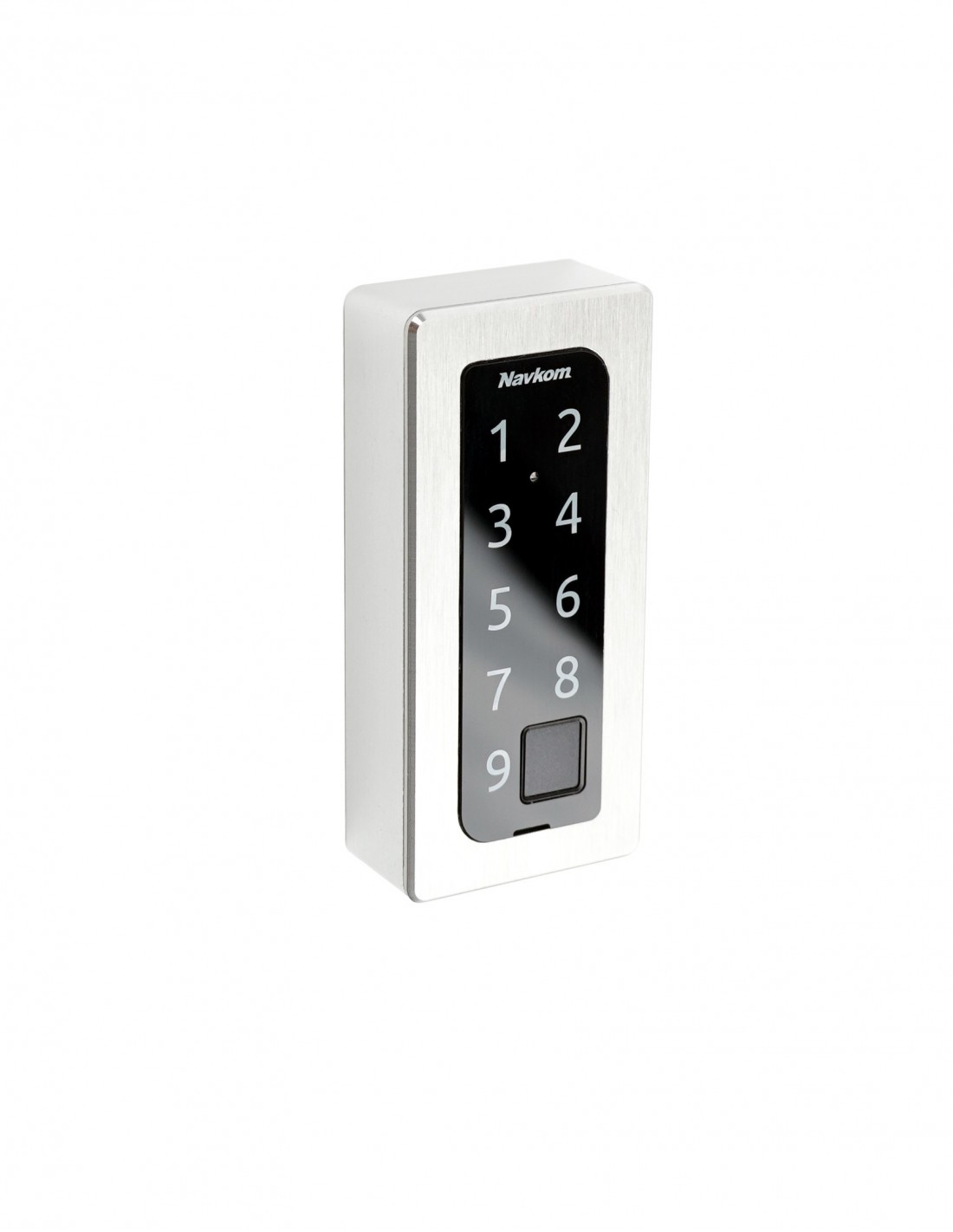

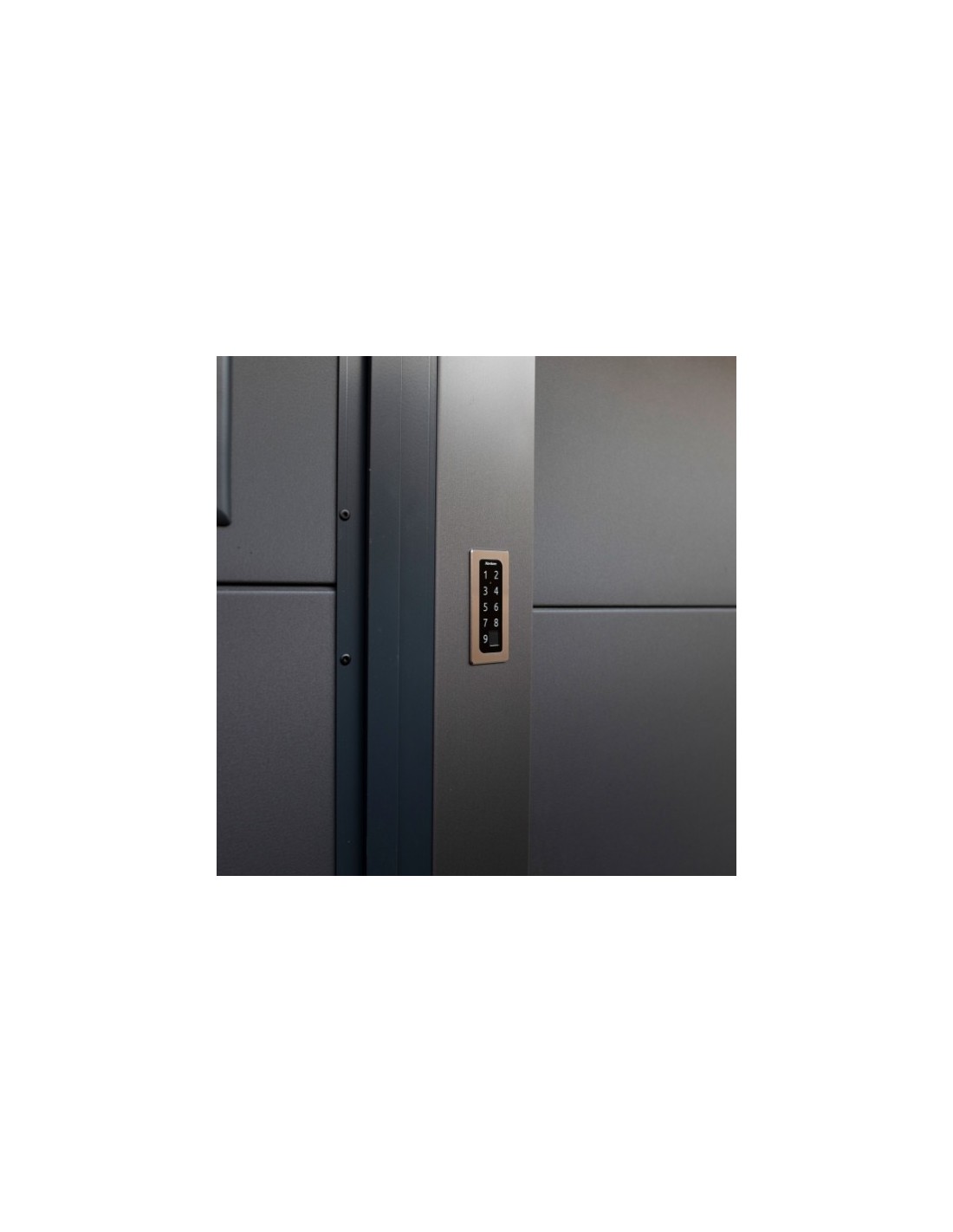

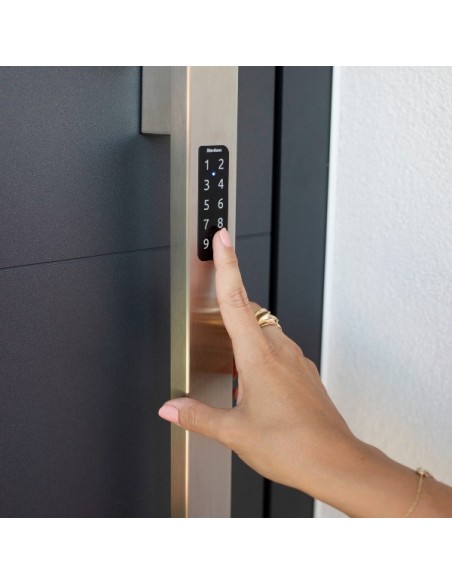

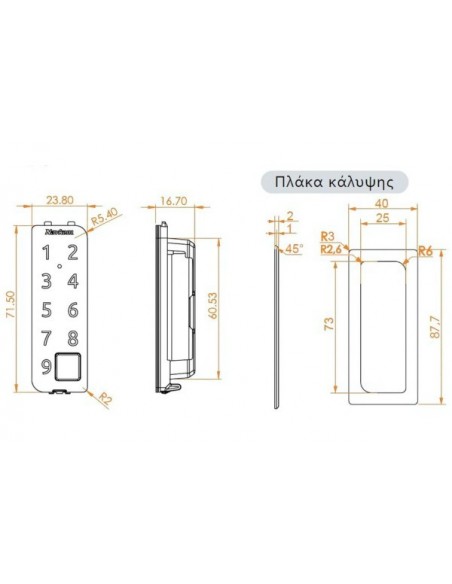

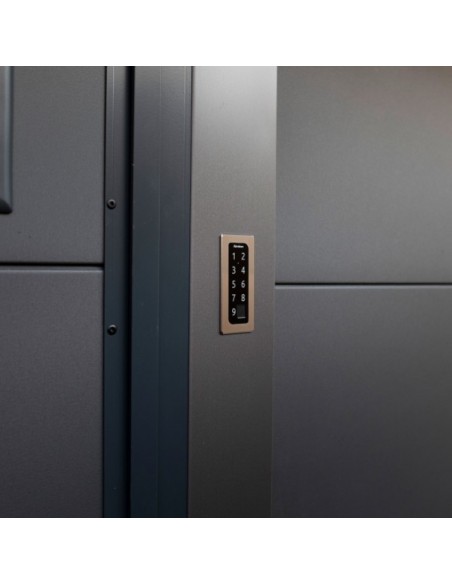

The Touch Keypad with Fingerprint combines two innovative access control methods – a fingerprint reader and a code keypad in one device. It fits on a door handle of standard dimensions or can be installed on a door leaf with or without a stainless steel cover.

Available versions:

• Wired operation – electric power

• Wireless operation with two AAA batteries (The estimated battery life with normal use is 1–2 years.)

Besides direct Bluetooth connection, the R8 line offers remote connection capability via GSM/LTE or home Wi-Fi.

Information Sheet
Touch keypad with fingerprint
BTP-GN-100(-MY*) BTP-G0-100(-MY*)

The product complies with the Electromagnetic Compatibility (EMC) Directive 2004/108/EC published in the Official Journal of the European Union L 390/24 dated 31/12/2004.

The following harmonized standards are applied:

• EN61000-4-5:2016

• EN61000-6-2:2016

• EN61000-6-3:2007/A1 2011

• EN55032:2012/AC:2013

Technical Information

Besides direct Bluetooth connection, the R8 line offers remote connection via GSM/LTE or home Wi-Fi.
Capacity: 150 fingerprints, 50 codes
Code length: 5 digits
Power supply voltage: 5 V (2 × AAA)
Operating temperature: from -20 ºC to +60 ºC
Fast fingerprint recognition <1 s
Maximum ambient humidity up to 95% IP54
Capacitive sensor BM LITE, 160 x 160 px
Connection to control unit: 256-bit encrypted
Interface with 3-color LED light, sound signal, capacitive buttons, N-Satellite app
FAR 1:1,000,000
FRR 1:100
Maximum current (5 V): 2 mA
Maximum power: 0.1 W
UV protection
Maximum cable connection length: 30 m

Electrical and electronic products are NOT returnable. Exceptions are those identified as defective after inspection and are therefore replaced.

*Products are manufactured in the European Union and have CE certification.
