Ηλεκτρικός μηχανισμός με έμβολο προβολή και ανάκλισης φεγγιτών UCS ULTRAFLEX CONTROL SYSTEM 40541N

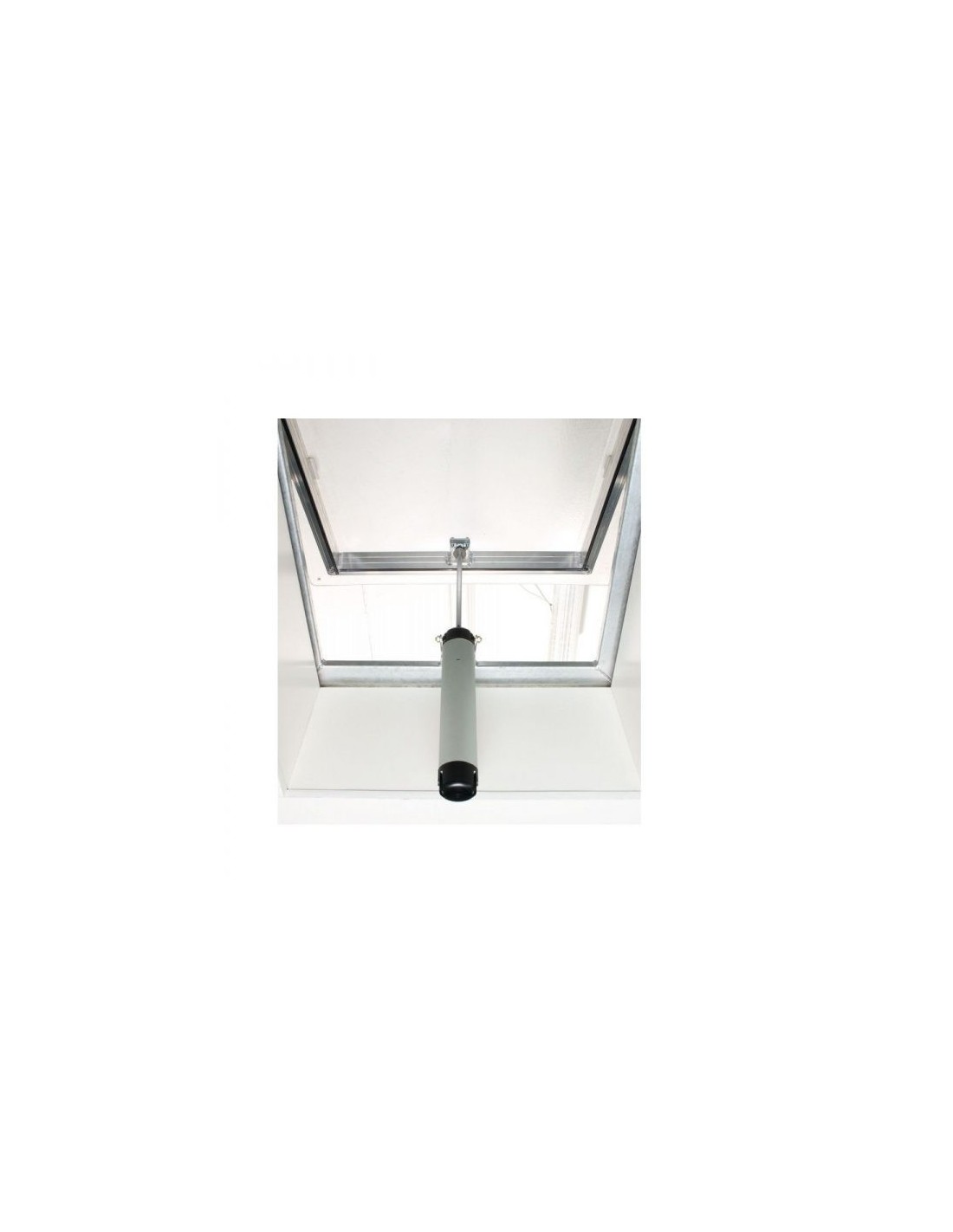

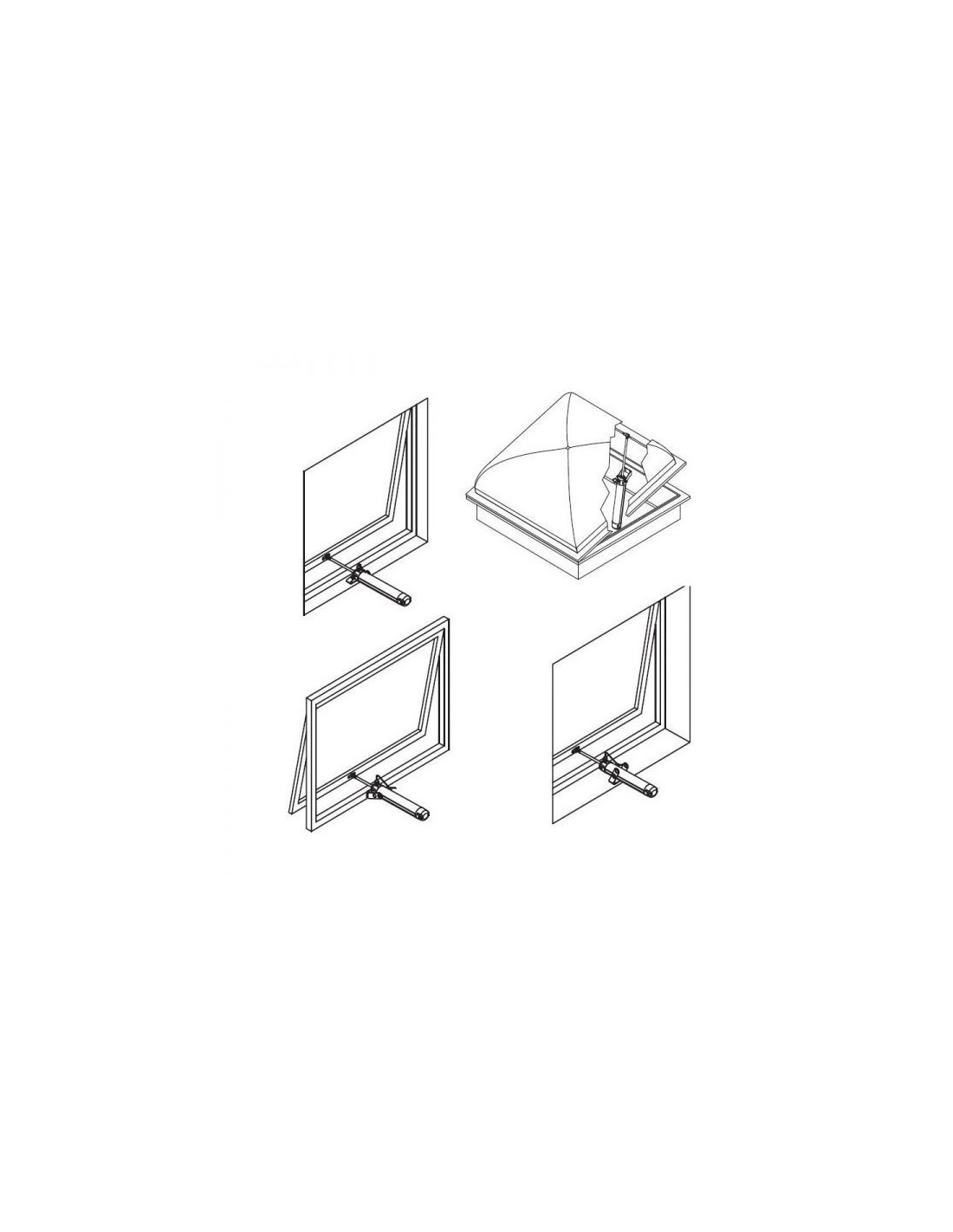

• Suitable for projected windows and skylights made of aluminum, wood, iron, and plastic.

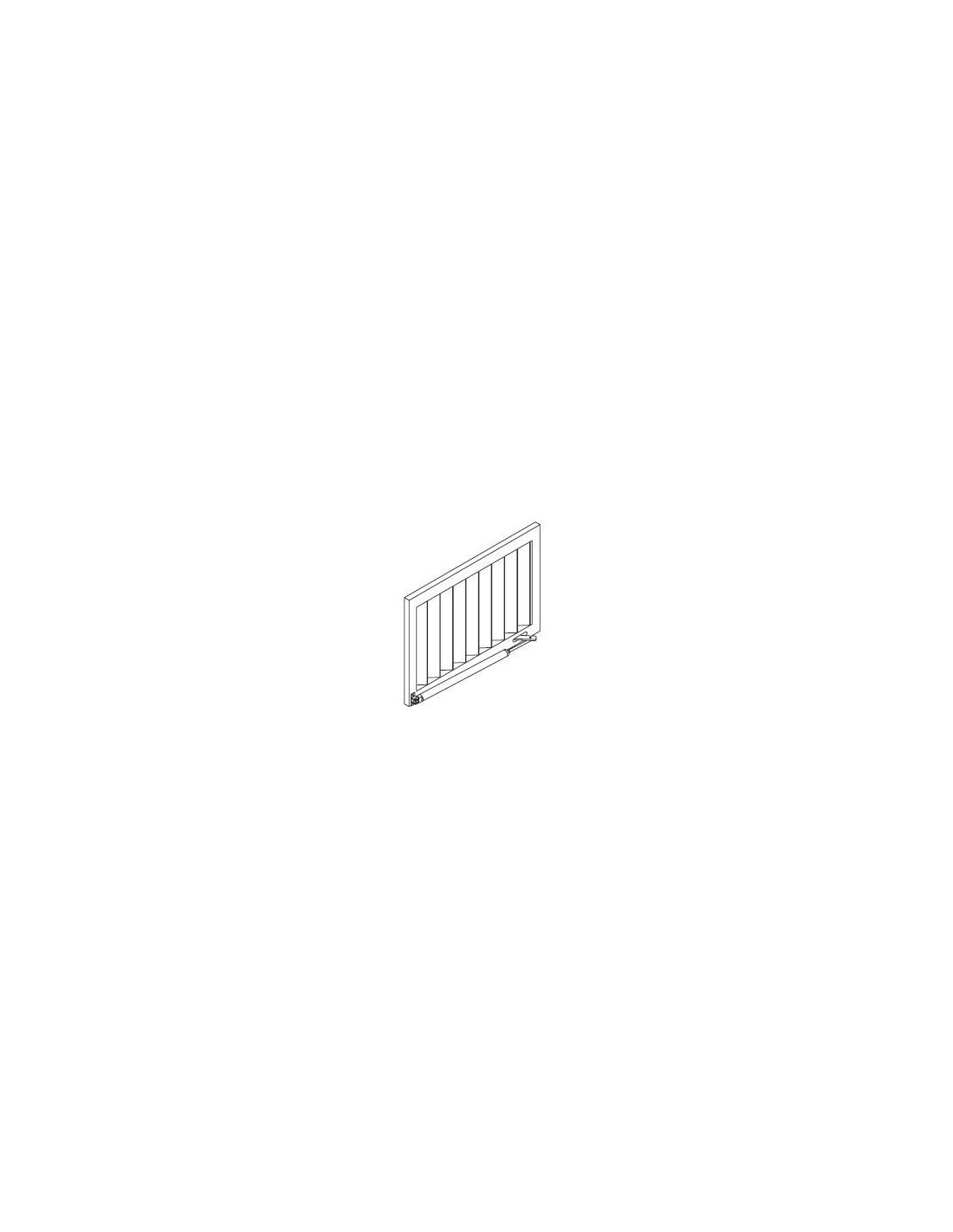

• It can also be installed on hopper-type windows.
• The mechanism housing is made of aluminum, and its internal mechanism consists of a single piston.
• It offers high protection against atmospheric conditions and is equipped with an adjustable joint for easier installation.

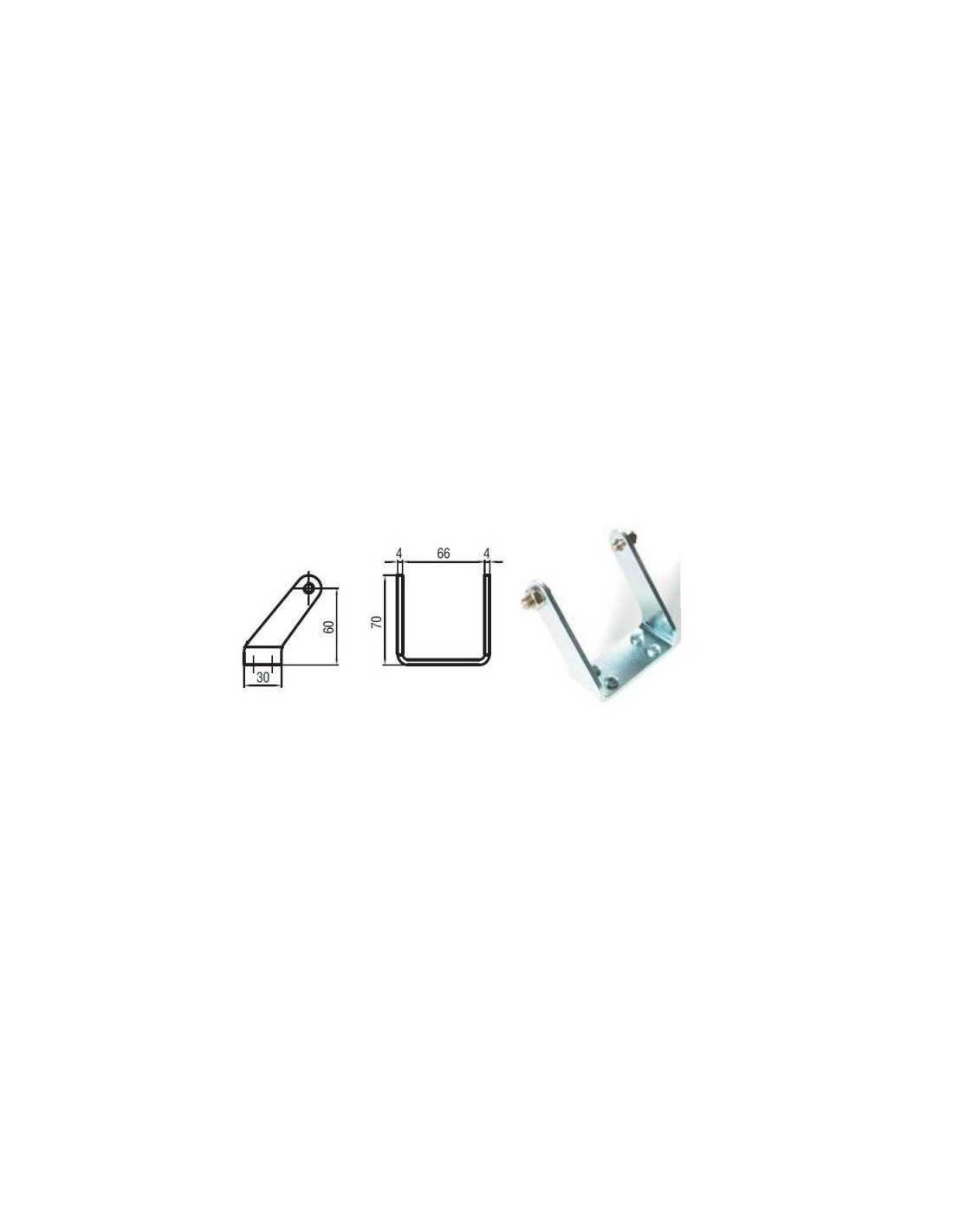

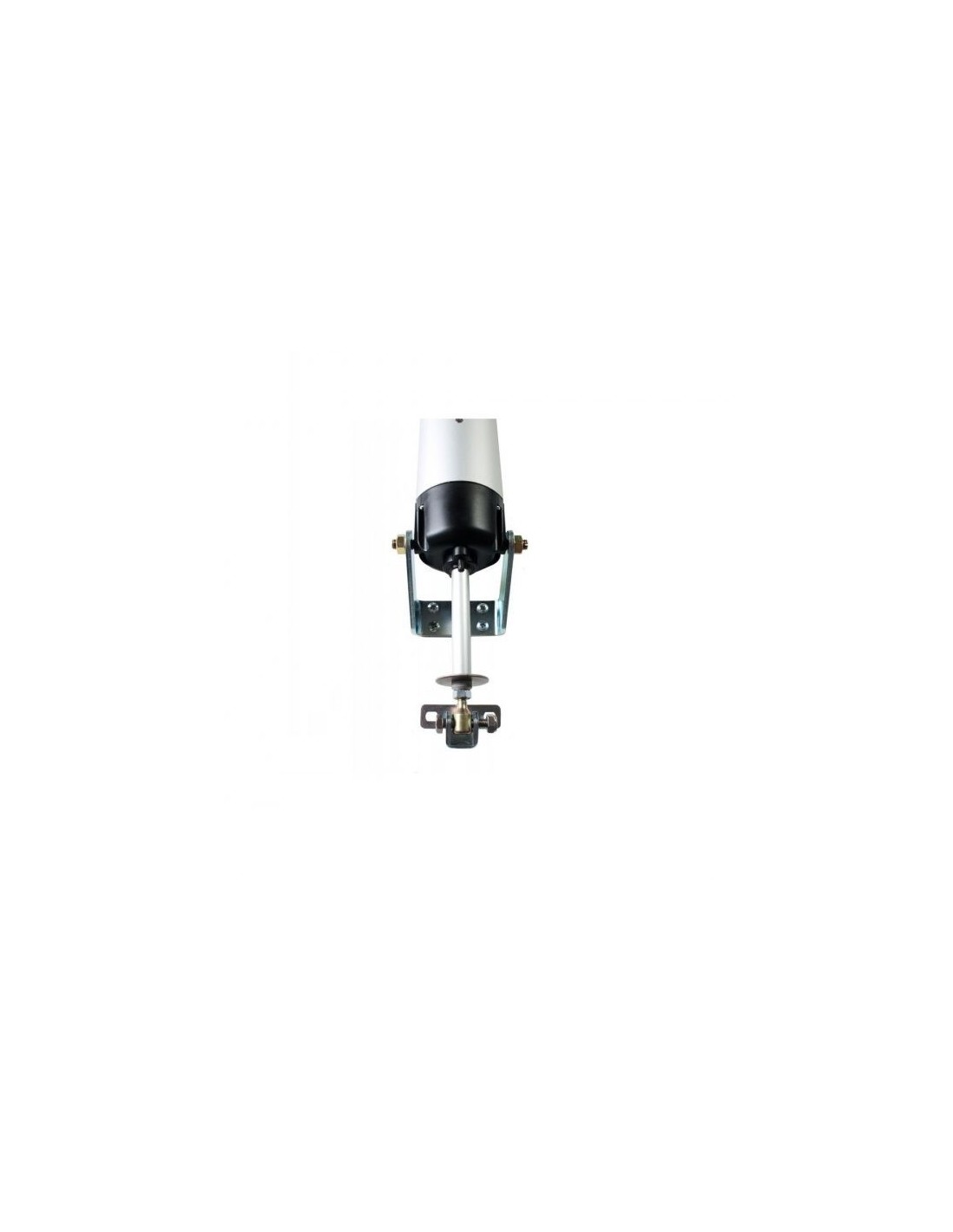

The package includes the mechanism and its support bracket.

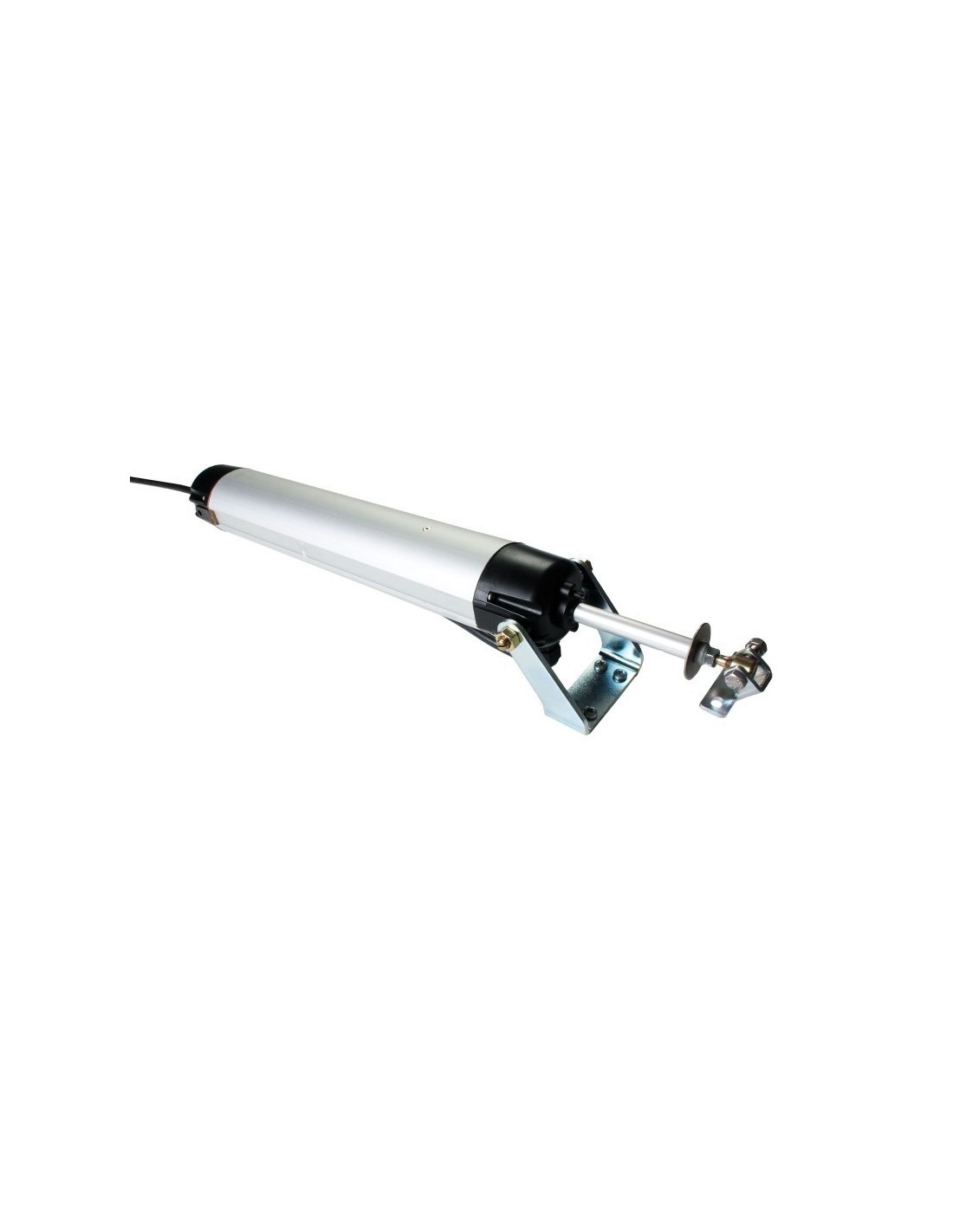

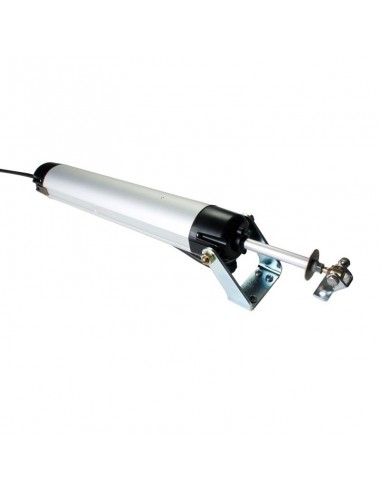

Electric piston mechanism for projection and tilt of skylights UCS ULTRAFLEX CONTROL SYSTEM 40541N

Power supply: 230 Vac
Electrical operation connection: 3 wires + ground

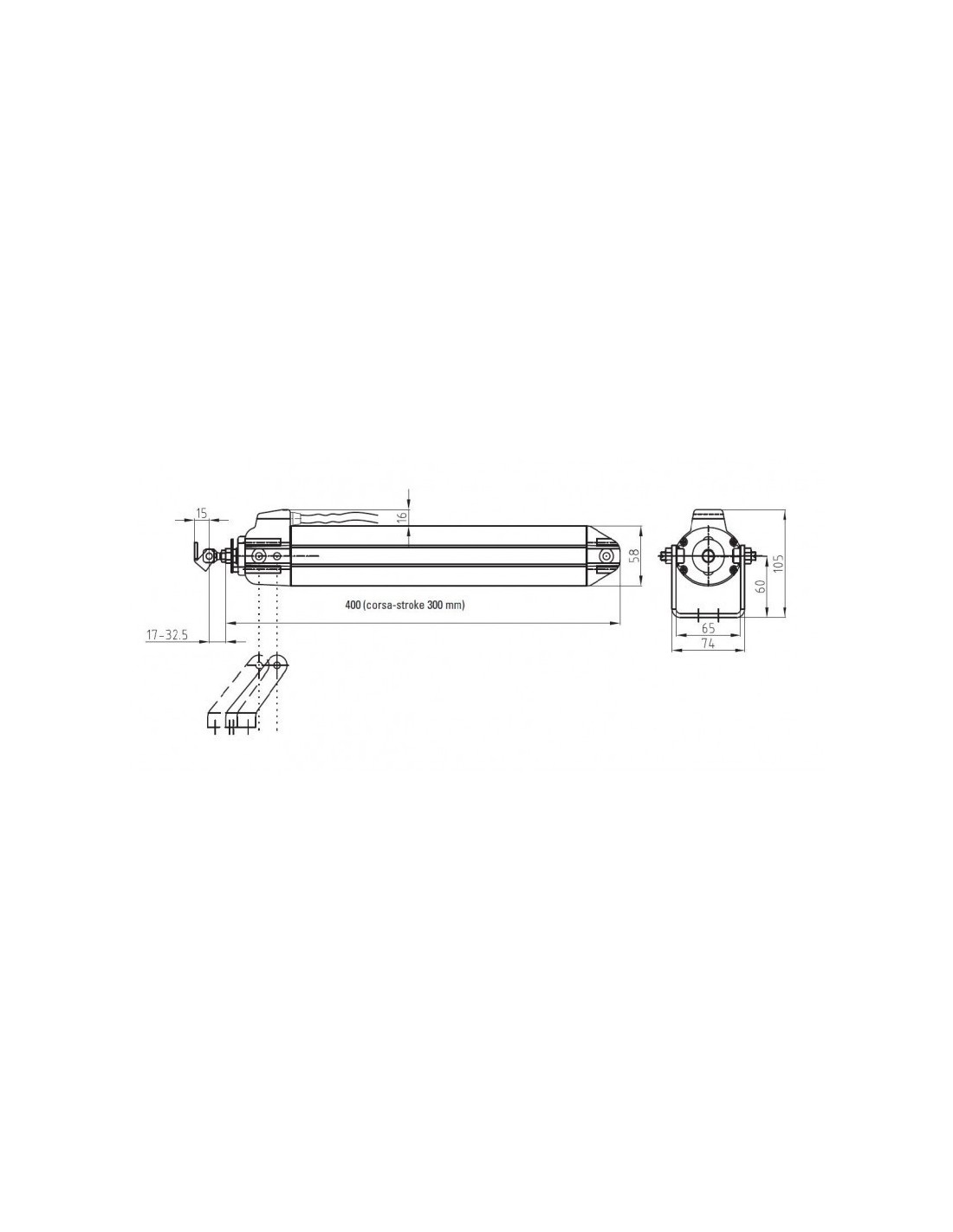

Stroke: 300 mm
Pushing force: 450 N
Speed: ~20 mm/sec
Power consumption (at maximum load): 0.7 A
Parallel connection: YES
Limit switches: Micro switches
Safety stop: Thermal
Protection class: IP 65
Colors: Silver anodized

See the technical datasheet in the DOWNLOAD section.
