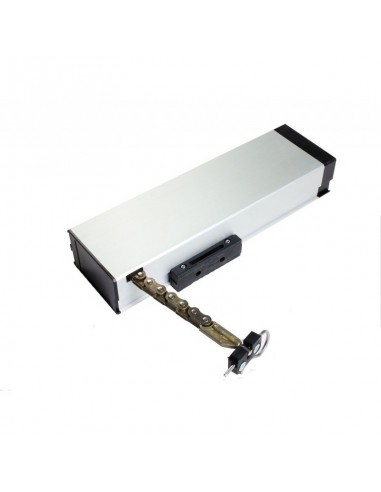

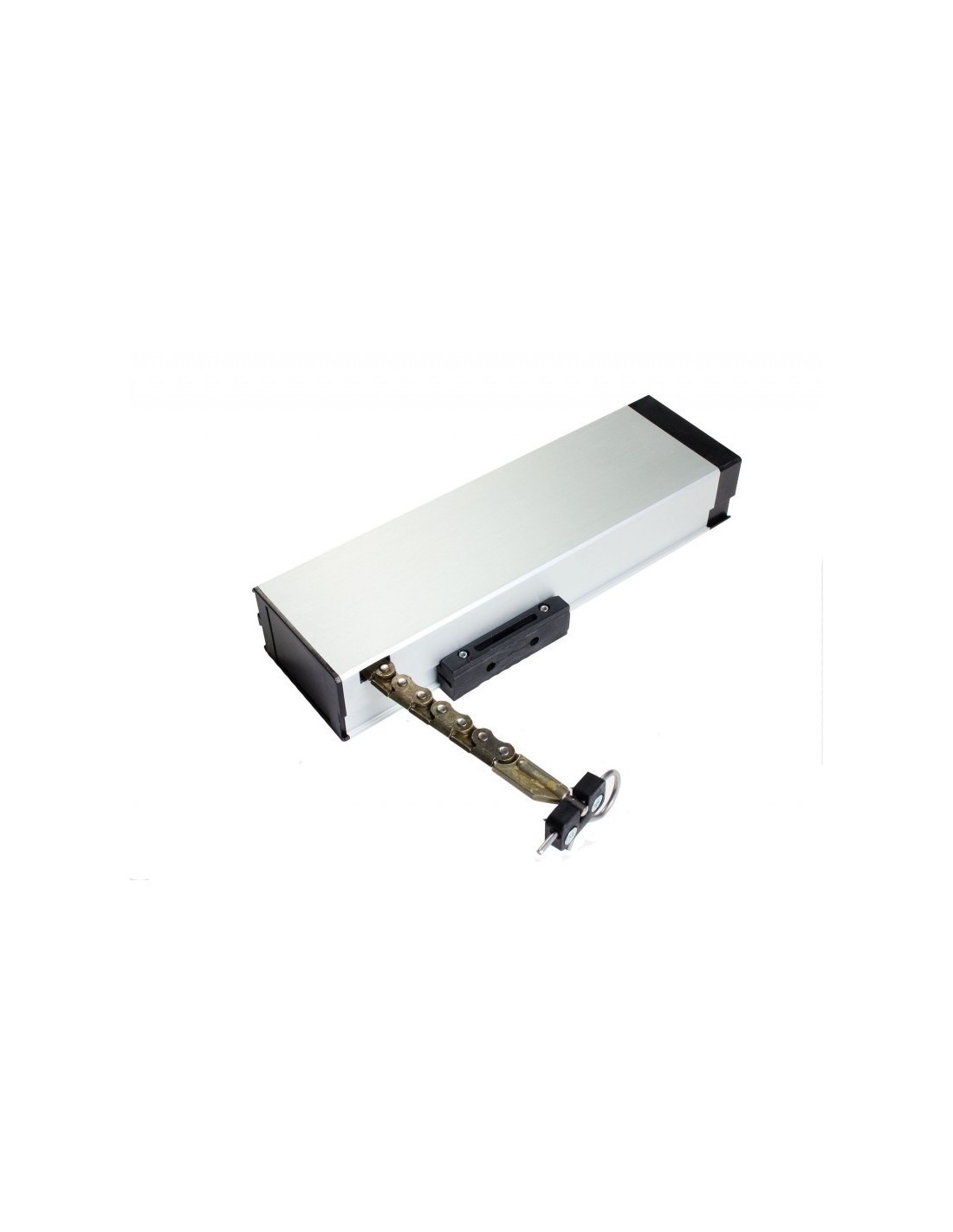

Electric mechanism for the opening and closing of skylights UCS ULTRAFLEX CONTROL SYSTEM 40313C

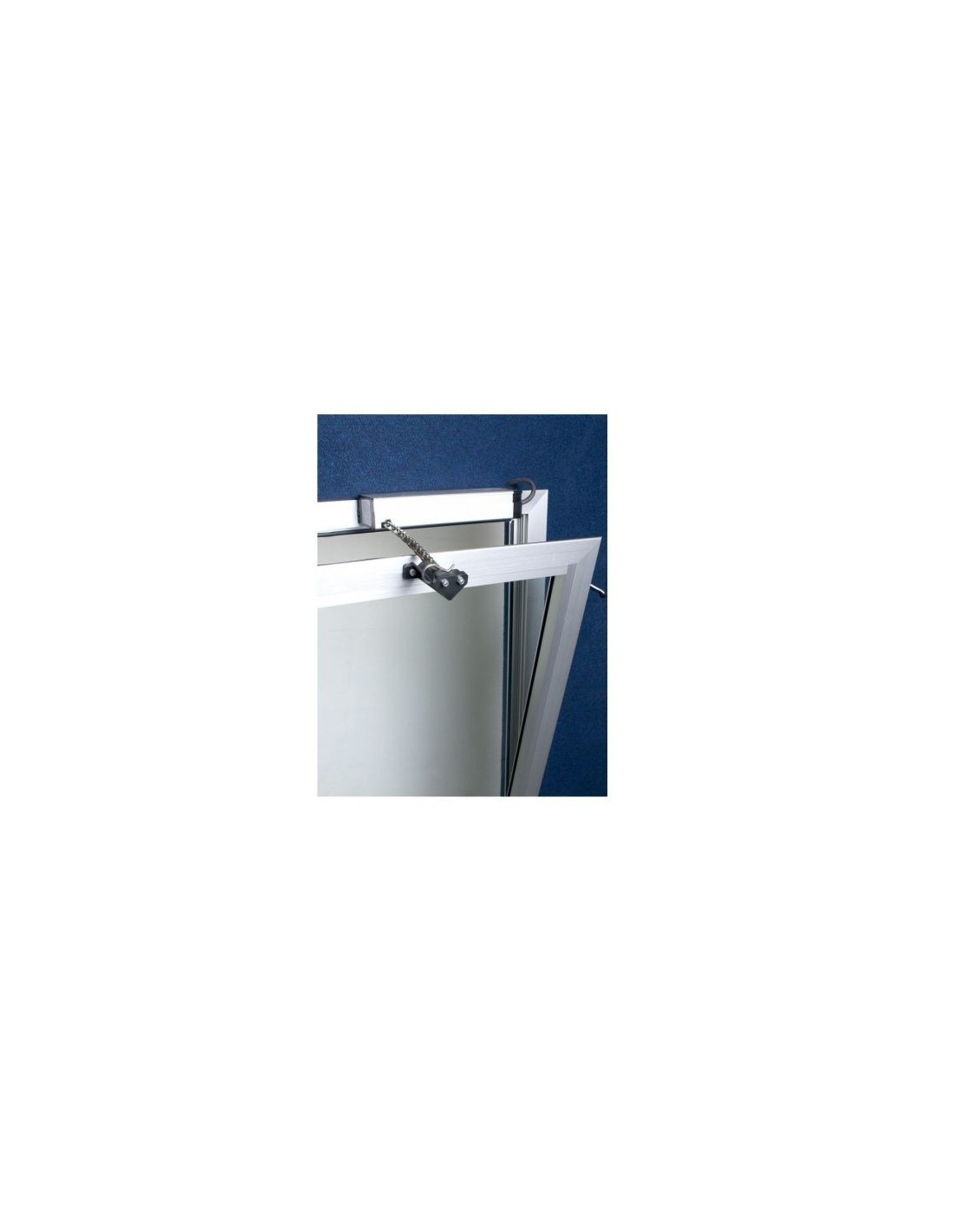

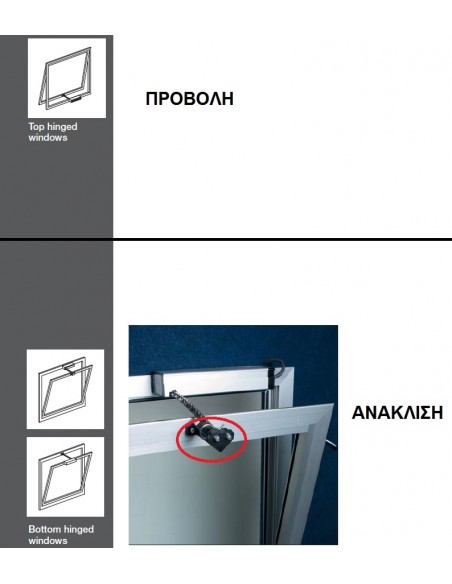

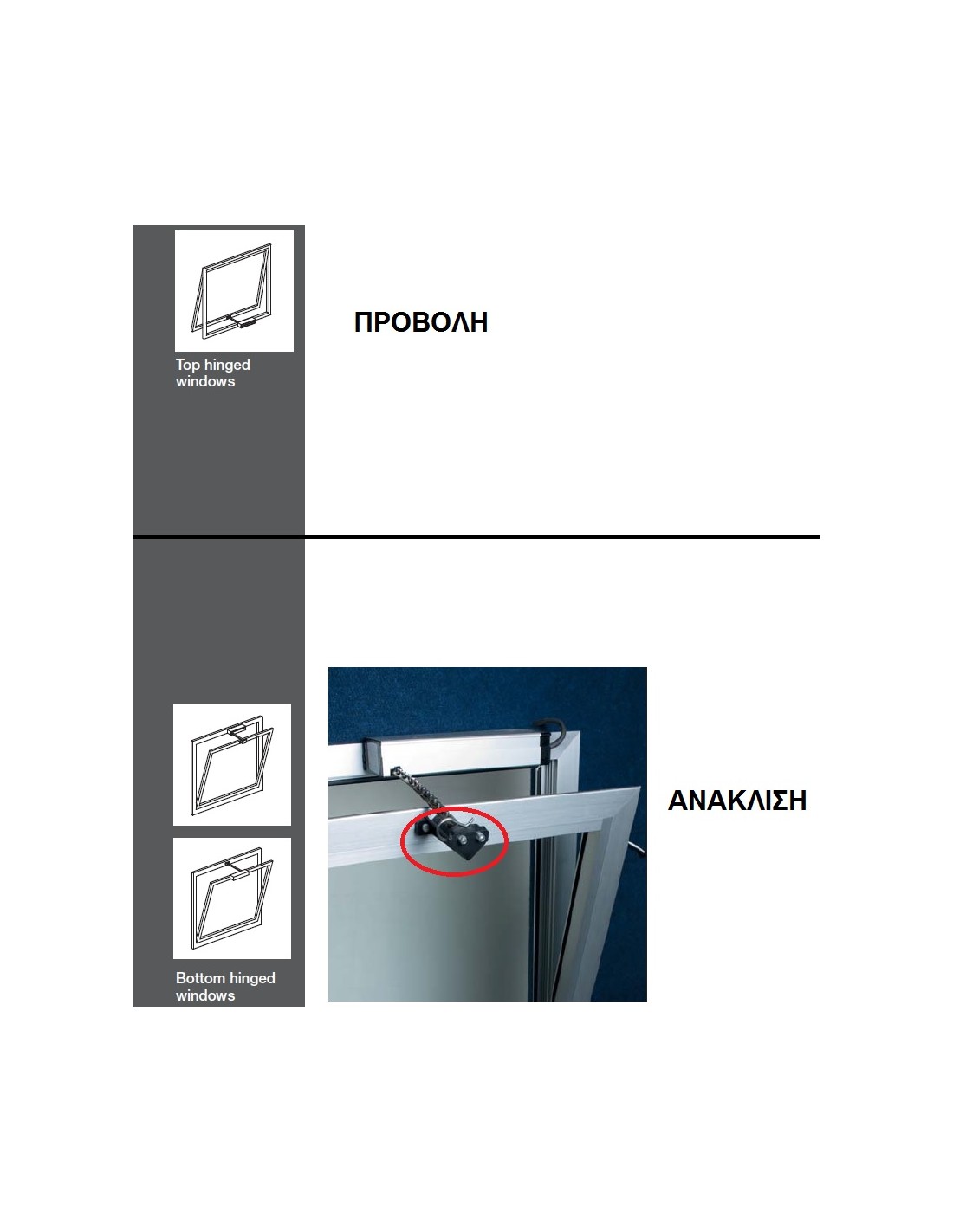

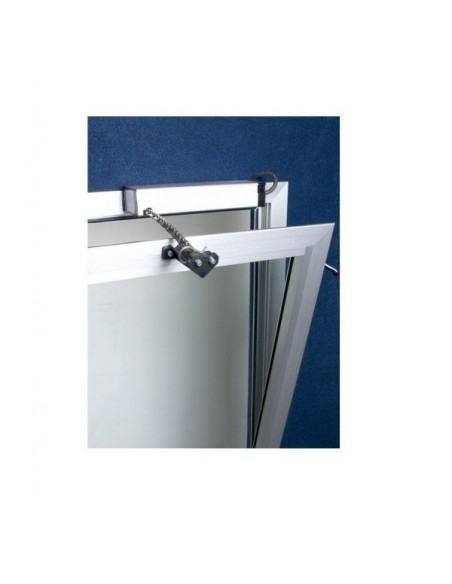

• Suitable for tilt-and-turn and projected windows and skylights made of aluminum, wood, iron, and plastic.

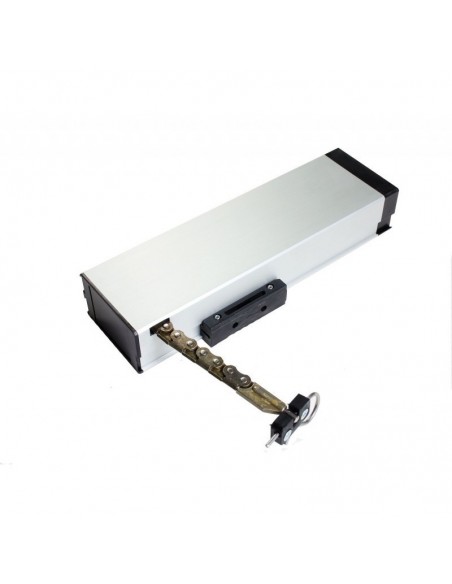

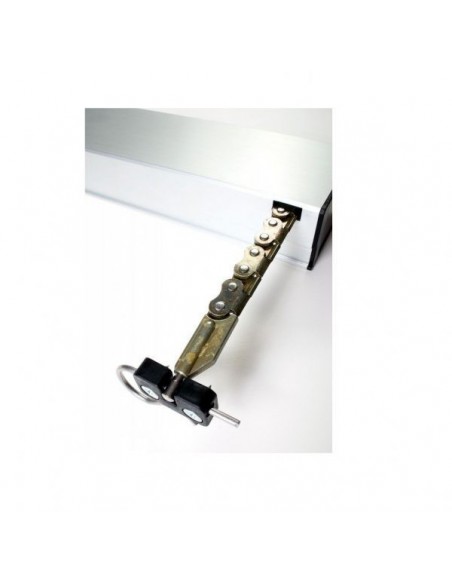

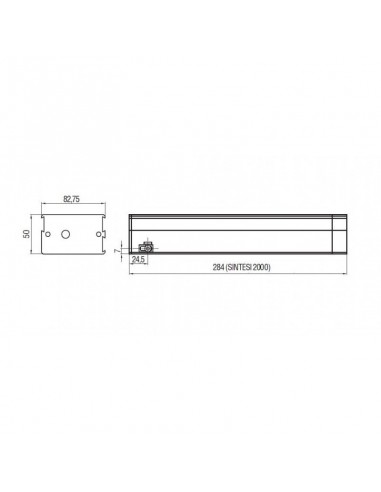

• The housing of the mechanism is made of aluminum, and its internal mechanism consists of a single continuous chain.
• There are two options for the total chain stroke: 250 mm and 380 mm, which can be selected during the connection of the mechanism.

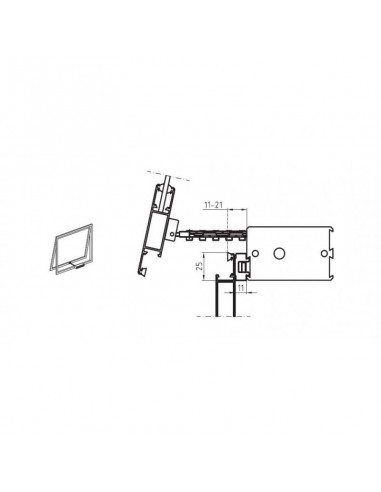

• For projected windows, it is better to choose the 250 mm stroke for improved wind resistance.

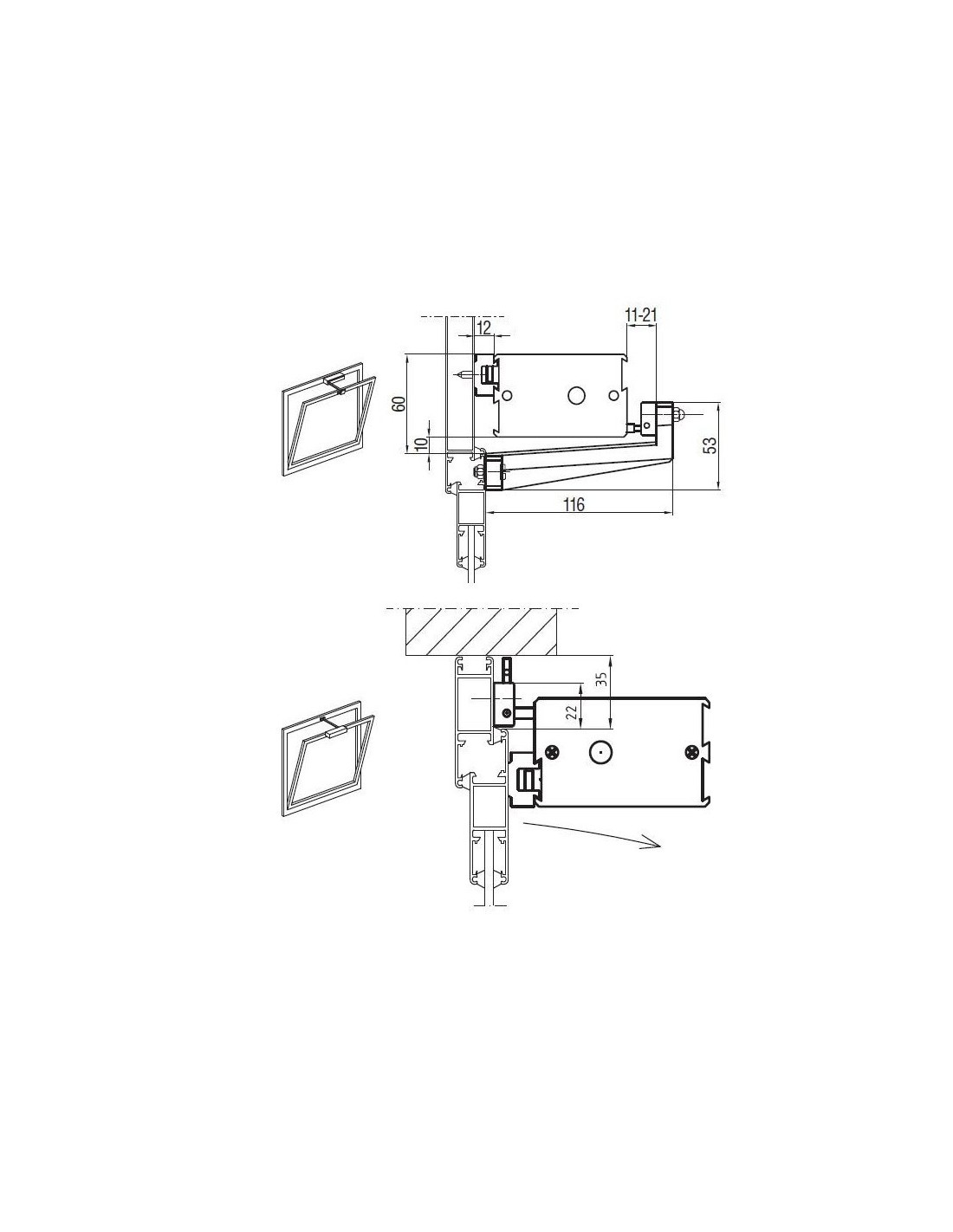

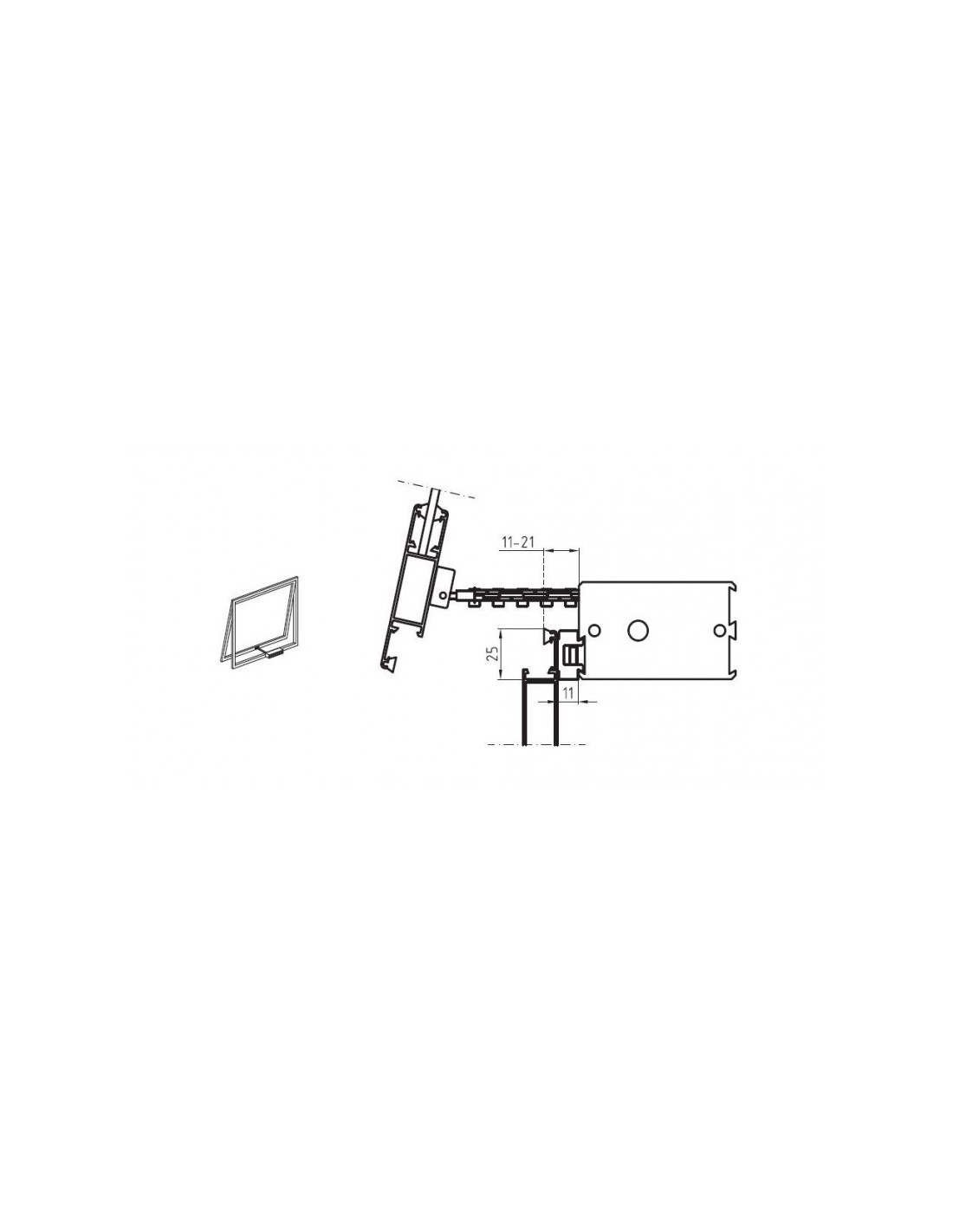

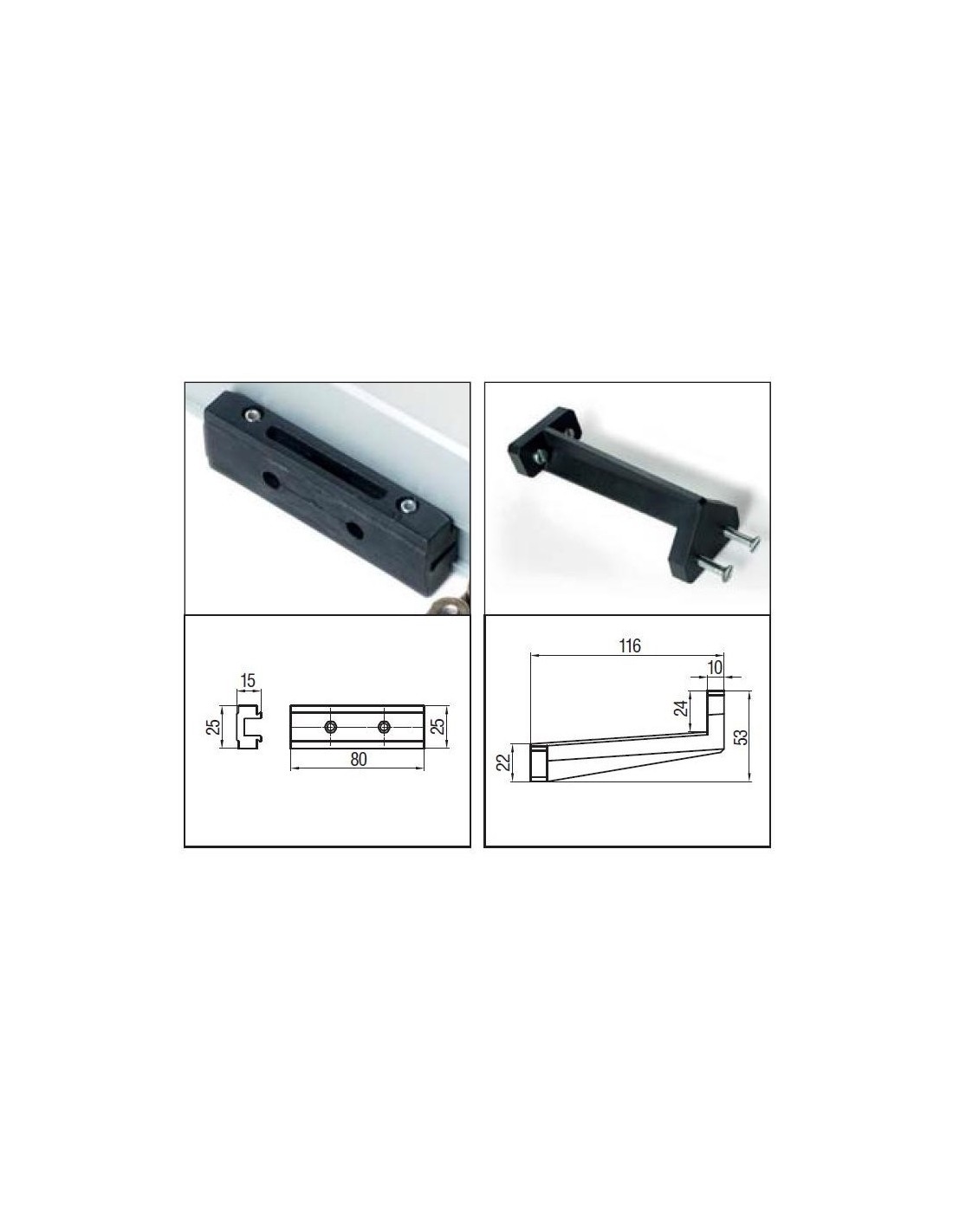

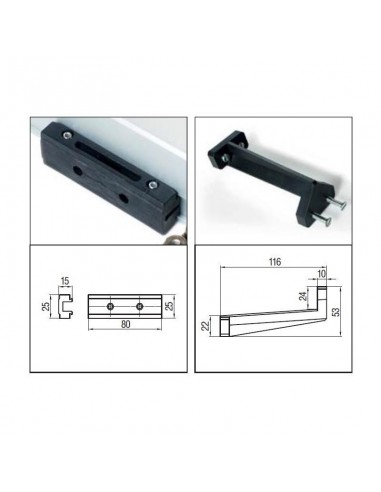

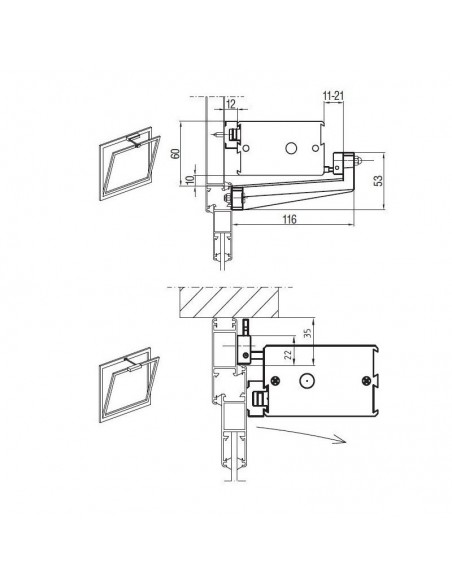

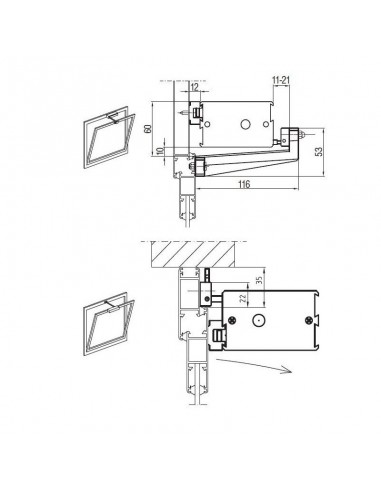

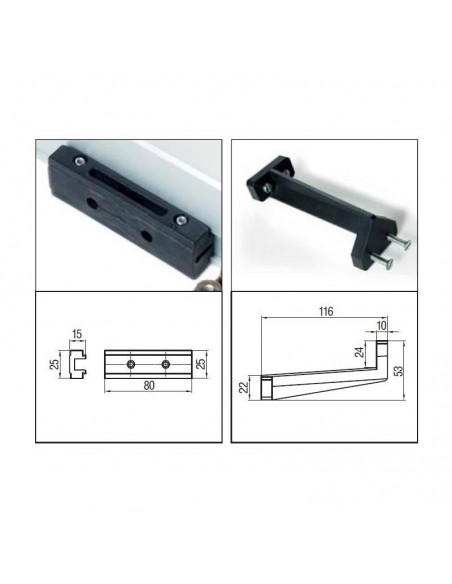

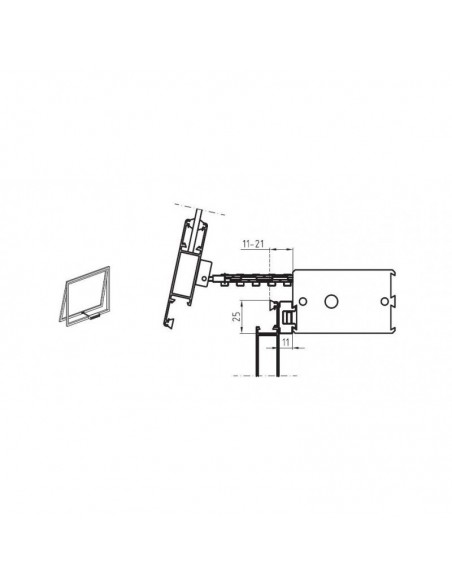

• It features three channels into which the support bracket of the mechanism can be slid, along with an easy locking system to the window.

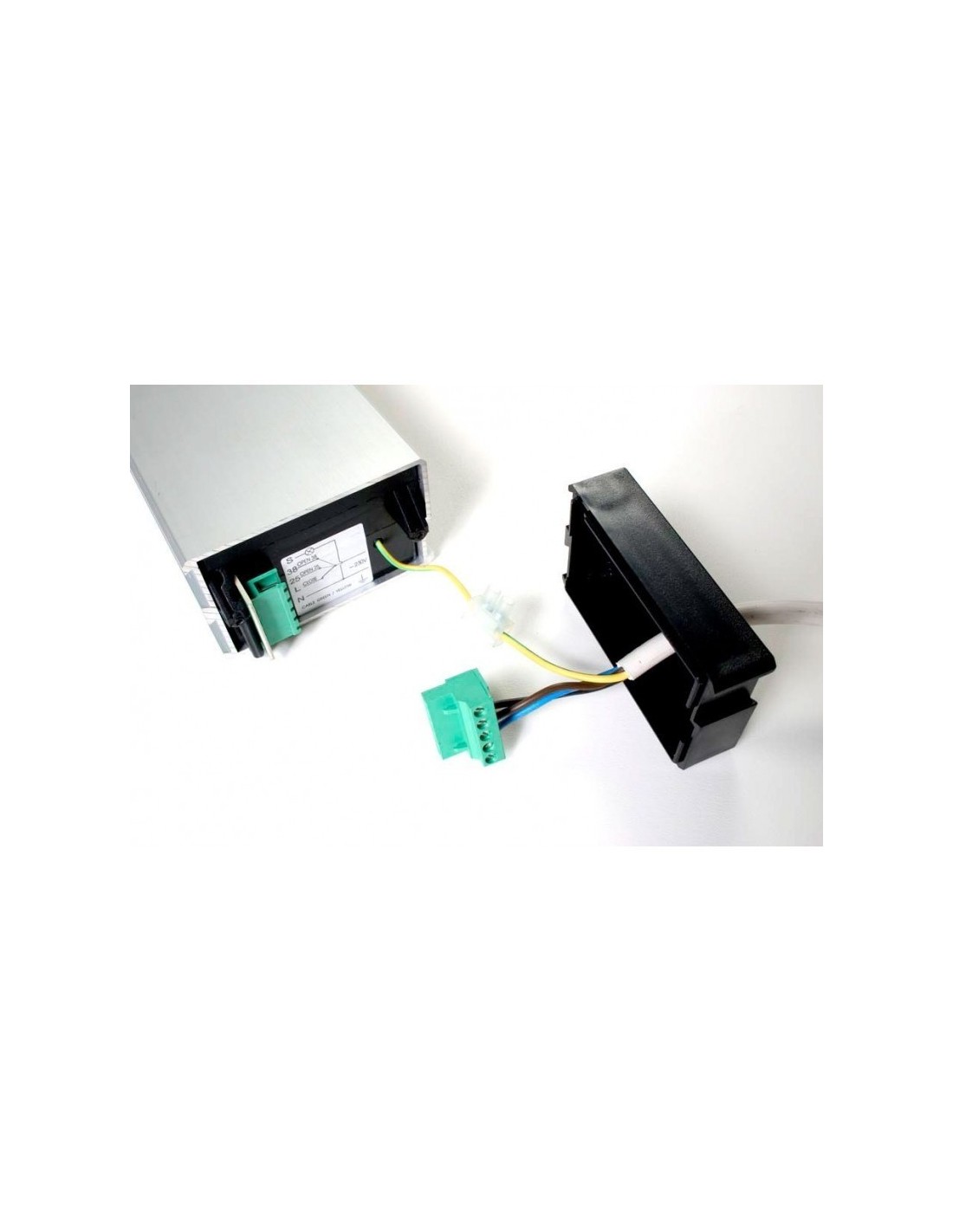

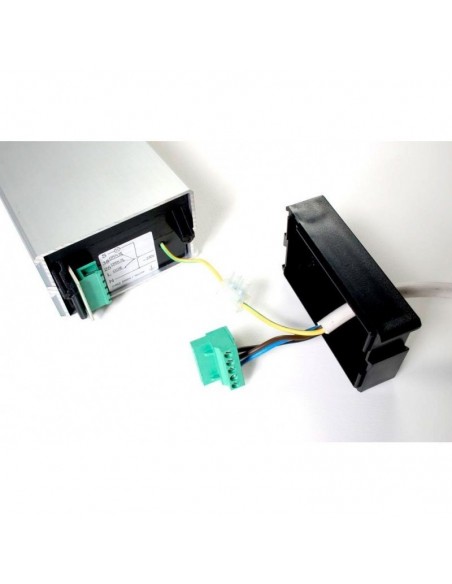

• The special removable cap allows for a very quick and easy connection.

Power supply: 230 Vac

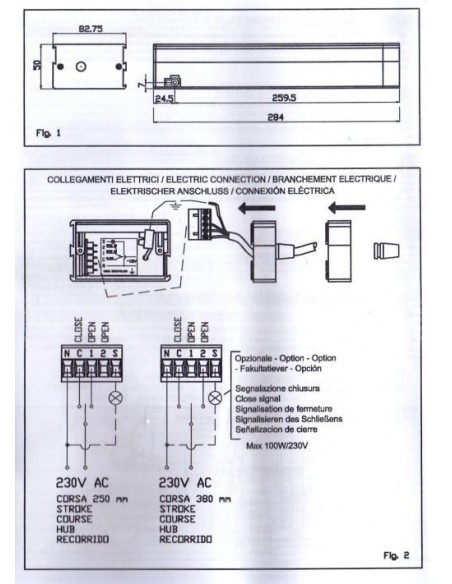

Electrical operation connection: 3 wires + ground
Stroke: selectable between 250 mm / 380 mm
Pushing force: 180 N (250 mm stroke) / 90 N (380 mm stroke)
Pulling force: 300 N
Speed: ~40 mm/sec
Power consumption (at maximum load): 0.65 A
Parallel connection: YES
Limit switches: Micro switches
Safety stop: Thermal
Protection class: IP 20

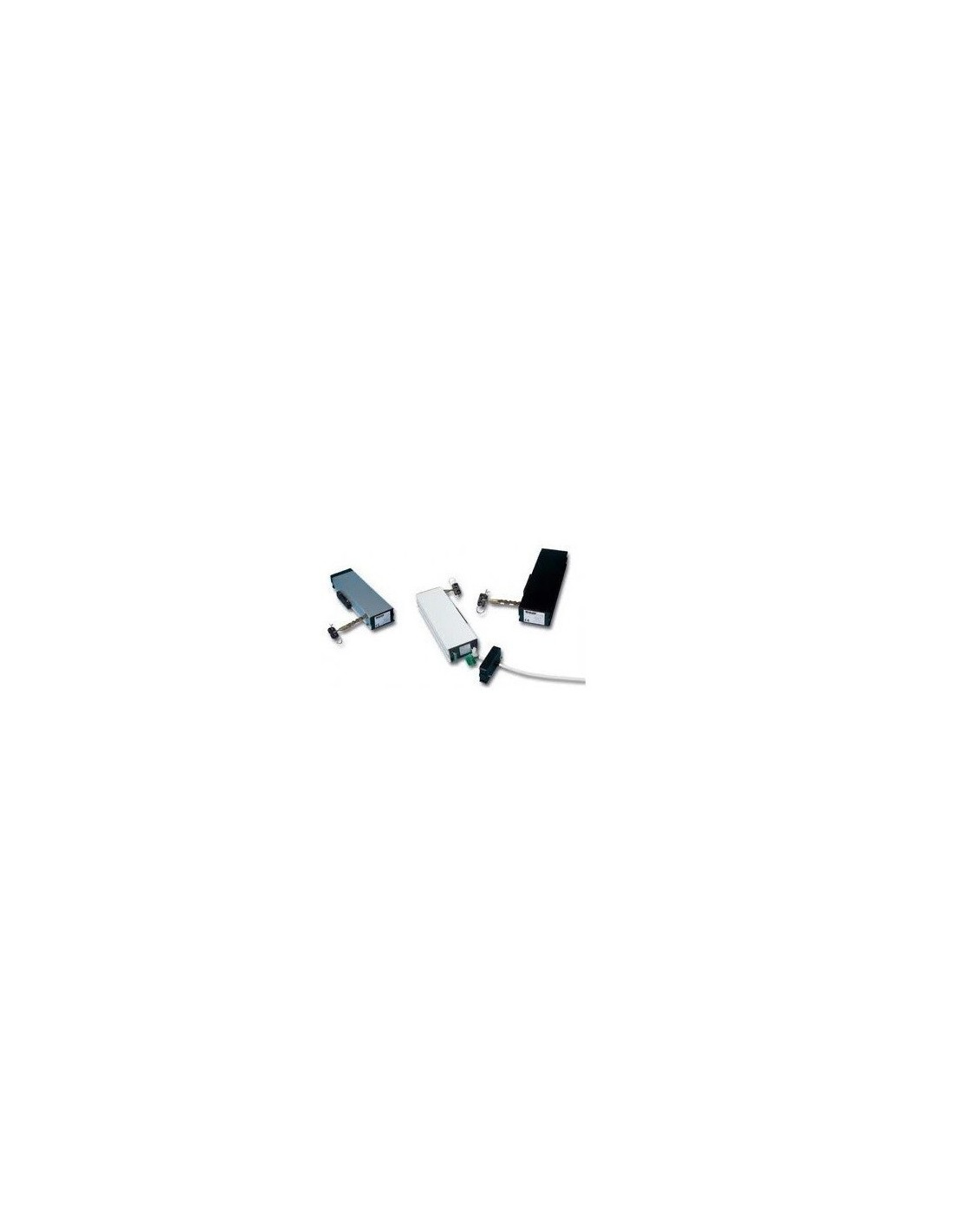

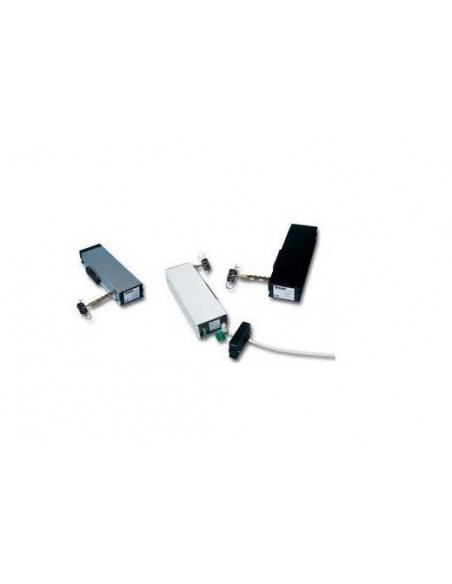

Colors: Silver anodized, dark anodized black, and white RAL 9010

See the technical datasheet in the DOWNLOAD section.
