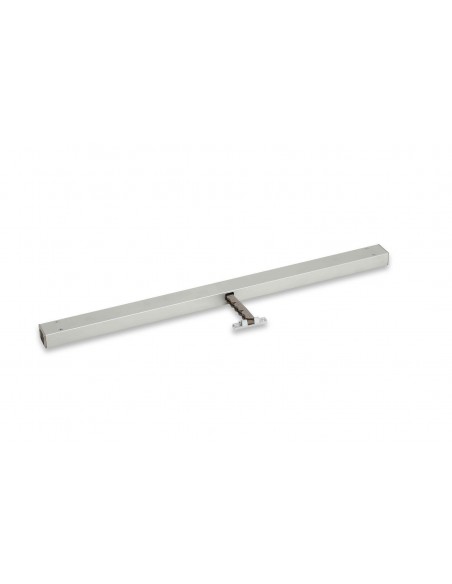

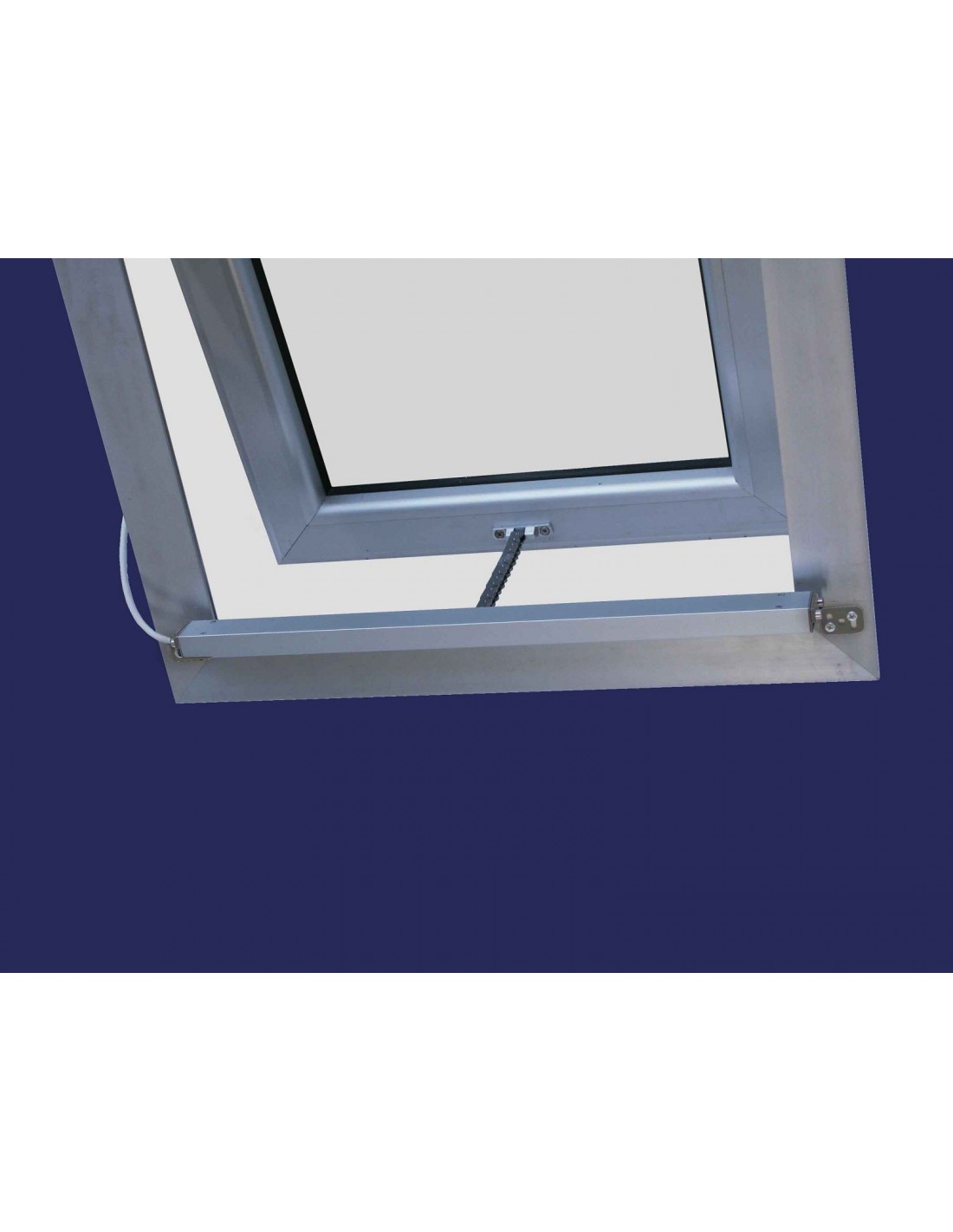

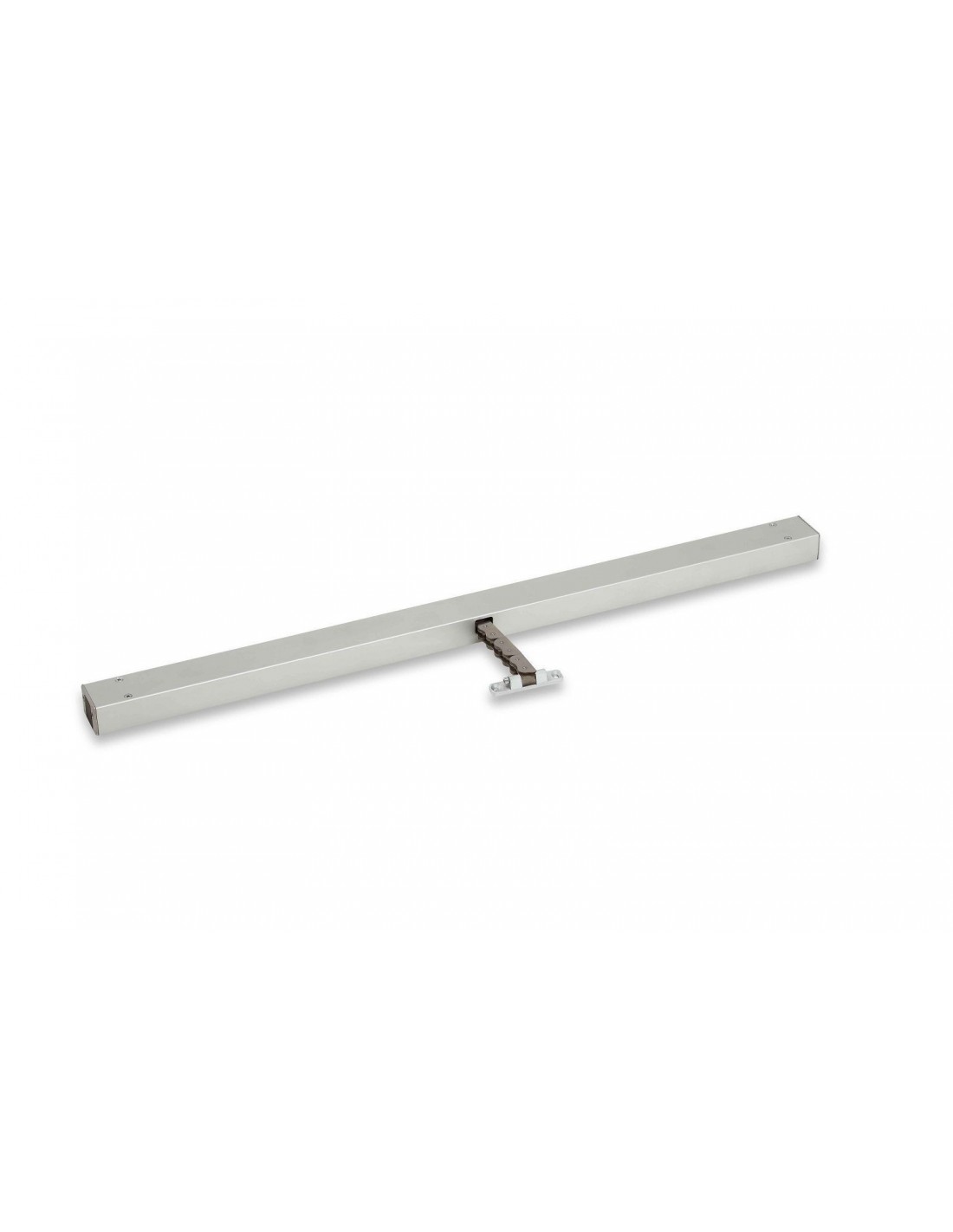

The smallest electric mechanism:
• The highest performance (400 N) in the smallest housing (24 x 35 mm)
• Very quiet operation
• Double-link stainless steel chain
• Aluminum housing
• Electronic stop at intermediate positions in case of overload
- The SYNCHRO NANO versions are equipped with a built-in speed synchronization control board, allowing the installation of more than one mechanism on the same vent, without the need for any external control unit (up to 4 mechanisms).
Quiet operation is ensured by the slow speed used for natural ventilation, while maximum speed for smoke ventilation is activated by UCS C-SV control panels.
The SYNCHRO NANO versions also provide open/close feedback. Cable connection is available on both sides. - The SYNCHRO NANO F-SIGNAL versions provide a free open/close feedback signal, triggered by current.
- The NANO DC comes with a 1.5 m cable and no additional options (synchronization, feedback signal, or speed selection). Quiet operation is ensured by the slow speed (4 mm/s) used for natural ventilation.
A version programmable via PC is also available.
-
The mechanism is suitable for installation in smoke and heat exhaust ventilation (SHEV) systems in accordance with European standard EN 12101-2, tested by Istituto Giordano.
-
The NANO BMSline version is fully programmable; various scenarios can be selected through a computer connection using dedicated software.
TECHNICAL SPECIFICATIONS
Power supply: 24 Vdc ± 15%
Operation: Reverse polarity
Pulling force: 400 N
Speed: 4–14 mm/s
Parallel connection: YES
Limit switches: Electronic
Safety stop: Electronic
Protection class: IP40
Colors: Silver anodized, dark anodized black, and white RAL 9010

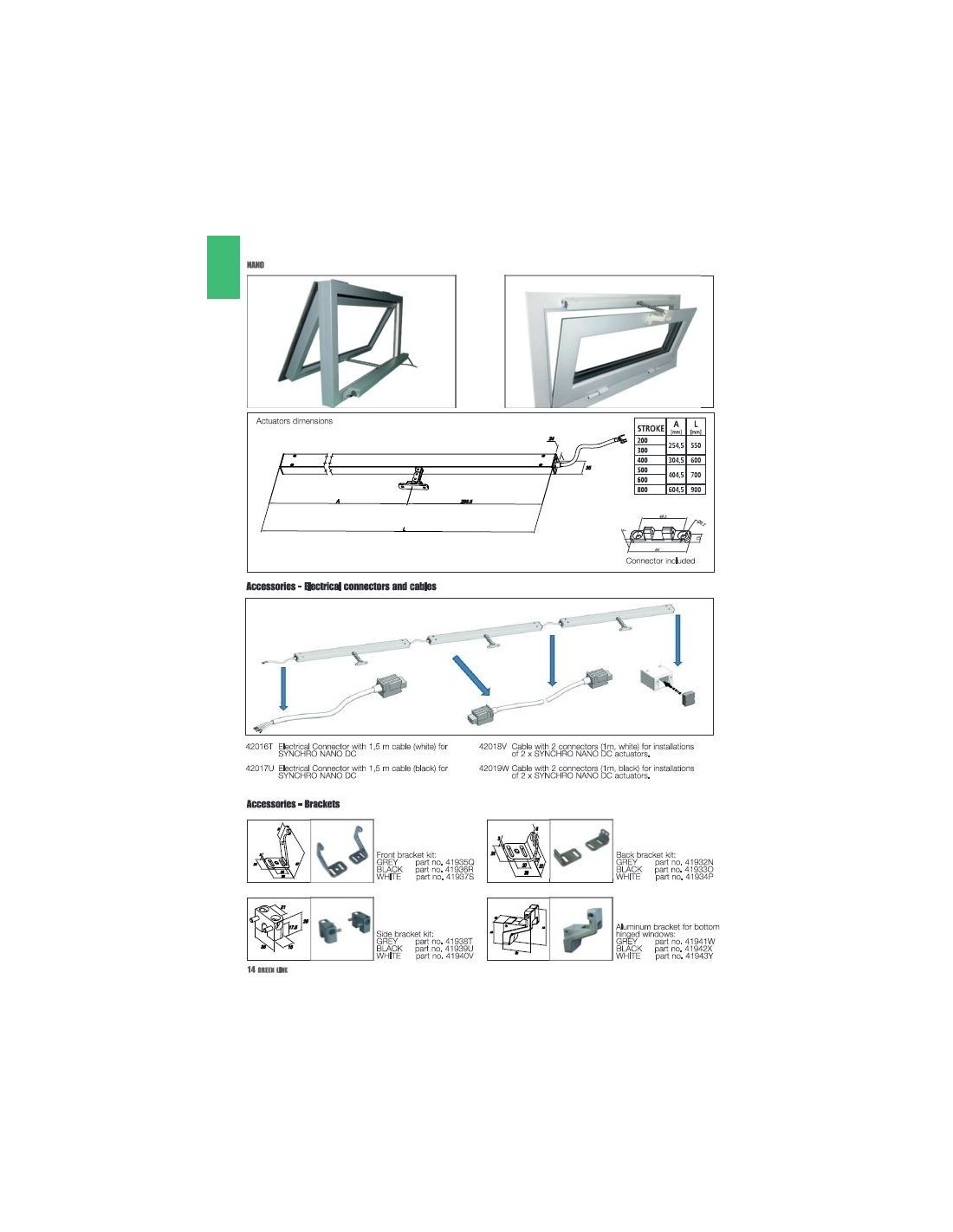

See the technical datasheet in the DOWNLOAD section.
