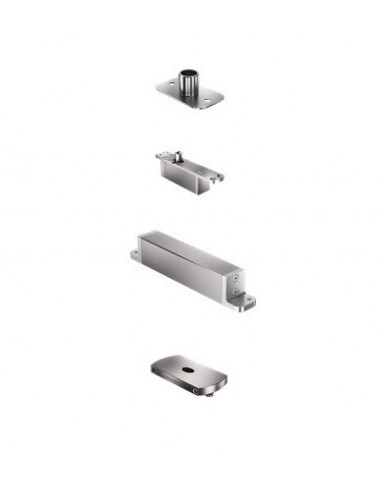

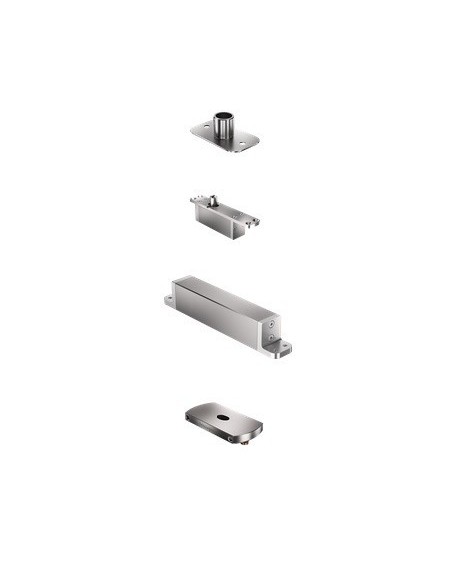

System Fx Pivot Door Mechanism by FritsJurgens

The FritsJurgens System Fx offers exceptionally strong hold positions at every 90-degree angle.
With its minimalist, elegant, and durable design, it is the ideal solution for interior doors and high-traffic areas where the door needs to remain open primarily at a fixed hold position.

Ask about product
System Fx Pivot Door Mechanism by FritsJurgens

System Fx Pivot Door Mechanism by FritsJurgens





System Fx Specifications:

  • 4 strong hold positions at every 90° angle

  • Double-action rotation

  • Compact design with a height of just 38 mm

  • Designed for doors up to 209 kg


Optimized for Interior Applications

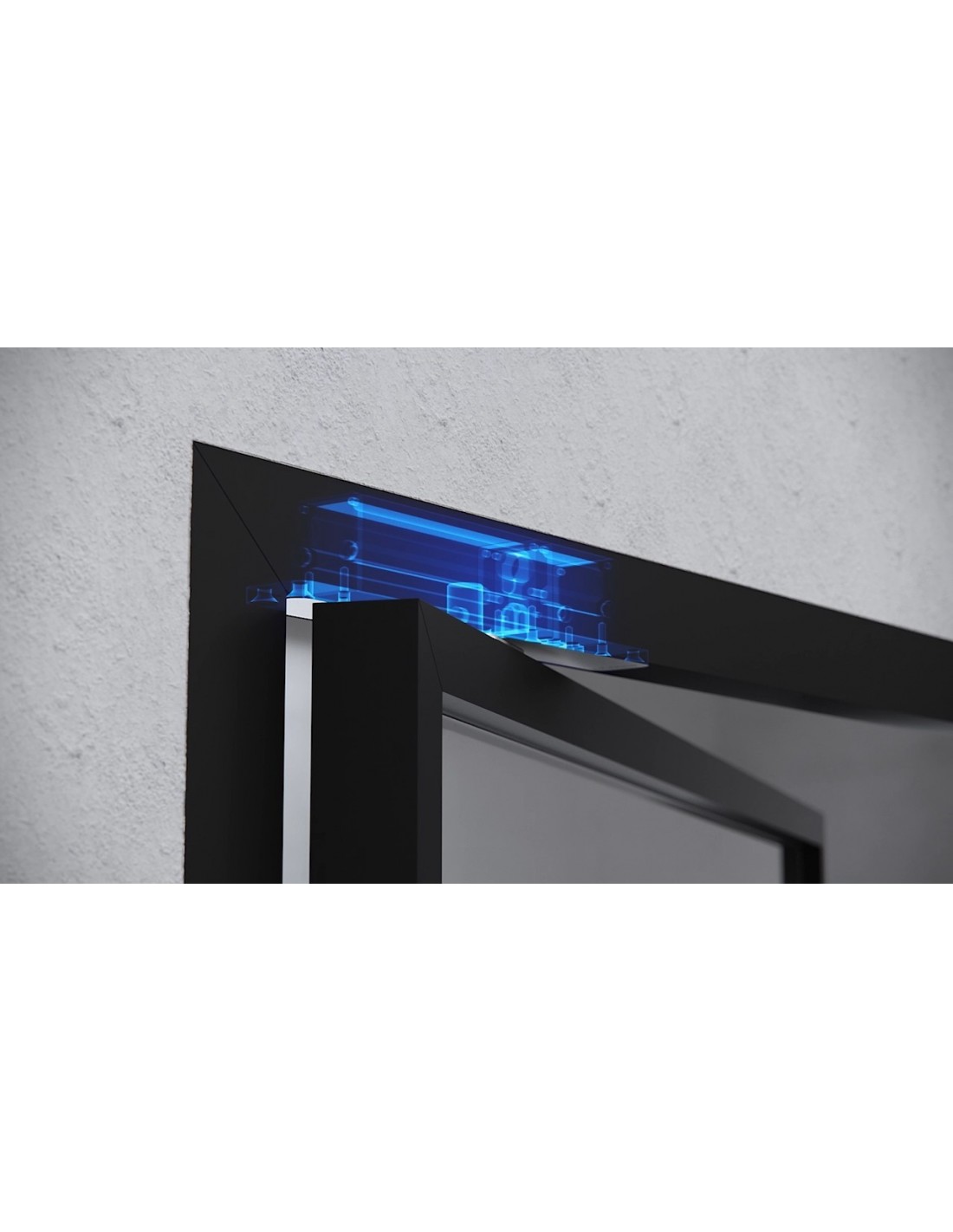

The FritsJurgens System Fx is designed for edge-mounted installation, making it the ideal choice for interior pivot doors. Its robust mechanical design ensures reliable hold positions, enhancing both functionality and aesthetics in residential and commercial environments.
It is the perfect solution for high-traffic areas where the door primarily needs to stay open at a fixed position.


Flexible Hold Positions

With extremely strong hold points at 0°, 90°, 180°, and 270°, System Fx effortlessly adapts to various applications, offering smooth operation and precise alignment.


Built to Last

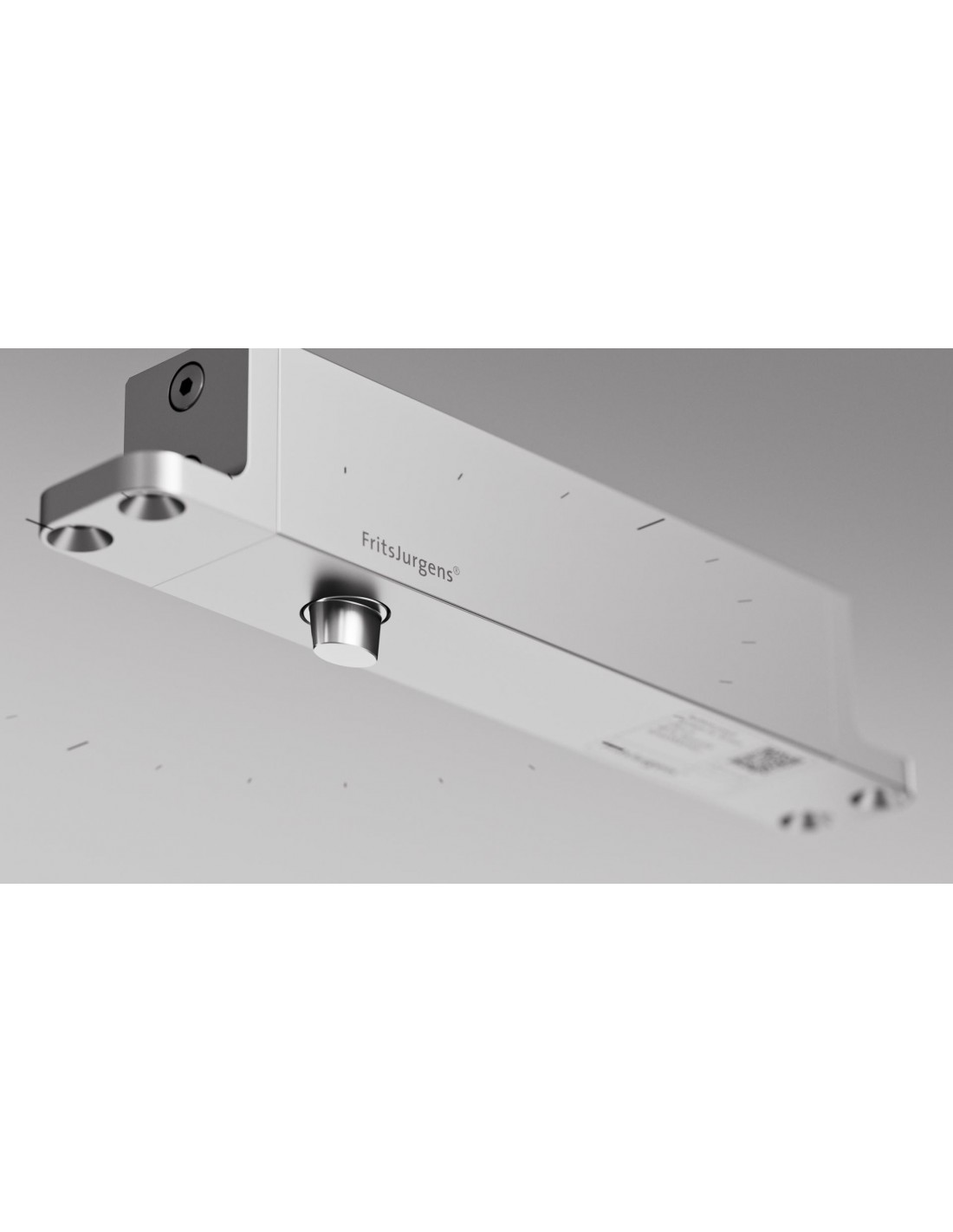

Made of stainless steel and anodized aluminum, System Fx is engineered for durability and tested to perfection with over 500,000 cycles.


Key Features

  • Compact Design

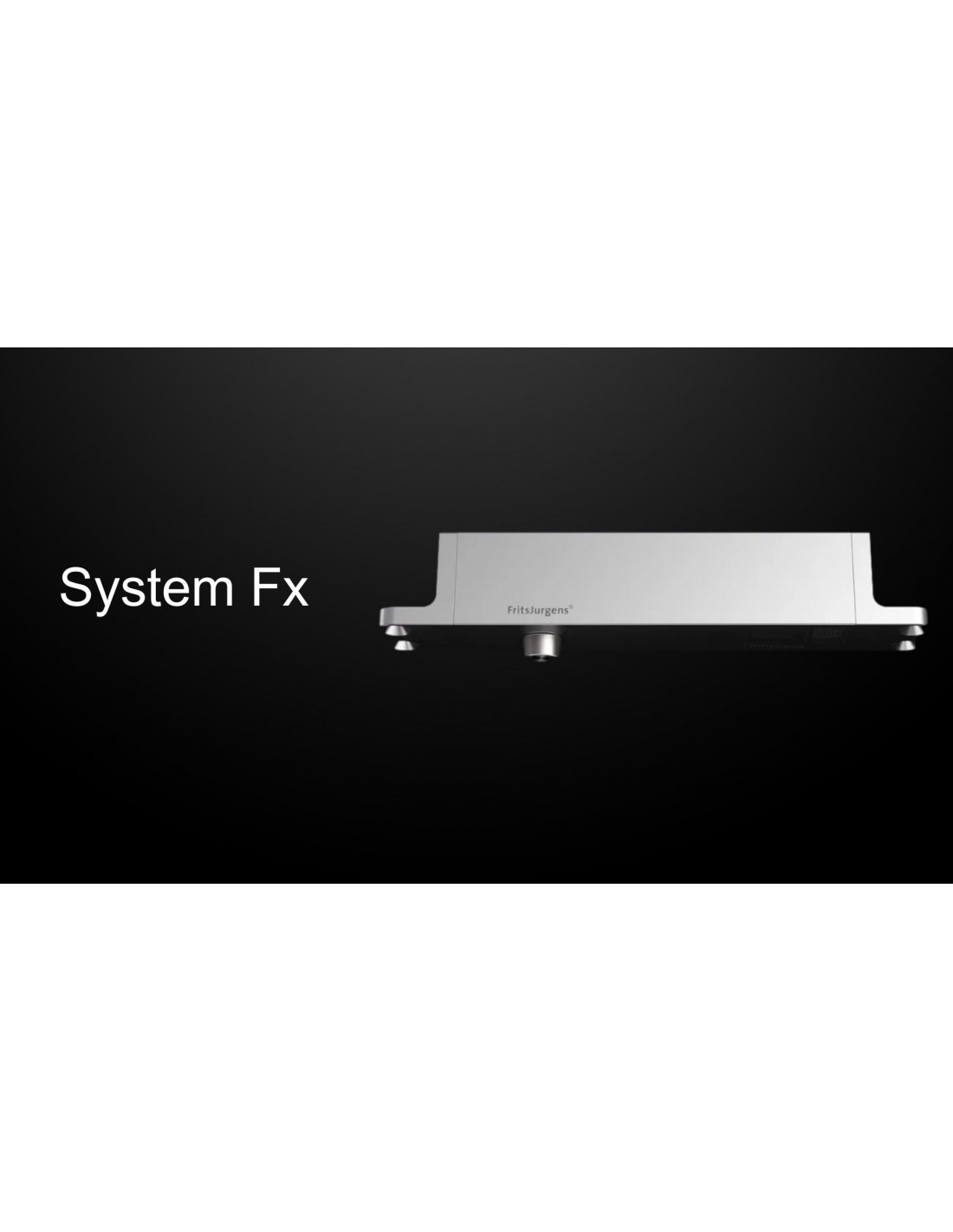

    With a height of only 38 mm and a width of 32 mm, System Fx fits seamlessly into slim-profile doors, combining easy installation with a sleek, minimalist appearance—without compromising on performance.

  • Weight Capacity
    System Fx supports doors weighing between 20 kg and 209 kg, ensuring reliable performance across a wide range of door types, from lightweight to heavy.

  • Auto Return to Nearest Hold Position

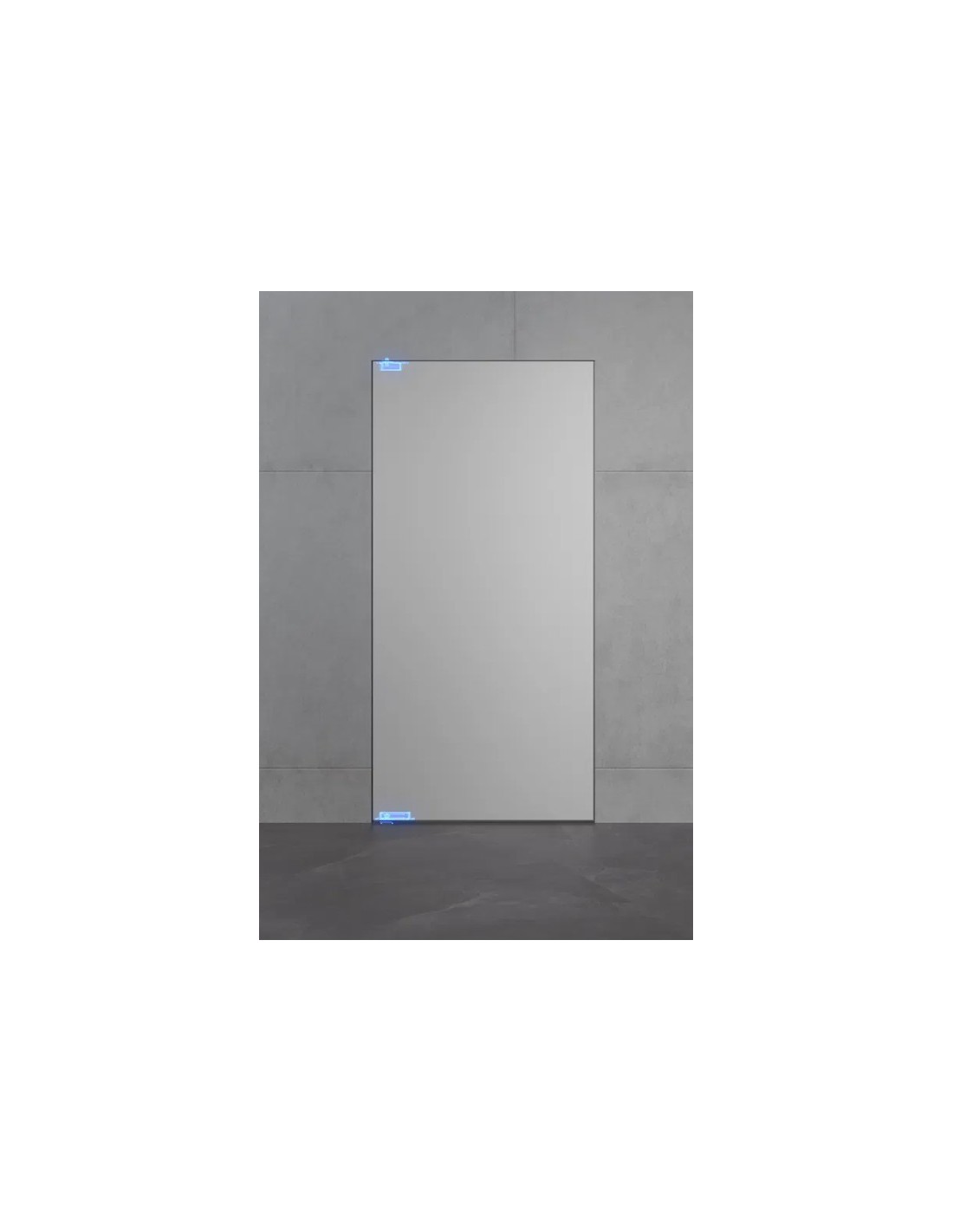

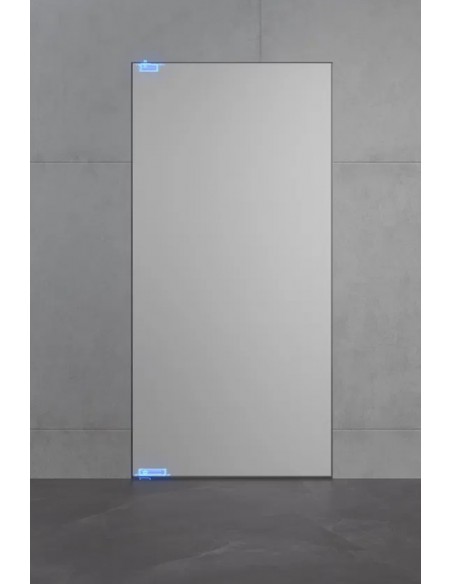

    Whether installed at the center or edge of the door, System Fx automatically returns to the nearest hold position from +10° or -10°, enhancing usability and user experience.
