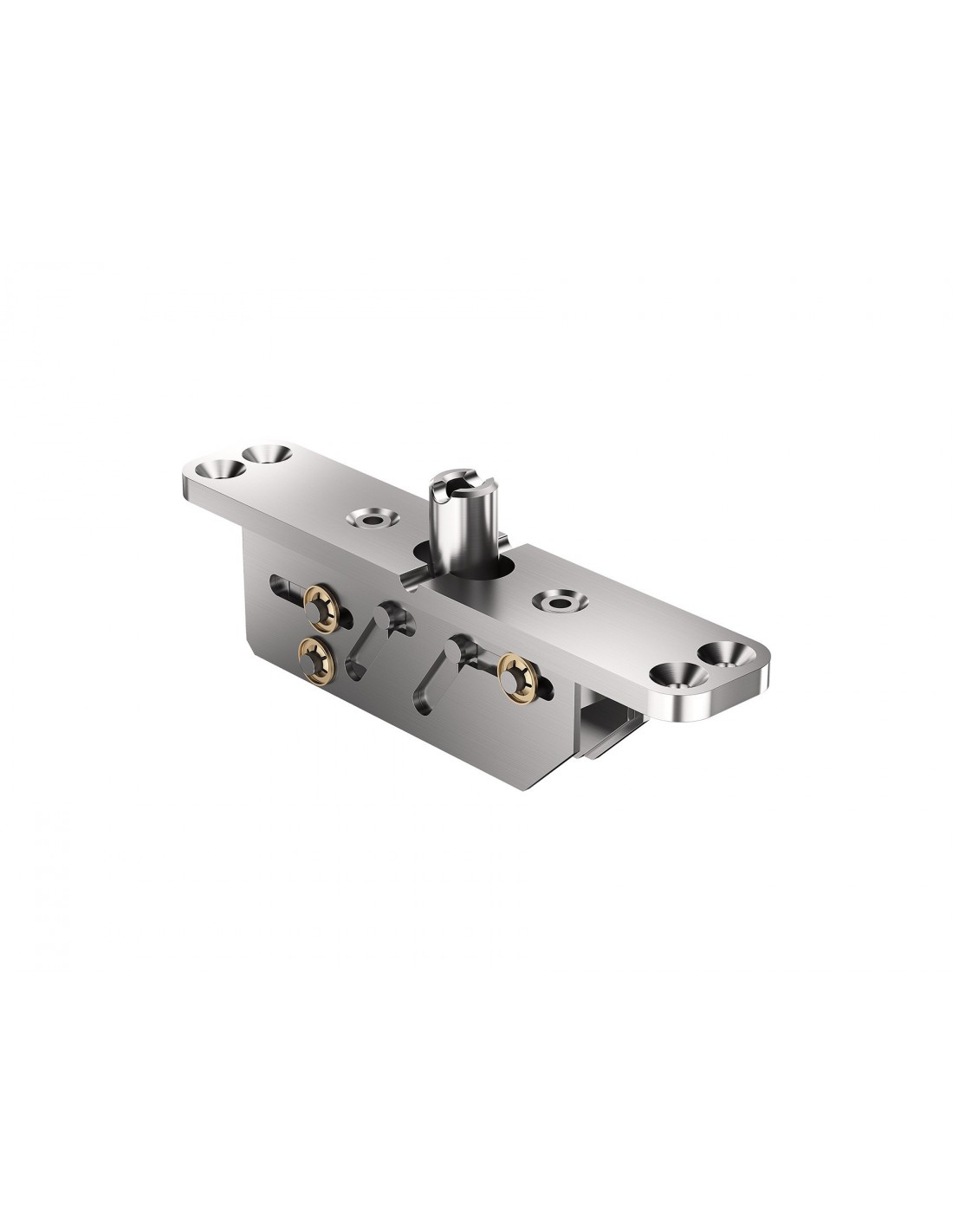

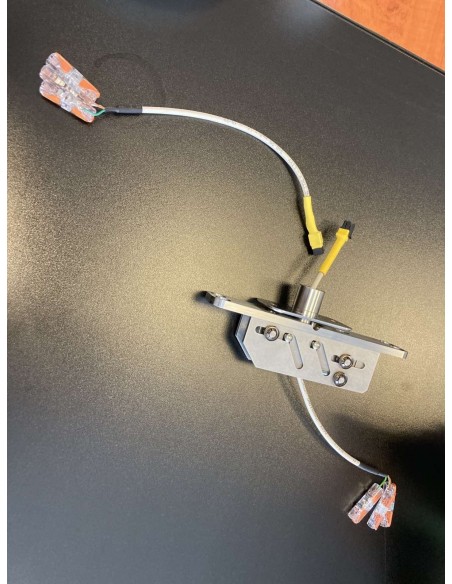

Top Pivot Mechanism for Pivot Doors Cable Grommet FritsJurgens with Cable Slot

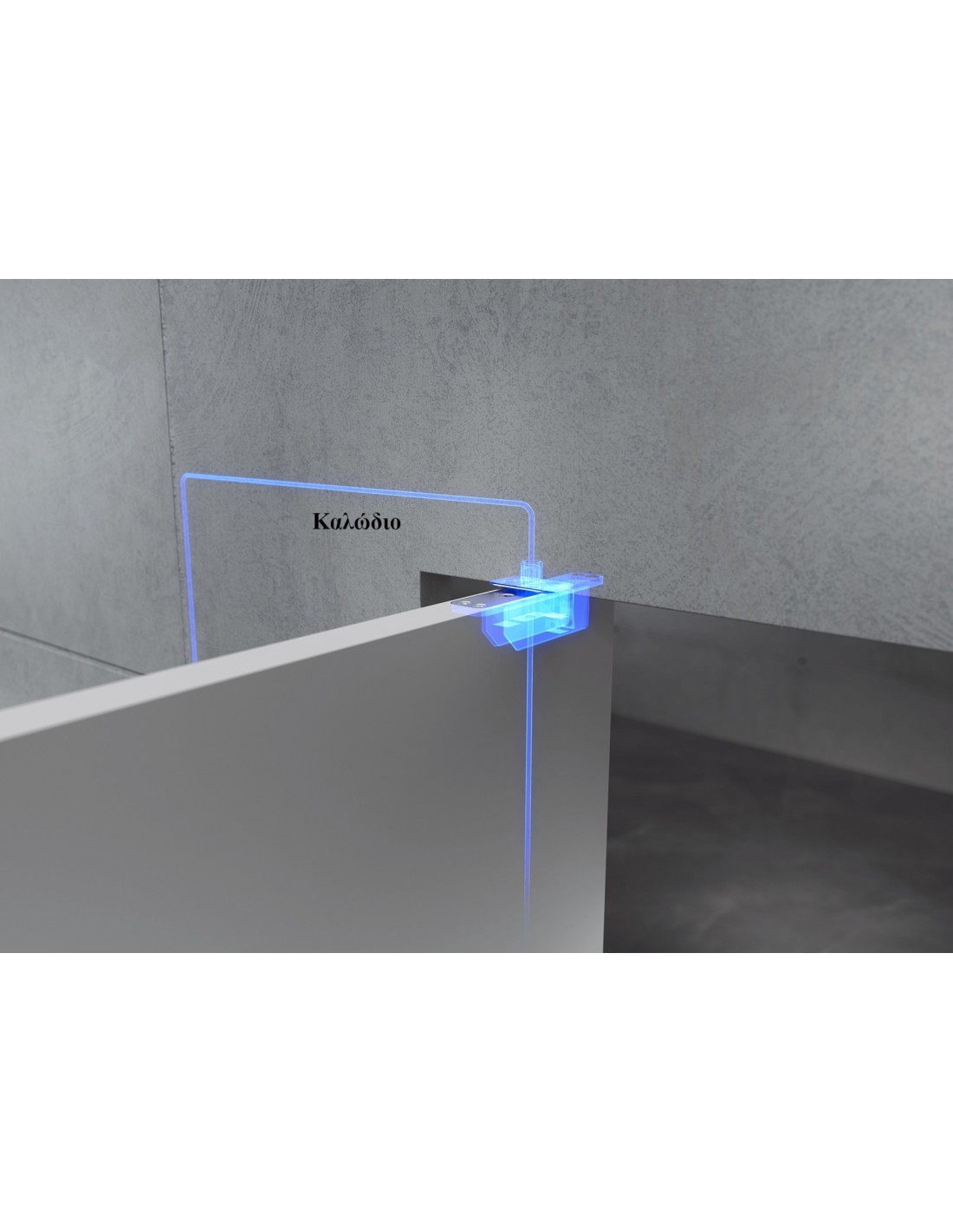

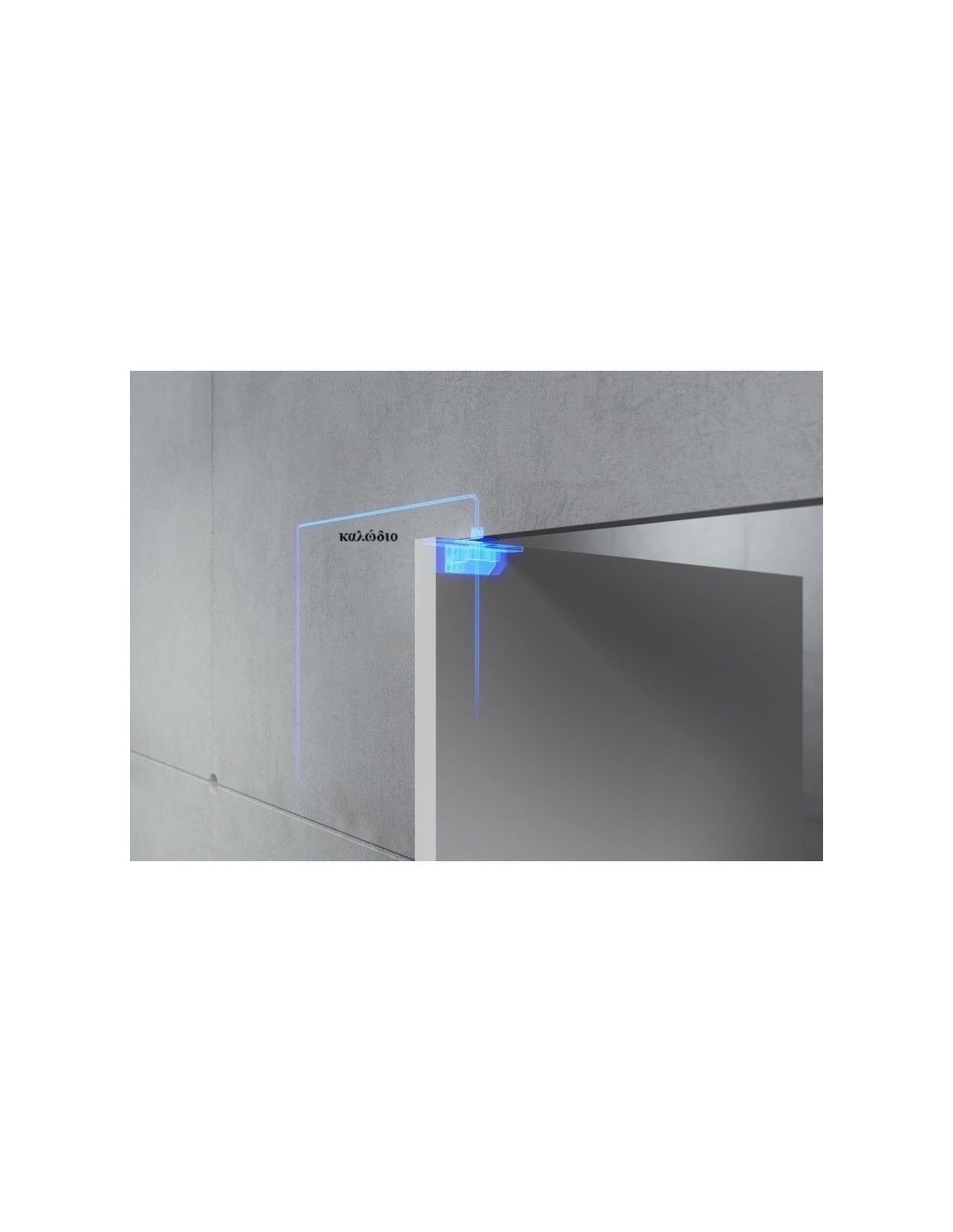

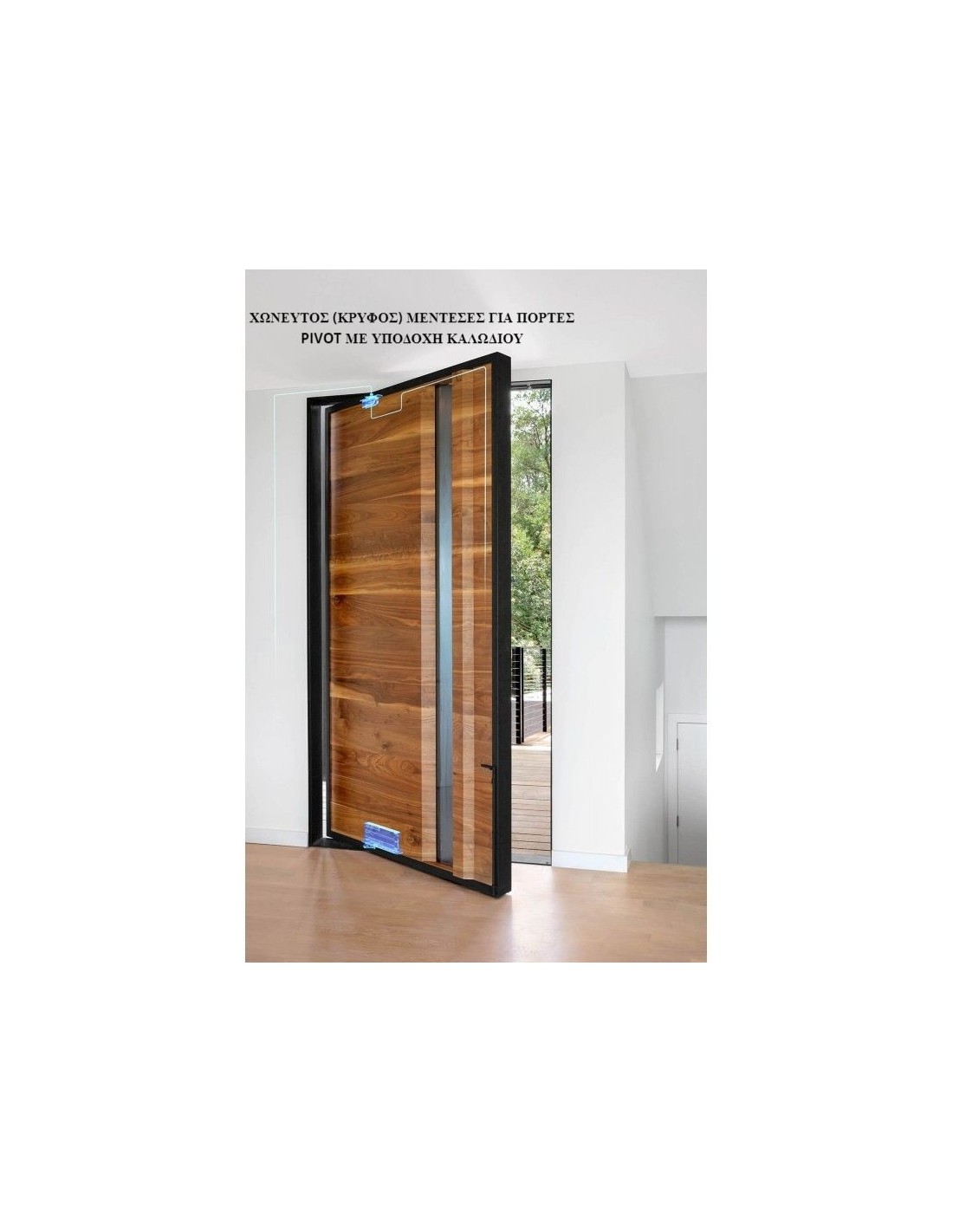

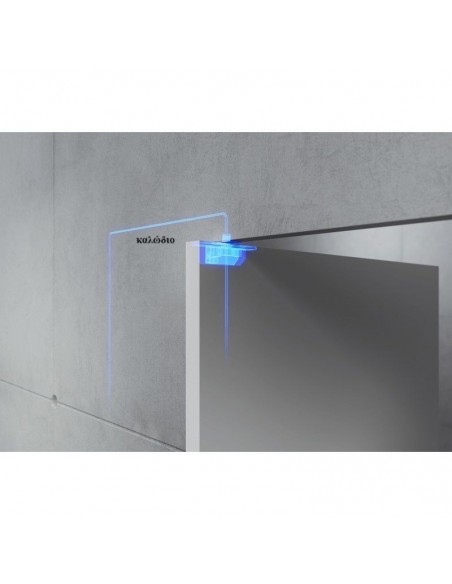

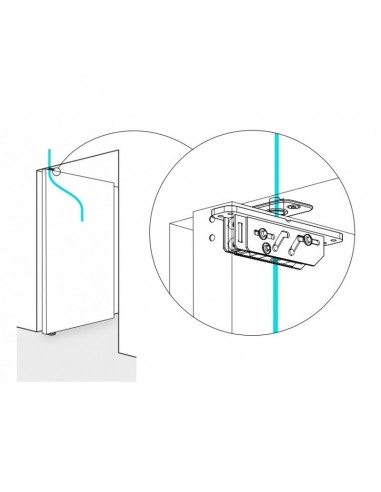

The concealed mechanism for PIVOT doors is specially designed to make cable routing through the door and top pivot as easy as possible. This allows the use of electronic security systems (ACCESS CONTROL), electronic locks, and LED lighting in PIVOT doors.
SUITABLE FOR DOORS UP TO 500 KG | UNLIMITED WIDTH AND HEIGHT

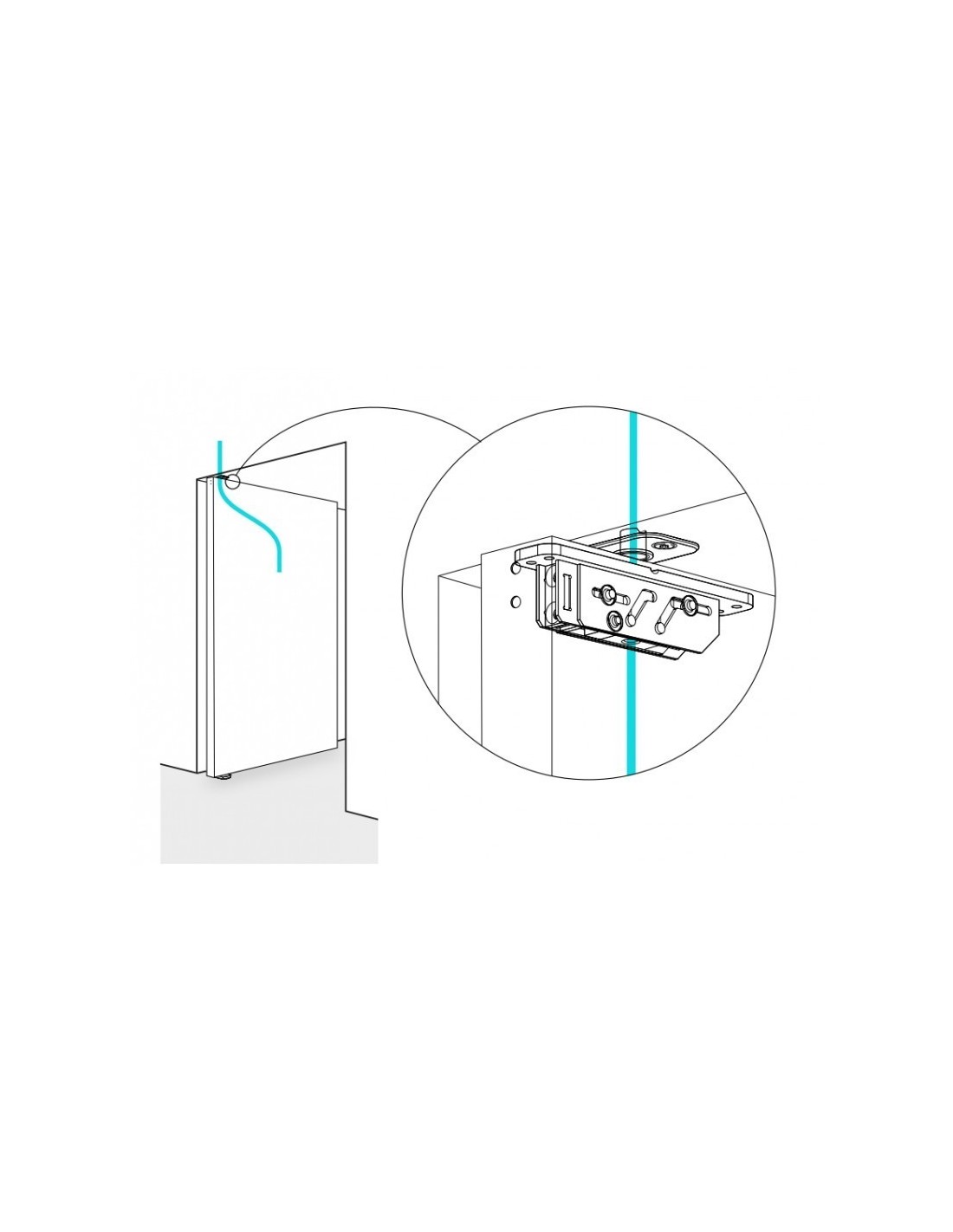

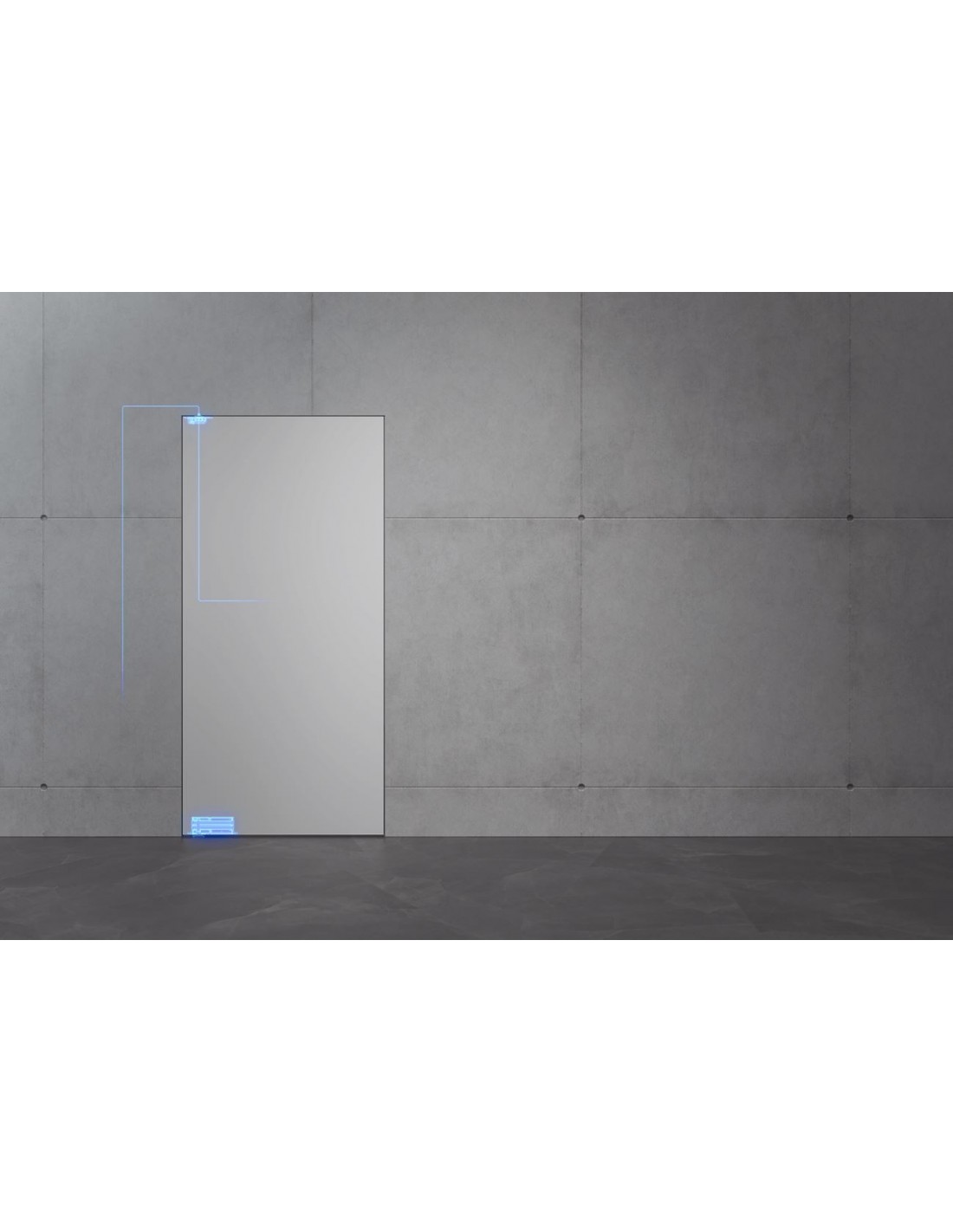

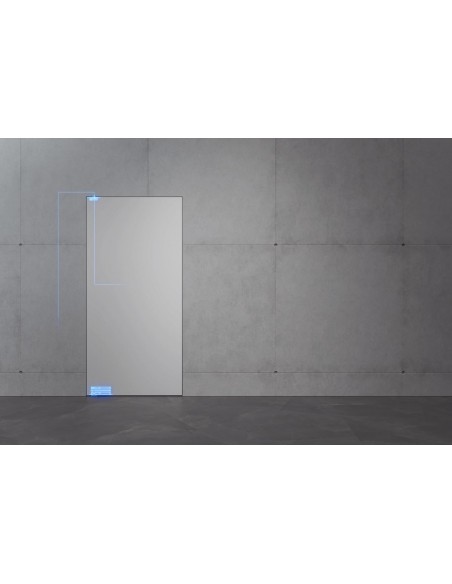

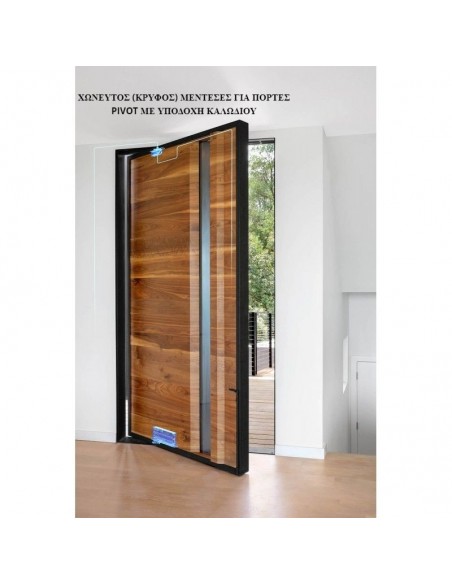

The TOP PIVOT CABLE system of concealed pivot hinges with integrated cable slot stands out due to its full integration into the door. The internal cable routing through the door allows for the implementation of electronic security systems (ACCESS CONTROL), electronic locks, and LED lighting in pivot doors.
MOVEMENT
The System One pivot hinge allows the door to open both left and right, offering 360˚ rotation without hold positions or self-closing functionality.
It can be combined with a door frame, in which case the door rotation is limited to 90˚.
BOTTOM PIVOT
The bottom pivot is the main rotation mechanism and is installed at the bottom of the door, making it virtually invisible.
FritsJurgens bottom pivots are load-bearing mechanisms designed to support pivot doors weighing up to 500 kg.
CEILING PLATE
The ceiling plate is mounted on the ceiling, where the top pivot pin fits seamlessly into the hole of the ceiling plate.
Available in two finishes: brushed stainless steel and black.
Specifications
-

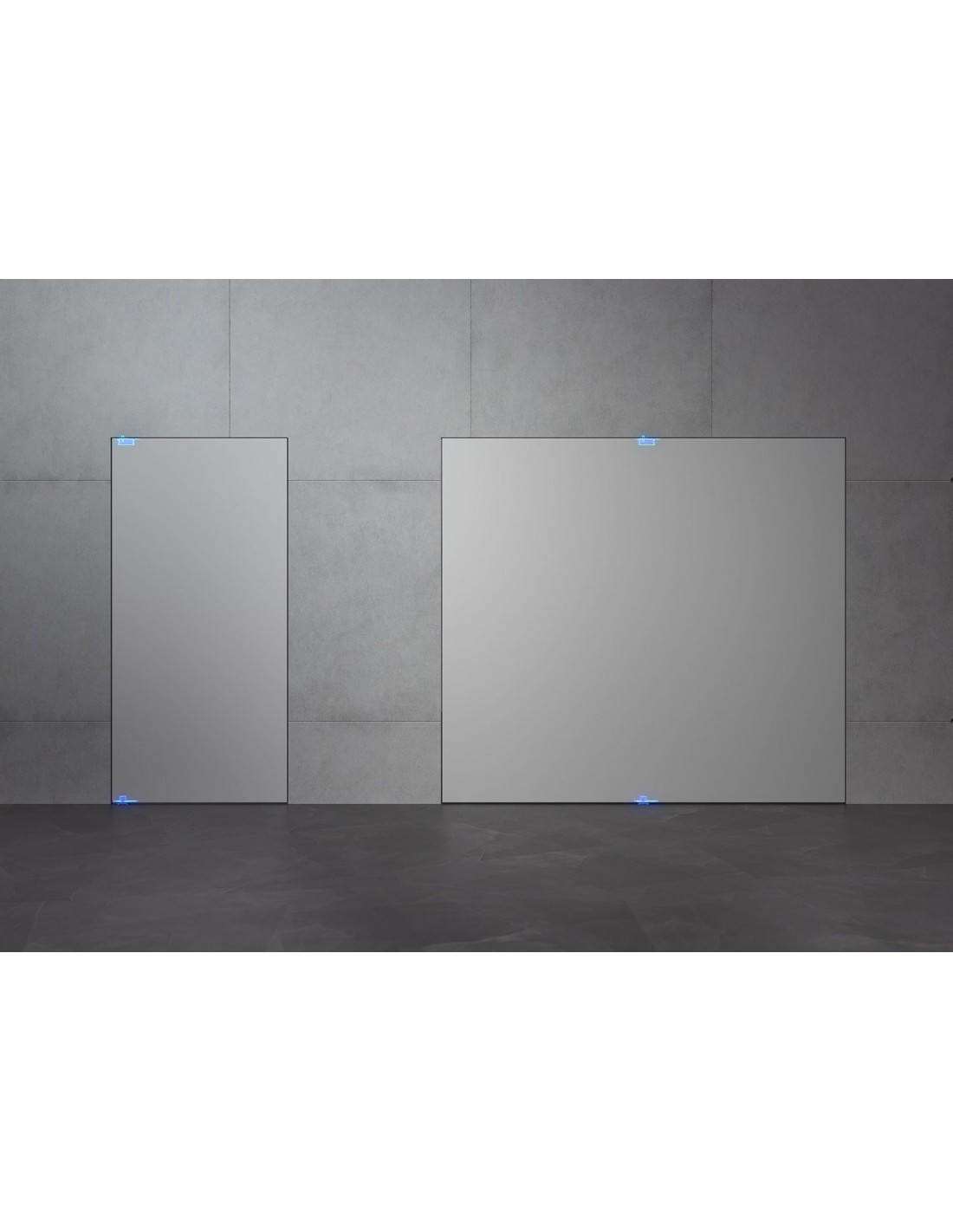

Installation type: Offset and center pivot door
-
Materials: Stainless Steel | Anodized Aluminum
-
Door weight: Up to 500 kg
-
Door width: From 400 mm to Unlimited
-
Door height: Unlimited
-

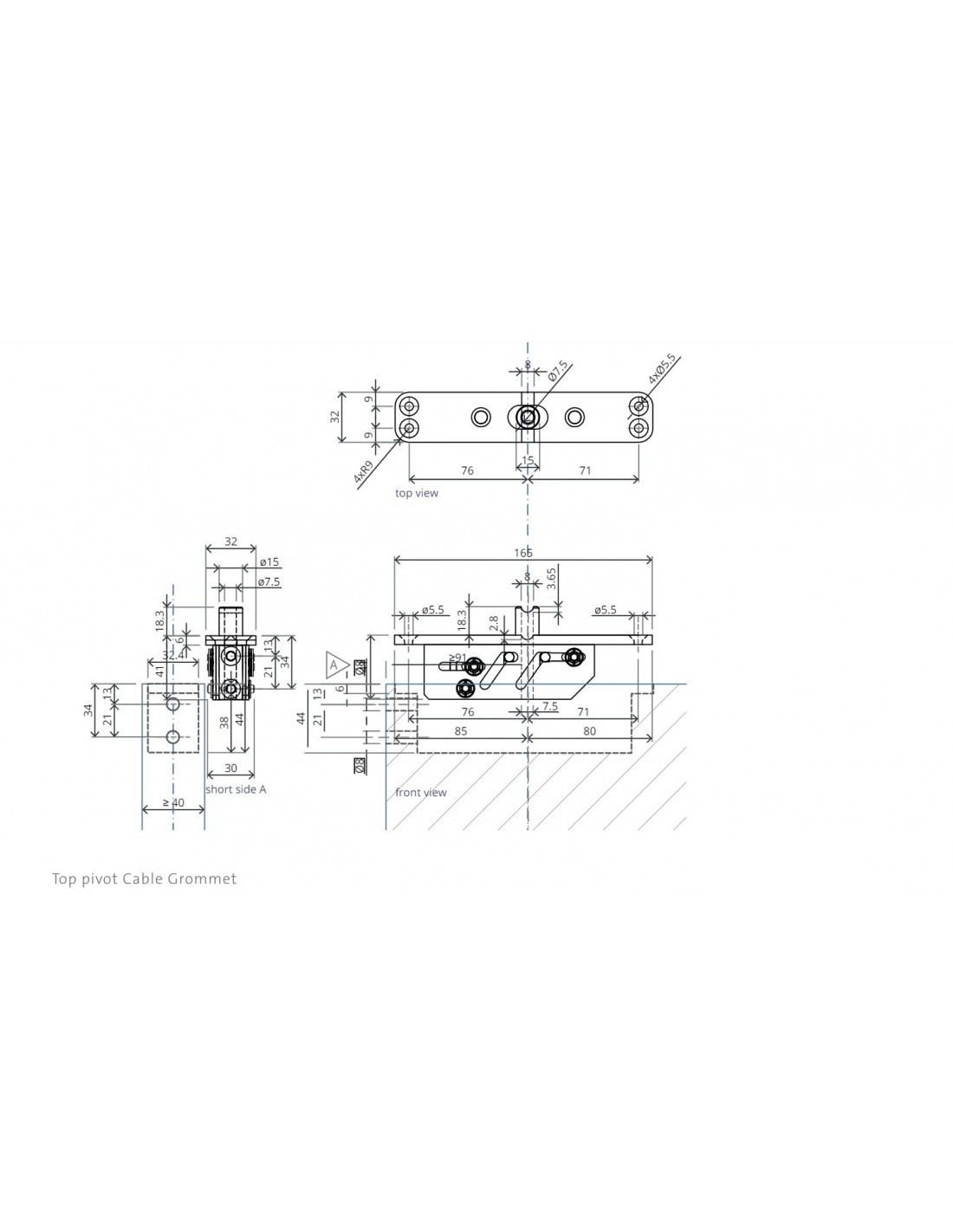

Product dimensions: 165 x 32 x 41 mm
