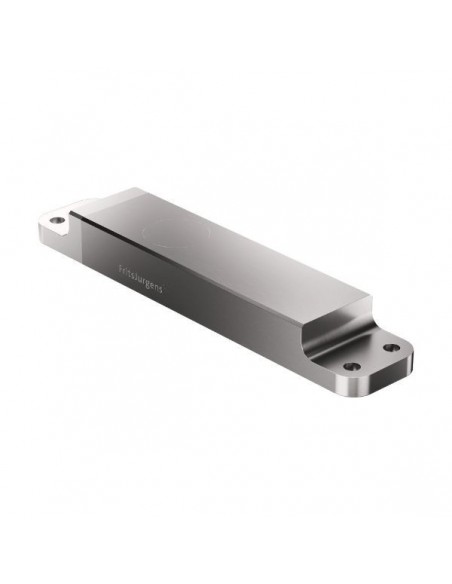

System One Pivot Door Mechanism by FritsJurgens
60-7801
The FritsJurgens System One is the most compact and slim pivot mechanism by FritsJurgens – a single pivot point that allows free rotation without hold positions – ideal for doors with a slim door frame.
Door Dimensions: Unlimited height, unlimited width
Minimum Door Thickness: 40 mm
Weight Capacity: Up to 500 kg

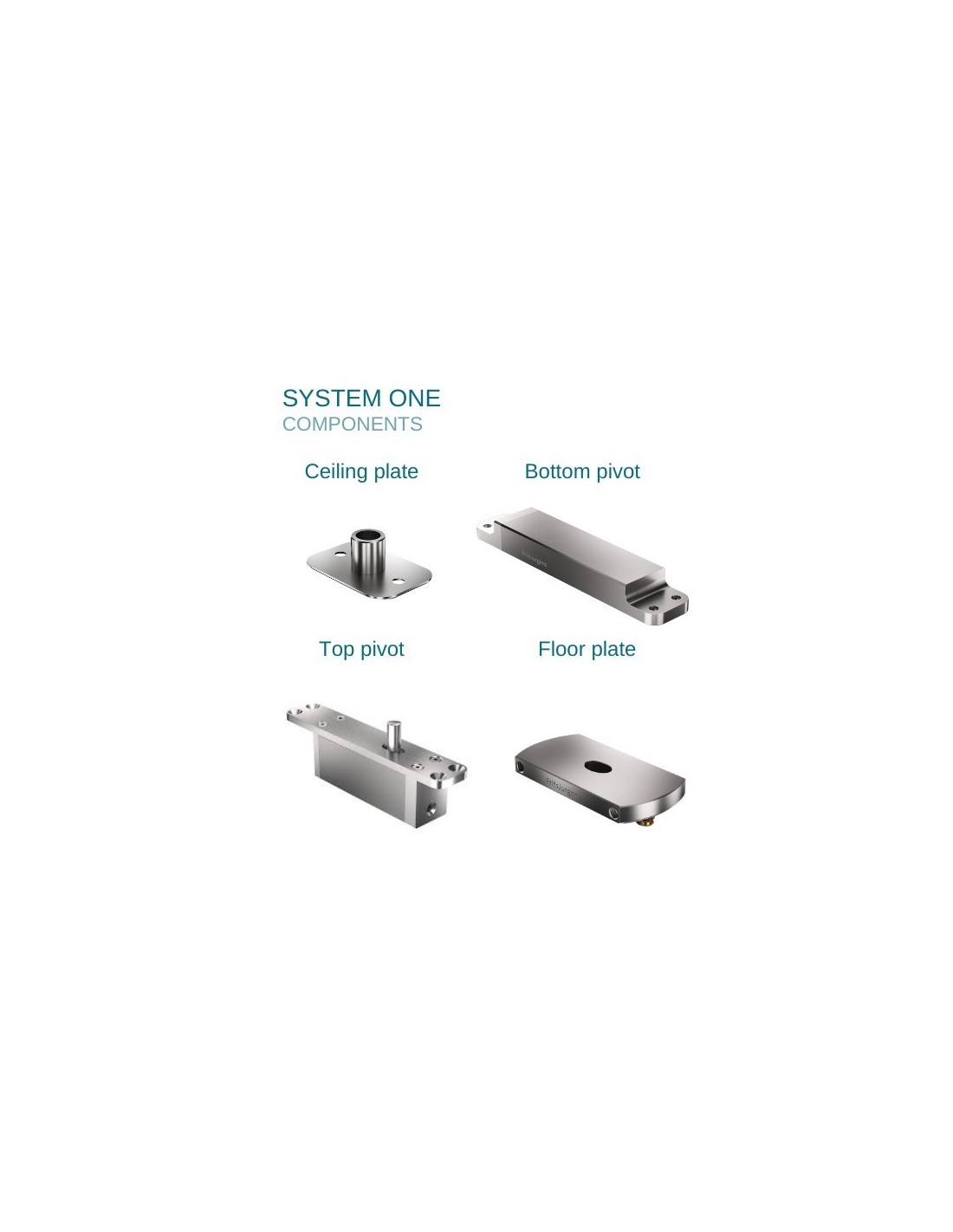

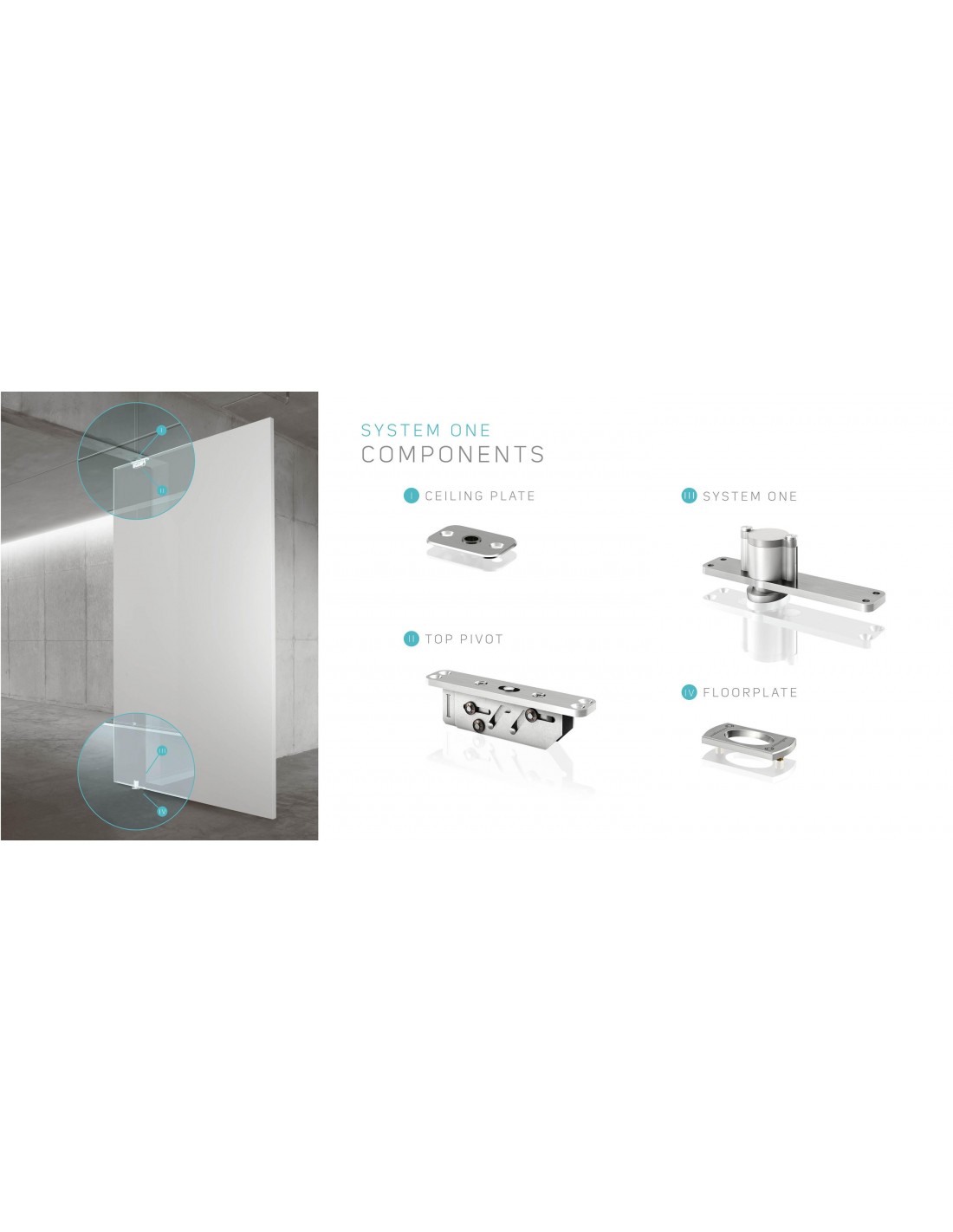

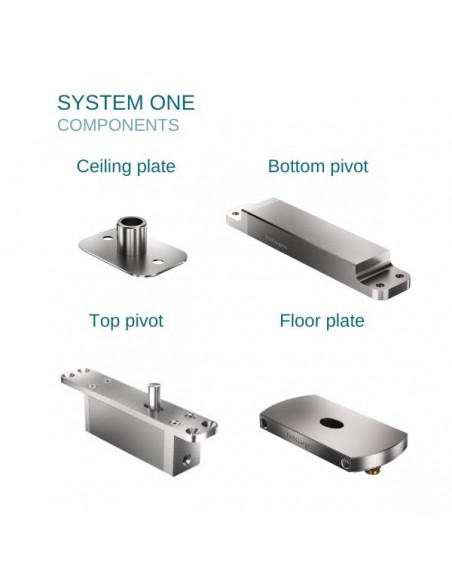

A pivot door requires several components – the pivot system, a floor plate (floor socket), a top pivot, and a ceiling plate (top rotation point).

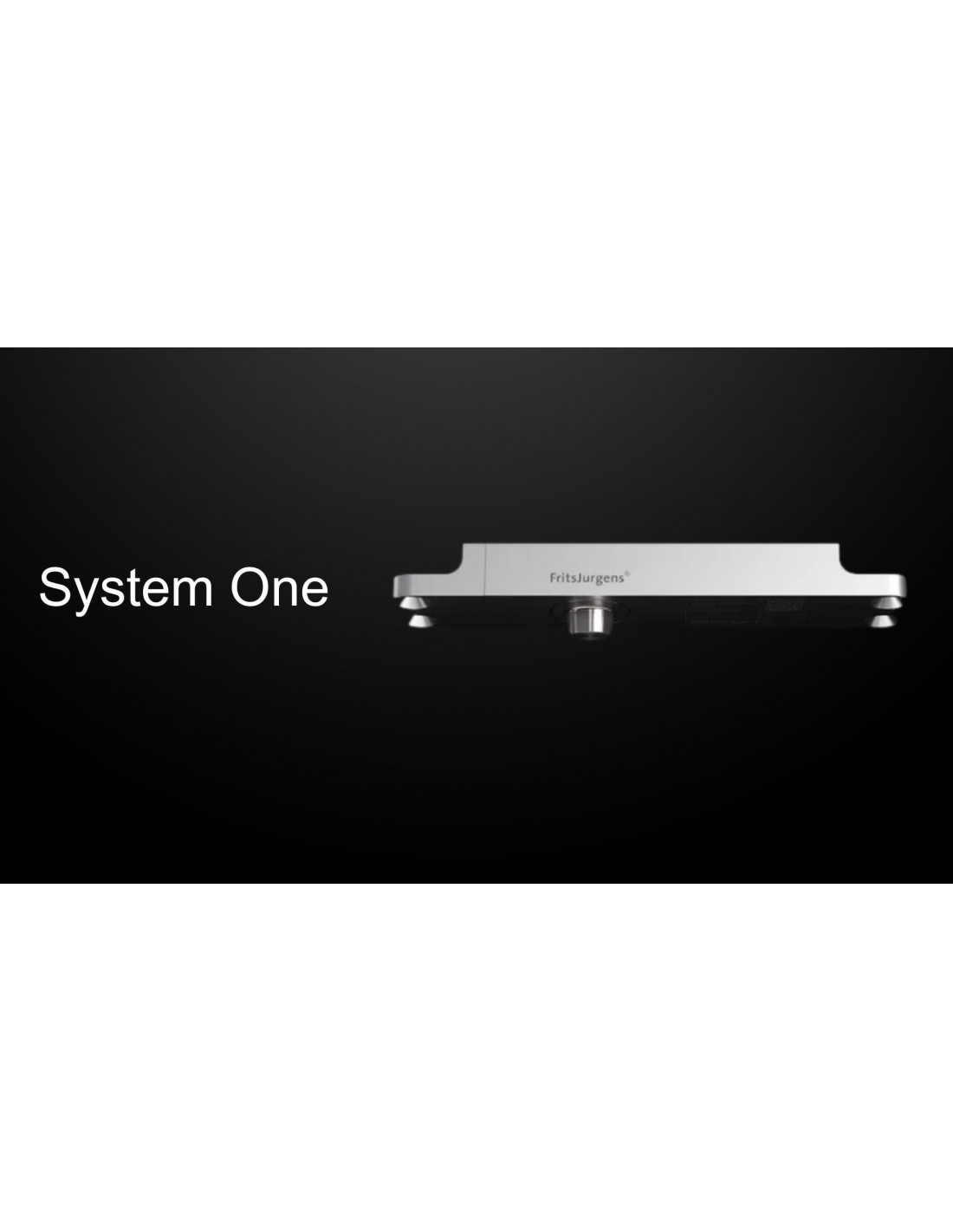

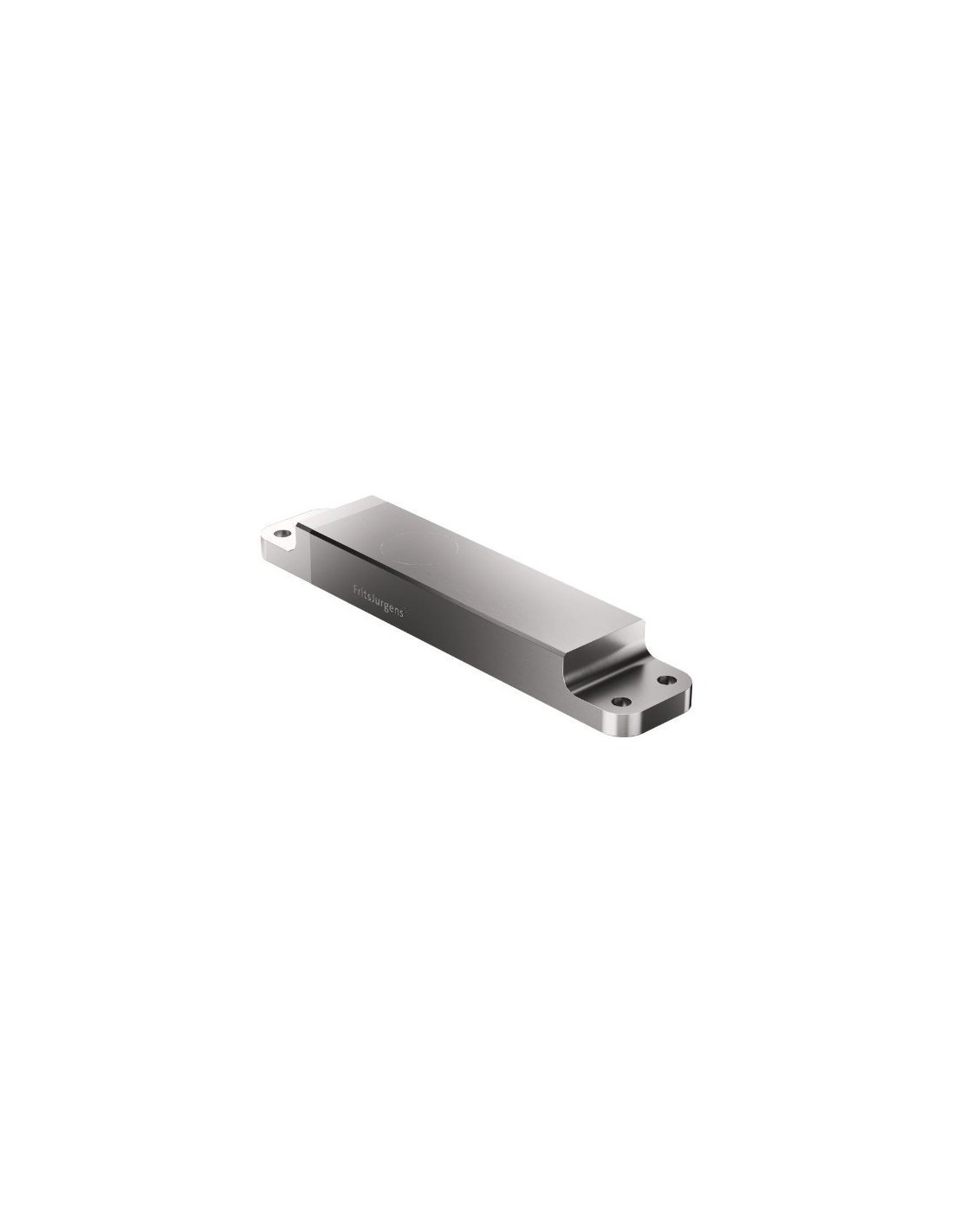

Compact and Slim Mechanism
The FritsJurgens System One operates as a single pivot point with no hold positions or self-closing functionality. It is a simple, slim, and narrow pivot hinge, yet highly versatile and widely applicable.
Free Movement

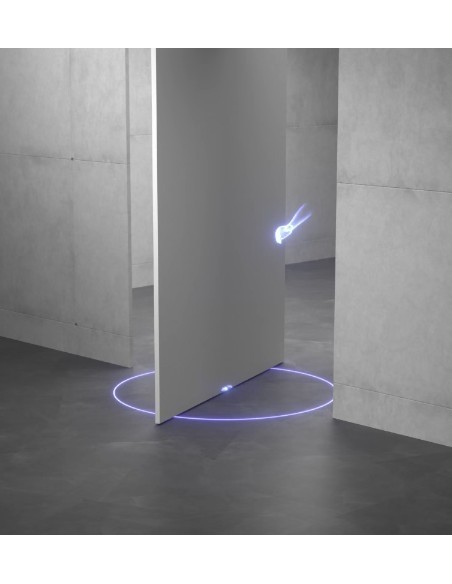

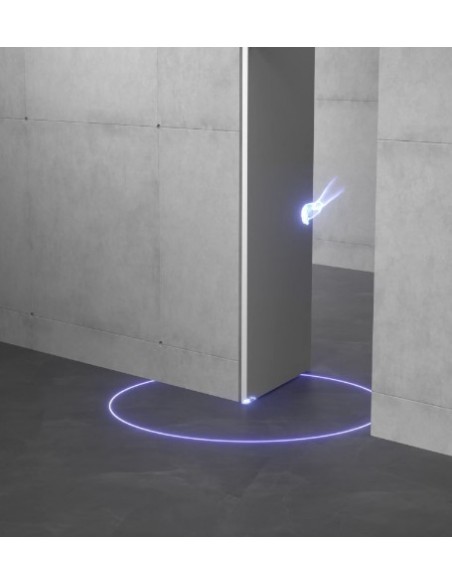

The simplicity of the FritsJurgens System One allows for smooth, unrestricted rotation around the pivot axis and can be easily combined with door frames.
It opens both to the left and right, rotates 360˚, and does not include any hold positions or closing function.
When combined with a door frame, the rotation is limited to 90˚.
Single- and Double-Action Doors
Thanks to its free rotation, the System One can be used for both single-action and double-action pivot doors, making it highly adaptable to different architectural and functional needs.
