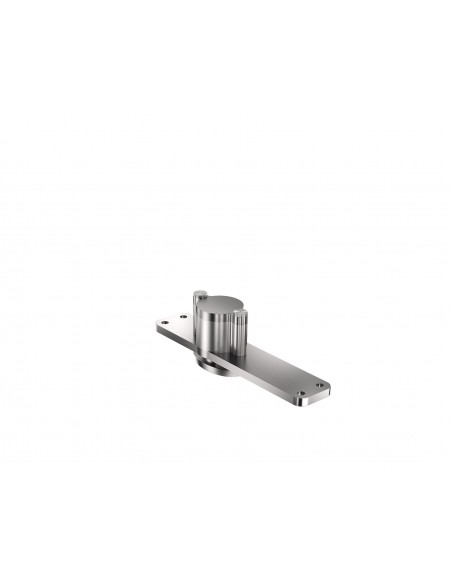

Lower (concealed) recessed Pivot hinge
364-061

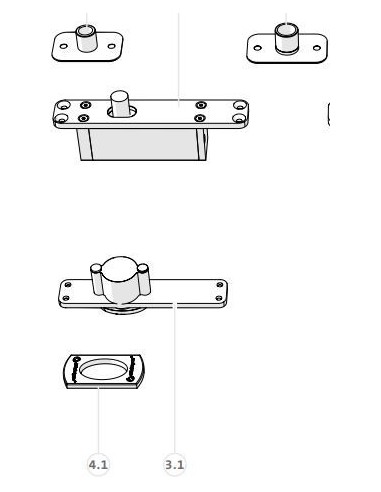

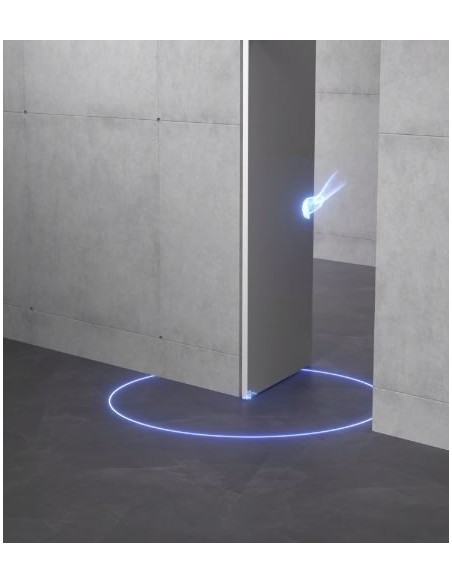

The concealed recessed hinge for PIVOT doors is specially designed to work together with the corresponding upper concealed hinge. It allows the door to rotate 90° and 360° and has excellent corrosion resistance. It is installed at the edge or in the middle of the door.
SUITABLE FOR DOORS WITH WEIGHT UP TO 500 KG, UNLIMITED WIDTH, UNLIMITED HEIGHT.

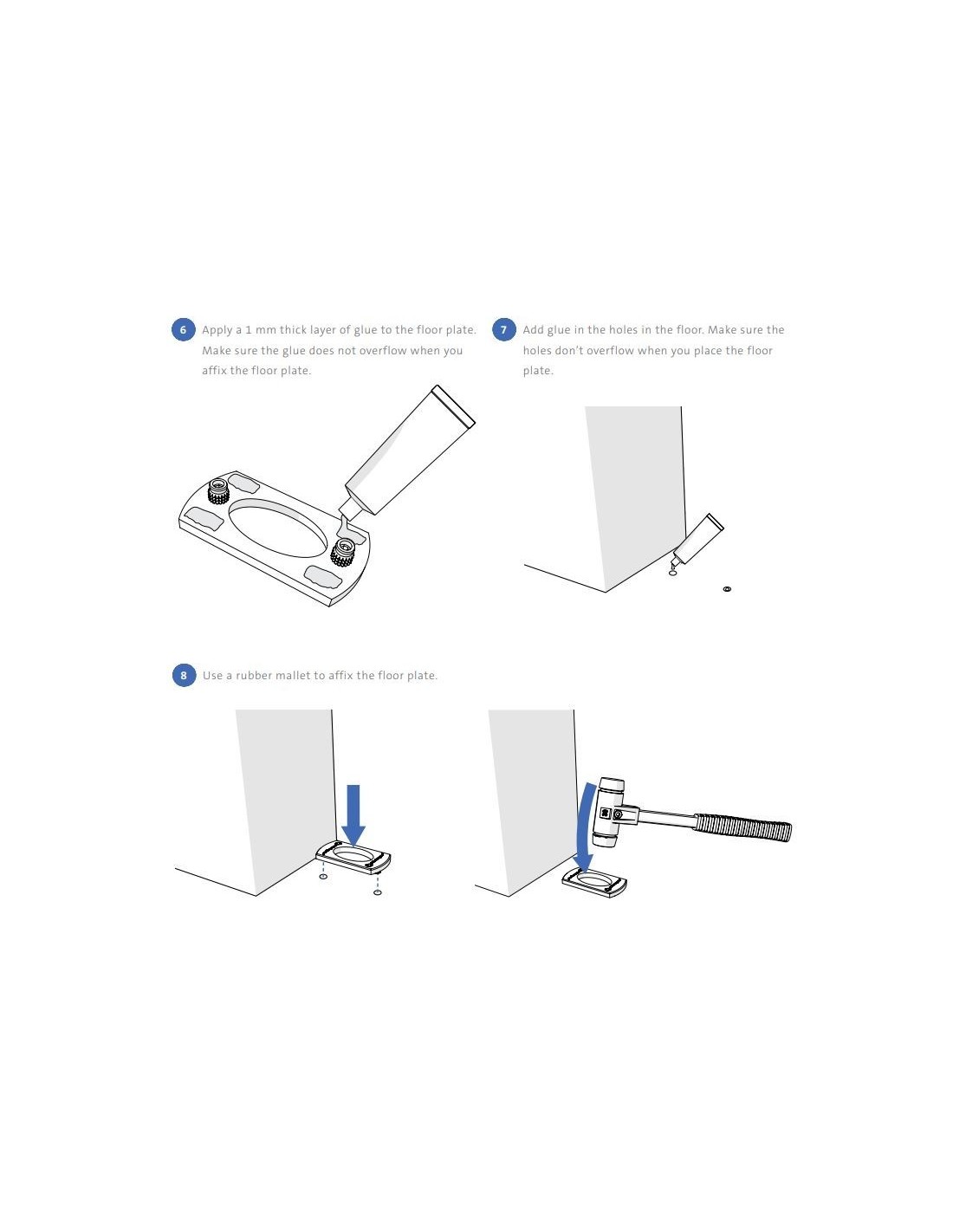

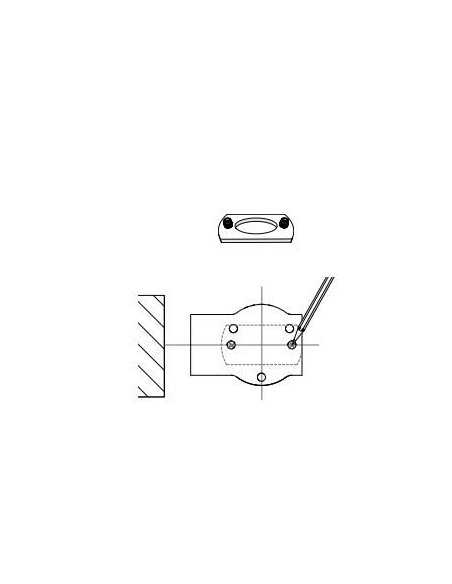

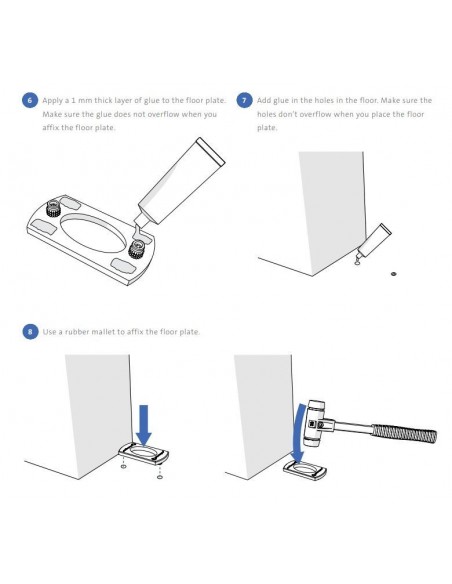

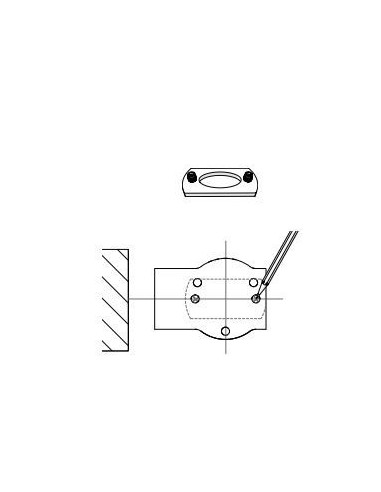

Easy installation on the floor, requiring minimal processing for the base installation; only two holes of 7.5 mm in wood and 8 mm in marble are needed.
Dimensions: Length: 160 x Width: 32 x Height: 39 mm
Features:
- Corrosion resistance EN 1670 - category 5 (norm: 0-5)
Door specifications:

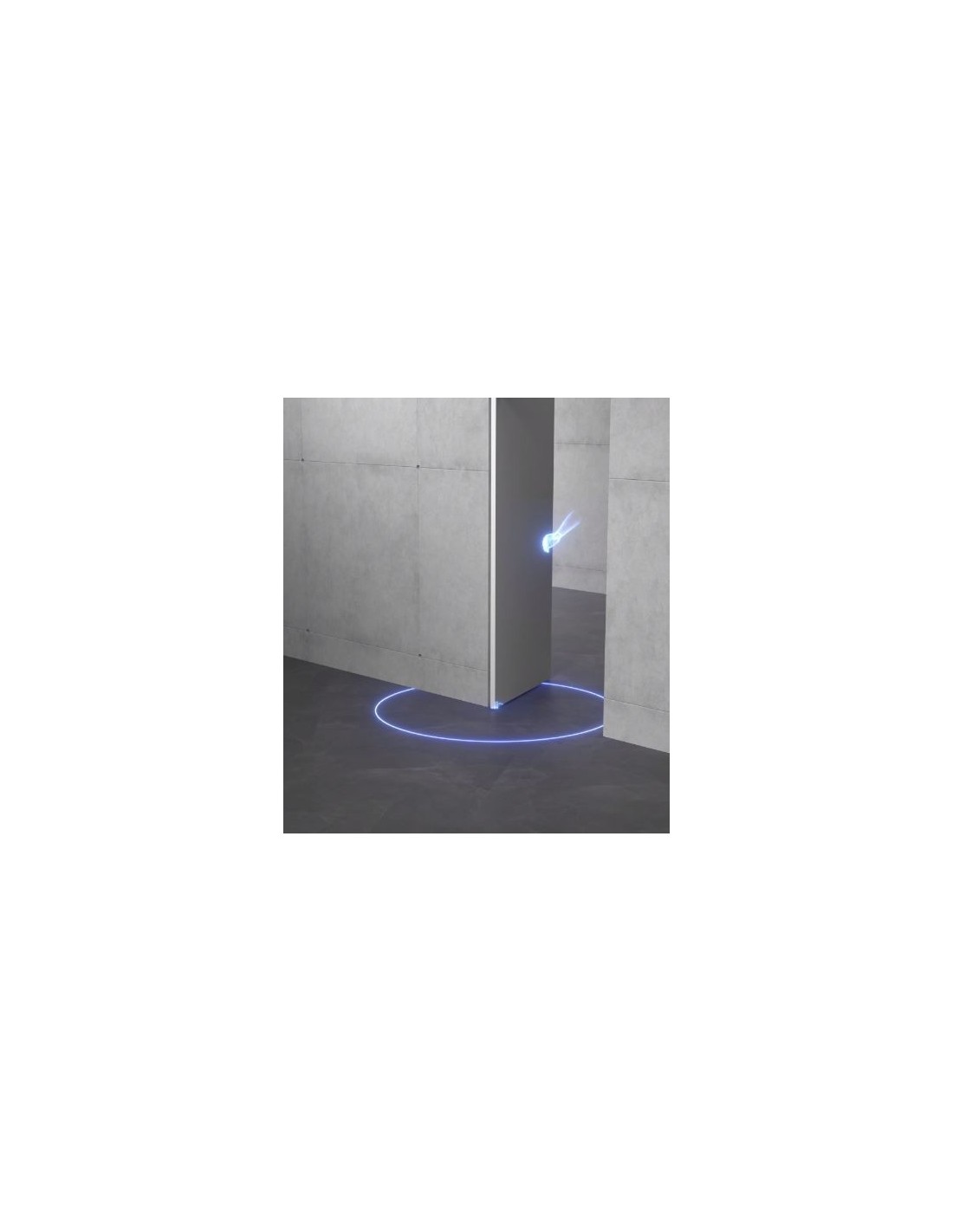

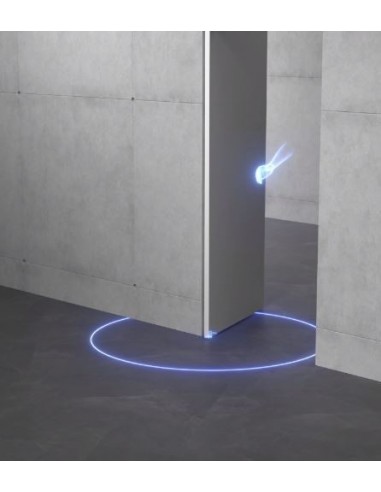

- Double action: 360° rotation
- Single action: 90° rotation
- Door weight: 0 - 500 kg
- Door width: Unlimited
- Door height: Unlimited
- Pivot point: Edge and middle of the door (Pivot door)
- Minimum door thickness: 40 mm and above
- Door movement: Free rotation movement
