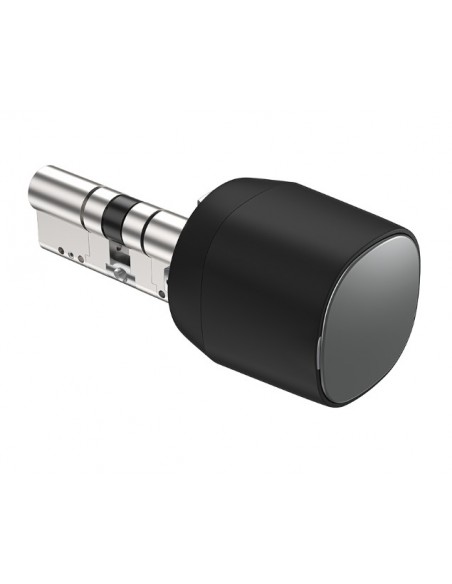

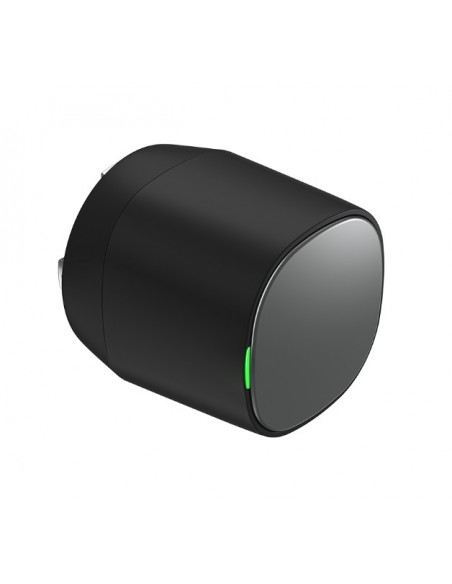

Wi-Fi Access Control Electronic Lock
230-603

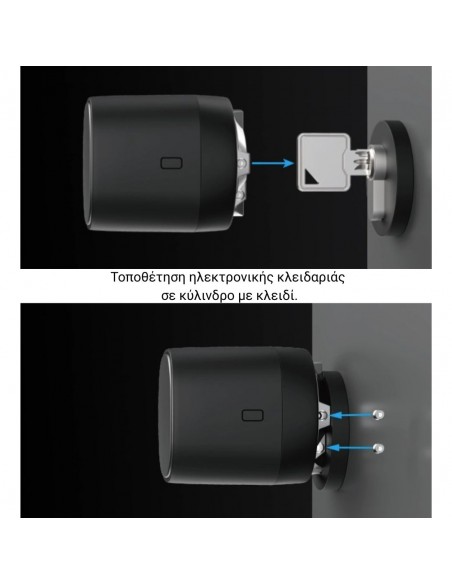

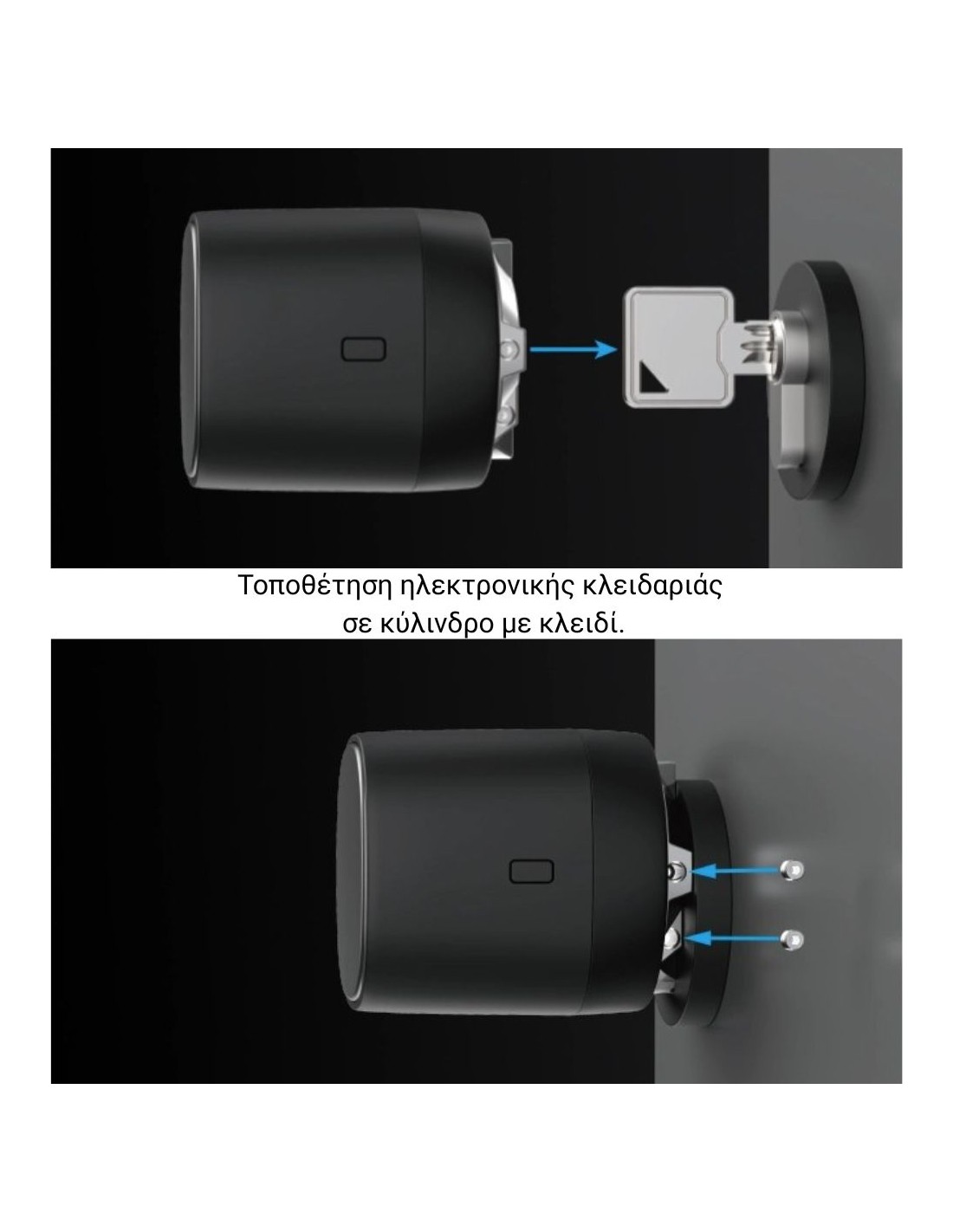

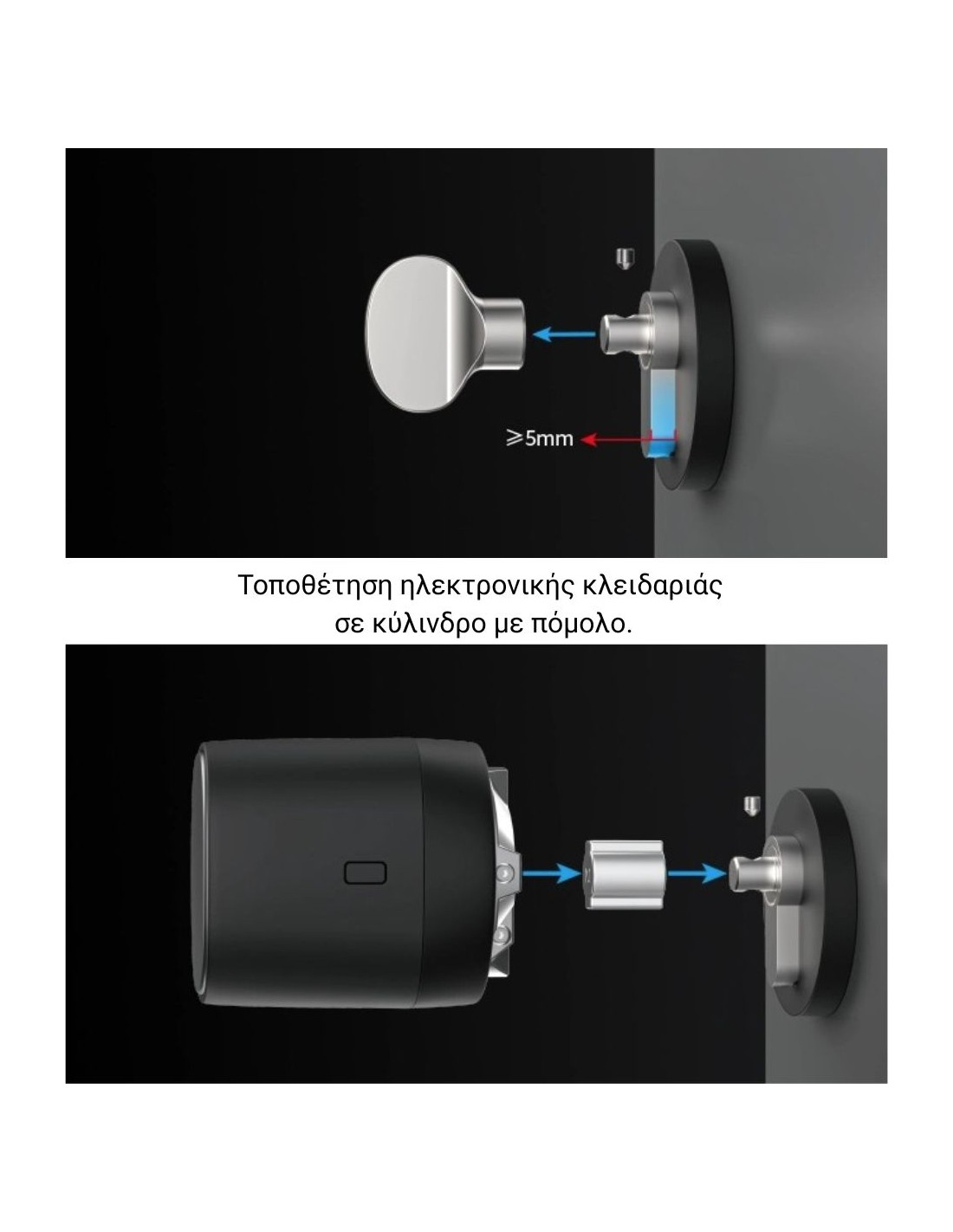

The electronic lock - knob requires a dual-function emergency cylinder in order to operate.

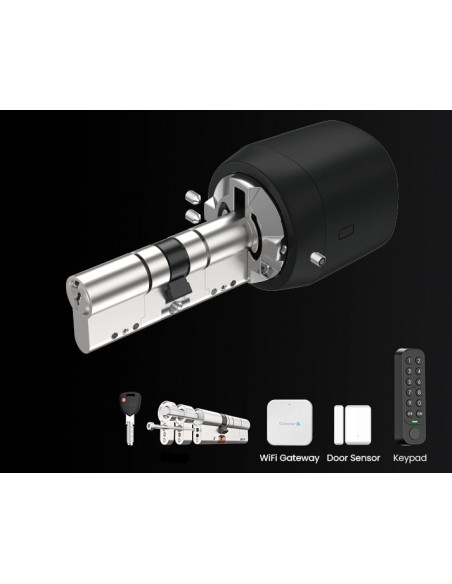

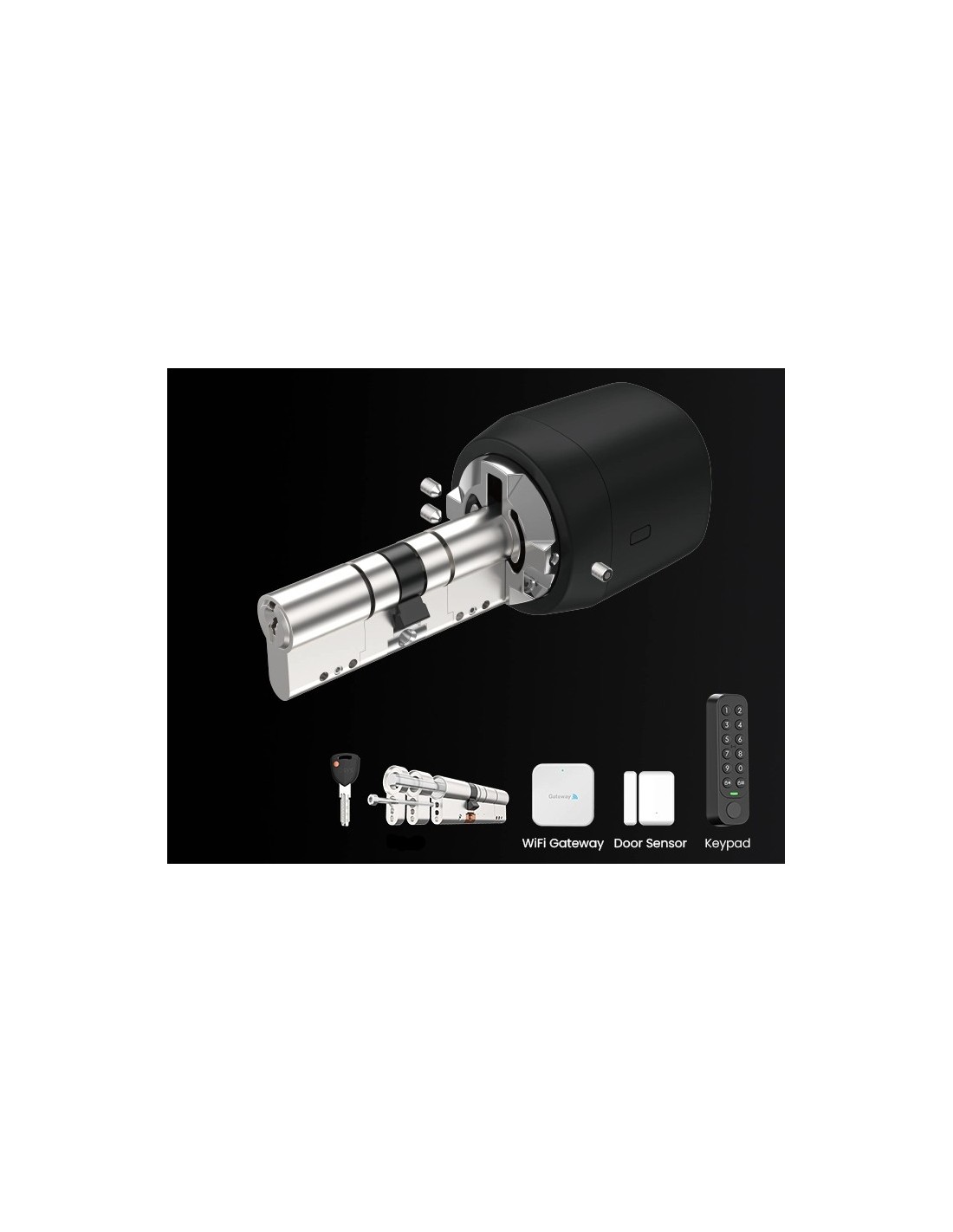

Compatible with:
1) Wireless Wall-Mounted IP66 Keypad with PIN Code, Card & Fingerprint → Click here
2) Door Sensor → Click here
3) Wi-Fi Gateway for the Electronic Access Control Lock App → Click here
UNLOCKING METHODS:
- Via Smartphone App (locally via Bluetooth)
- Via Smartphone App (remotely via Wi-Fi Gateway)
- Via backlit keypad (PIN code)
- Via RFID card
- Via fingerprint
- Via mechanical key
- Silent operation
- Fast unlocking even for heavy-duty locks

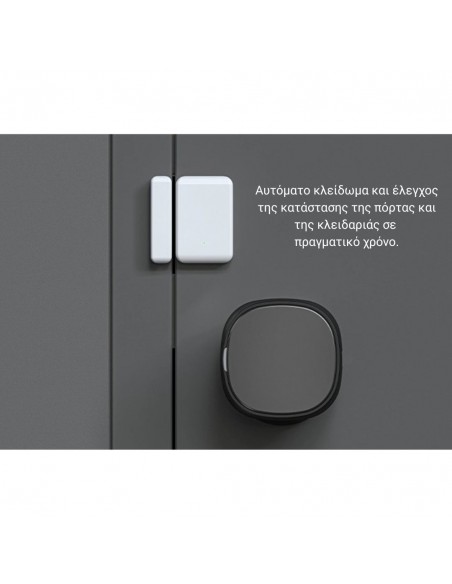

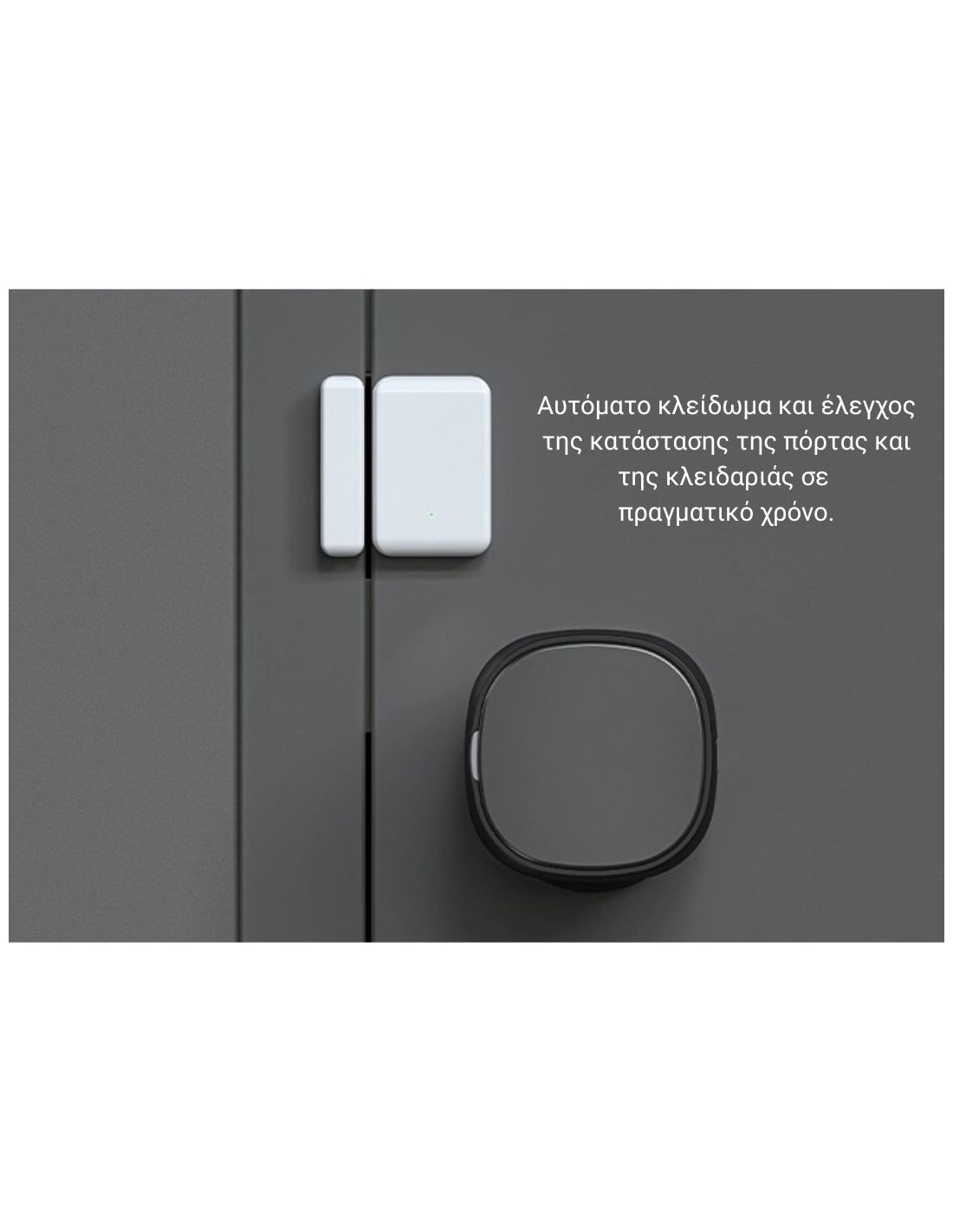

- Door Sensor for automatic locking when the door is closed (real-time door status monitoring: open or closed)
- Operating temperature from -25°C to +70°C
- CE Certified
TECHNICAL SPECIFICATIONS
| Specification | Description |
|---|---|
| Motor Torque | More than 3 Nm, suitable for heavy-duty locks. |
| Unlocking Methods |
Remote unlocking: 1) via the TTLock app (with Gateway) 2) via Bluetooth (BLE) 3) via mechanical key |
| Door Sensor | With the optional door sensor, you can monitor the status of the door and the lock in real time. |
| Keypad |
With the optional IP66-rated keypad, you can unlock using: 1) PIN code 2) fingerprint or RFID card. |
| Recommended Applications | Access management for private homes, offices, commercial premises, hotels, and short-term rental apartments. |
| Operating Temperature | From -25°C to +70°C. |
| Diameter | 55 mm |
| Power Supply |
3 × CR123A 3V batteries with an estimated battery life of up to 1 year (based on 6–7 unlocks per day). (Batteries are not included.) |
|
Key Dimensions |

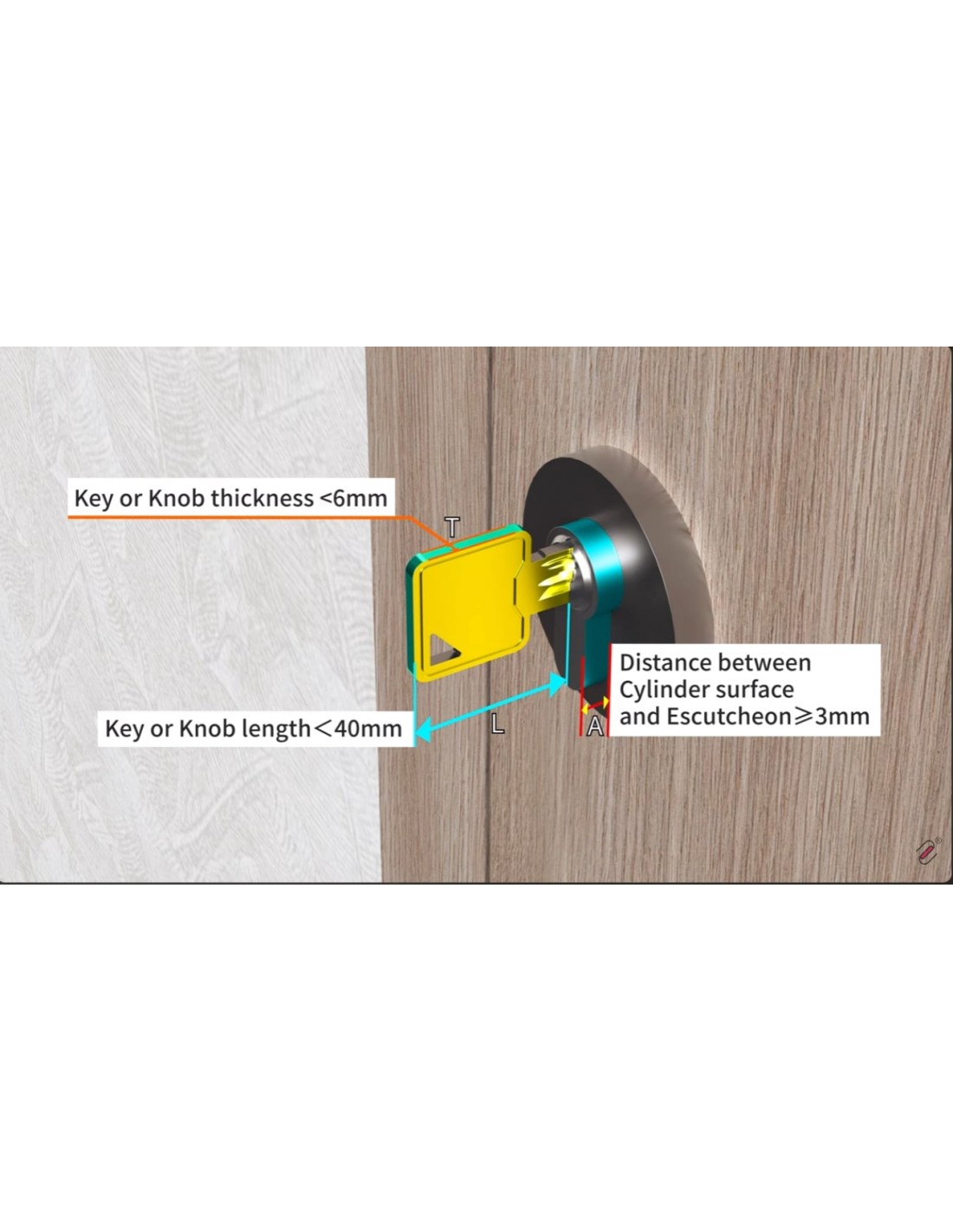

1) Key thickness < 6 mm (T) 2) Key or thumbturn length < 40 mm (L) 3) Distance between the cylinder surface and the escutcheon ≥ 3 mm (A) *see the last image |
|
Available Colors |
Black White |
230-603
