Electric strike (adjustable) 1746 12 - 24V
Electric strike (model 1746 JIS) for swing doors made of aluminum, metal, or wood – 12–24V AC/DC.
Fail secure, meaning the strike remains locked when power is cut.
Color: Silver
Electric strike (1746 JIS) for swing doors – aluminum and wood – 12–24V AC/DC
Advantages – Operation:
-
Features a hold-open mechanism activated by a single press of the door release button, allowing the strike to remain unlocked without time limitation for a single opening.
This means the person pressing the intercom button does not need to coordinate with the person physically opening the door. -

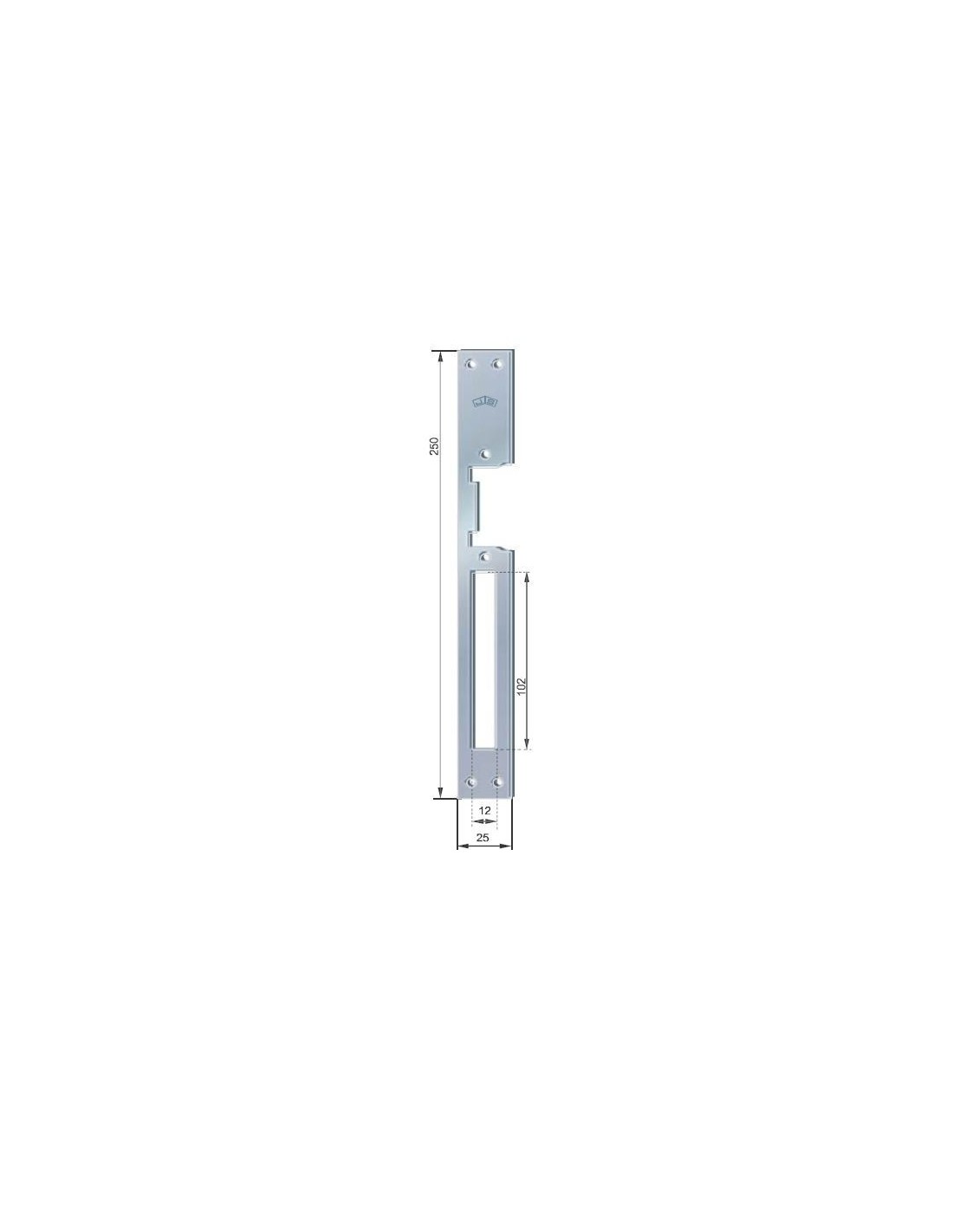

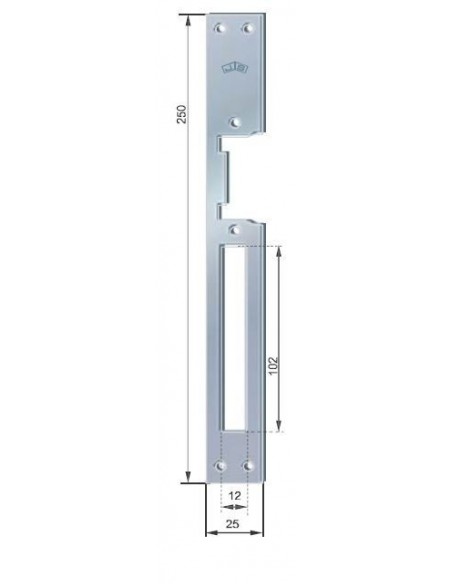

Equipped with an adjustable latch keeper (adjustable up to 4mm) for improved door locking and sealing — ensuring easy installation.
Suitable for:
-
Main entrance doors made of aluminum, wood, metal, or PVC.
Additional features:
-
Connects to intercom or video intercom systems.
-
Very easy to install.
-
Operates with 12–24V AC/DC.
-
High durability and quality.
-
Mortise-mounted design, easily reversible for left- or right-handed door openings.
-

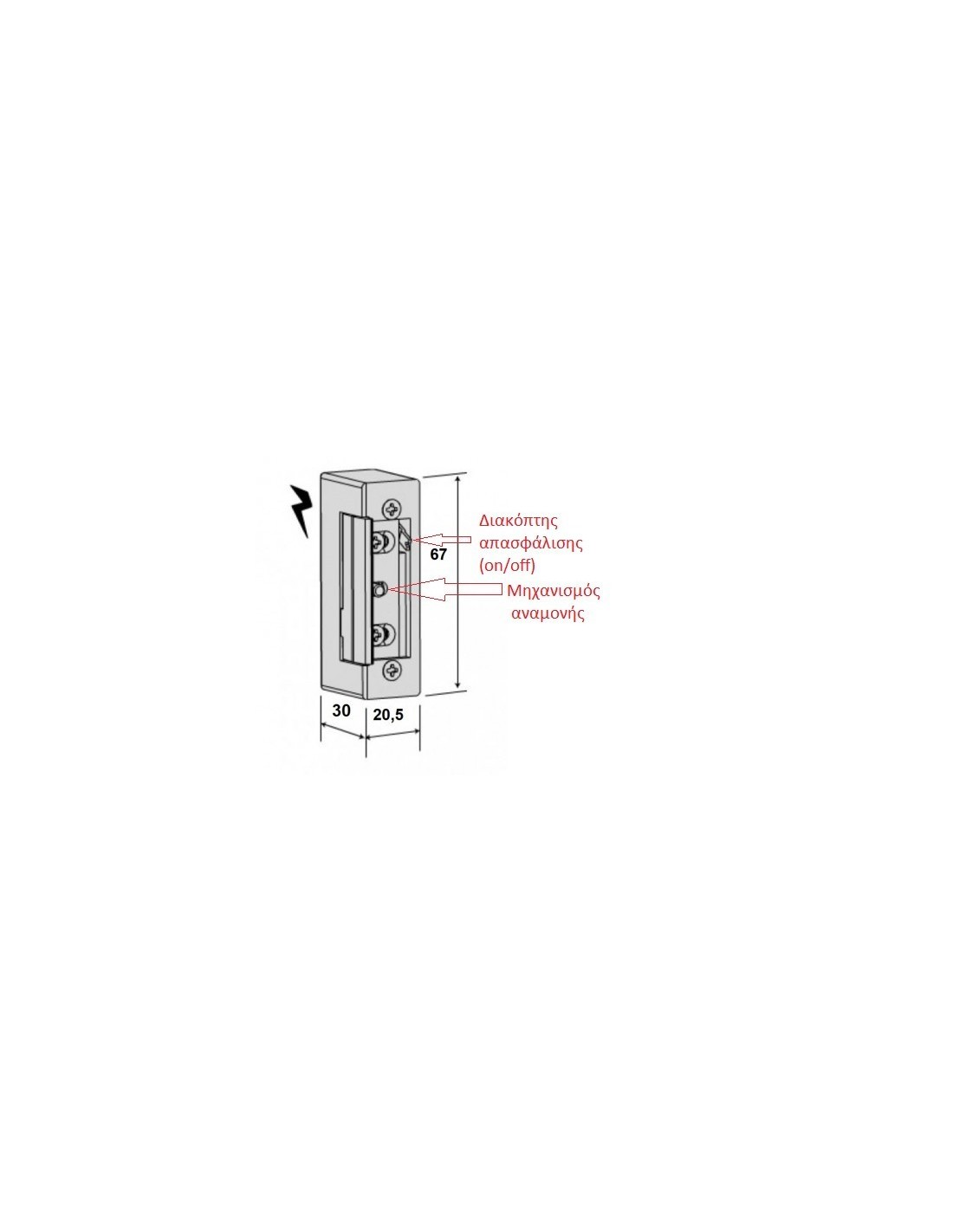

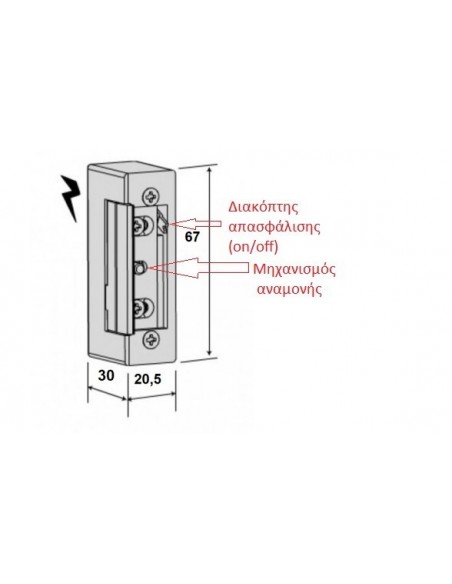

Includes a mechanical on/off unlock switch, allowing the door to remain open when needed — ideal for situations like moving furniture.
Specifications:
-
CE certified
-
Made in Spain
-
Compatible with locks of 72mm, 85mm, and 92mm backset
-
Custom-order Fail Safe versions also available.
