Inca mechanism latch
173-070
Specifications:
Mechanism latch with metallic fittings, to which the strike plates of the mechanism are pre-assembled. Lever-operated latch movement.

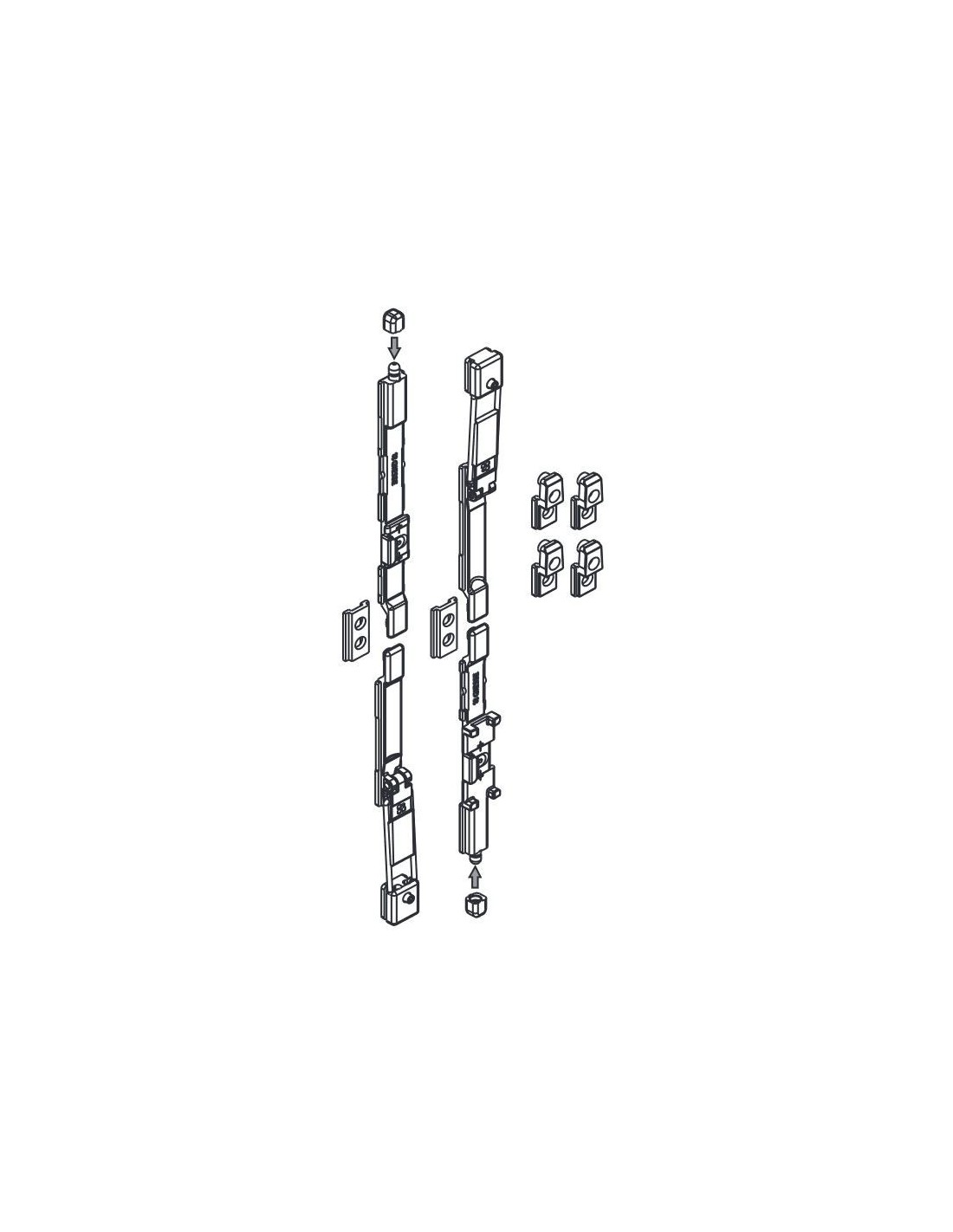

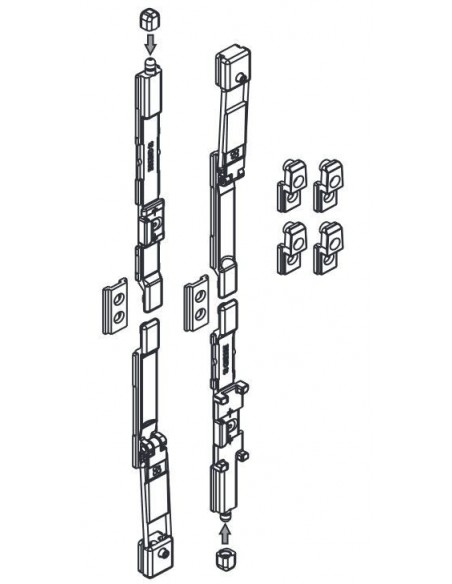

The latch is sold in pairs and consists of an upper latch and a specially assembled lower latch with anti-burglary strikes.

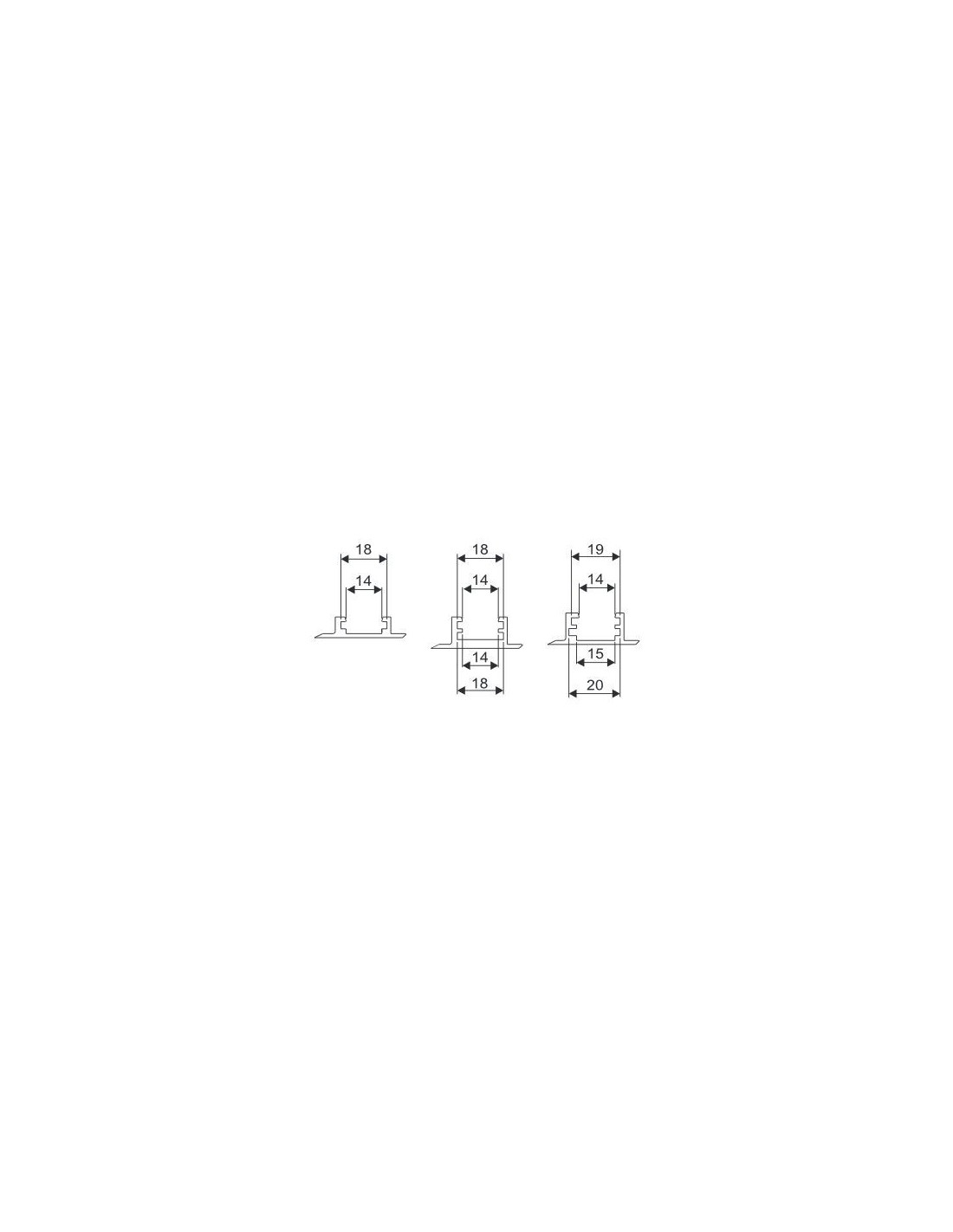

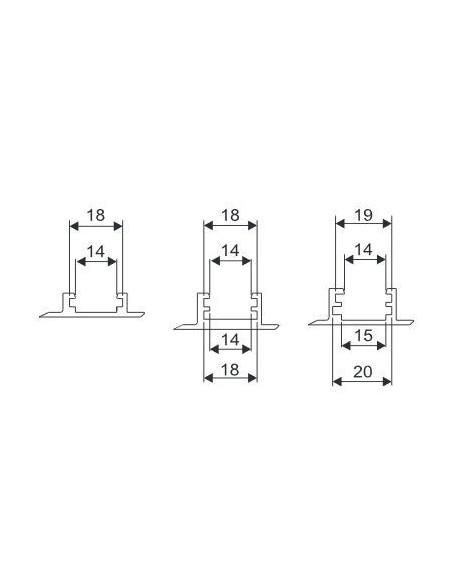

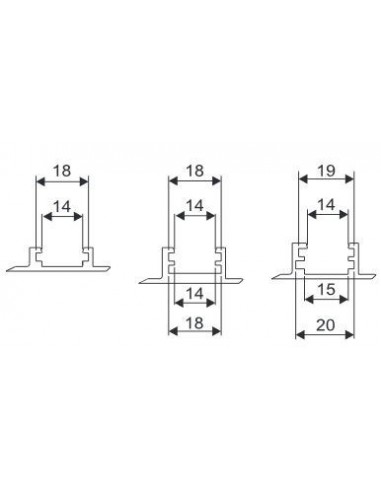

Specifically designed for use in assembled profiles with a single channel, although also compatible with double-channel profiles.

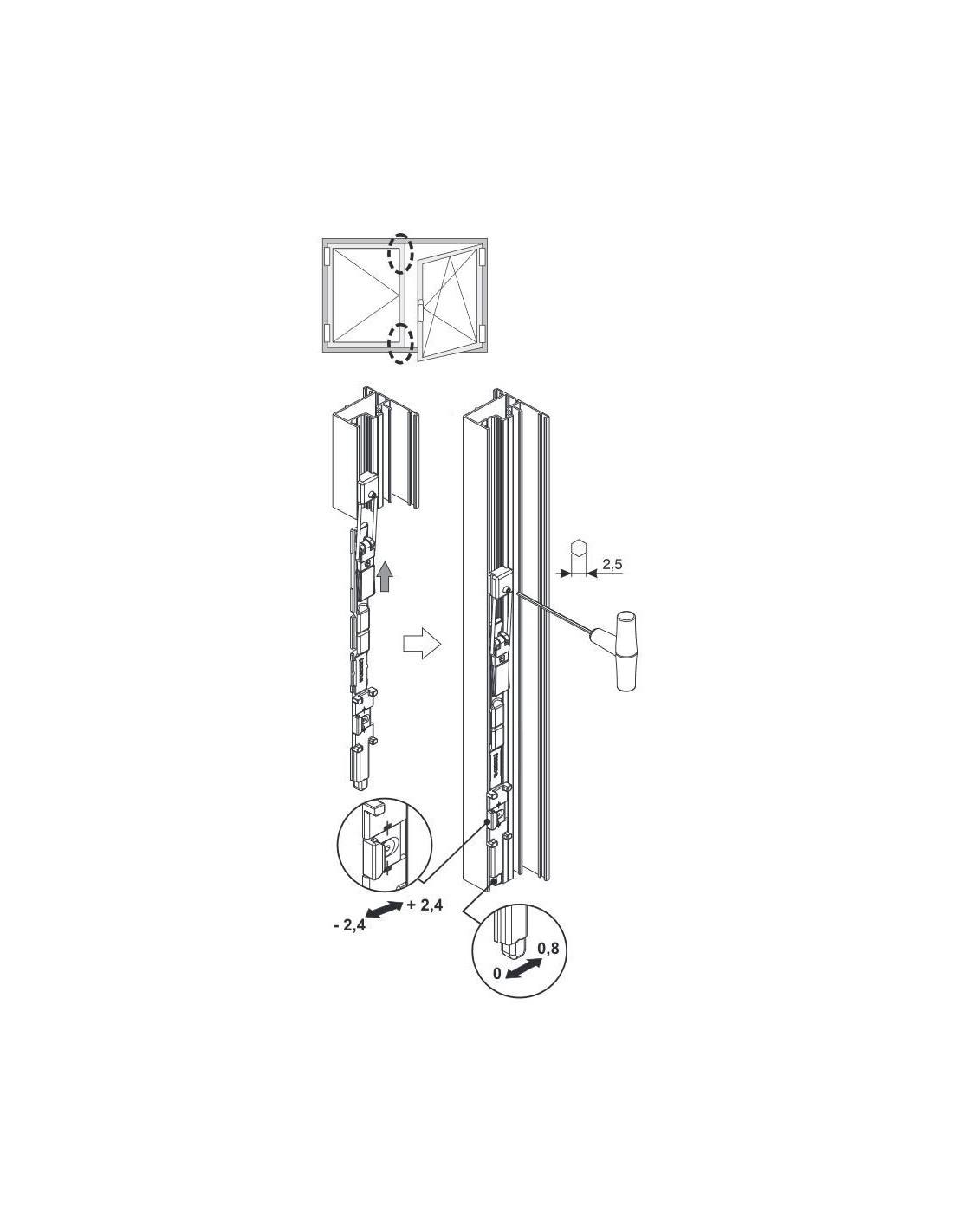

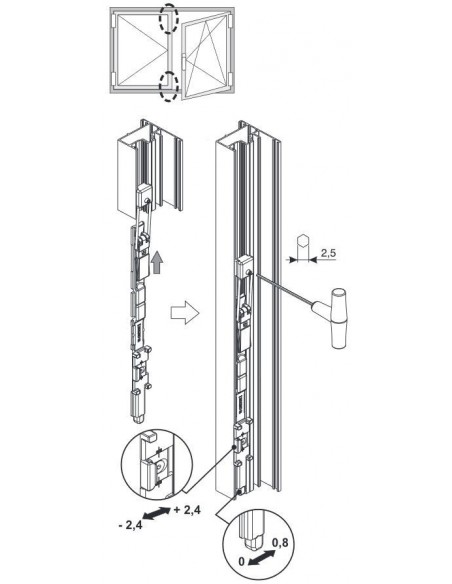

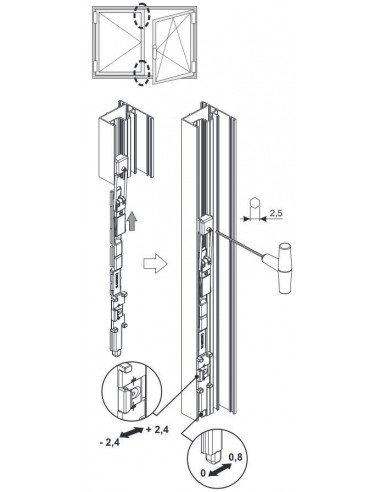

The operating mechanism is a lever-type system. It fits into the profile groove without requiring mechanical processing: once properly positioned, the latch is secured by tightening the pre-installed collar screw into the locking block.
The two terminals, made entirely of Zamak, are equipped with a steel pin that can be combined with an eccentric ring for closure and position adjustment.
173-070
New
