Latch Giap
173-068
Applications

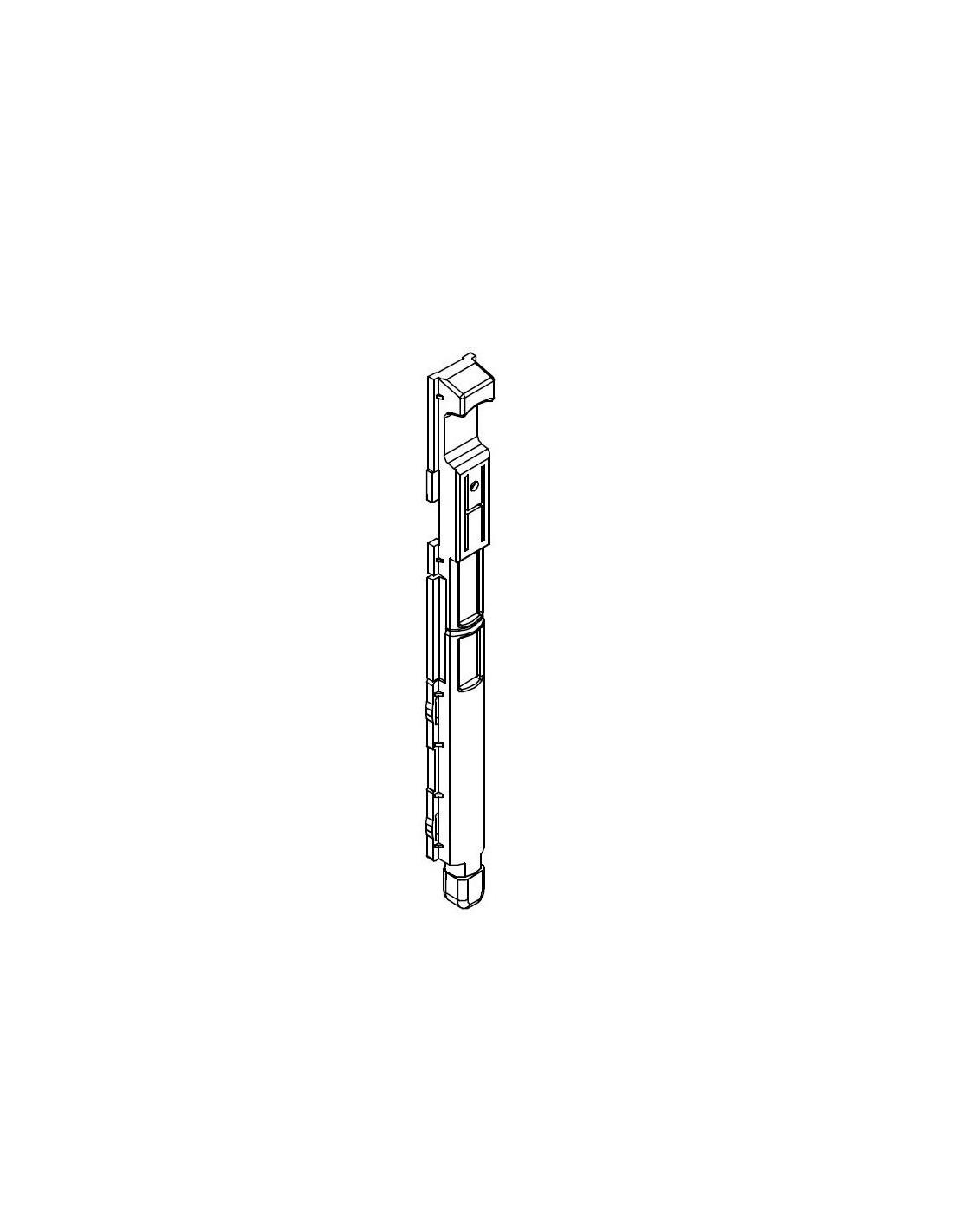

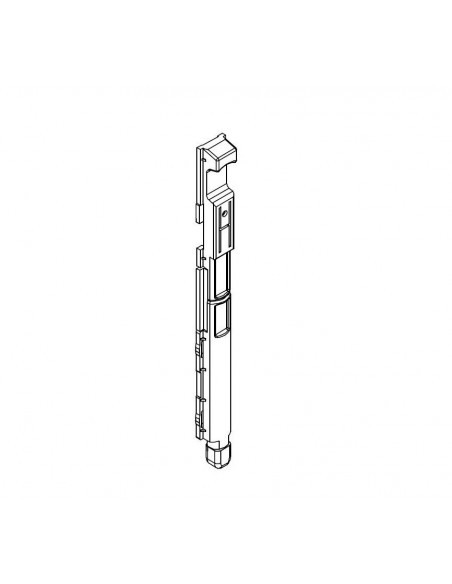

Latch made of high-strength plastic consisting of two parts and an adjustable end for absolute stabilization.
Materials
Base made of black nylon with glass fibers
End made of Zinc steel
Stabilizing block made of Zamac Zinc alloy
Screw made of Zinc steel
Available unpainted.

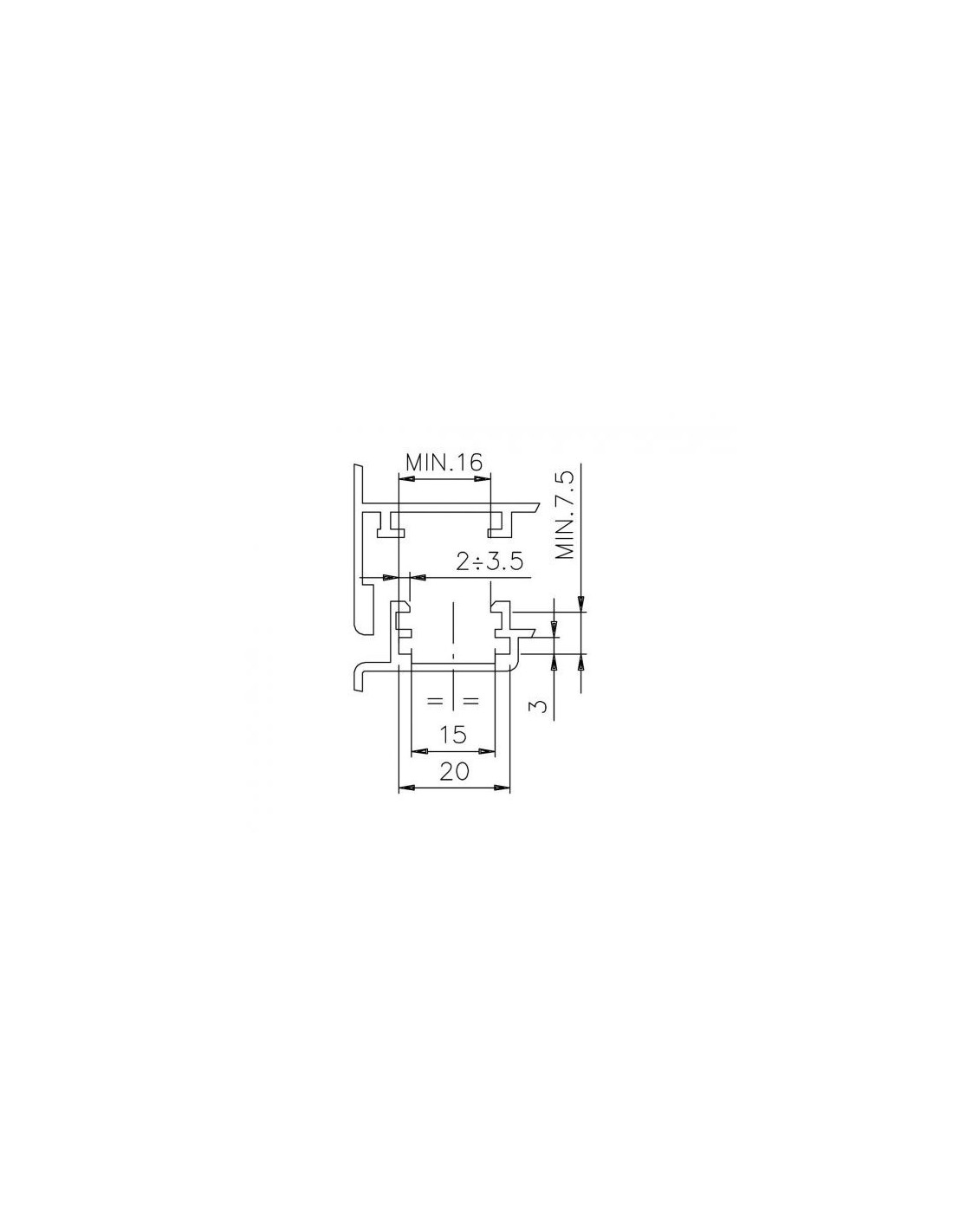

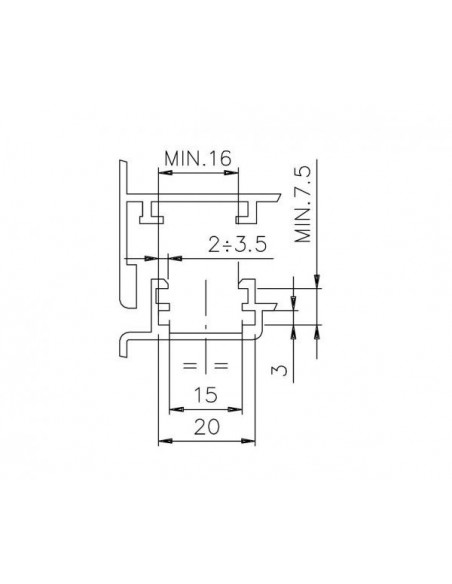

Technical specifications
Installation is done easily by following the instructions below.

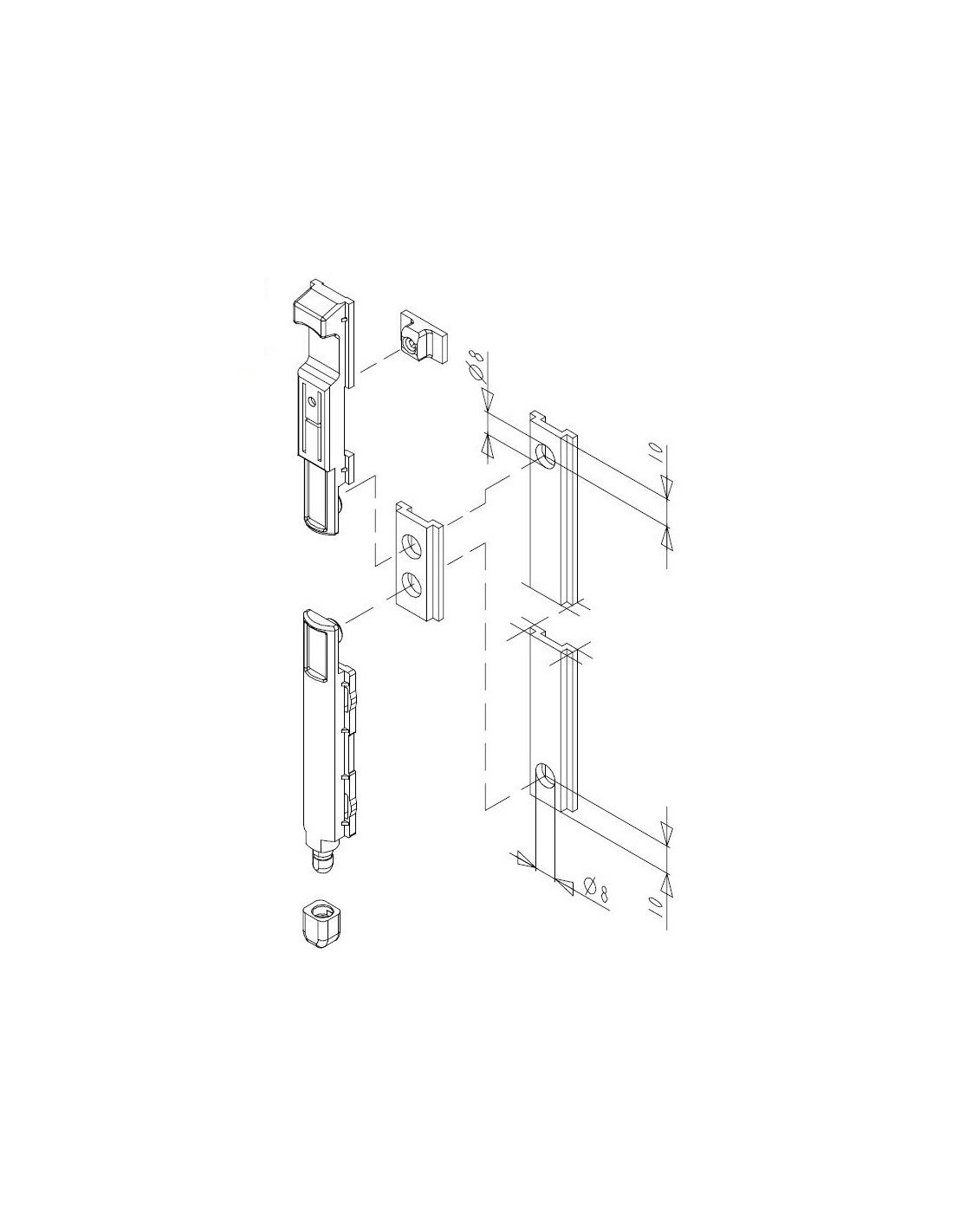

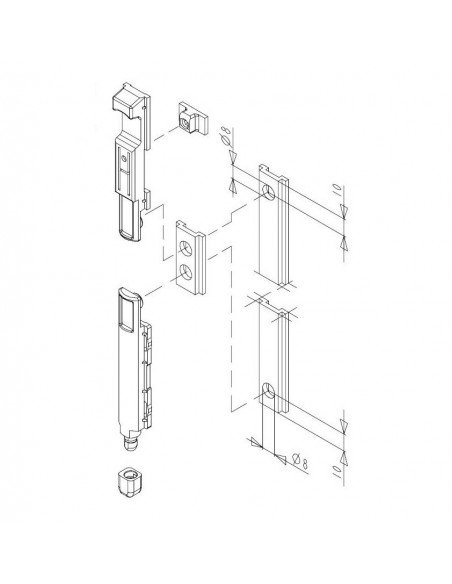

Place the metal stabilizer at the back of the latch and hold it with a 2.5 mm Allen key. Slide it into the profile channel by adding the plastic connector and the latch end. Secure the latch in the desired position by tightening the Allen key.
The plastic connector can be replaced with the 206N strip for position selection during use.
173-068
