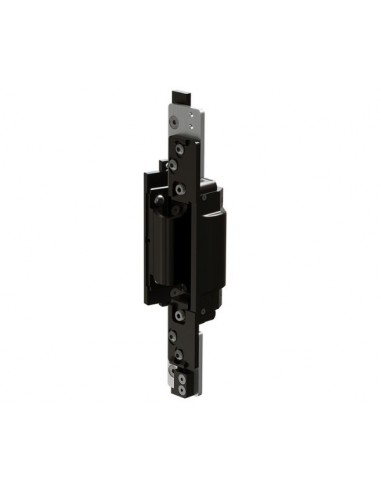

Concealed recessed hinge for aluminum door perimeter systems PHH-100-M1
The concealed recessed hinge for aluminum door perimeter systems PHH-100-M1
is easily compatible with all aluminum door systems. It offers an excellent aesthetic result, smooth operation, and high durability over time.
- Weight resistance up to 160kg per pair of hinges.
It is easily compatible with all aluminum door systems. It offers an excellent aesthetic result, smooth operation, and high durability over time.
The hinge opening angle is 110⁰, maintaining a clear passage.
Suitable for right or left installation.
The hinge is delivered largely pre-assembled.
Its design allows the use of the central sealing gasket.
High construction quality.
Weight resistance up to 160kg per pair of hinges.
Easy adjustment in three directions, independently and completely smoothly:
Horizontal ± 3mm
Vertical ± 3mm
Pressure ± 1.5mm
Due to the wide range of horizontal adjustment, it can be used in aluminum systems with a gap of 14–18 mm between profiles.
