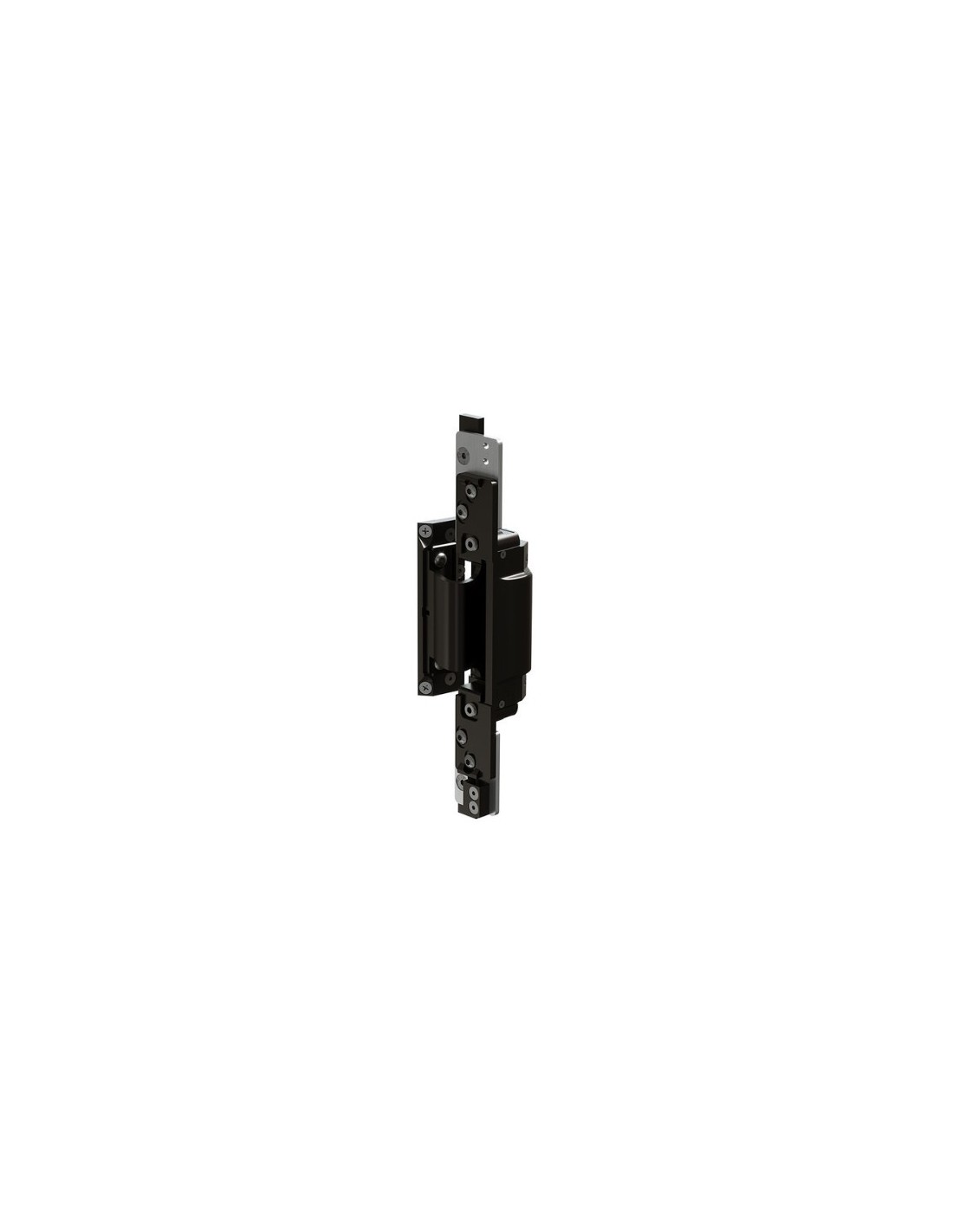

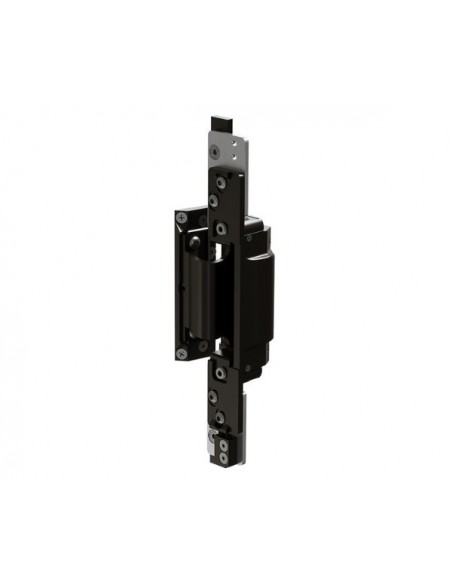

Concealed hinge CAMERA EUROPEA PHH-100-C1

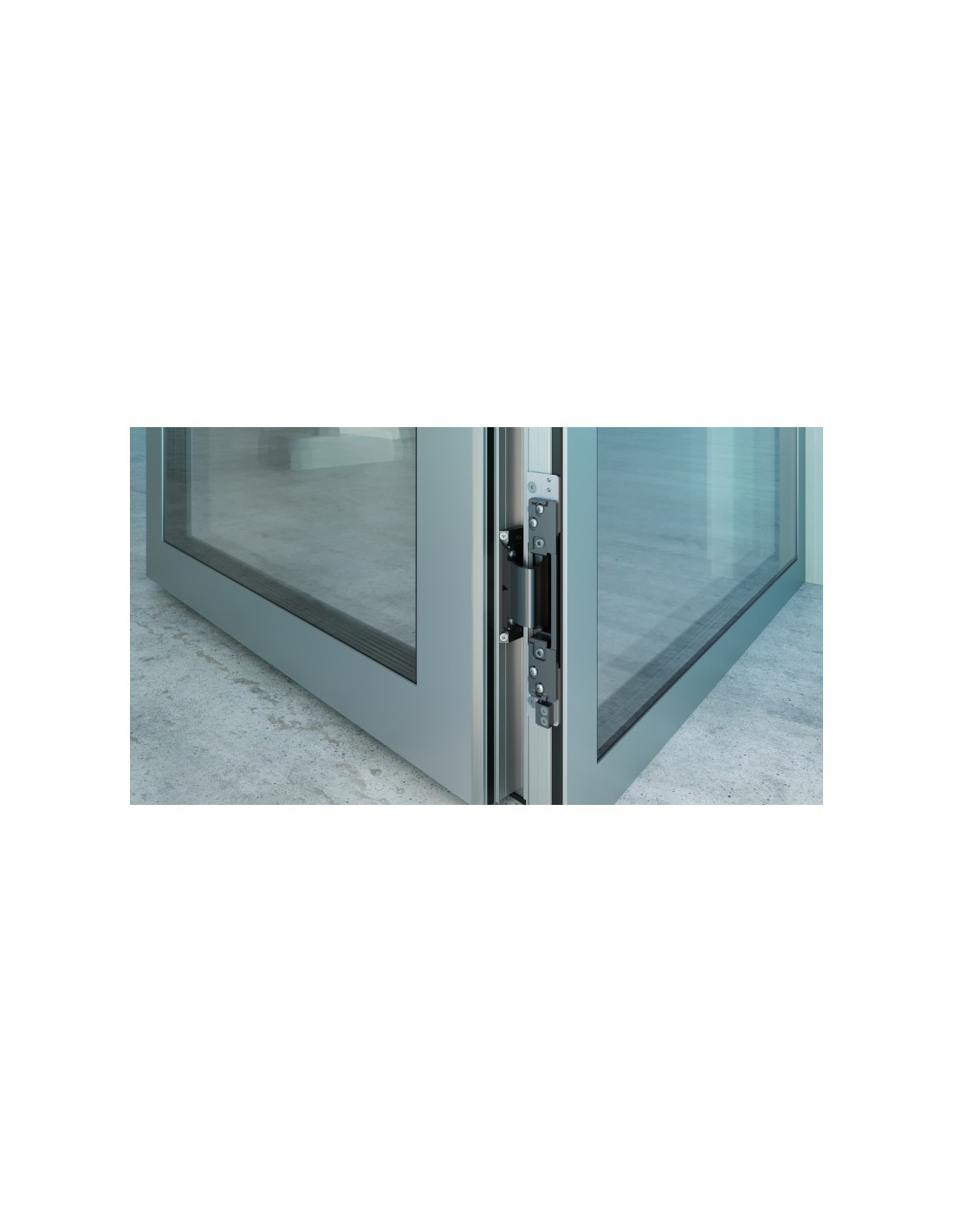

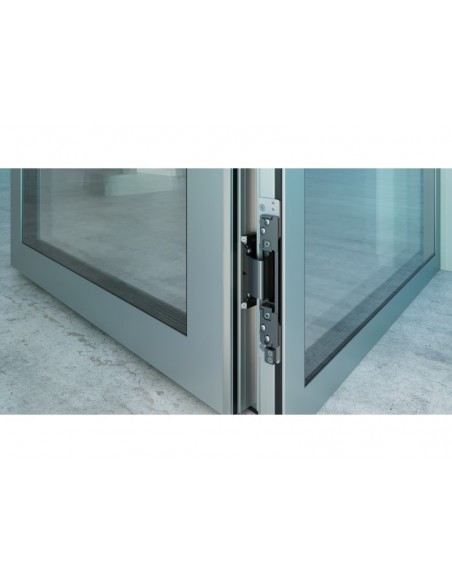

CONCEALED HINGE SERIES FOR ALUMINIUM DOOR SYSTEMS – The PHH-100 concealed aluminium hinge series is easily compatible with all aluminium door systems. It offers a flawless aesthetic finish, smooth operation, and high durability over time.
CONCEALED HINGE SERIES FOR ALUMINIUM DOOR SYSTEMS – The PHH-100 concealed aluminium hinge series easily fits all aluminium door systems. It offers a flawless aesthetic result, smooth operation, and high durability over time.
The hinge opening angle is 110° maintaining a clear passage.
Suitable for right or left installation.
The hinge is delivered mostly pre-assembled.
Its design allows the use of a central sealing gasket.
High manufacturing quality.
Weight resistance up to 160 kg per pair of hinges.

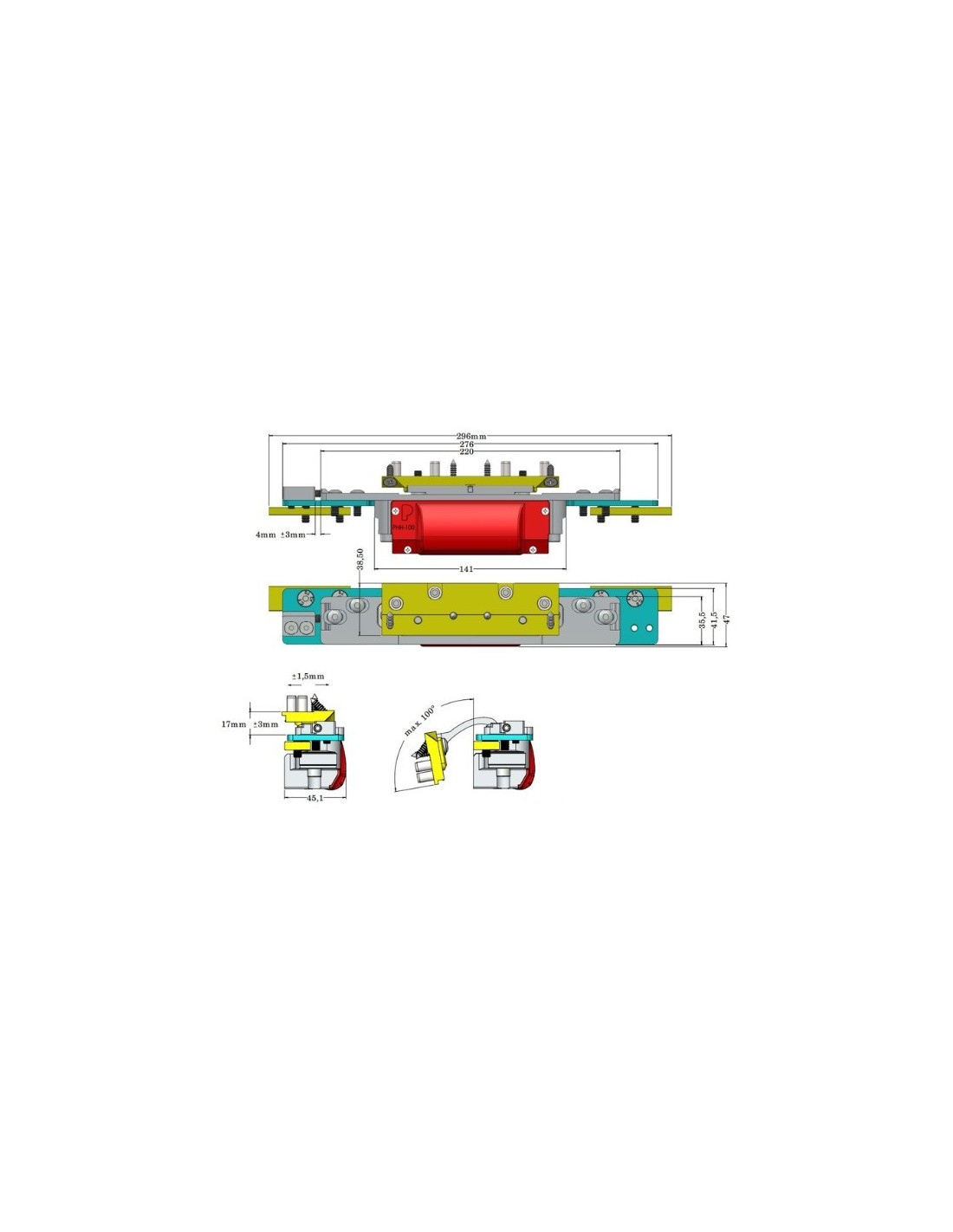

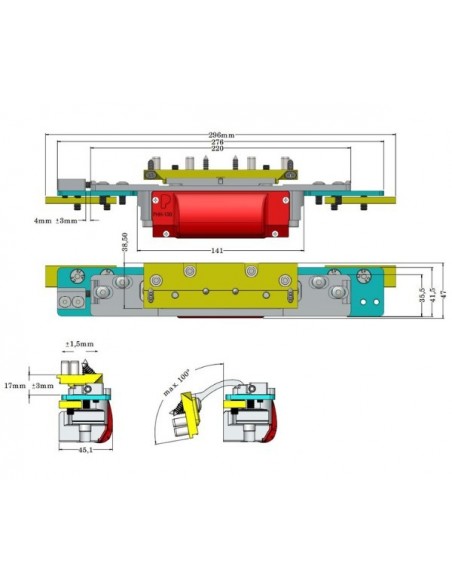

Easy adjustment in three directions, independently and very smoothly:
-
Horizontal ± 3mm
-
Vertical ± 3mm
-
Pressure ± 1.5mm
Due to the wide range of horizontal adjustment, it can be used in aluminium systems with a gap of 14-18 mm between profiles.
