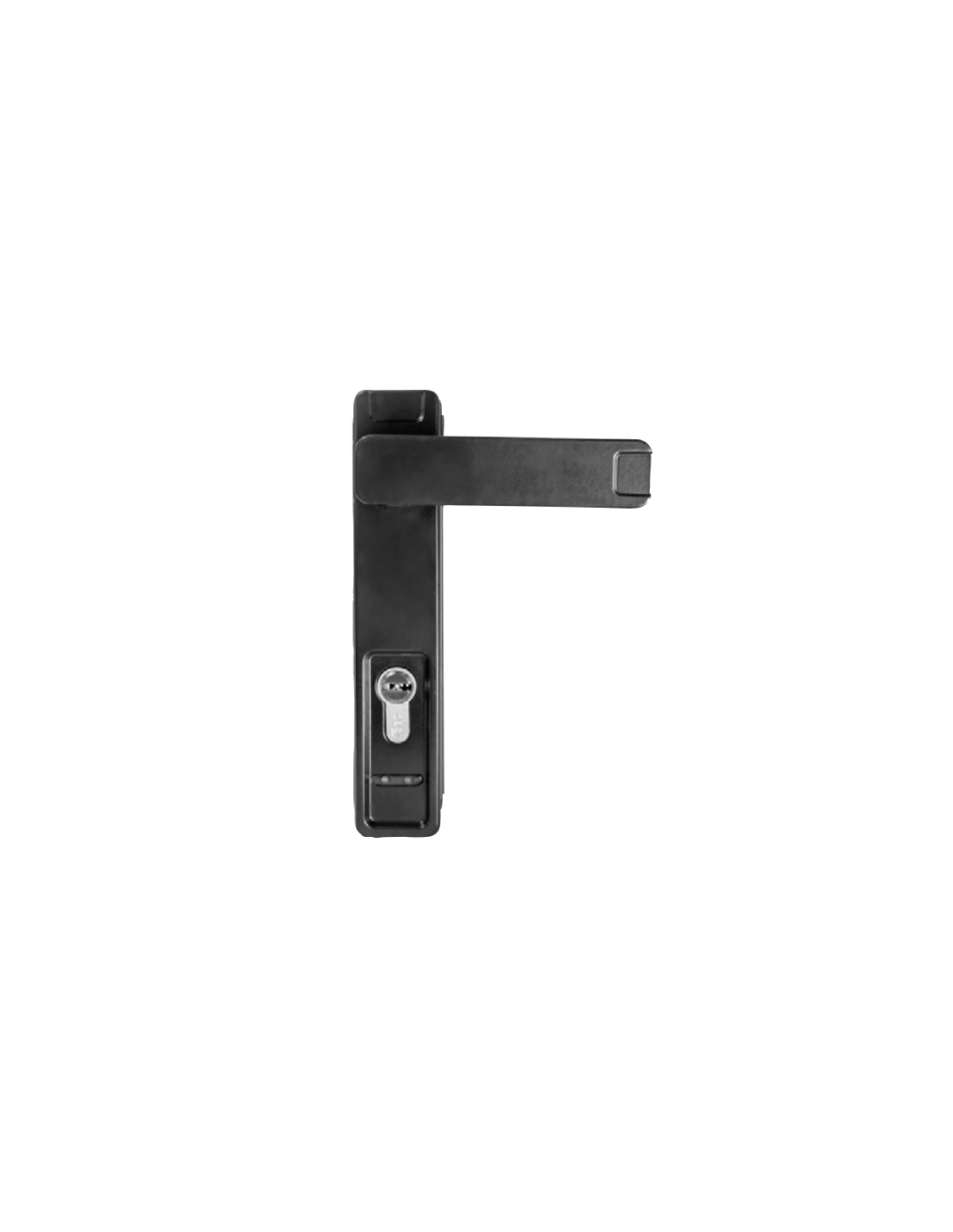

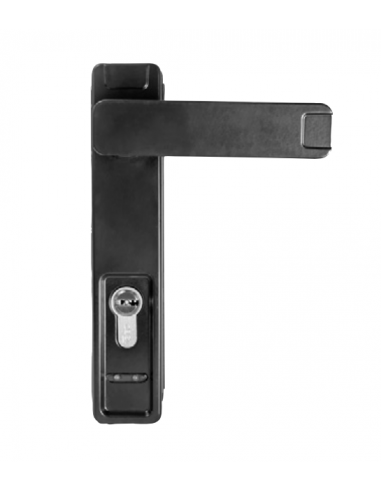

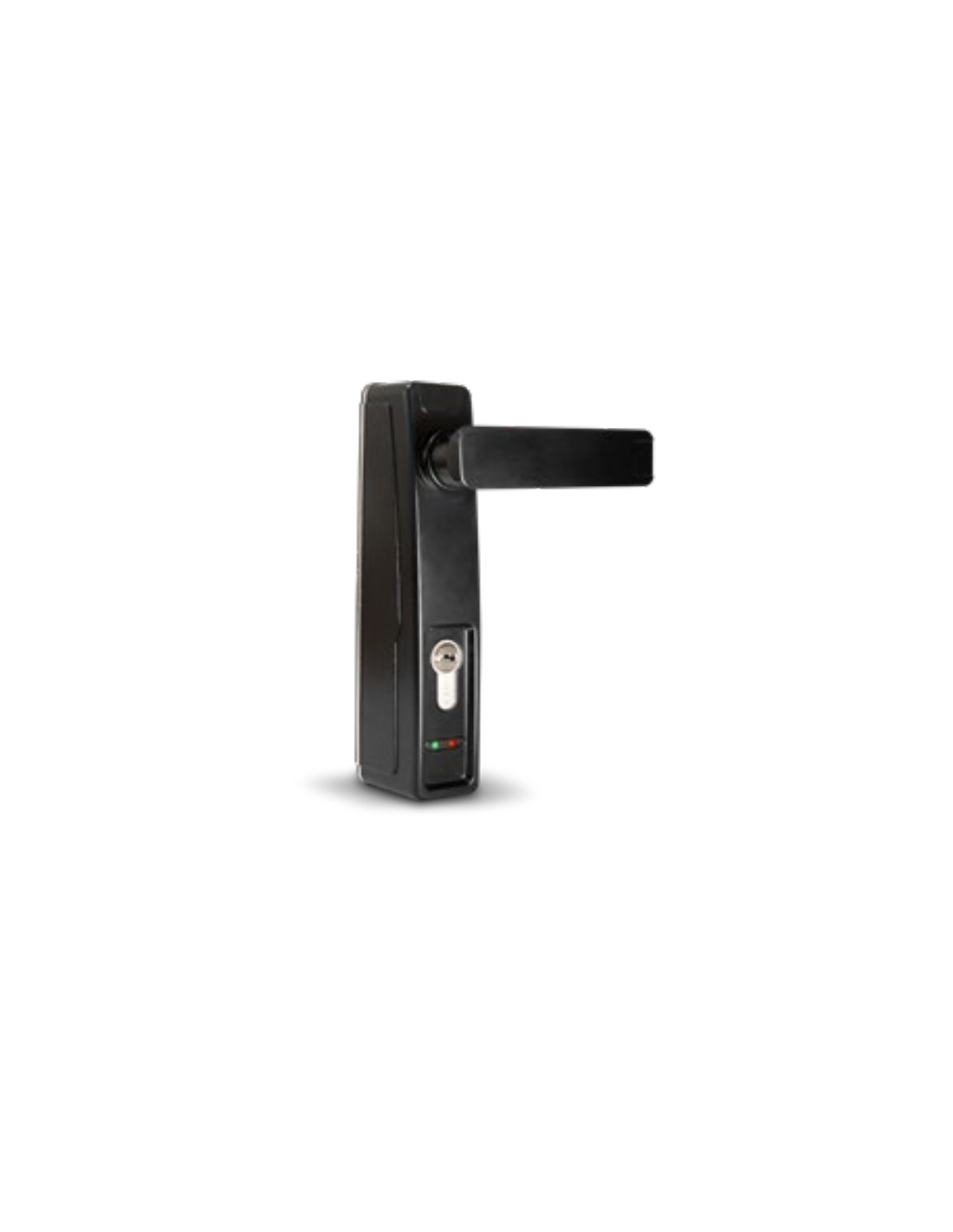

EXTERNAL ELECTROMECHANICAL CONTROL TRIM TRONIC FOR PANIC EXIT DEVICES ISEO
It can be installed both on RIGHT and LEFT handed doors.
Zamak case.
Power supply 12 Vdc.
Suitable for fire-resistant doors.
Supplied with:
- R6 European monoprofile cylinder 40 mm with 3 keys, ref. 880930109.
- Handle follower.
- Fixing screws.
- Template and assembly instructions.
- Connecting cable 5 m.
Accessories to be ordered separately:
- Power supply unit 12 Vdc-2A code 94403000E.
- Wing cable guide code 94403010E.
The Trim Tronic external electronic control for panic and emergency devices is part of the range of accessories for mortice devices. This product can be combined with ISEO mortice panic devices and mechanical locks of the series 214* and the DINFIR3 panic locks:
- the Trim Tronic is used to enable or disable the external handle
- the Trim Tronic only works correctly if the lock has not been locked from the inside (deadbolt out or square handle disabled) except DINFIR3 function E
- it is not possible to safely close the lock from the outside using the Trim Tronic for use on fire-rated doors, a single profile
- cylinder must be used, or a suitable protection of the cylinder hole in the lock.
It allows you to control access mechanically using a key and handle, and electronically from a distance, to allow open access for a set timeframe. It has an antivandal system and is available in various finishes: black, white, metal grey, ENDUR4NCE (metal-like finish). The special AntiGerm antibacterial treatment (only inpainted versions) releases silver ions for the entire life of the product: it requires no maintenance and makes this device perfect for being fitted in buildings in which hygiene and health protection are important and essential. This product is made in compliance with EN 1125 and EN 179 standards. It can replace any ISEO control that is already installed.
