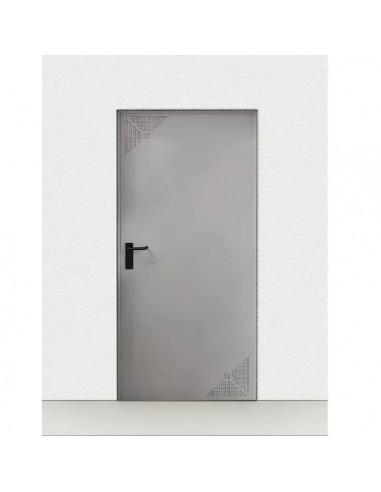

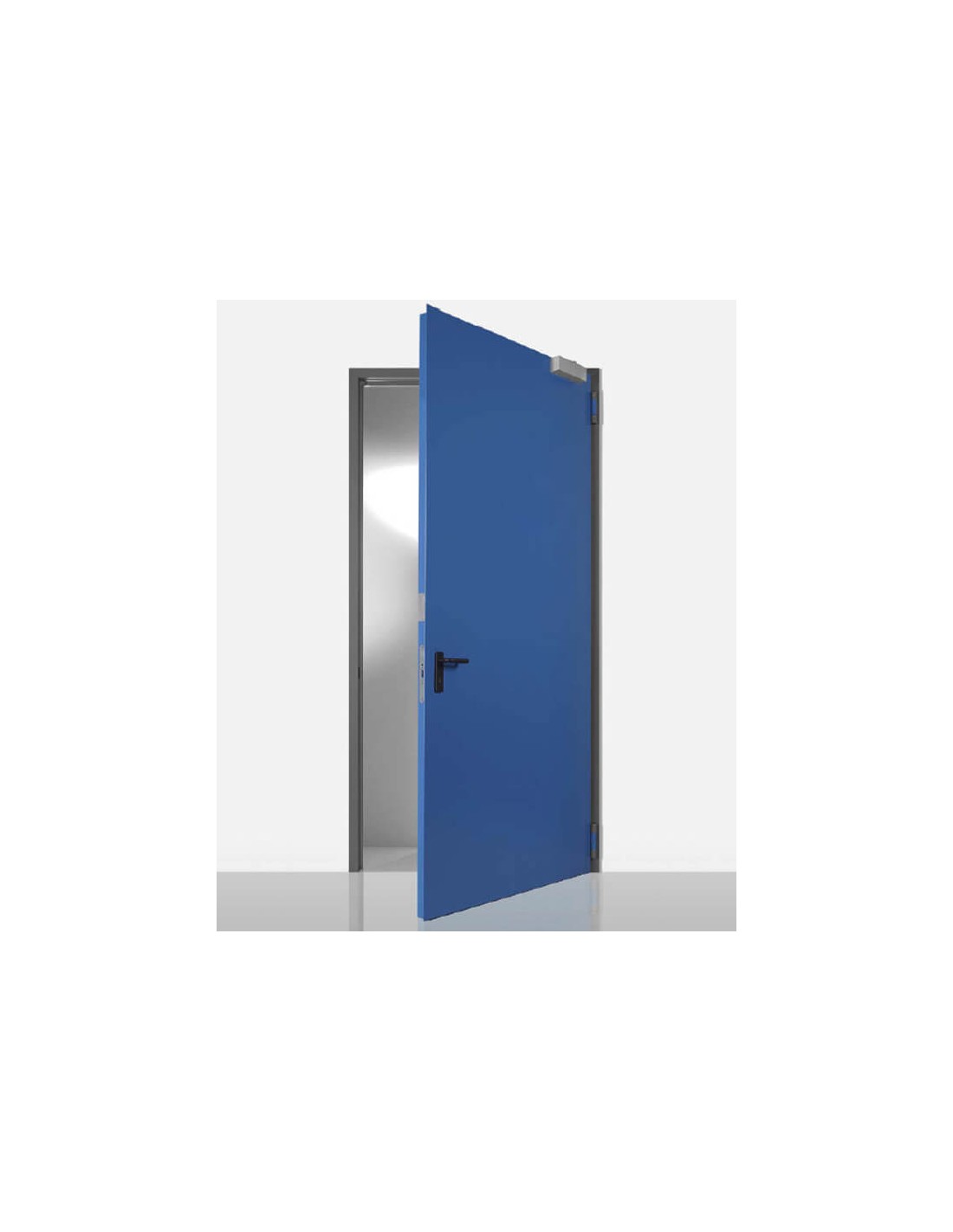

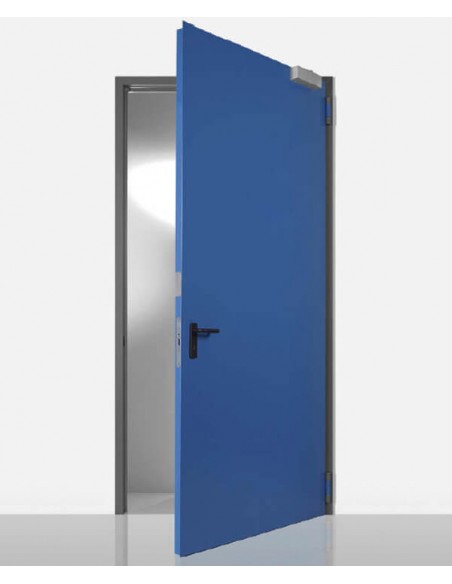

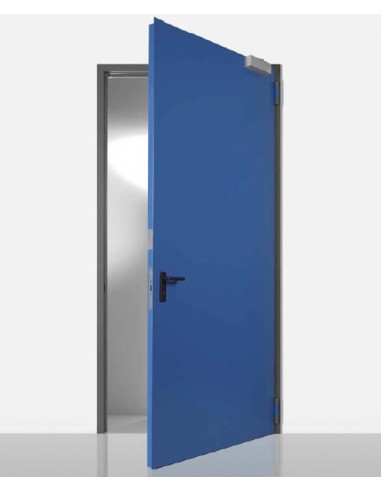

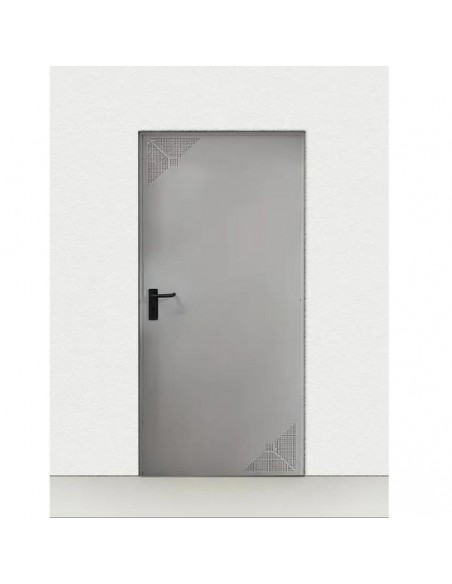

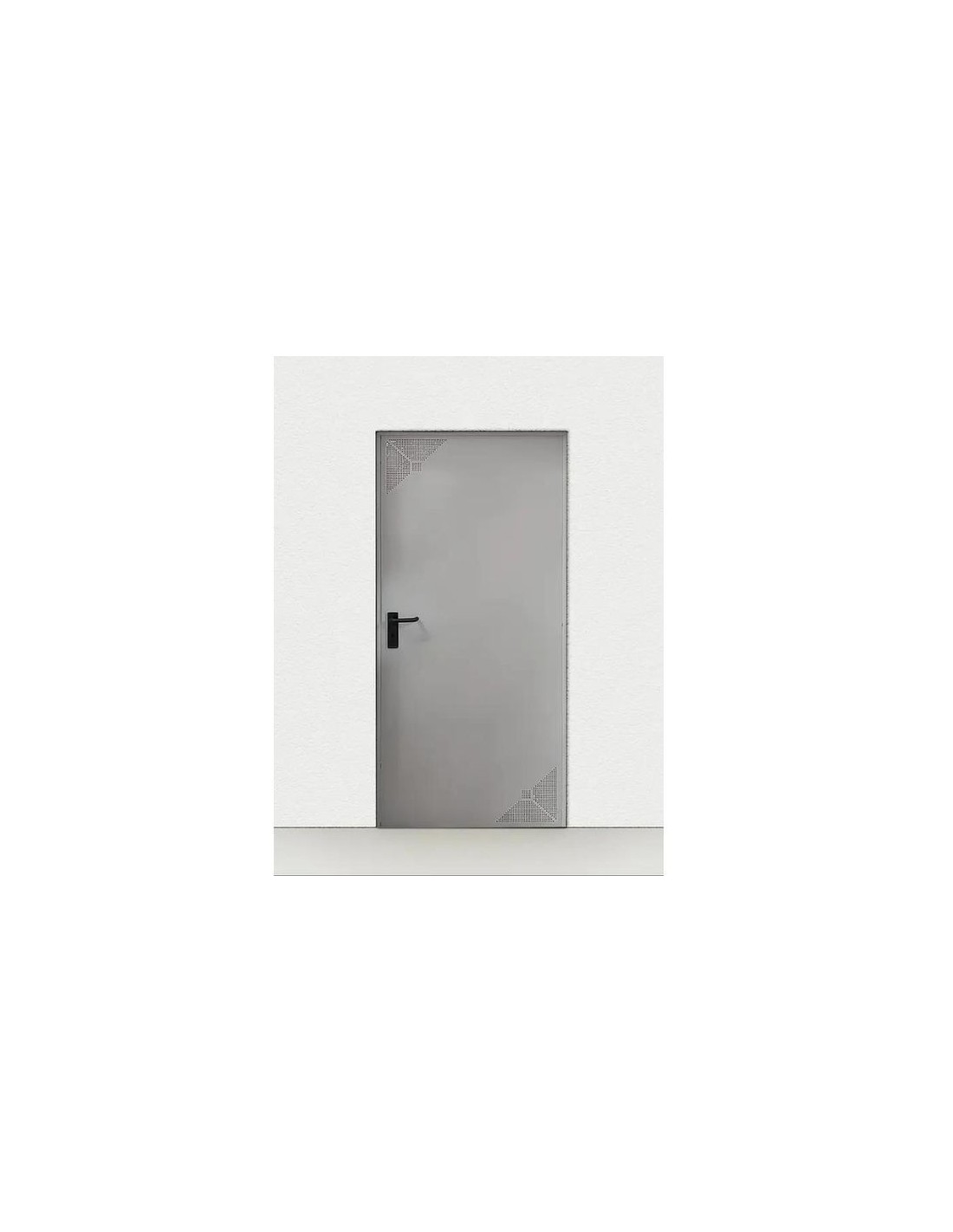

Simple metal storage door with ventilation
It features high-quality construction and flawless finish, fully galvanized and painted in RAL colors.
It is an excellent solution for professional spaces and private auxiliary spaces.

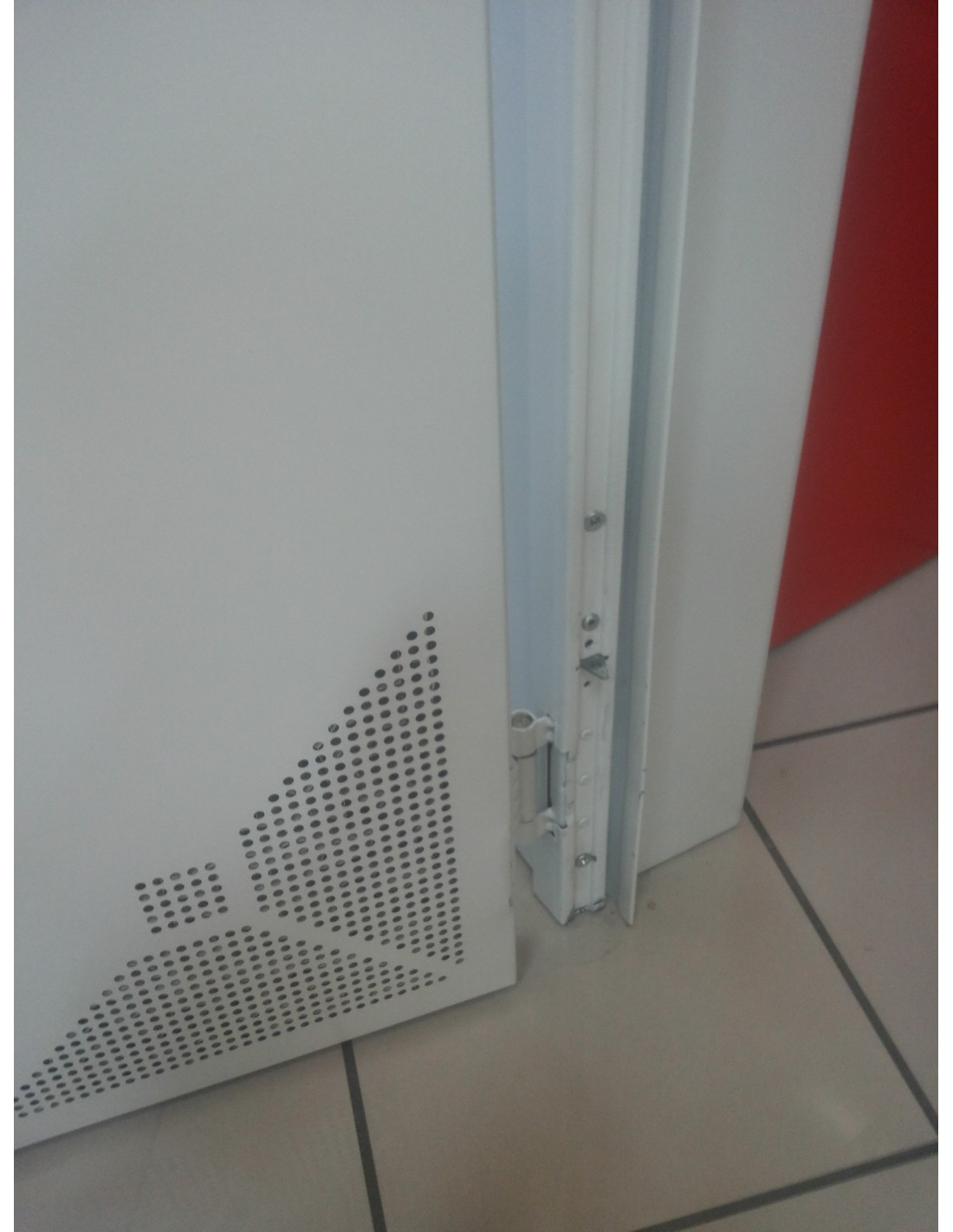

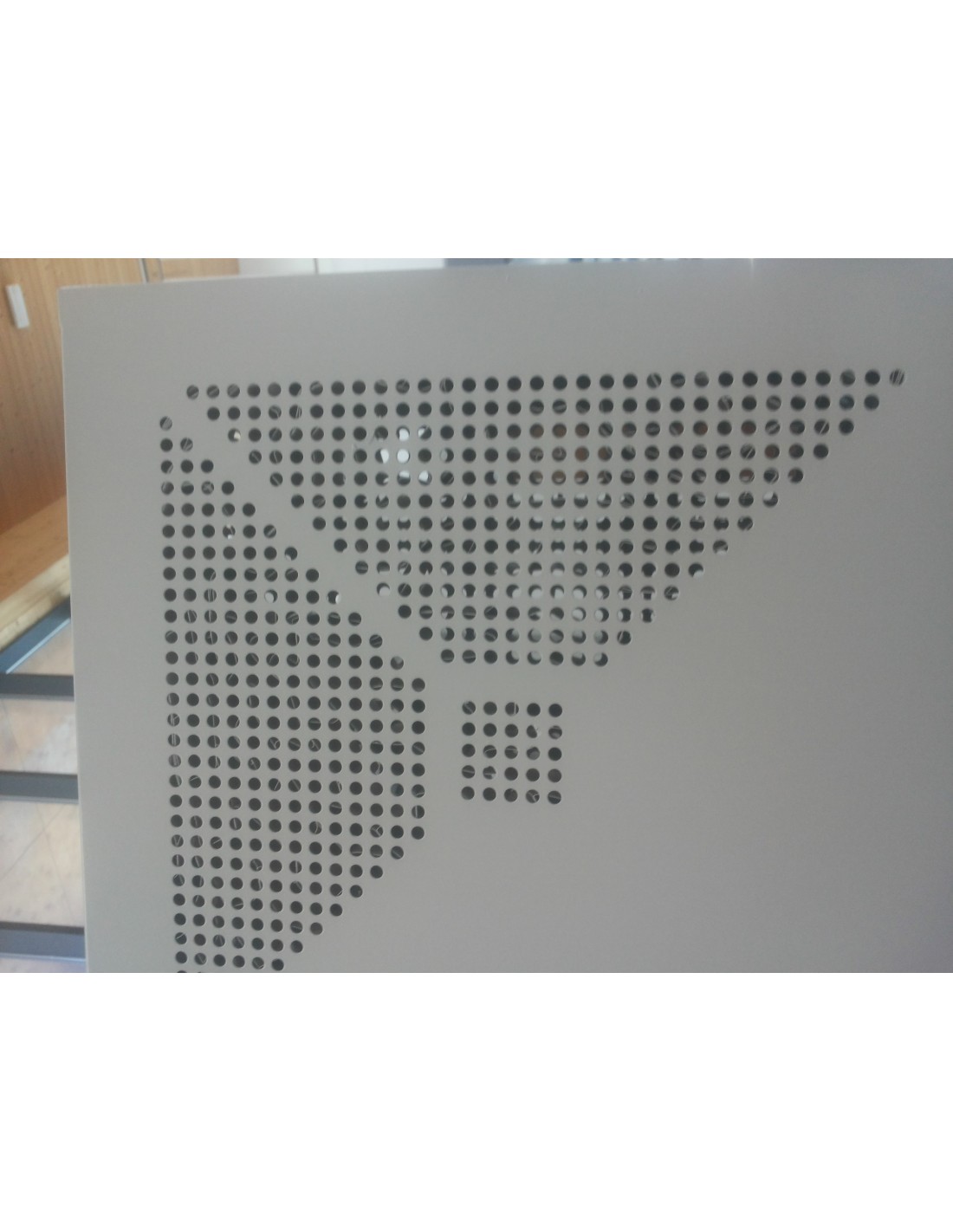

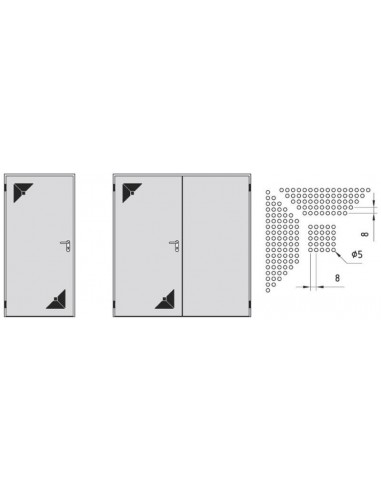

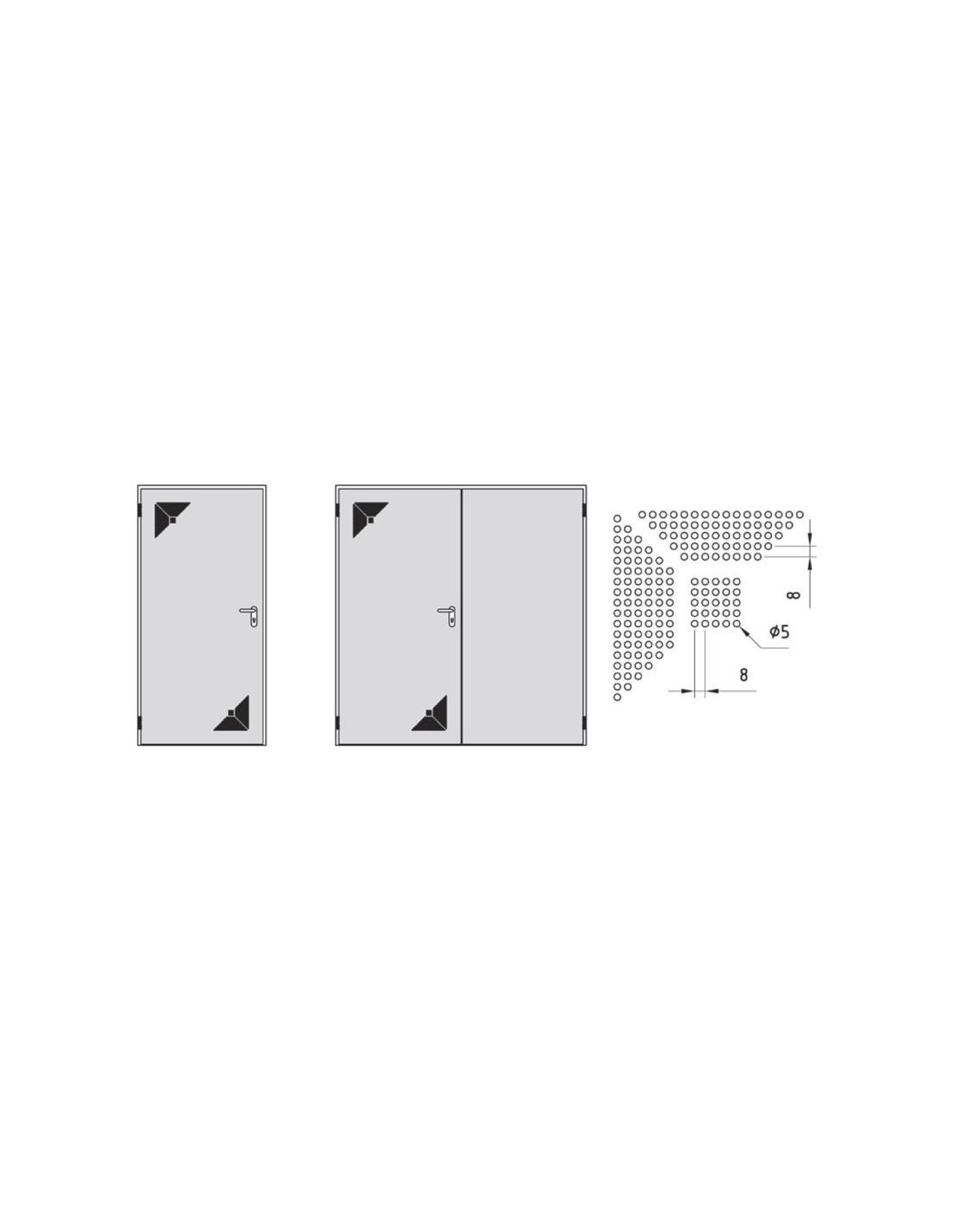

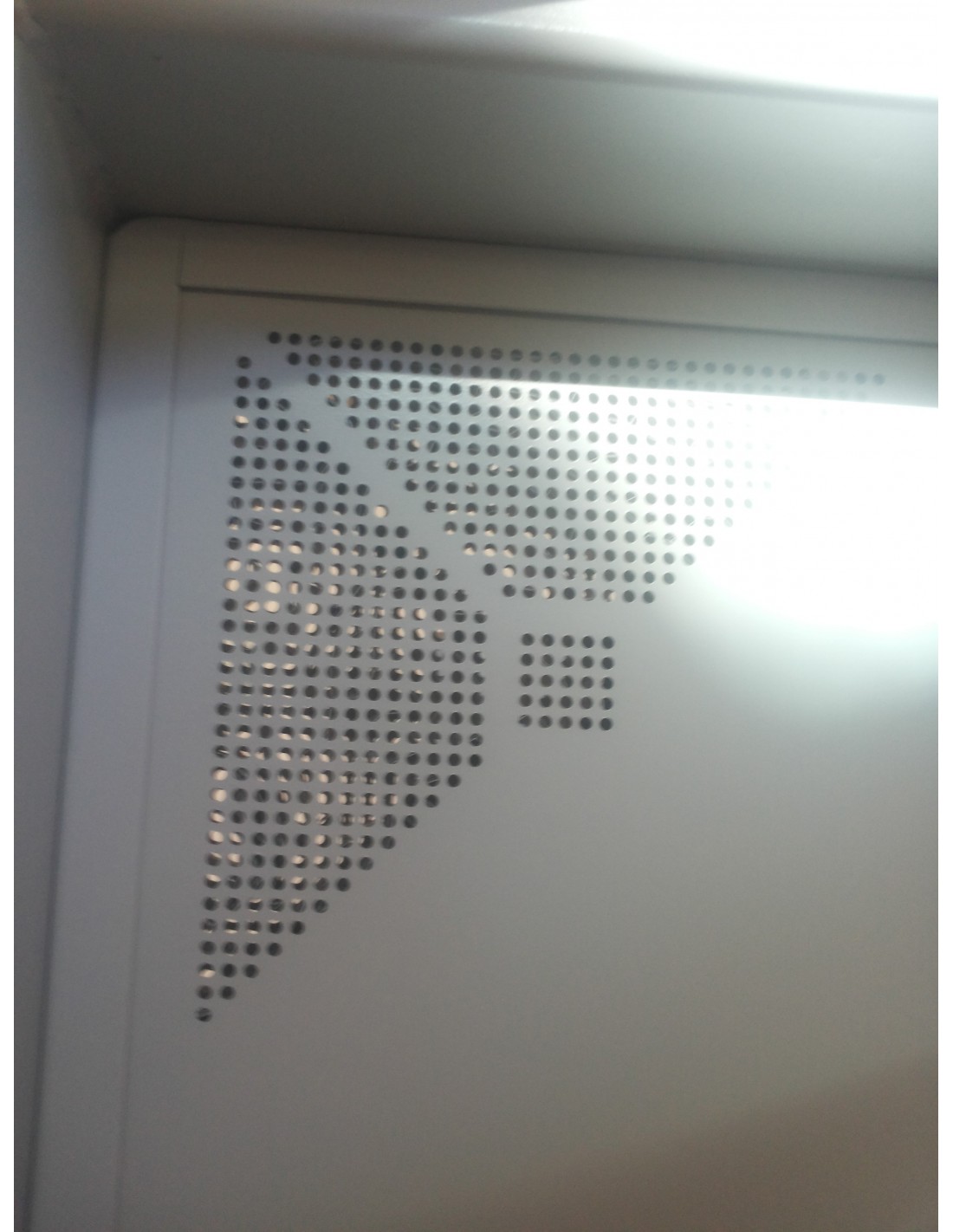

It is provided with ventilation holes.
The doors can accept optional equipment such as panic bar, panic lock, security lock, automatic reset mechanism, etc.
Simple metal storage door, non-fireproof.
It features high-quality construction and flawless finish, fully galvanized and painted in RAL colors. It is an excellent solution for professional spaces and private auxiliary spaces.

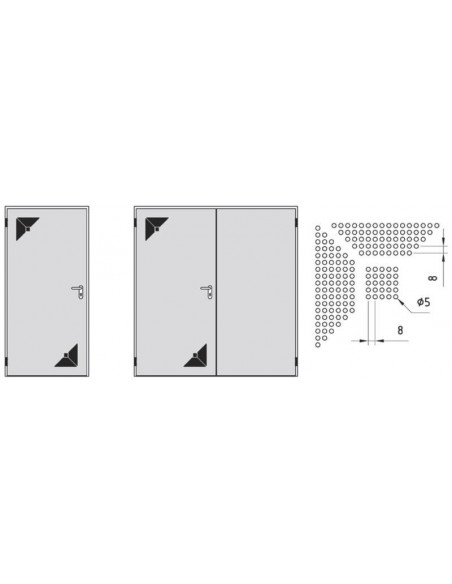

Provided with ventilation holes.
The doors can accept optional equipment such as panic bar, panic lock, security lock, automatic reset mechanism, etc.
Each simple metal storage door is delivered ready for installation, with assembled frame and cover trim. The door is accompanied by the lock, handle, as well as installation and maintenance instructions.
*Simple metal storage doors are available in other RAL colors and wood finishes and in other dimensions for special constructions, upon request.

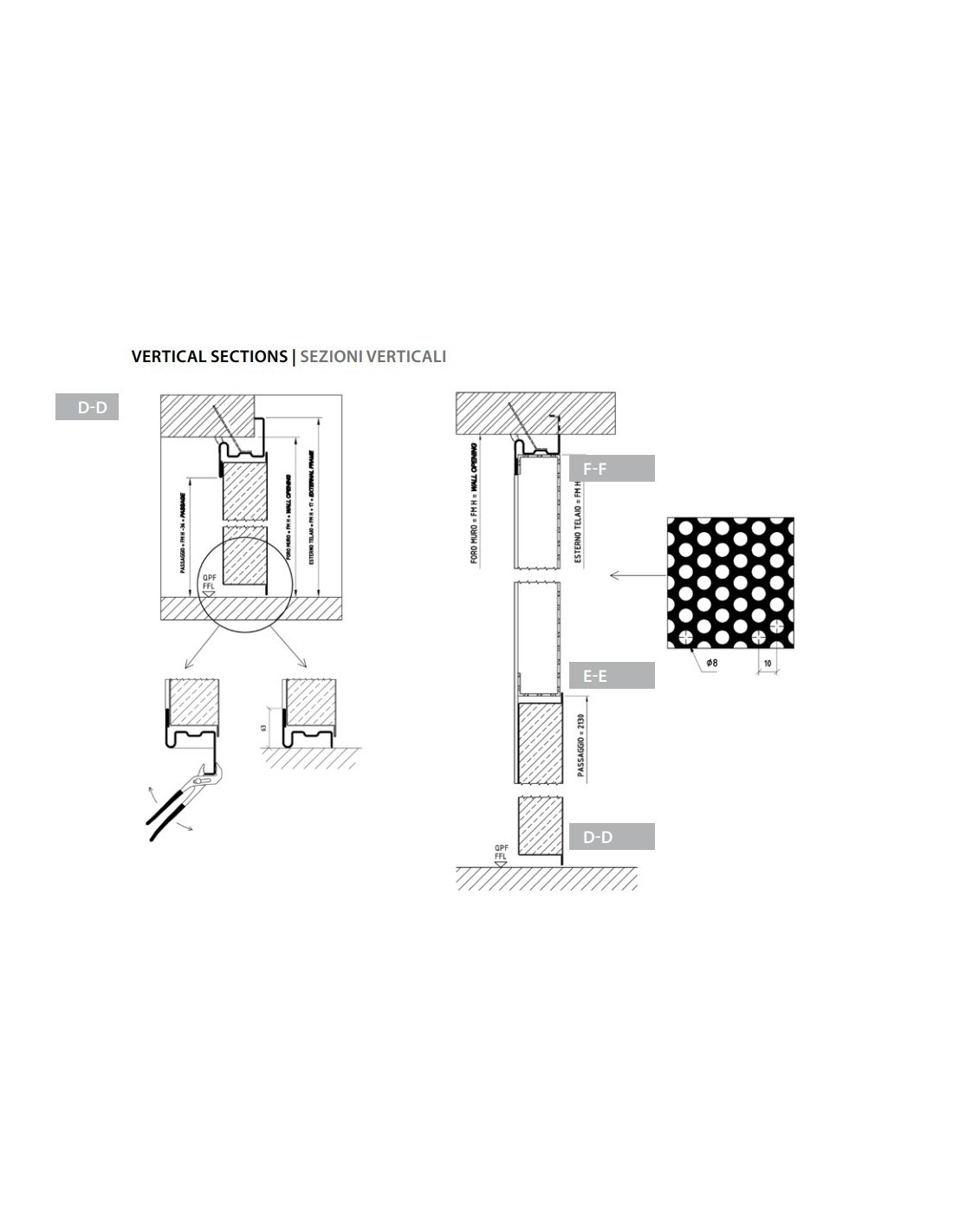

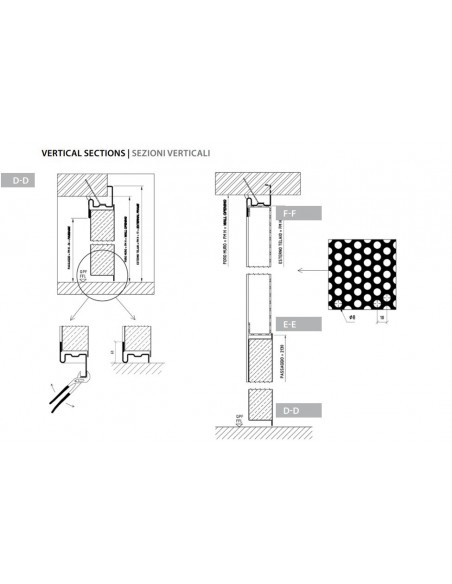

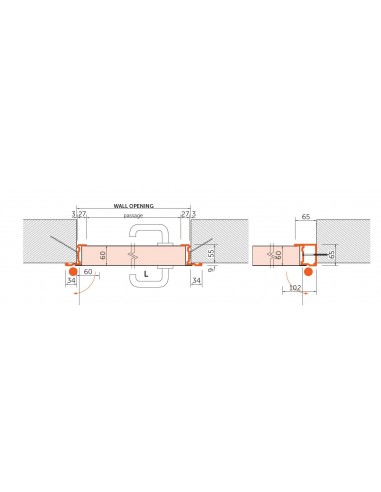

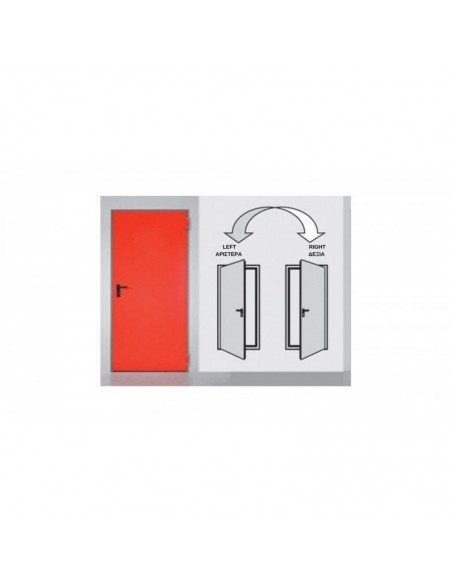

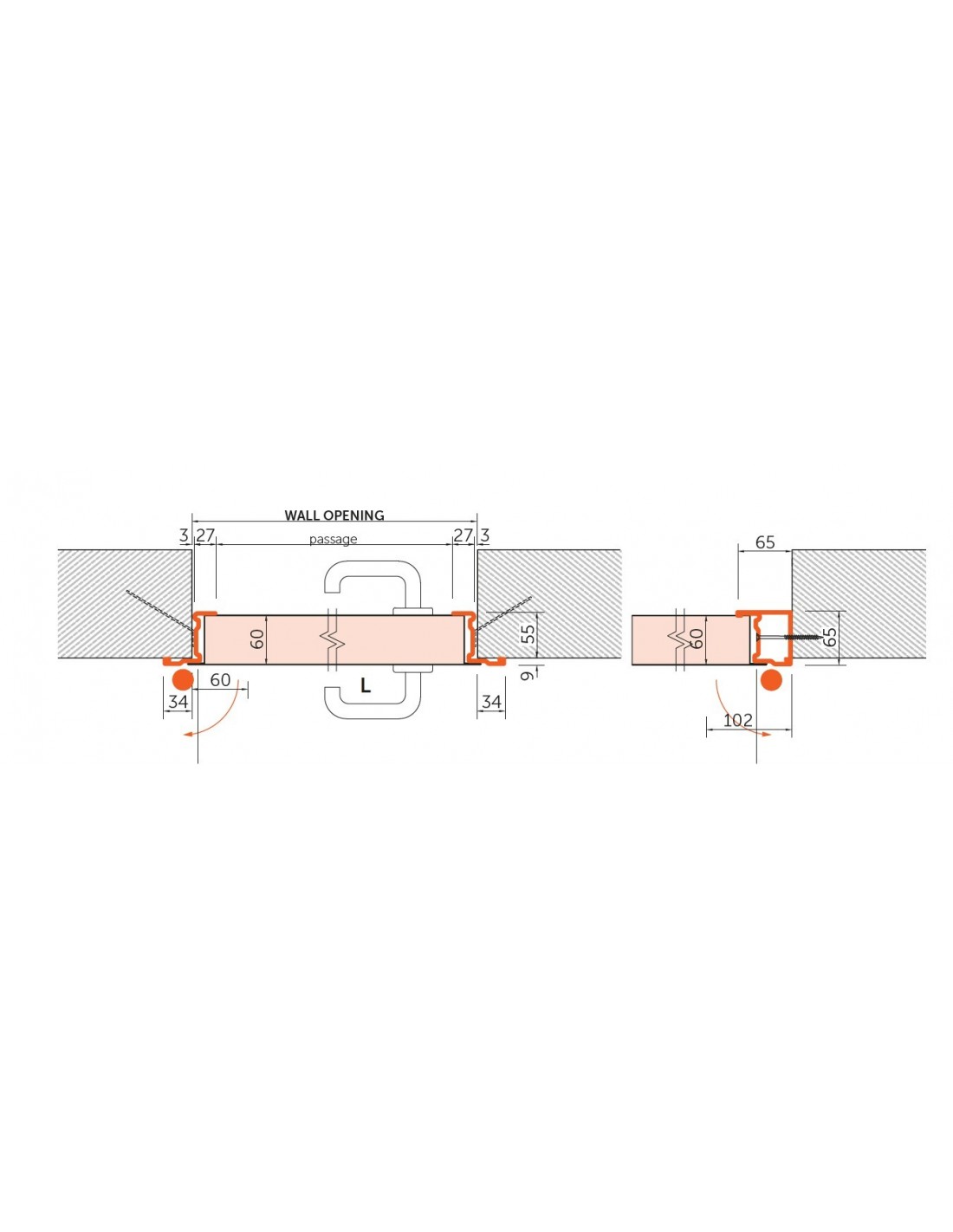

Installation Methods:
With Hinges
With Connectors
Dimensions:
SIMPLE SINGLE LEAF METAL DOOR |
|
(L) WIDTHmm |
(H) HEIGHTmm |
700 |
2050 |
800 |
2050 |
900 |
2050 |
1000 |
2050 |
1100 |
2050 |
1200 |
2050 |
1300 |
2050 |
1350 |
2050 |
700 |
2150 |
800 |
2150 |
900 |
2150 |
1000 |
2150 |
1100 |
2150 |
1200 |
2150 |
1300 |
2150 |
1350 |
2150 |
SIMPLE DOUBLE LEAF METAL DOOR |
|
(L) WIDTHmm |
(H) HEIGHTmm |
1200(800+400) |
2050 |
1300(900+400) |
2050 |
1400(700+700) |
2050 |
1600(800+800) |
2050 |
1800(900+900) |
2050 |
2000(1000+1000) |
2050 |
1200(800+400) |
2150 |
1300(900+400) |
2150 |
1400(700+700) |
2150 |
1600(800+800) |
2150 |
1800(900+900) |
2150 |
2000(1000+1000) |
2150 |
COLOR OPTIONS:
1) STANDARD COLOR RAL 7035
2) RAL 1013, 9010
3) RAL 3000, 5010, 6000, 7004, 7024, 7038, 9002, 9011, 9018
4) RAL 1018, 1037, 2003, 2004, 3004, 5002, 5012, 6003, 6005, 6009, 6014, 6034, 7001, 7021, 7022, 7039, 7044, 8001, 8002, 8003, 8014, 8017, 8019, 8024, 9007

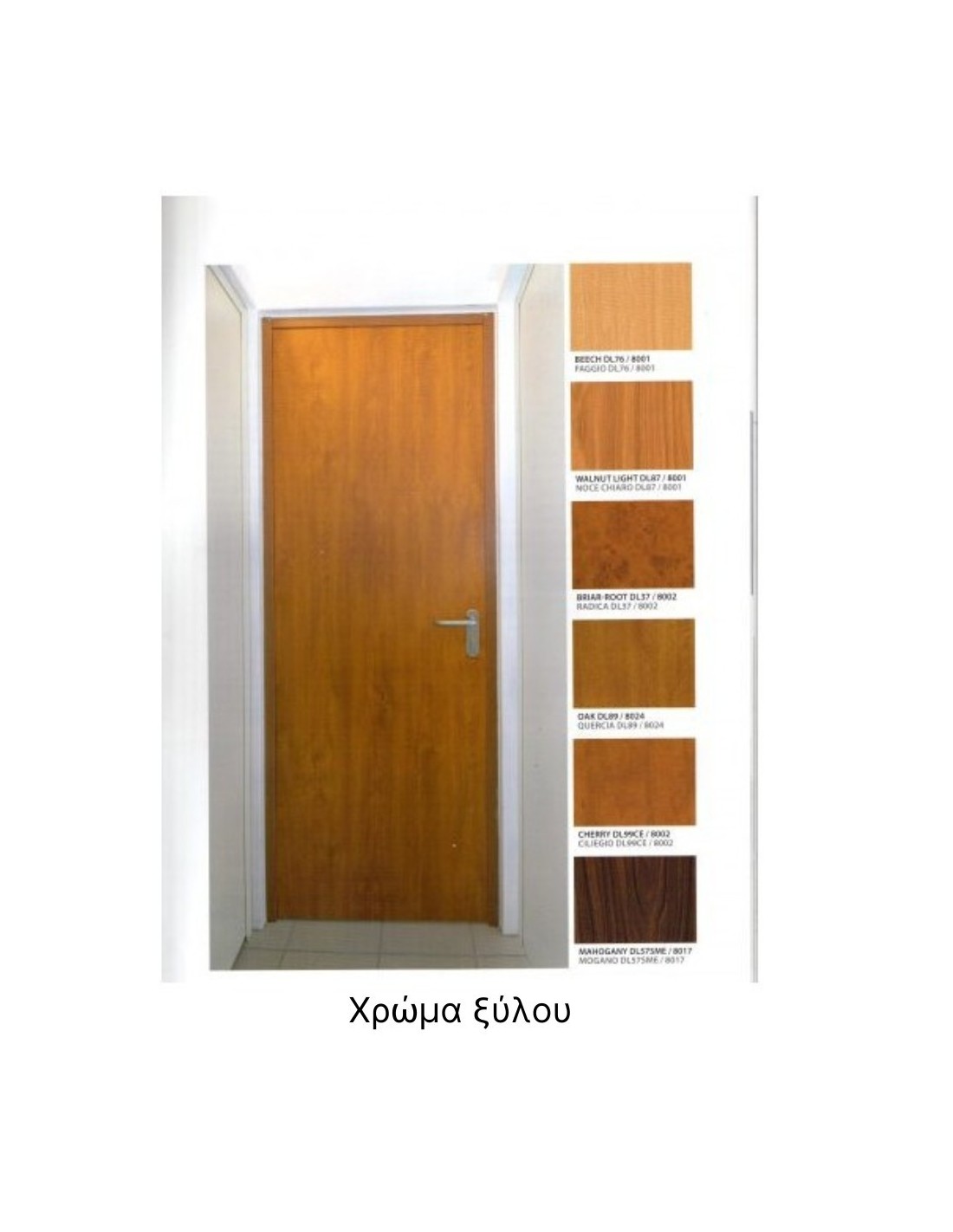

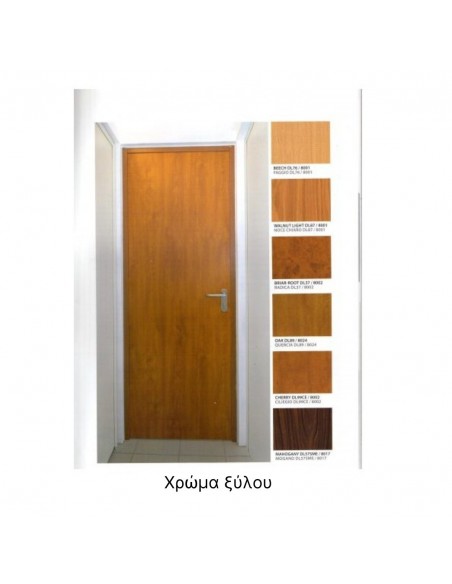

5) In the images you can see the wood shades.
