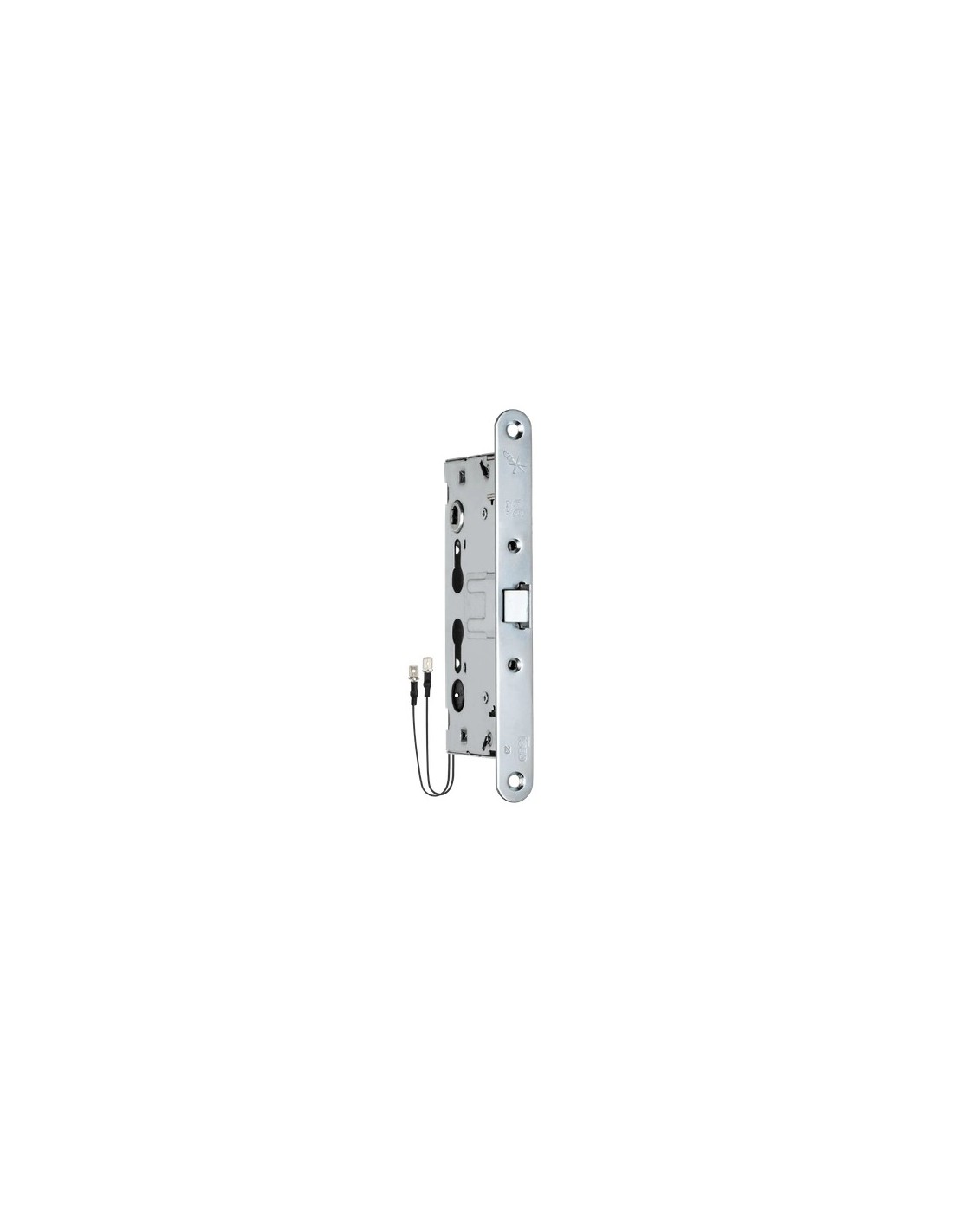

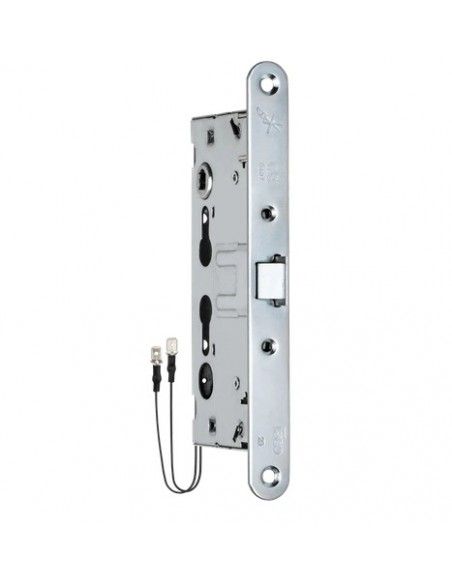

ELECTRIC PANIC LOCK FOR FIRE-RESISTANT DOOR
The 2149 fire-resistant electric panic exit lock can be installed on the main leaf and is available in a latchbolt only version. The external handle can be controlled remotely via an electronic impulse and the latchbolt can be operated in two ways: internally activated by the panic exit bar and externally activated by a handle, which is enabled by a key or electronic impulse. It can be installed on EN179 emergency doors if used in combination with 0324 series handles certified for fire-resistant doors. It is suitable for EN1125 panic doors if used in combination with panic exit bars certified for fire-resistant door
21491065*.CD/CS
Inside: latch operated by key and emergency handle.
Outside: latch retracted by key and handle, only if enabled
with key or during electric pulse.
When not enabled, the exterior handle remains idle.

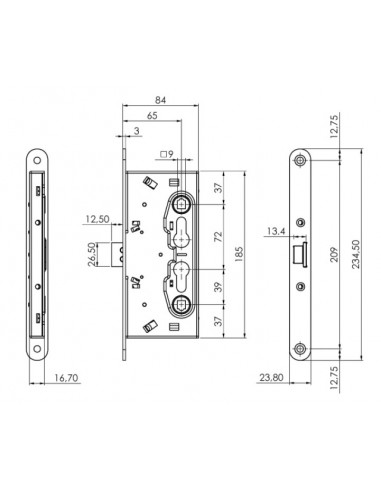

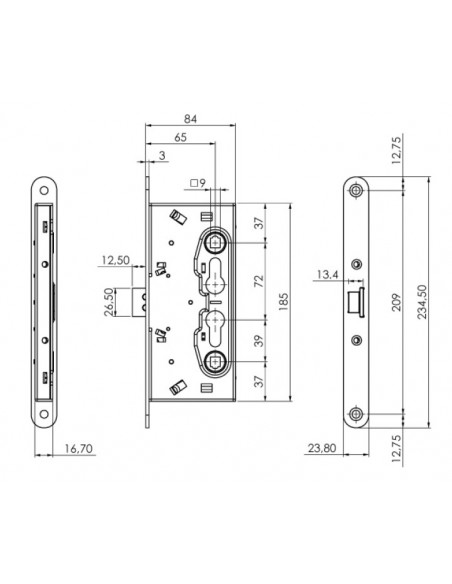

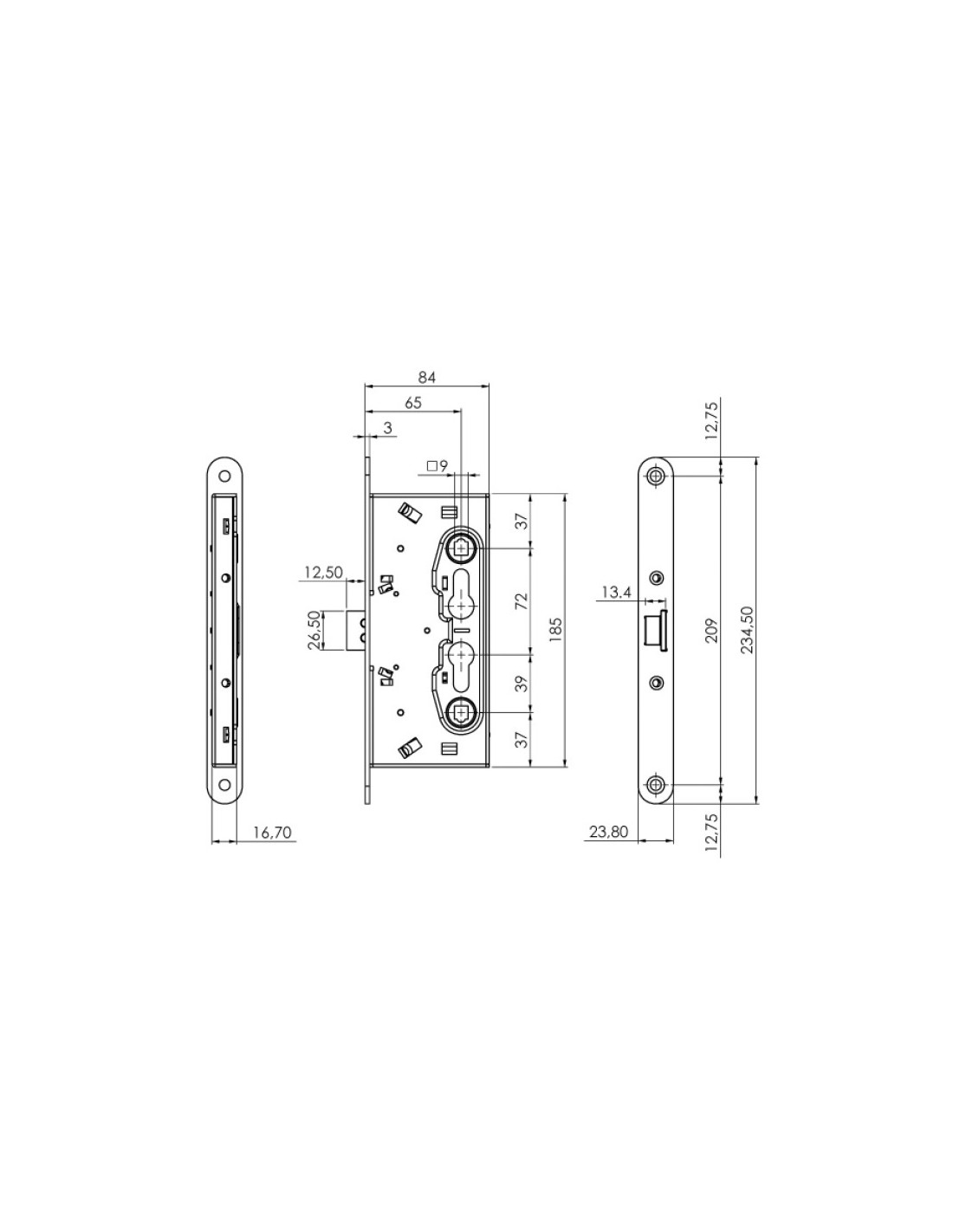

TECHNICAL FEATURES
Centre distance: 72 mm
Backset: 65 mm
Square handle 9 mm, dual Zinc-plated sintered steel latchbolt
Front plate Zinc-plated steel (option in stainless steel)
Power 12 V AC/DC, current absorption 860 mA
