Prima handle with key

Applications
Handle with cylinder and key on the handle for inward opening frames with 90˚ handle rotation. It maintains the same functional characteristics as the Euro handle with a different aesthetic line.

Contents

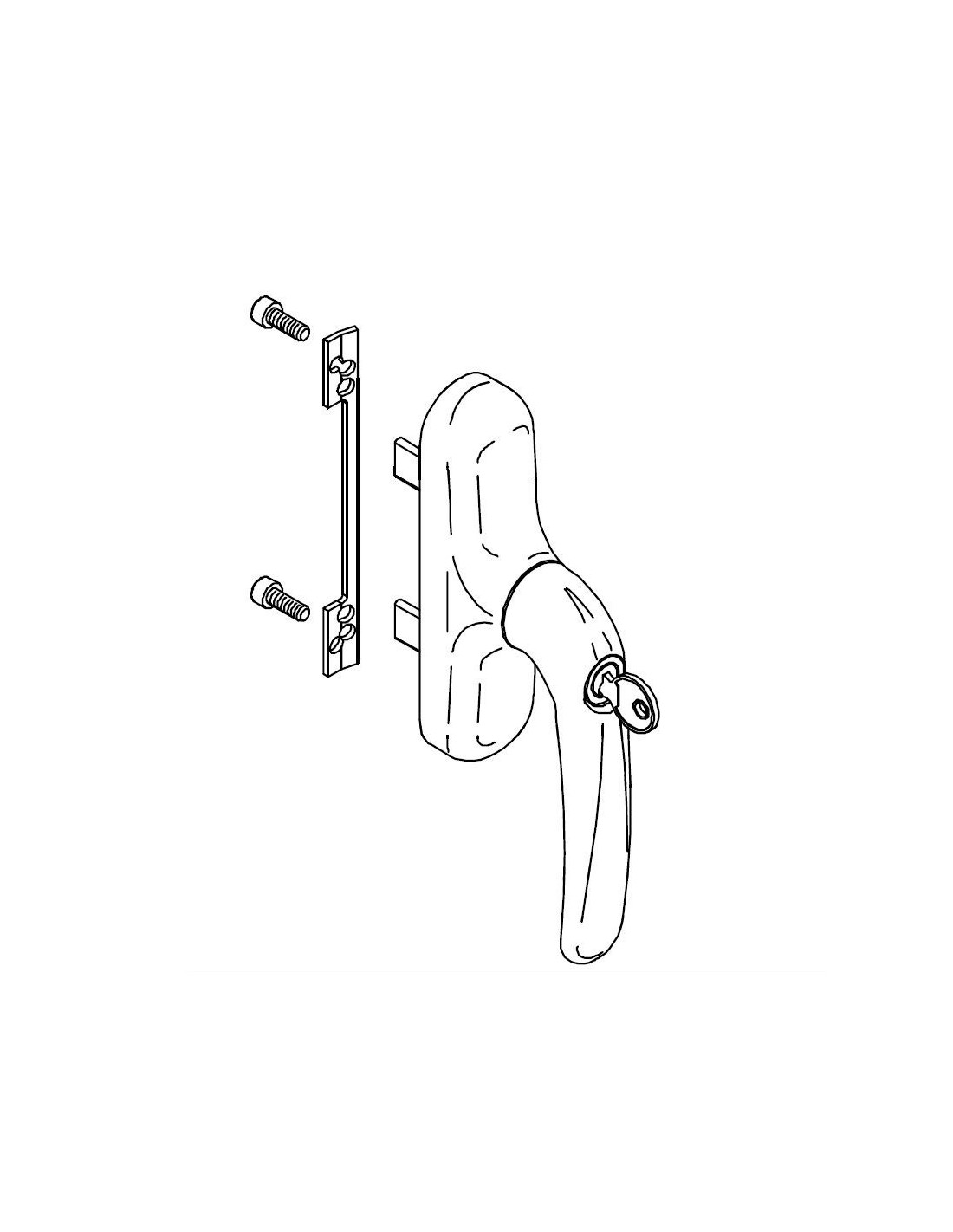

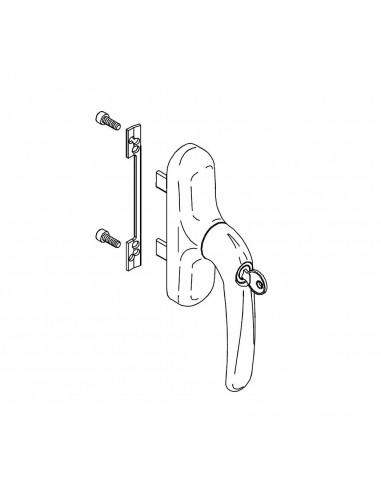

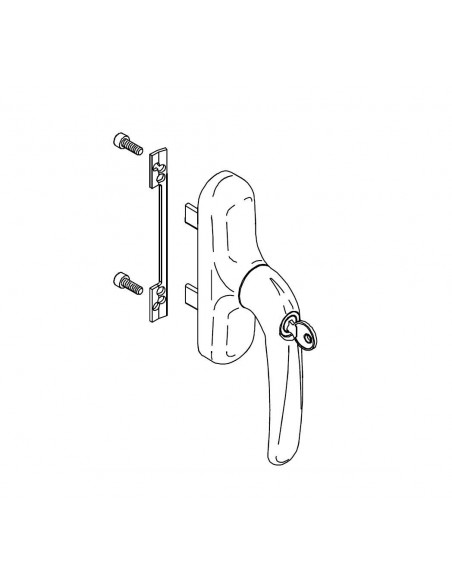

1 stabilizing plate
2 M5×14 screws
2 keys

Materials
Handle made of cast aluminium
Box, gear, and internal components made of cast ZAMAC
Cylinder made of nickel-plated brass
Inner casing and small base made of Hostaform
Spring made of steel
Screws and stabilizing plates made of stainless steel (Inox)

Available unpainted and in RAL colours

Technical characteristics
The high quality of the cast materials and the new GIESSE painting system ensure high mechanical strength, colour uniformity, and strong corrosion resistance.

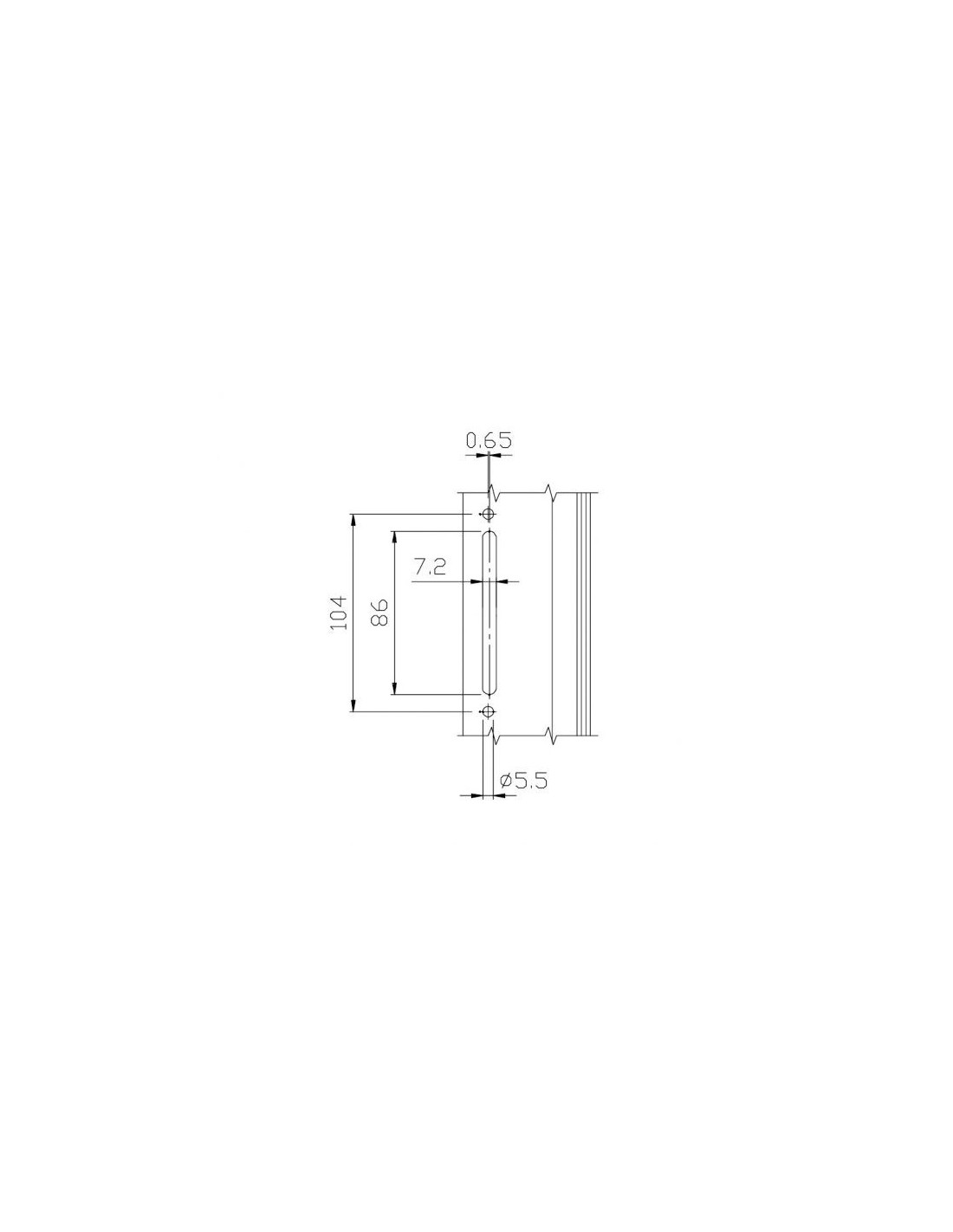

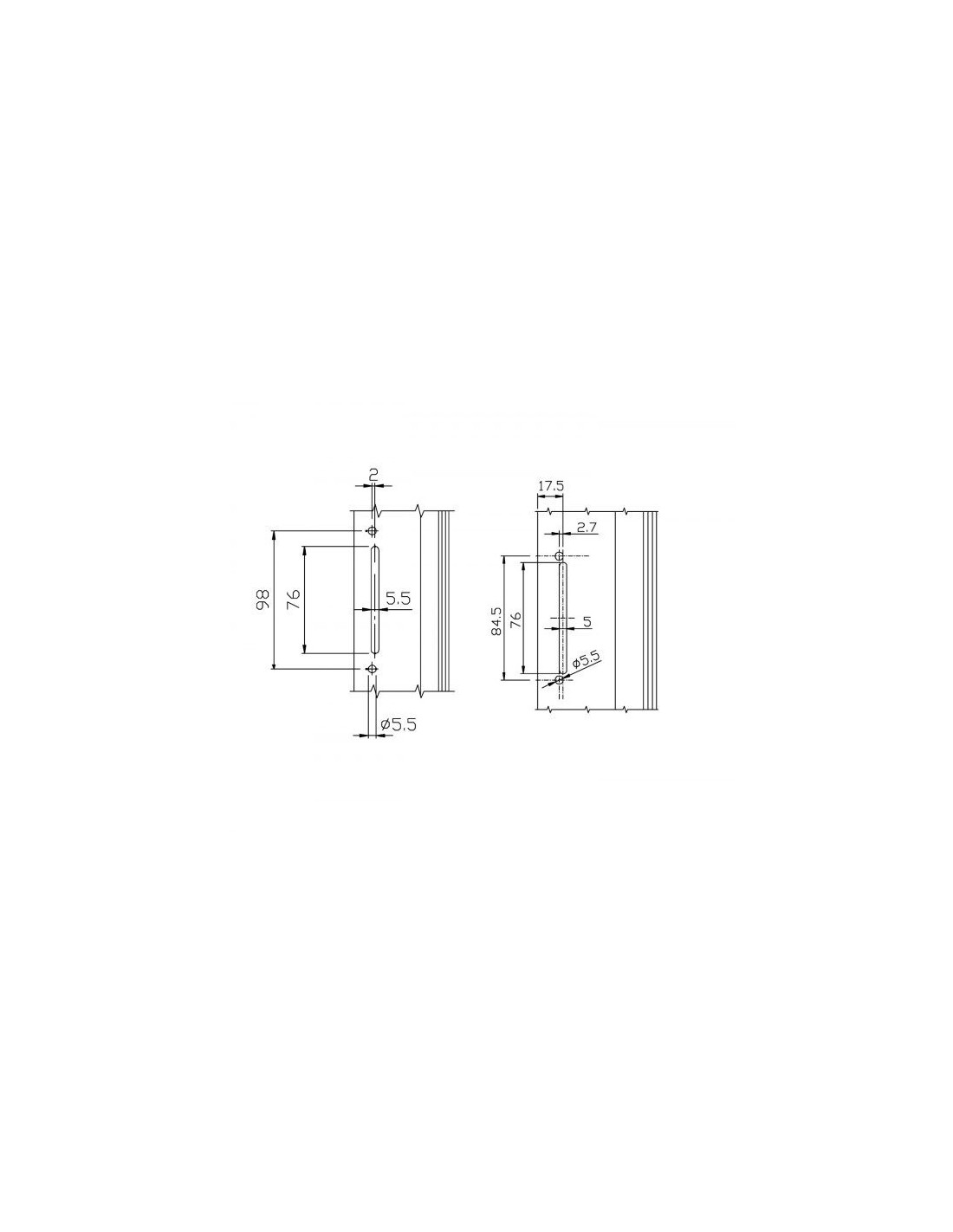

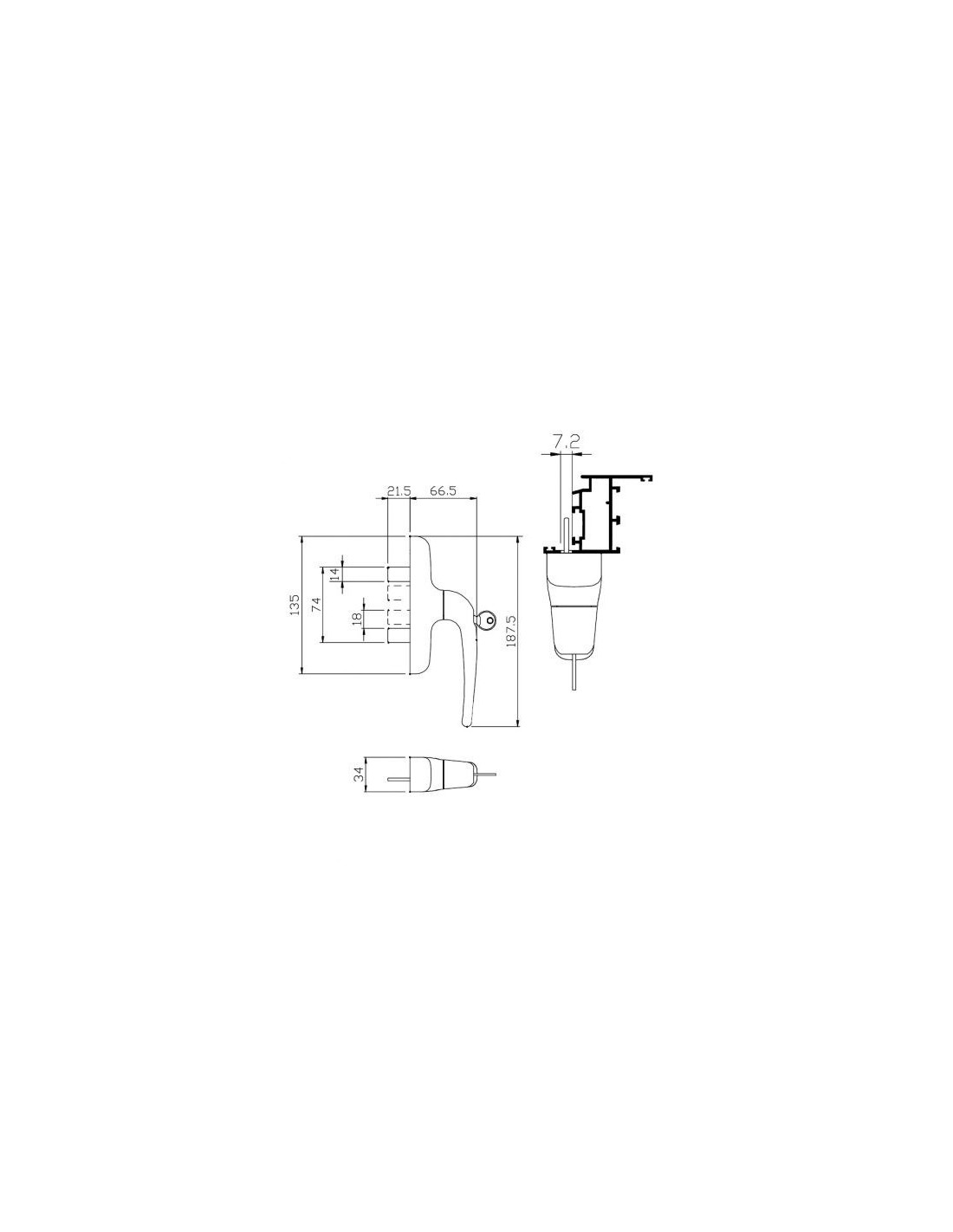

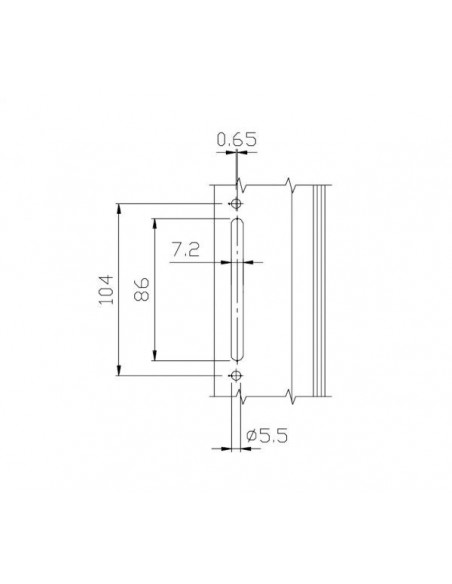

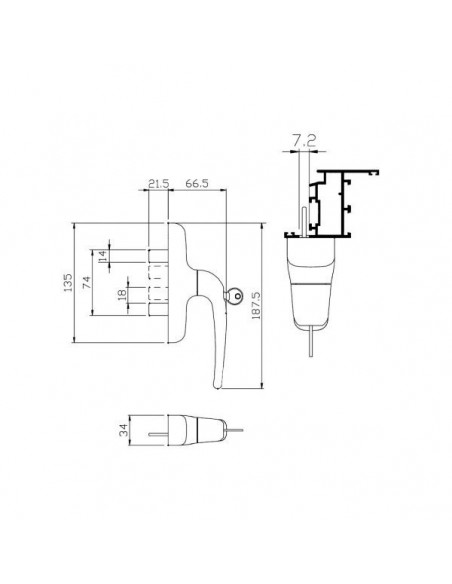

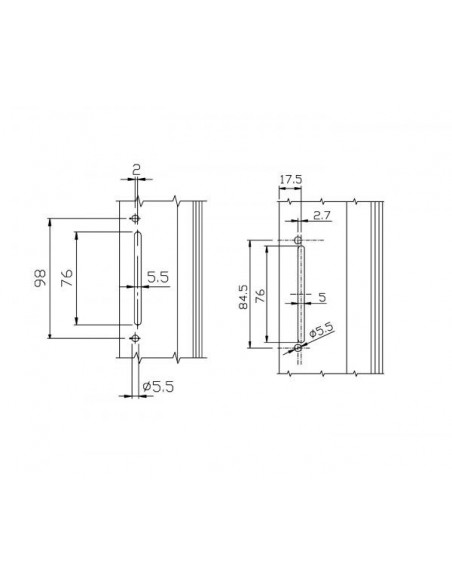

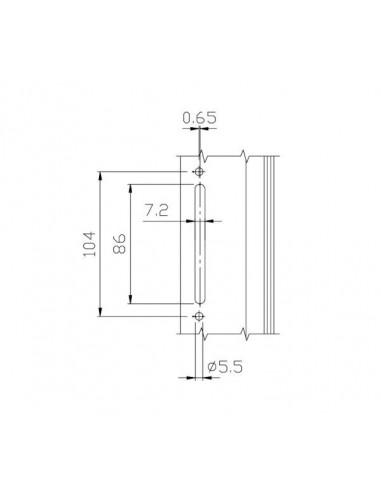

The Prima handle has dual-axis installation at 104 mm and 84 mm, but it can also be easily installed at a 98 mm axis distance.

Each product in the Prima series is individually packaged in a polystyrene case that protects it from the moment of packaging until its use.
