Single motion mechanism latch
Technical characteristics
The single motion mechanism latch consists of a control lever that transmits movement in two directions to the flat rods. The ends of the rods are equipped with adjustable end tips.
The movement of the lever is stabilized with two adjustment screws and a wedge. Therefore, profile processing is not required.
Applications
The single motion latch for mechanism is used for closing double-leaf inward-opening windows with top and bottom locking, using a single movement.
The latch is ideal for tall windows where it is difficult to install a simple latch at the top.

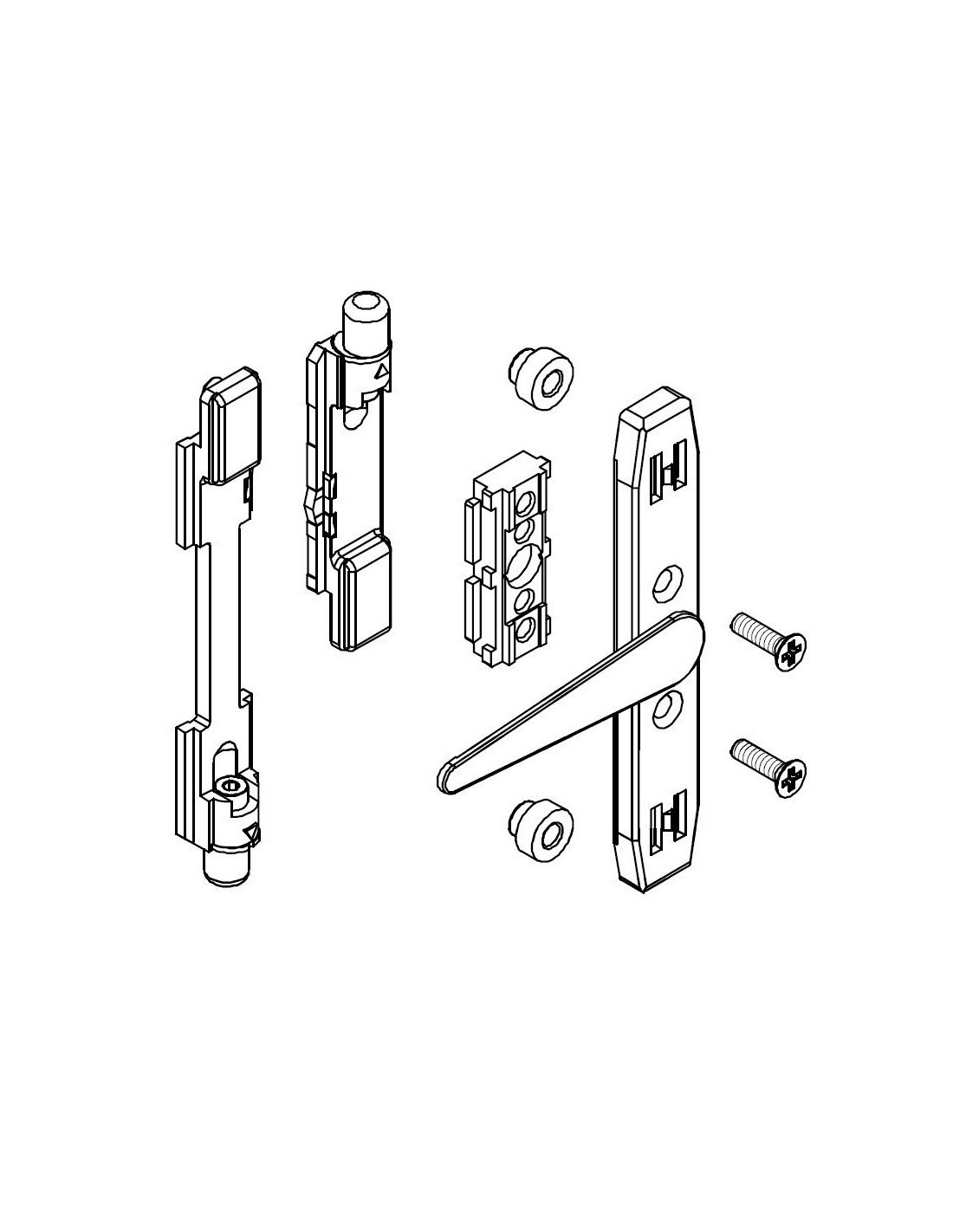

Contents
-
Wedge for securing the 2 pre-installed M5×8 adjustment screws
-
2 flat rod connection pieces
-
2 adjustable end parts
-
2 M5×14 screws
Materials
-
Two-direction lever made of Zamak GS500
-
Wedge made of black nylon with adjustable screws made of stainless steel
-
Connection pieces made of black nylon
-
End parts and tips made of Zamak GS500
-
Screws made of stainless steel
Available unfinished.
Technical characteristics

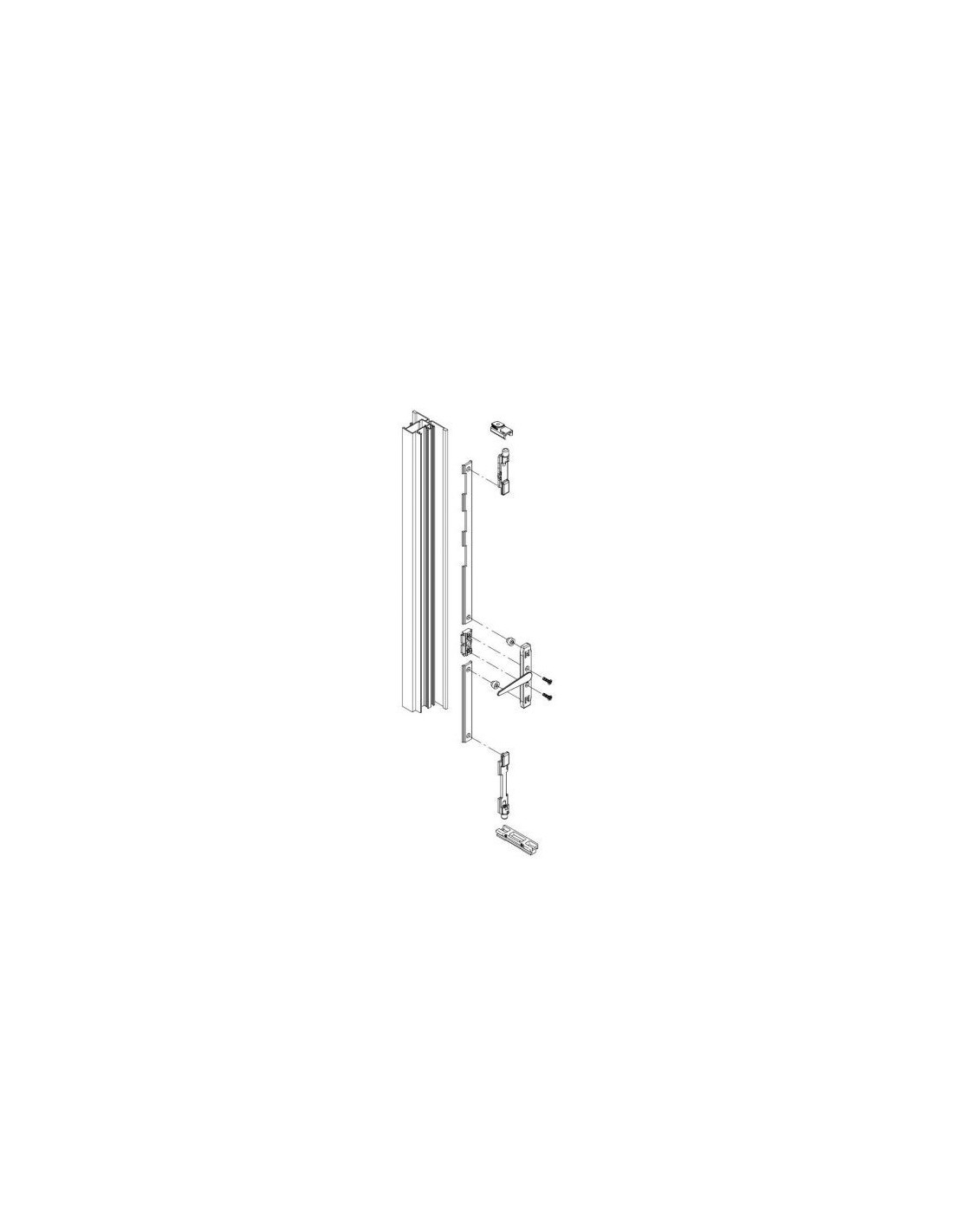

The single motion latch for mechanism consists of a control lever that transmits movement in two directions to the flat rods. The ends of the rods are equipped with adjustable end tips.
The movement of the lever is stabilized with two adjustment screws and a wedge. Therefore, profile processing is not required.

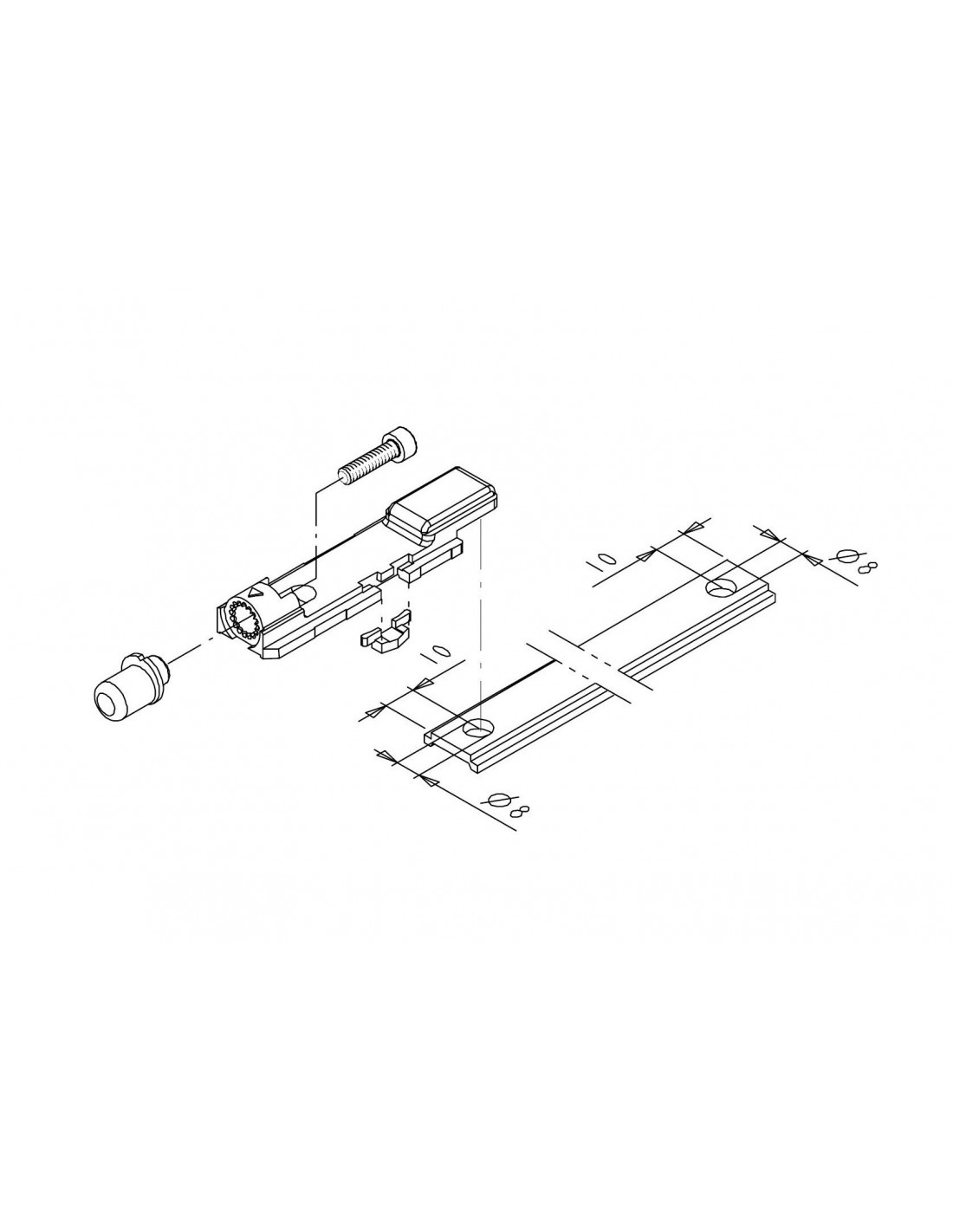

The rods, which have holes with a diameter of 8 to 10 mm, are connected to the lever by two connection pieces.
The window must have a minimum height of 615 mm.
